AVSKP

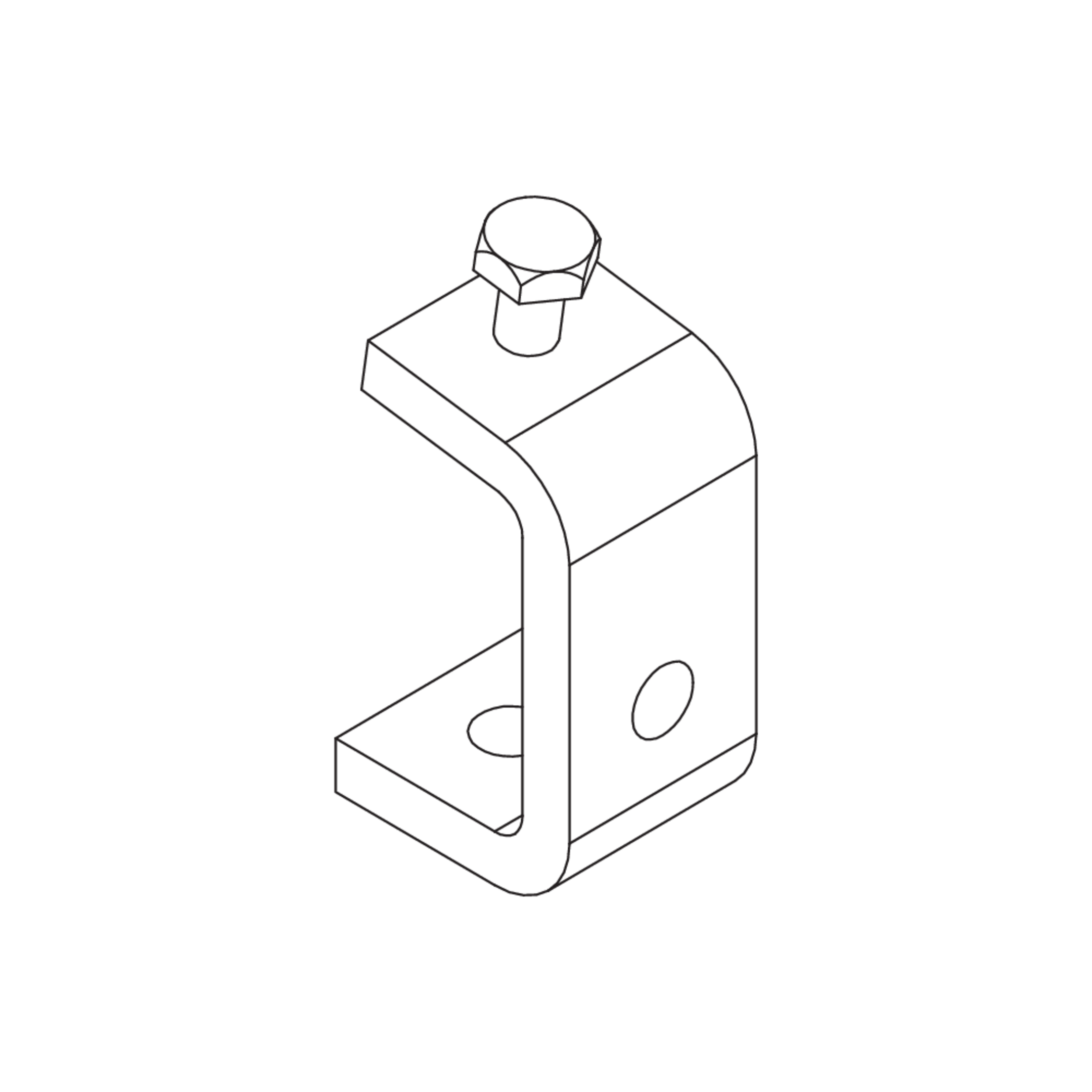

Beam clamp for mounting channels

The beam clamp AVSKP is used to attach mounting channels (A 41, KHA 41, KHAR 41, KHAL 41, KHA 42) to horizontal steel beams. The maximum flange thickness of the steel beam to be fastened is 22 mm.

The beam clamp is made of hot-dip galvanised steel. The screw is included in the scope of delivery.

Get in touchDownload datasheet

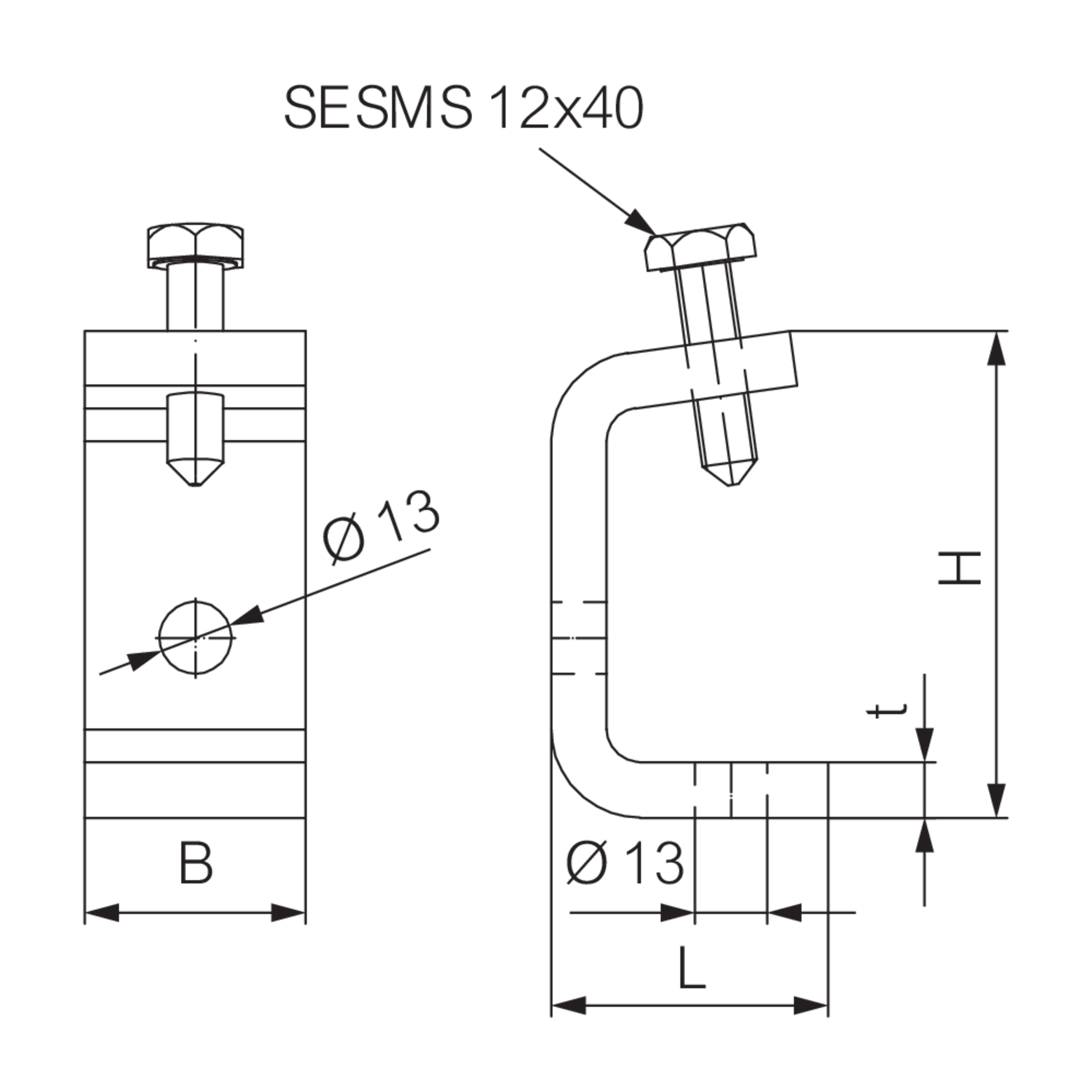

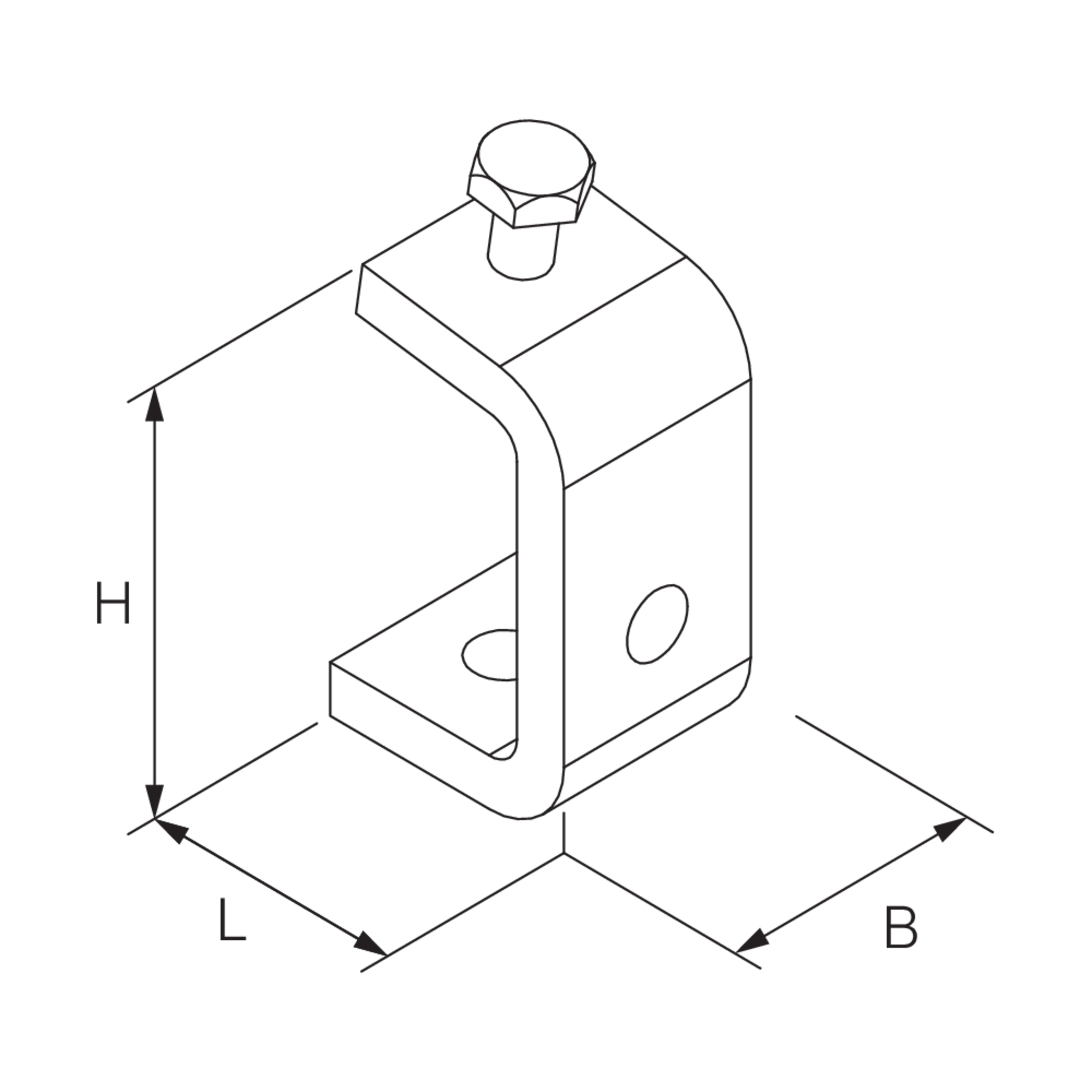

Variants

Article

H

height

B

width

L

length

t

material thickness

k

clamping range

OF

Surface finish of the item

Original manufacturer of this item

G

Weight per storage unit

  • AVSKP F
    beam clamp
    height
    88 mm
    width
    40 mm
    length
    50 mm
    material thickness
    10 mm
    clamping range
    22 mm
    Surface finish of the item
    hot-dip galvanised to DIN EN ISO 1461
    Original manufacturer of this item
    PUK
    Weight per storage unit
    0.431 kg
    More information

Tender texts

Ausschreiben.de

Tender texts for this product

Open Link
Heinze.de

Tender texts for this product

Open Link

Included accessories
