Form-stabilising counter troughs and double troughs should always be used to prevent cable deformations due to excessive point loads on the cables. Long trays are suitable for particularly pressure-sensitive cables or fragile plastic pipes as they effectively reduce the surface pressure. Waveguide/high-frequency troughs are used in combination with cable clamps to lay waveguide high-frequency cables. Signal reflections and modulations are minimised, cable damage is prevented.
Cable Troughs
GW 12-70
Counter trough, dia. 12-70 mm
GW 76-120
Counter trough, dia. 76-120 mm

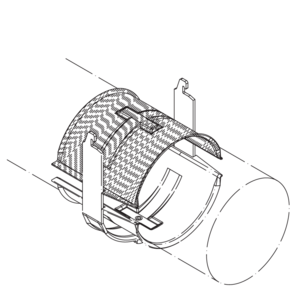

GW 150-175
Counter trough, dia. 150-175 mm

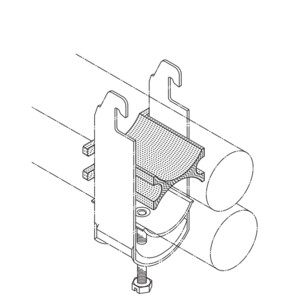

DW
Double trough

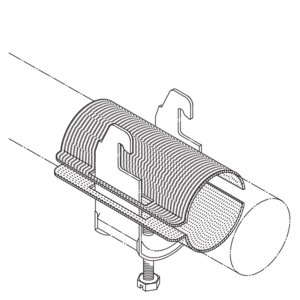

LW
Long trough

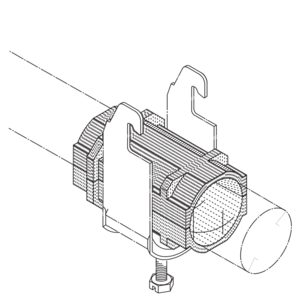

HW
HF trough
Vorteile
- Easy to assemble
- To prevent cable deformation due to excessive point loads on the cables
Downloads
de
en
es
Cable support systems - Complete catalogue
Catalogue for cable trays, mesh cable trays, cable ladders, wide-span systems, vertical ladders, floor ducts, cable clamps, cable support troughs, rigid conduits, marine cable ladders, support systems, fastening accessories and more.
