The C profile channels are available in unperforated and perforated versions as well as profile C+ and C60° (A/KHA) or C profile (B/KHB). They are extremely versatile in terms of how they can be used in support systems. They serve as a basis for attaching cable clamps and are suitable for use as construction profiles.
C-Profile Rails

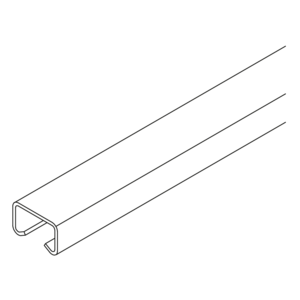

A 2
50x31 mm profile rail, unperforated

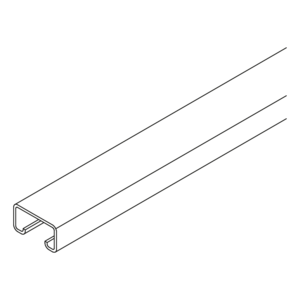

A 4
48x26 mm profile rail, unperforated

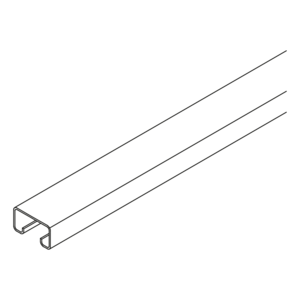

A 7
39.5x22 mm profile rail, unperforated
A 8
40x22 mm profile rail, unperforated
A 9
40x25 mm profile rail, unperforated
KHA 2
50x31 mm profile rail, perforated
KHA 4
48x26 mm profile rail, perforated
KHA 7
39.5x22 mm profile rail, perforated
KHA 8
40x22 mm profile rail, perforated
KHA 9
40x25 mm profile rail, perforated

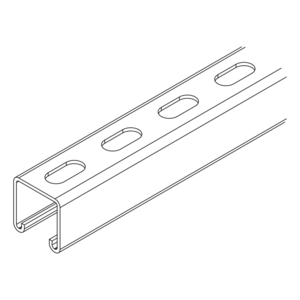

KHA 41
41x41 mm profile rail, perforated
B 3
28x12 mm profile rail, unperforated
B 6
28x15 mm profile rail, unperforated
B 7
30x15 mm profile rail, unperforated
KHB 7
30x15 mm profile rail, perforated
KLTSU
Universal rung support clamp fastening

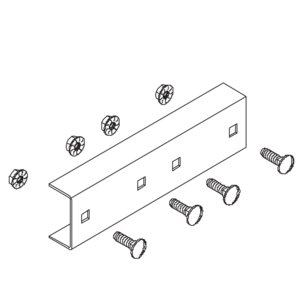

ASK 4
Connector, A/KHA 4

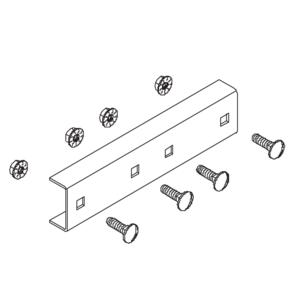

ASK 8
Connector, A/KHA 7/8/9

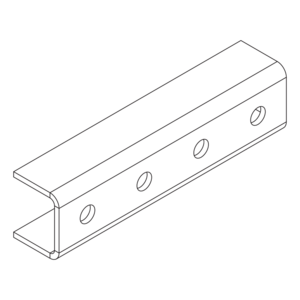

AV 41
Connector, A/KHA 21/41/42/82

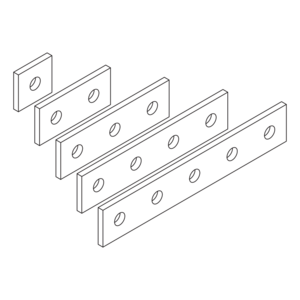

AVL
Rail connector

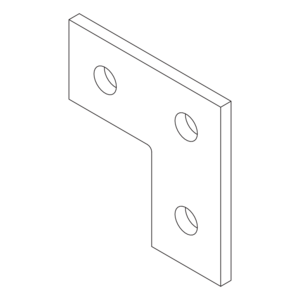

AVE
Rail connector, corner

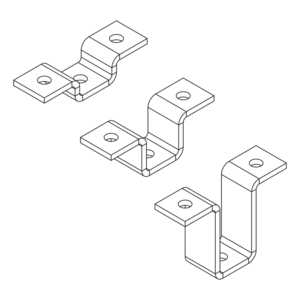

AVB
Rail connector bracket

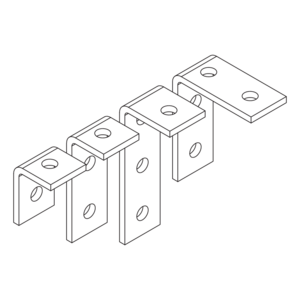

AVLW
Channel connector, 90°

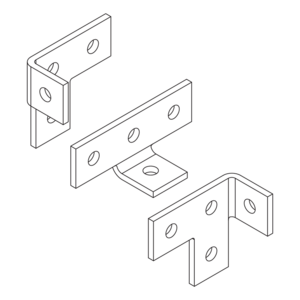

AVAW
Rail connector bracket

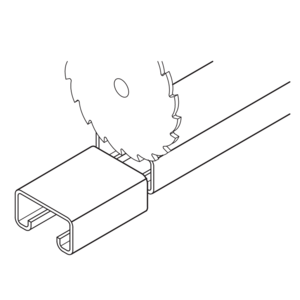

PRS
Cross section
RL
Hole
LGL
Slot
