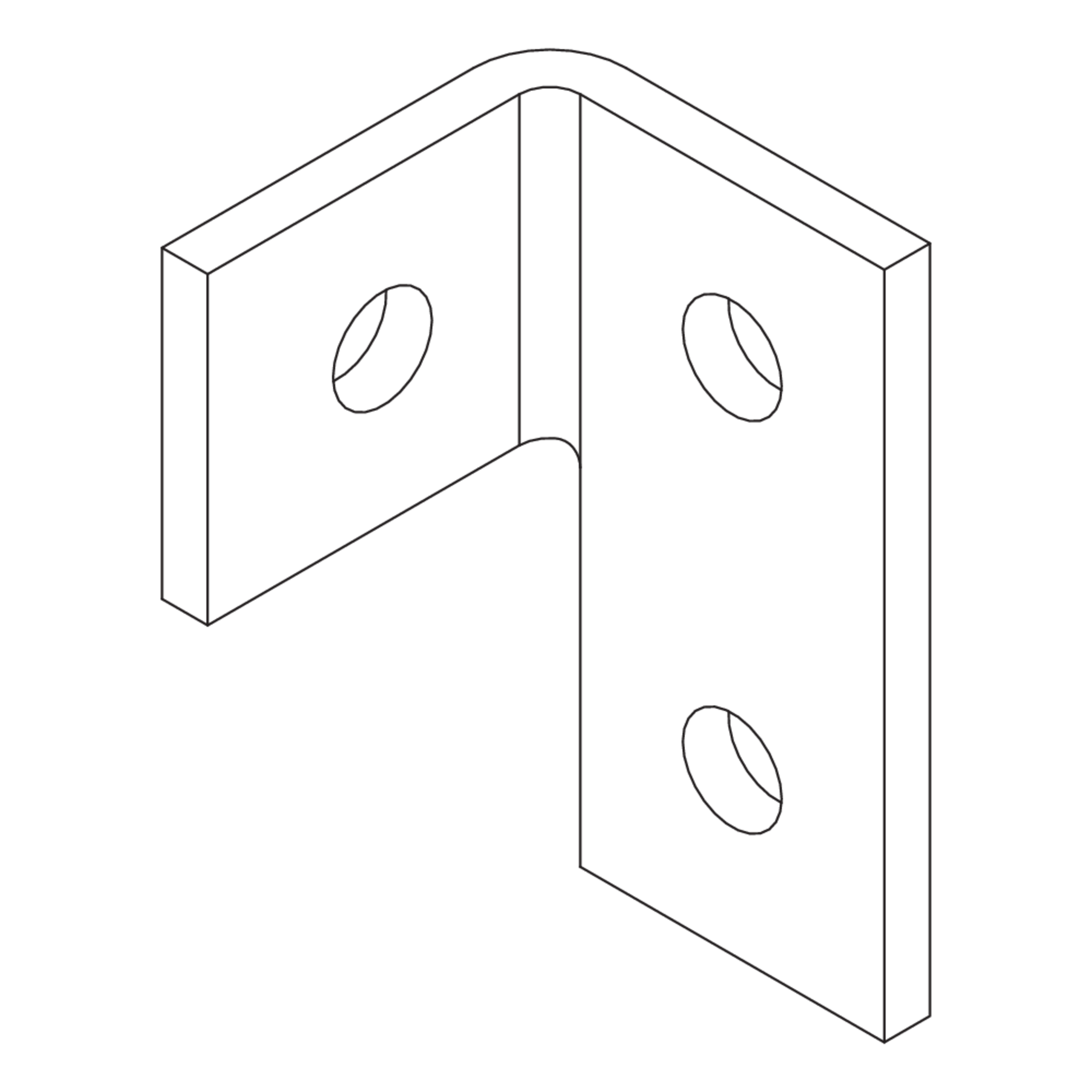

Left-hand channel joint connector

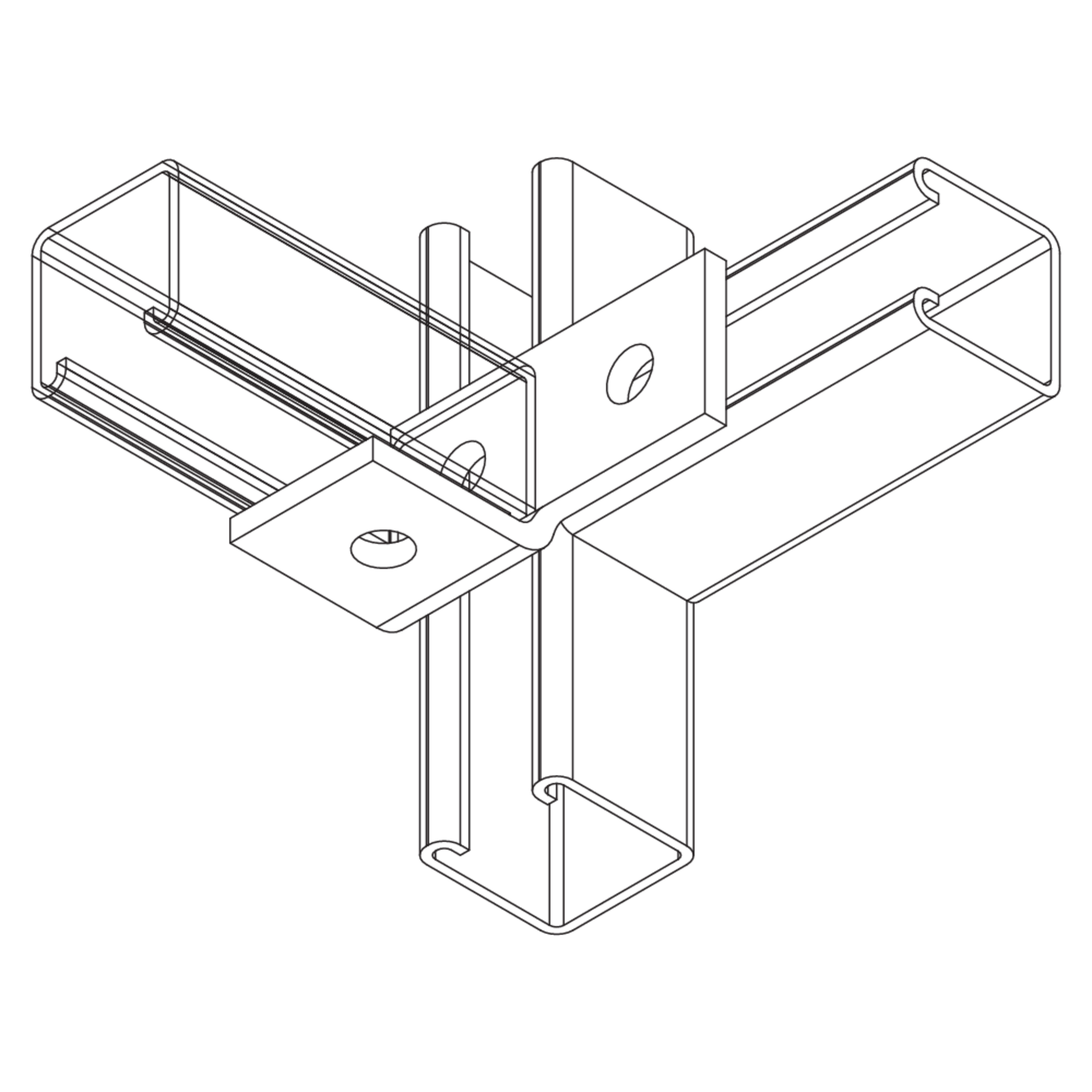

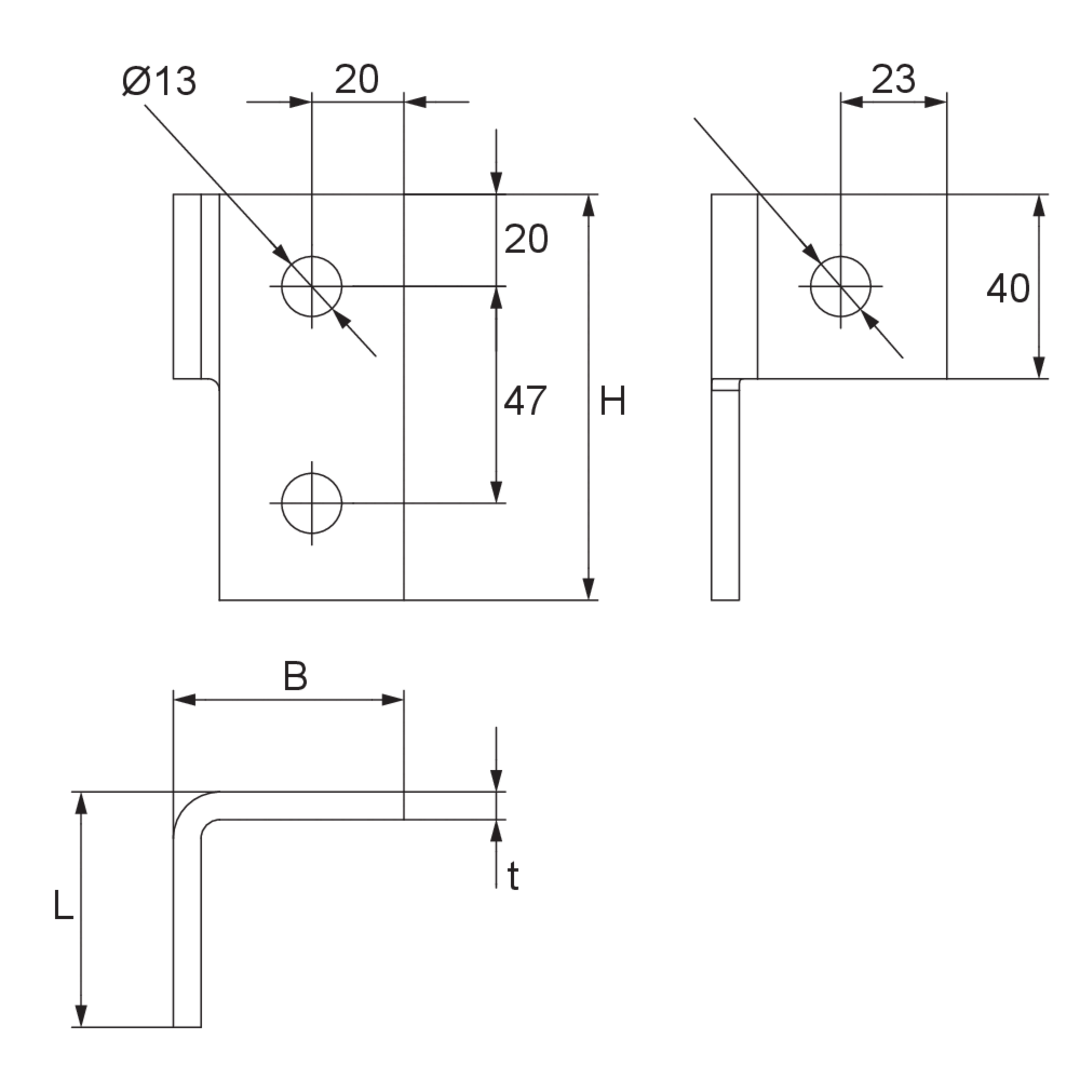

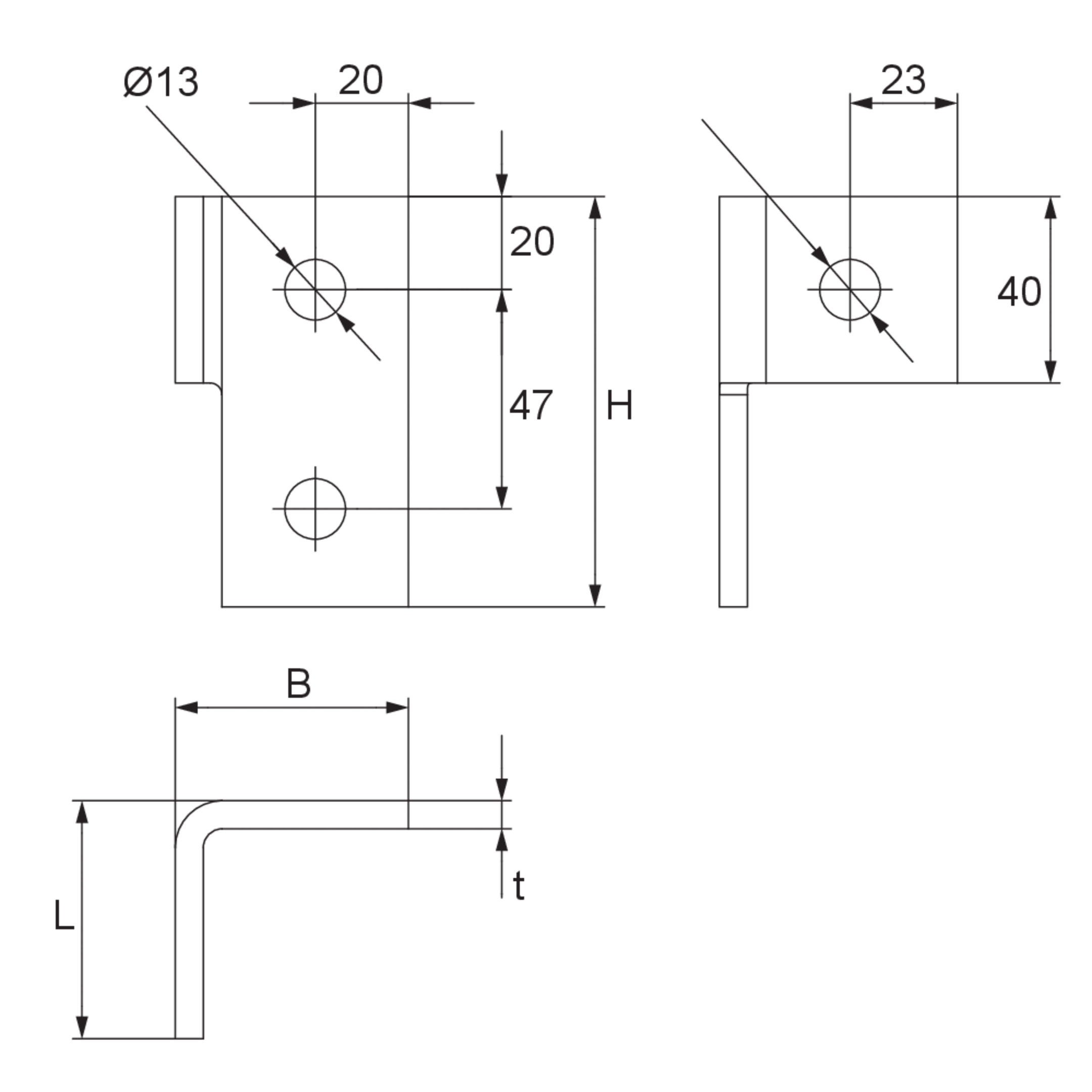

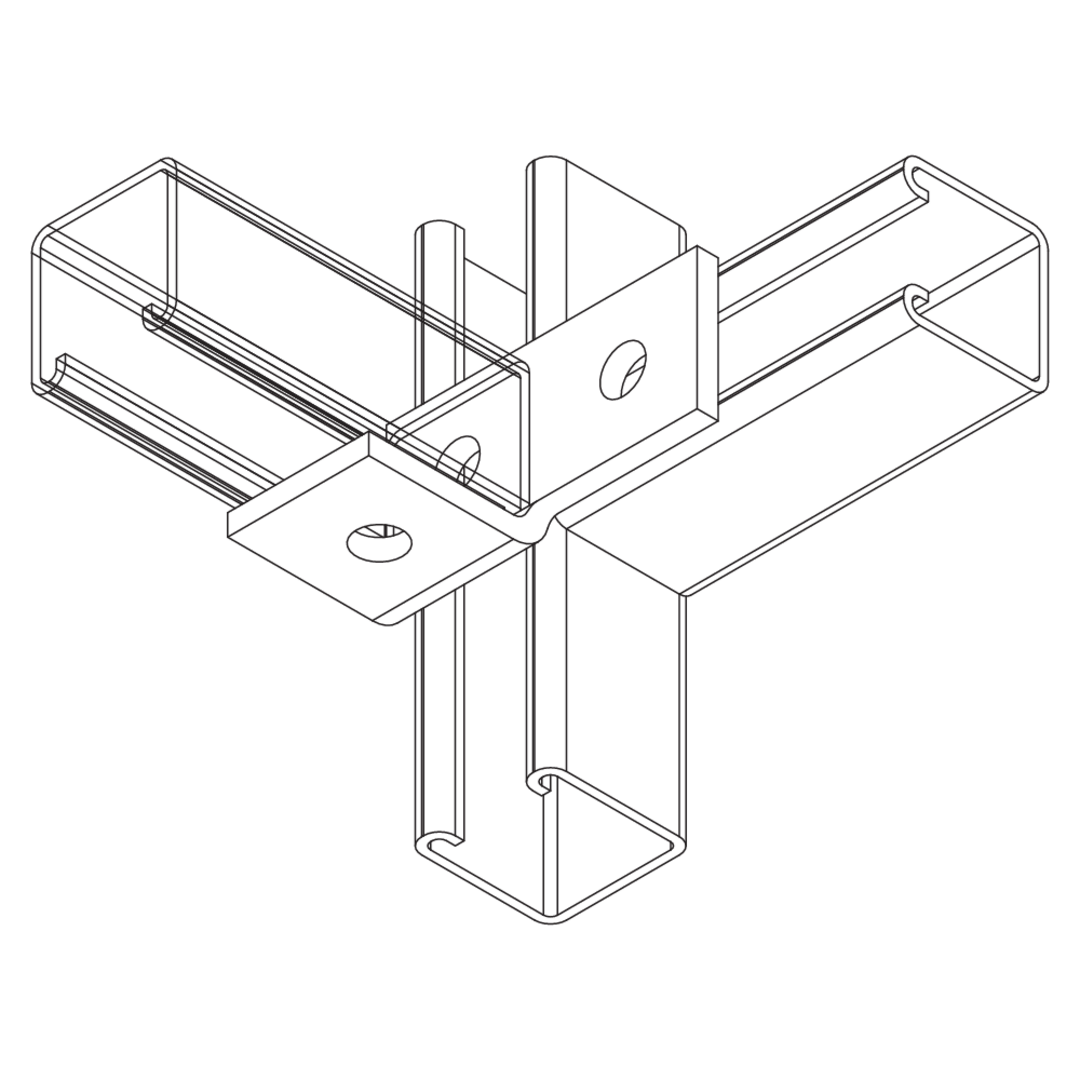

The left-hand channel joint connector AVE-L is used to connect three mounting channels (A 41, KHA 41, KHAL 41), one continuous channel and two in a T-joint. The two joints are vertical, orientated to the left of the continuous channel. It has fixing holes with Ø 13 mm and is made of hot-dip galvanised steel. Fastening accessories must be ordered separately, depending on the application.

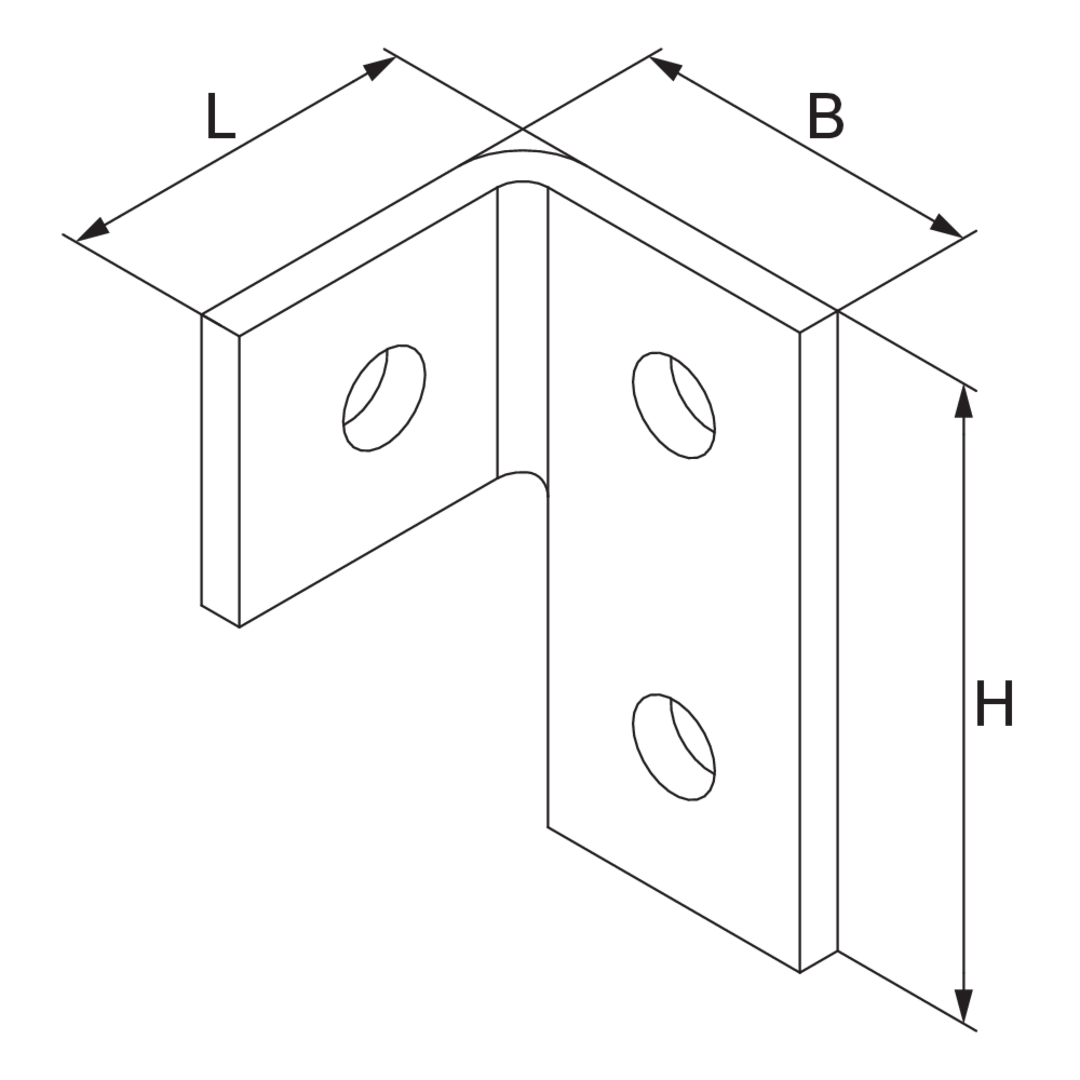

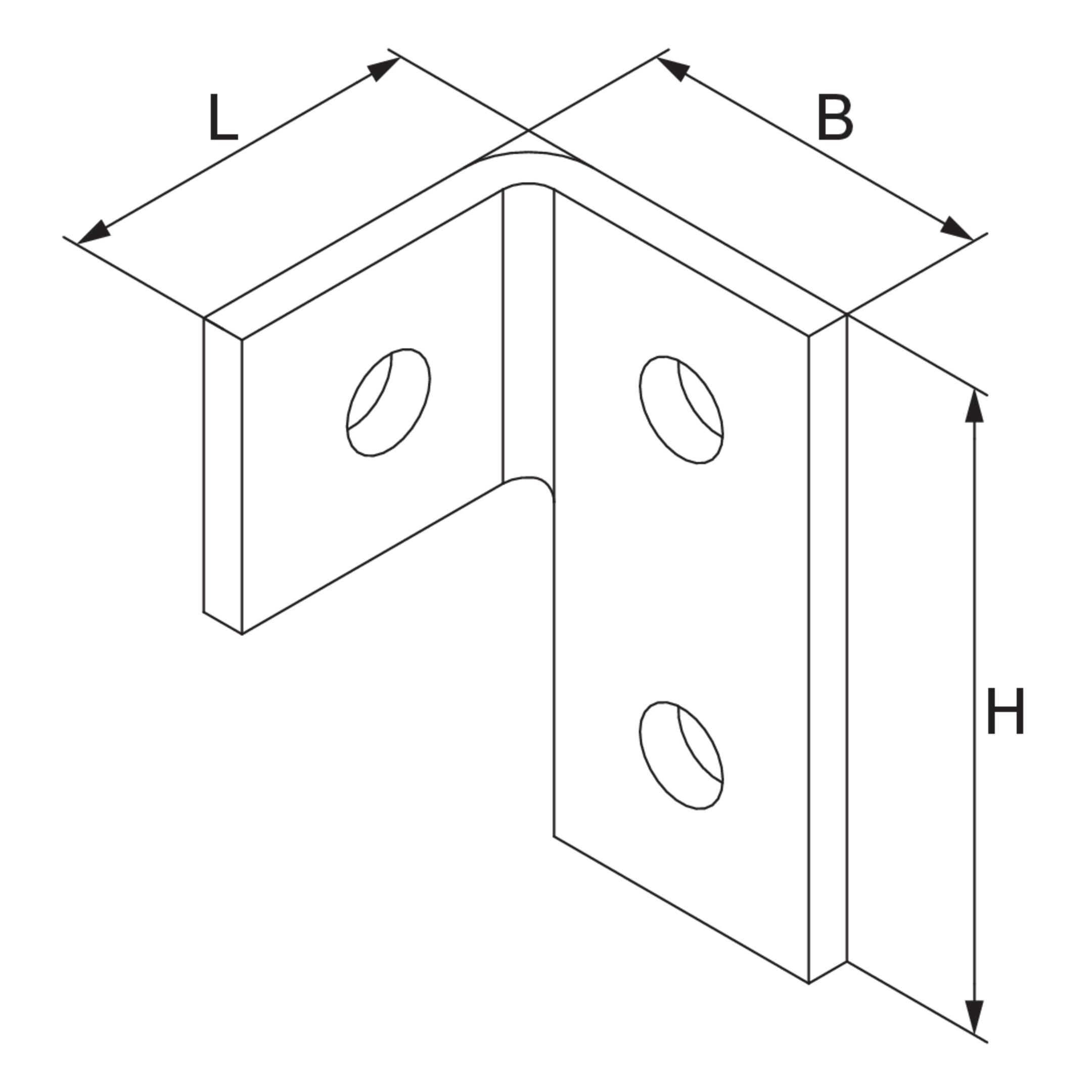

H
height
B
width
L
length
t
material thickness
W
Angle
G
Weight per storage unit
de
en
Technical information
de
en
Assembly instructions for KWLL, KSLW, KWF, KWW, KW, KWMS; KWS, KWSS, KIS, KISS, GBAG, GBAR, MA, KDU, BGU, KSLW, KDAG 41, BGA 41, TBS
de
en
Compact overview for KHA 21, KHA 41, KHA 82, KLUGW, SKL A, BGUD, BLD, BGA 41, BGA 41/2, KA 30, KA 41, KDAG 41, AVSK, AVSKH, AVSKGB, AVSKA, AVRS, AVLW, SAI 41, SA 2, BGF 41, BGF 82, KLUGS, KHAD 22, AVLK, AKL 41, AVL, AVLW 45, GK-A, AVLWBF, AVBLA, AVA, AVB, AMK 22, AVE, AVBL, AVAW, AVLWB, AVT, BL 5
de
en
ru
Valid from February 1st, 2026
de
en
Valid from February 1, 2026
