The PUK G U-shaped mesh cable trays can be used for neat and tidy cable routing. Cables and lines can be fed in and out at any time and anywhere thanks to the mesh structure. Mesh cable trays can be installed quickly and easily using the mesh cable tray connectors and clamps. Horizontal and vertical changes of direction are also no problem. The optional covers provide additional protection against contact, UV radiation or dirt.
G Mesh Cable Tray, U-shaped

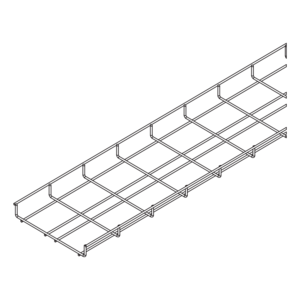

G 35
Mesh cable tray, U-shaped, height = 38 mm

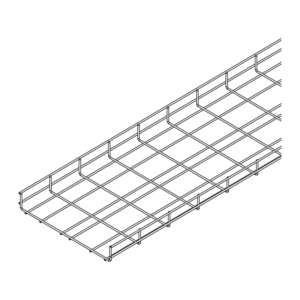

G 50
Mesh cable tray, U-shaped, height = 53 mm

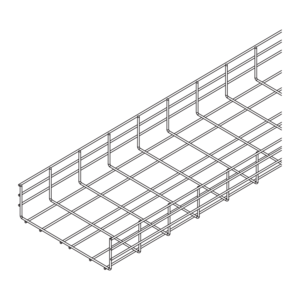

G 100
Mesh cable tray, U-shaped, height = 103 mm
Vorteile
- Can be used for various cable types and diameters
- Cables can be fed out in any direction and at any time
- Excellent cable ventilation due to mesh structure
- Suitable for indoor and outdoor areas and especially in data centres, raised floors or ceilings as well as chemical and food industries
- Can be customised on request, e.g.: increased zinc coating thickness or other colour coating
Downloads
de
en
de
en
de
en
es
en
de
en
de
en
Cable trays - Assembly instructions
Assembly instructions for G 50, G 100, GI, GTD 30, GTDW, GVR, GV 30, GVD 30, GVU, GVK, GV-L, GBH, GBHK, GTR, GK-A, GD, GDR, GD-SW,
Mesh cable trays - Technical information
Technical Information
Cable support systems - Complete catalogue
Catalogue for cable trays, mesh cable trays, cable ladders, wide-span systems, vertical ladders, floor ducts, cable clamps, cable support troughs, rigid conduits, marine cable ladders, support systems, fastening accessories and more.
Certificate of Compliance for PohlCon Cable Trays
Certificate Number: UL-US-2232079-1
BK, BKOS, G, GI, GIS, GTD, GTDW, LGG, LGGS, R, RG, RGS, RI, RIS, RS, WPL, WPR, Cable Tray Fittings and connectors
PDF (254.46 KB)
DownloadDownload
Price list 2026 Building extension
Valid from February 1st, 2026
Price list 2026 Building extension (Excel)
Valid from February 1, 2026
ZIP
