RI installation cable trays have much larger side and base perforations than other trays. Cables can be fed in and out at almost any point in the tray. A wide variety of elements, e.g. lights, can be attached and supplied with electricity in this way. With sides 60 mm high and various widths, the range covers most common applications. The cable trays can be installed quickly and easily. Horizontal and vertical changes of direction are also no problem. Optionally, the matching covers provide additional protection.

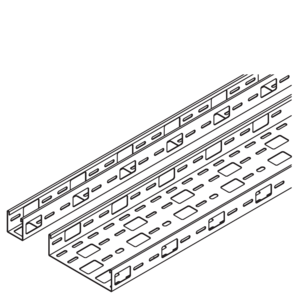

RI Installation Tray, perforated
Vorteile
- Great flexibility for routing cables in and out at almost any point in the tray thanks to the generous hole pattern
- Simple, individual application options
- Suitable for indoor and outdoor locations
- Can be customised on request, e.g.: increased zinc coating thickness or other colour coating
