PUK cable trays are a flexible, integrated cable support system in combination with the corresponding formed parts, covers, accessories and support structures. The formed parts include cable tray bends, crossings, branches, vertical bends etc. - i.e. elements that create changes in direction or modify the cable routing. The formed parts are available in various materials and coatings.
Cable Tray Formed Parts

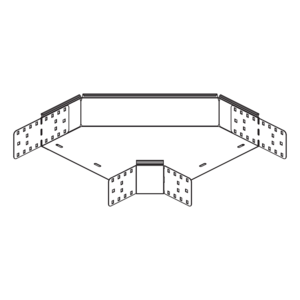

RB 35
Cable tray bend, height = 35 mm
RB 60
Cable tray bend, height = 60 mm

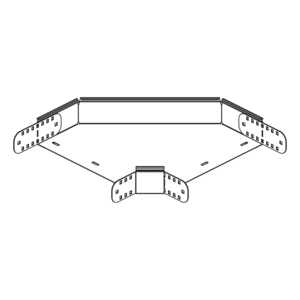

RB 85
Cable tray bend, height = 85 mm
RB 110
Cable tray bend, height = 110 mm

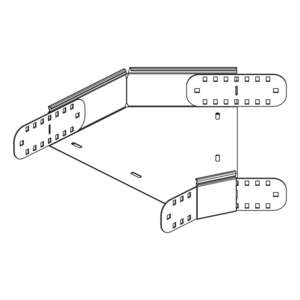

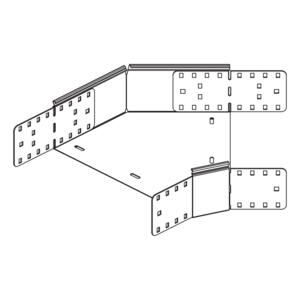

RB45 35
Cable tray bend, height = 35 mm

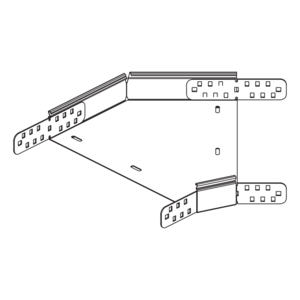

RB45 60
Cable tray bend, height = 60 mm
RB45 85
Cable tray bend, height = 85 mm
RB45 110
Cable tray bend, height = 110 mm

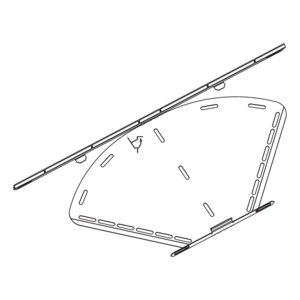

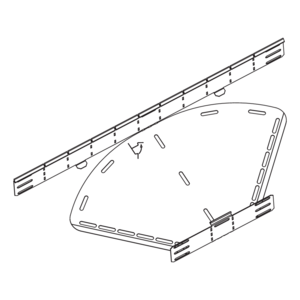

RBV 35
Cable tray bend, variable, height = 35 mm

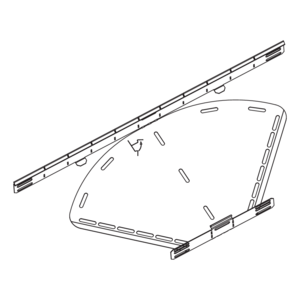

RBV 60
Cable tray bend, variable, height = 60 mm
RBV 85
Cable tray bend, variable, height = 85 mm

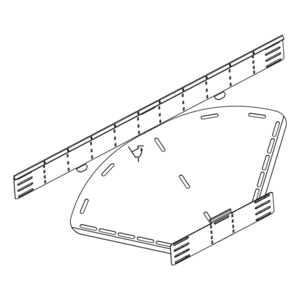

RBV 110
Cable tray bend, variable, height = 110 mm

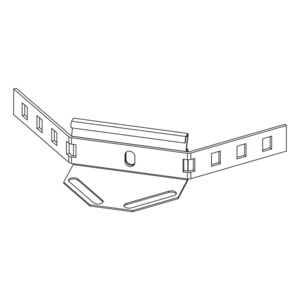

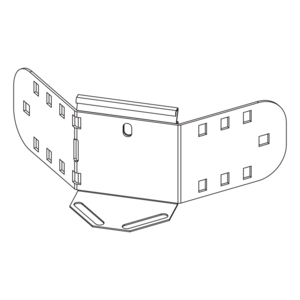

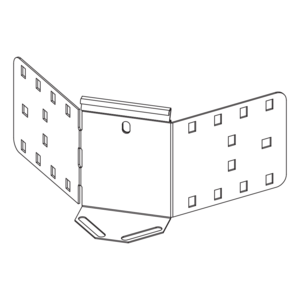

RAE 35
Cable tray attachment corner, height = 35 mm

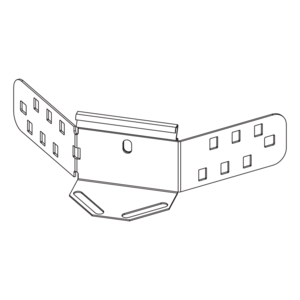

RAE 60
Cable tray attachment corner, height = 60 mm
RAE 85
Cable tray attachment corner, height = 85 mm
RAE 110
Cable tray attachment corner, height = 110 mm

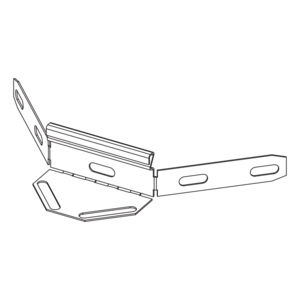

RAEV 35
Cable tray attachment corner, variable, height = 35 mm
RAEV 60
Cable tray attachment corner, variable, height = 60 mm

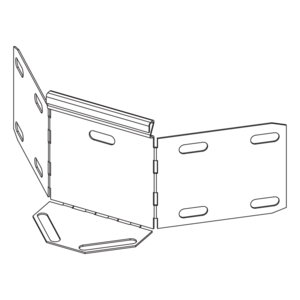

RAEV 85
Cable tray attachment corner, variable, height = 85 mm

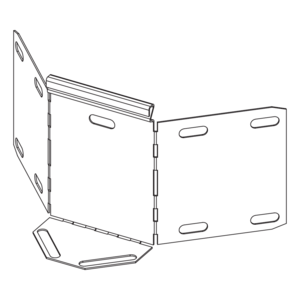

RAEV 110
Cable tray attachment corner, variable, height = 110 mm

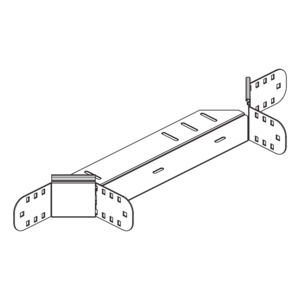

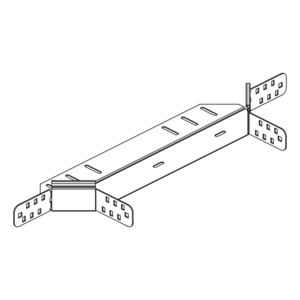

RAA 35
Cable tray add-on tee, height = 35 mm
RAA 60
Cable tray add-on tee, height = 60 mm
RAA 85
Cable tray add-on tee, height = 85 mm

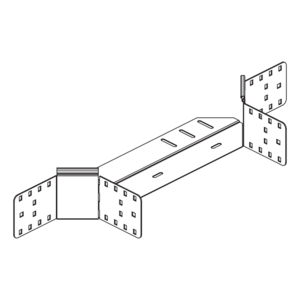

RAA 110
Cable tray add-on tee, height = 110 mm
RA 35
Cable tray tee, height = 35 mm
RA 60
Cable tray tee, height = 60 mm
RA 85
Cable tray tee, height = 85 mm

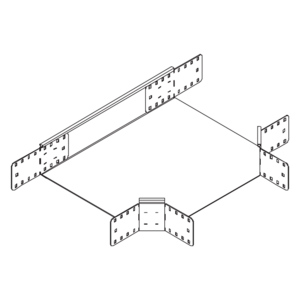

RA 110
Cable tray tee, height = 110 mm
RK 35
Cable tray crossing, height = 35 mm
RK 60
Cable tray crossing, height = 60 mm
RK 85
Cable tray crossing, height = 85 mm

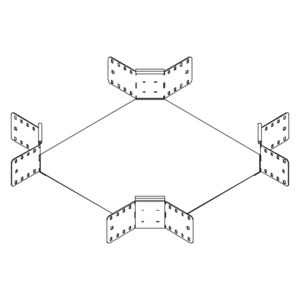

RK 110
Cable tray crossing, height = 110 mm

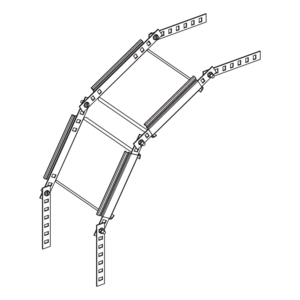

RVB 35
Cable tray vertical bend, height = 35 mm

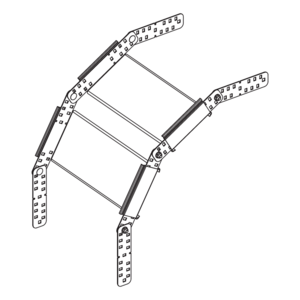

RVB 60
Cable tray vertical bend, height = 60 mm

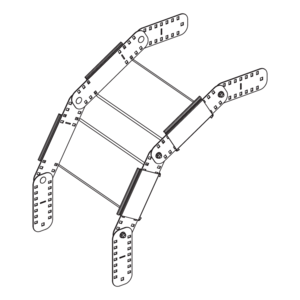

RVB 85
Cable tray vertical bend, height = 85 mm

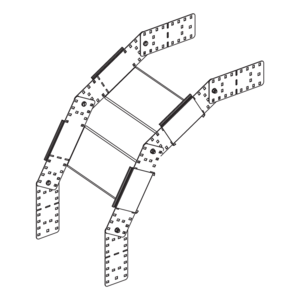

RVB 110
Cable tray vertical bend, height = 110 mm

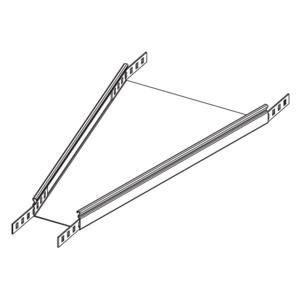

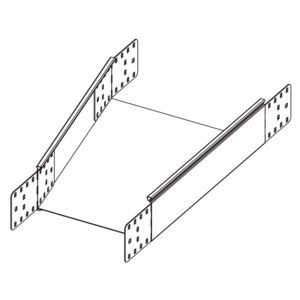

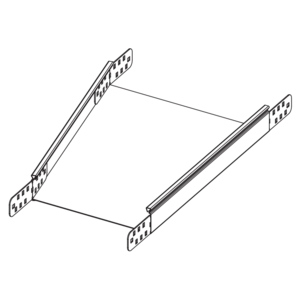

RR 35
Cable tray reducer, height = 35 mm
RR 60
Cable tray reducer, height = 60 mm

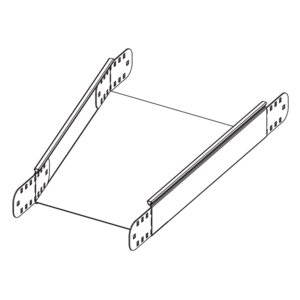

RR 85
Cable tray reducer, height = 85 mm
RR 110
Cable tray reducer, height = 110 mm
RIB 60
Installation cable tray bend, height = 60 mm
RIA 60
Installation cable tray tee, height = 60 mm

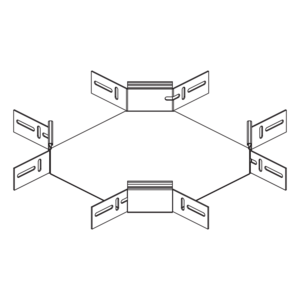

RIK 60
Installation cable tray crossing, height = 60 mm
Vorteile
- Creates changes of the cable routing direction
- Easy to assemble
