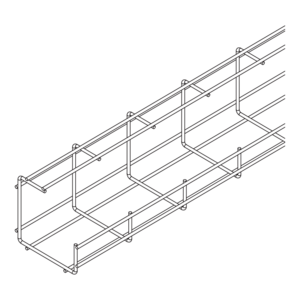

The PUK GTDW G-shaped mesh cable trays can be used for neat and tidy cable routing. They can be mounted directly on ceilings or walls. Cables and lines can be fed in and out at any time and anywhere thanks to the mesh structure. Mesh cable trays can be installed quickly and easily using the mesh cable tray connectors and suitable dowels. Horizontal changes of direction are also no problem.
GTDW Mesh Cable Tray, G-shaped
Vorteile
- Can be used for various cable types and diameters
- Cables can be fed out in any direction and at any time
- Excellent cable ventilation due to mesh structure
- Suitable for indoor and outdoor areas and especially in data centres, raised floors or ceilings as well as chemical and food industries
- Can be customised on request, e.g.: increased zinc coating thickness or other colour coating
