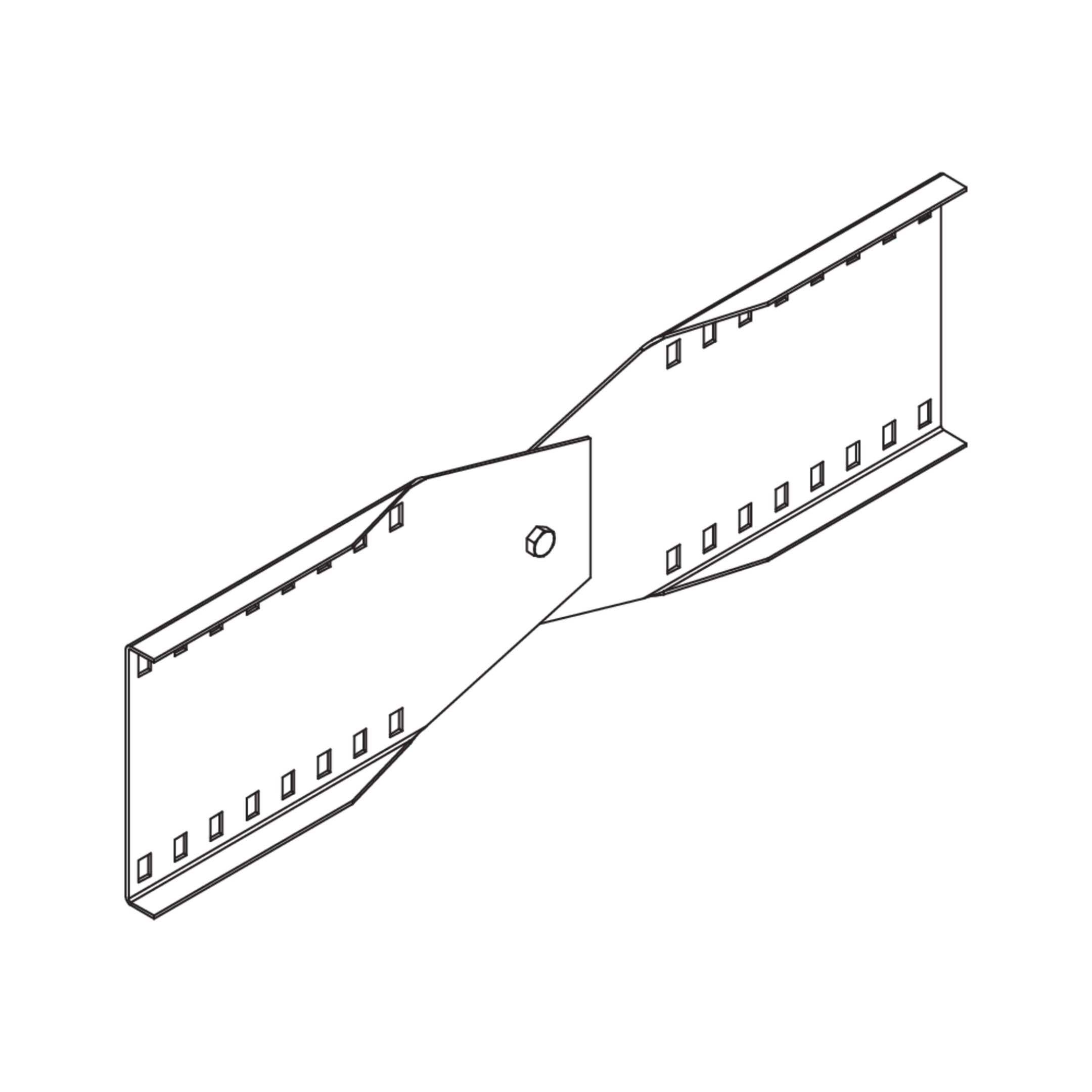

WLVV 200

Wide-span cable tray connector, vertical, height = 200 mm

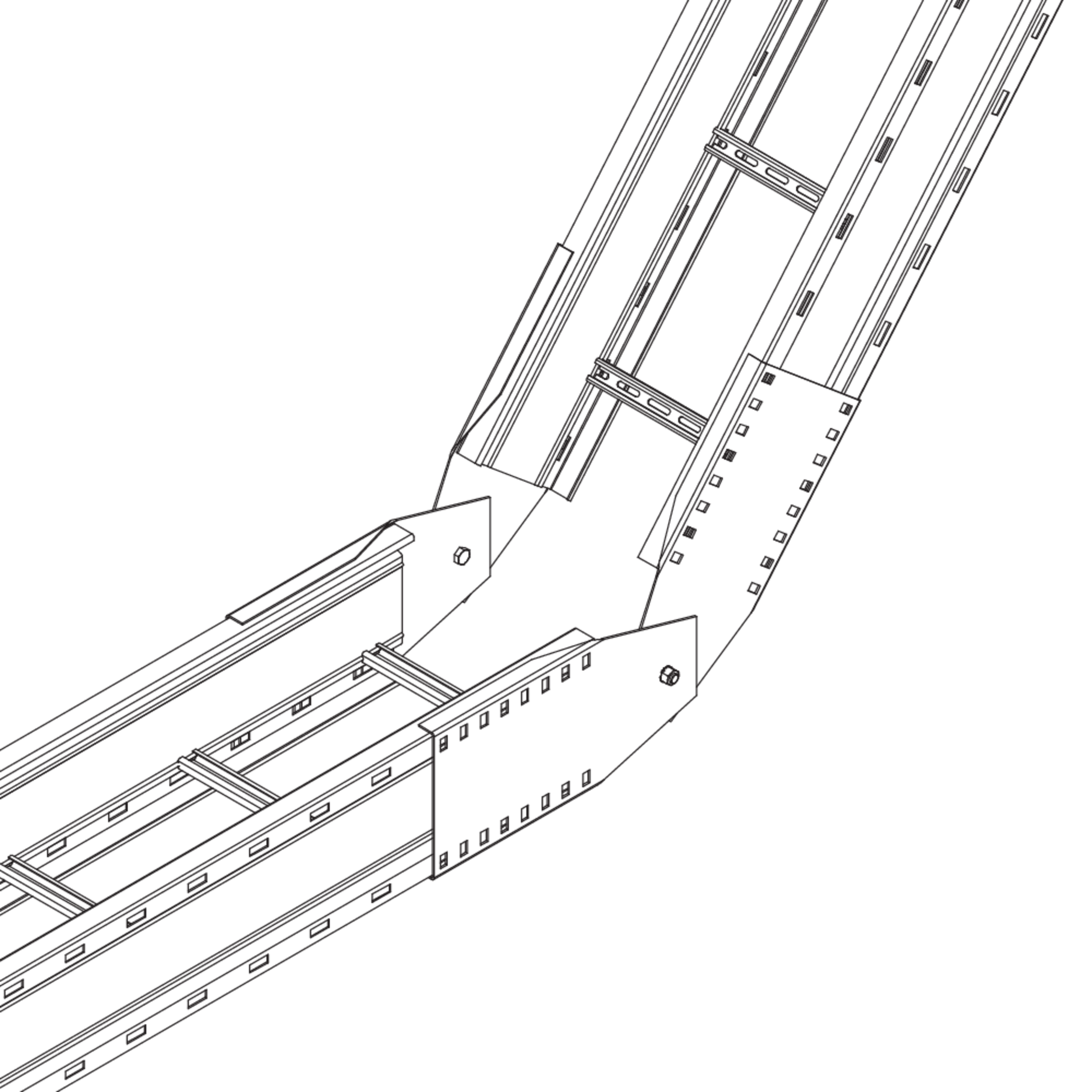

WLVV 200 wide span connectors can be used to connect 200 mm wide-span cable trays together and to create vertical changes in direction. We provide components in various materials and surface finishes to ensure that various corrosion protection requirements for different areas of application are met.

Get in touchDownload datasheet

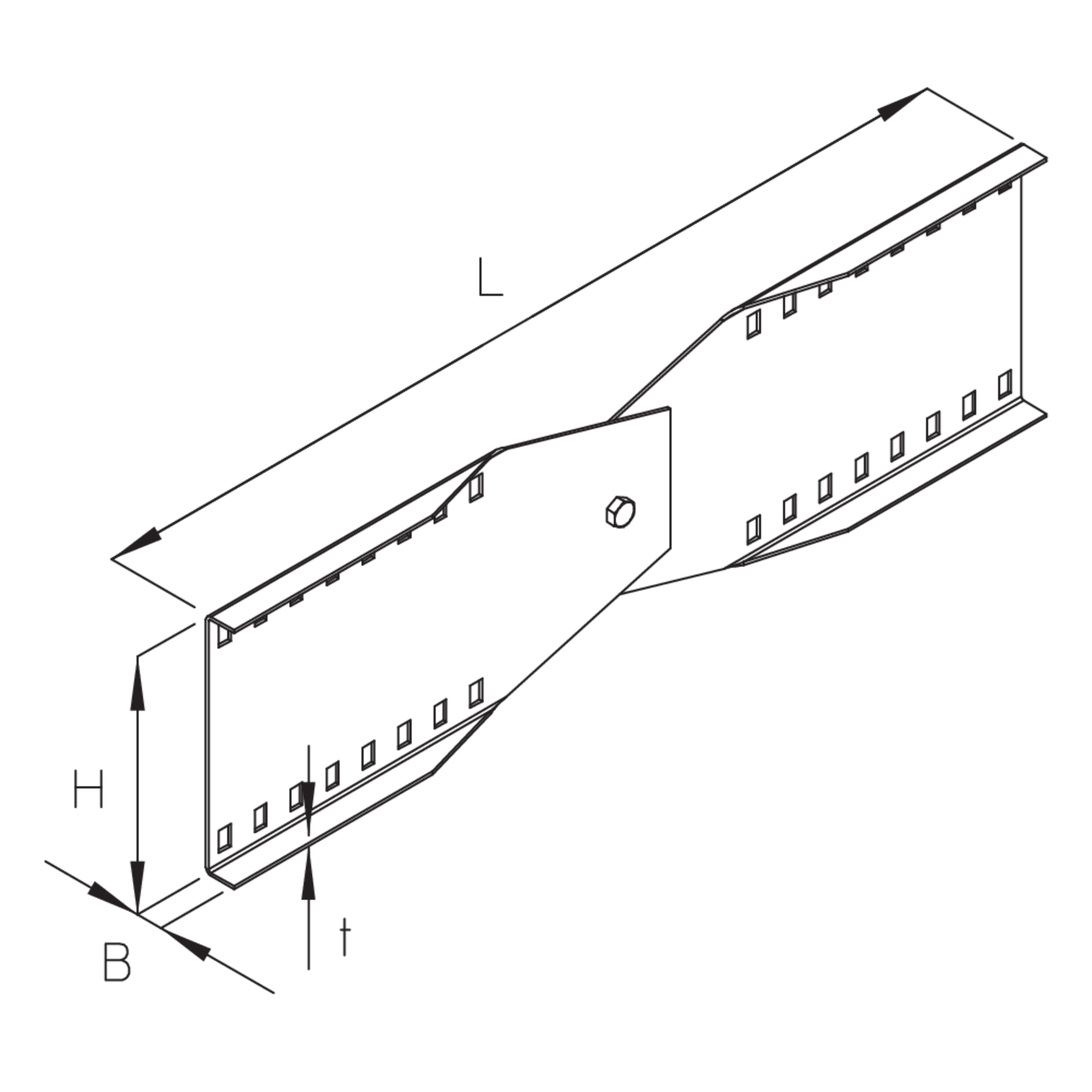

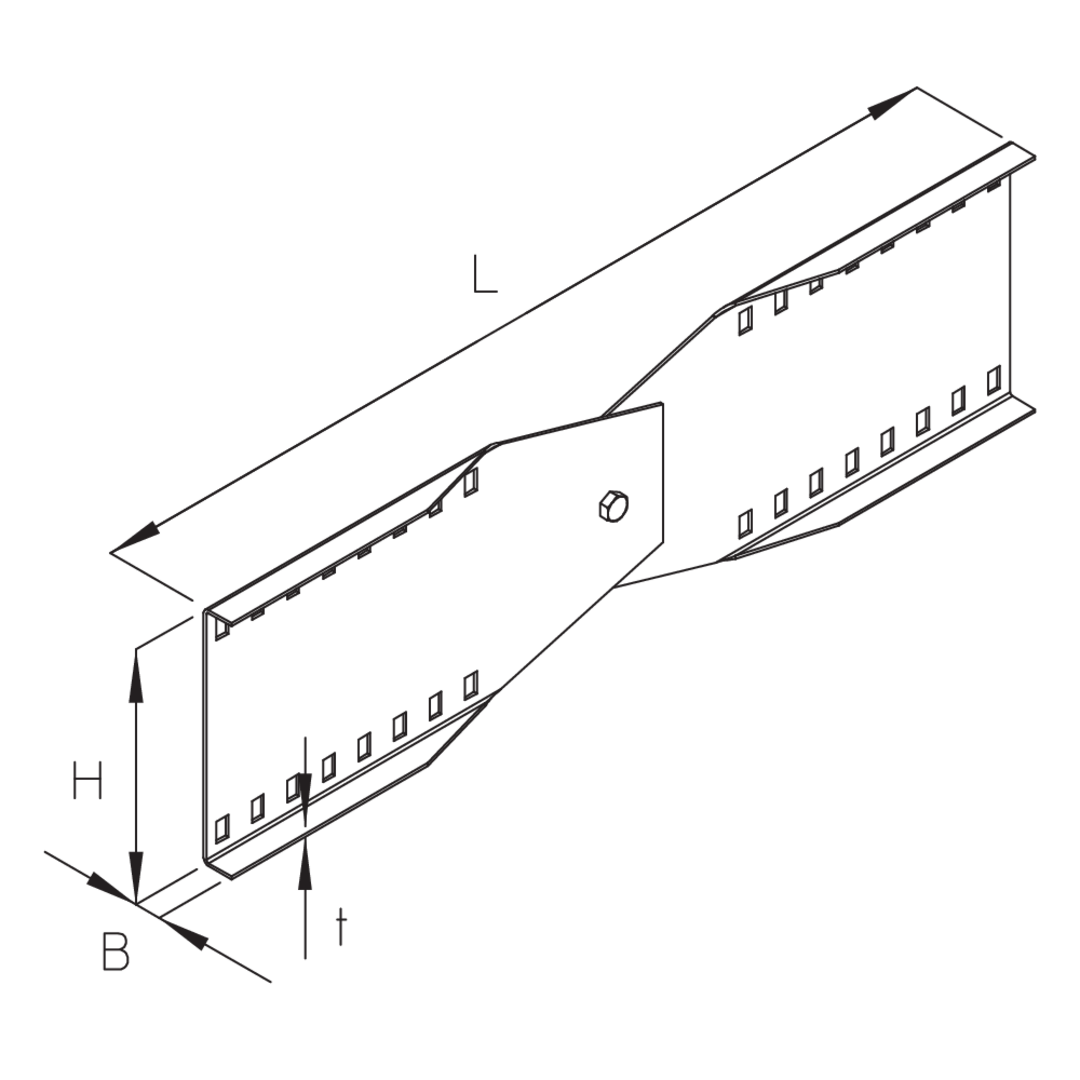

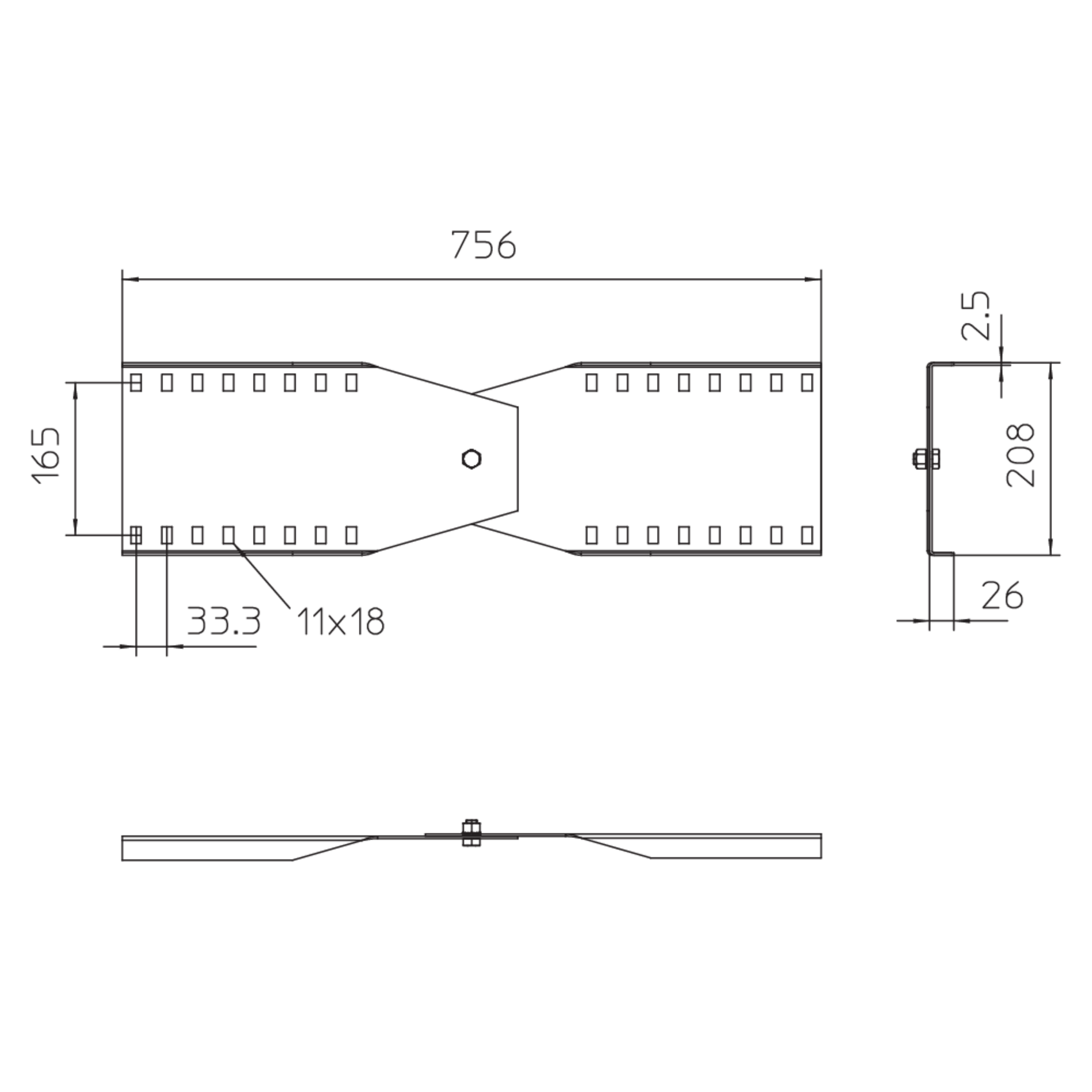

Variants

Steel, pre-galvanised/Sendzimir process

Article

H

height

B

width

L

length

t

material thickness

G

Weight per storage unit

Included accessories
  • WLVV 200S
    Coupler WLVV 200S
    height
    208 mm
    width
    26 mm
    length
    756 mm
    material thickness
    2.50 mm
    Weight per storage unit
    4.519 kg
    Included accessories
    More information

Steel, hot-dip galvanised

Article

H

height

B

width

L

length

t

material thickness

G

Weight per storage unit

Included accessories
  • WLVV 200F
    Coupler WLVV 200F
    height
    208 mm
    width
    26 mm
    length
    756 mm
    material thickness
    2.50 mm
    Weight per storage unit
    3.988 kg
    Included accessories
    More information

Details

    Tender texts

    Ausschreiben.de

    Tender texts for this product

    Open Link
    Heinze.de

    Tender texts for this product

    Open Link
