WLHS-K

Wide-span rail support (bracket)

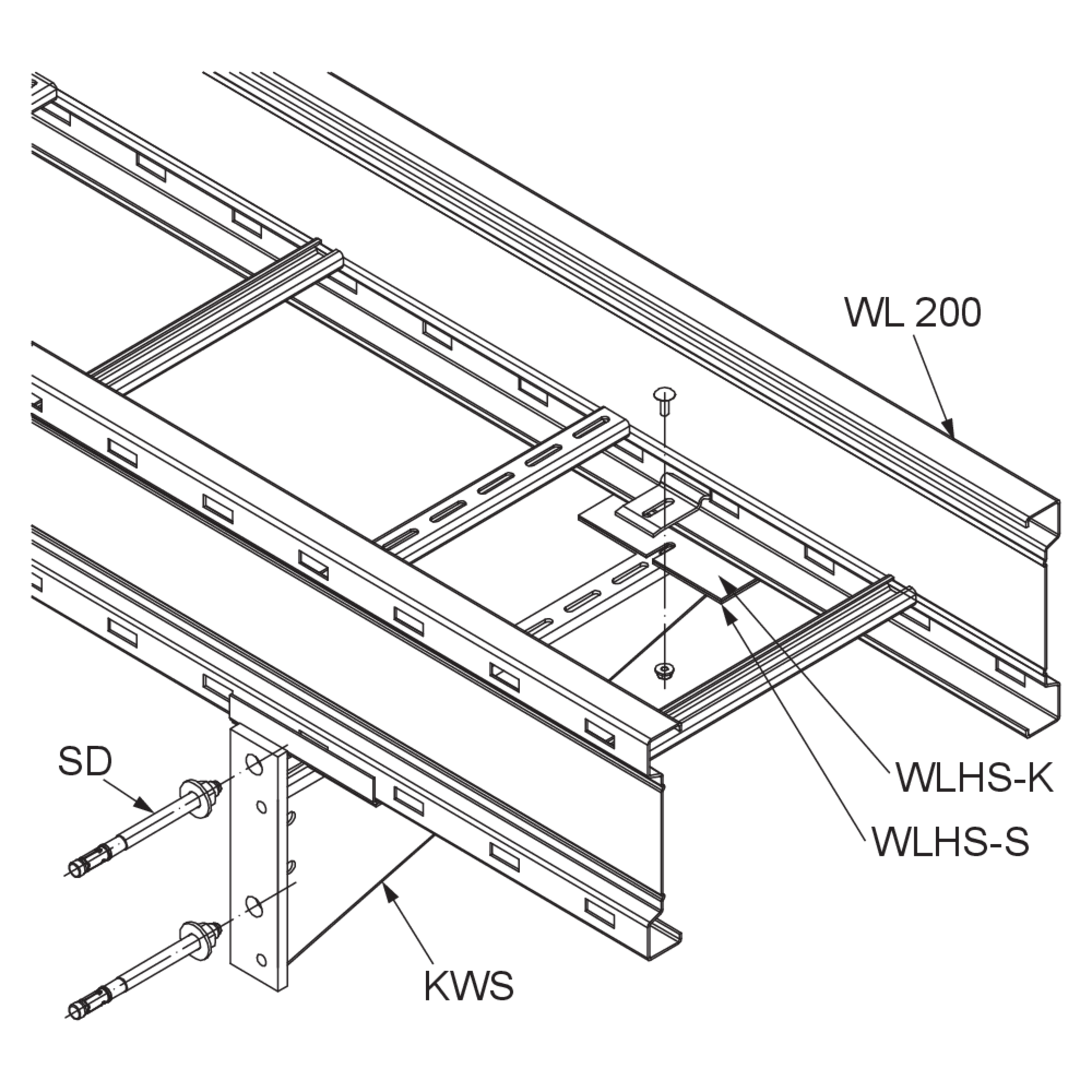

The WLHS-K wide-span rail supports are used to secure WL and WLR 200 wide-span trusses to brackets. A range of materials and finishes ensures that the corrosion protection requirements of a wide variety of applications are met.

Variants

Steel, pre-galvanised/Sendzimir process

Article

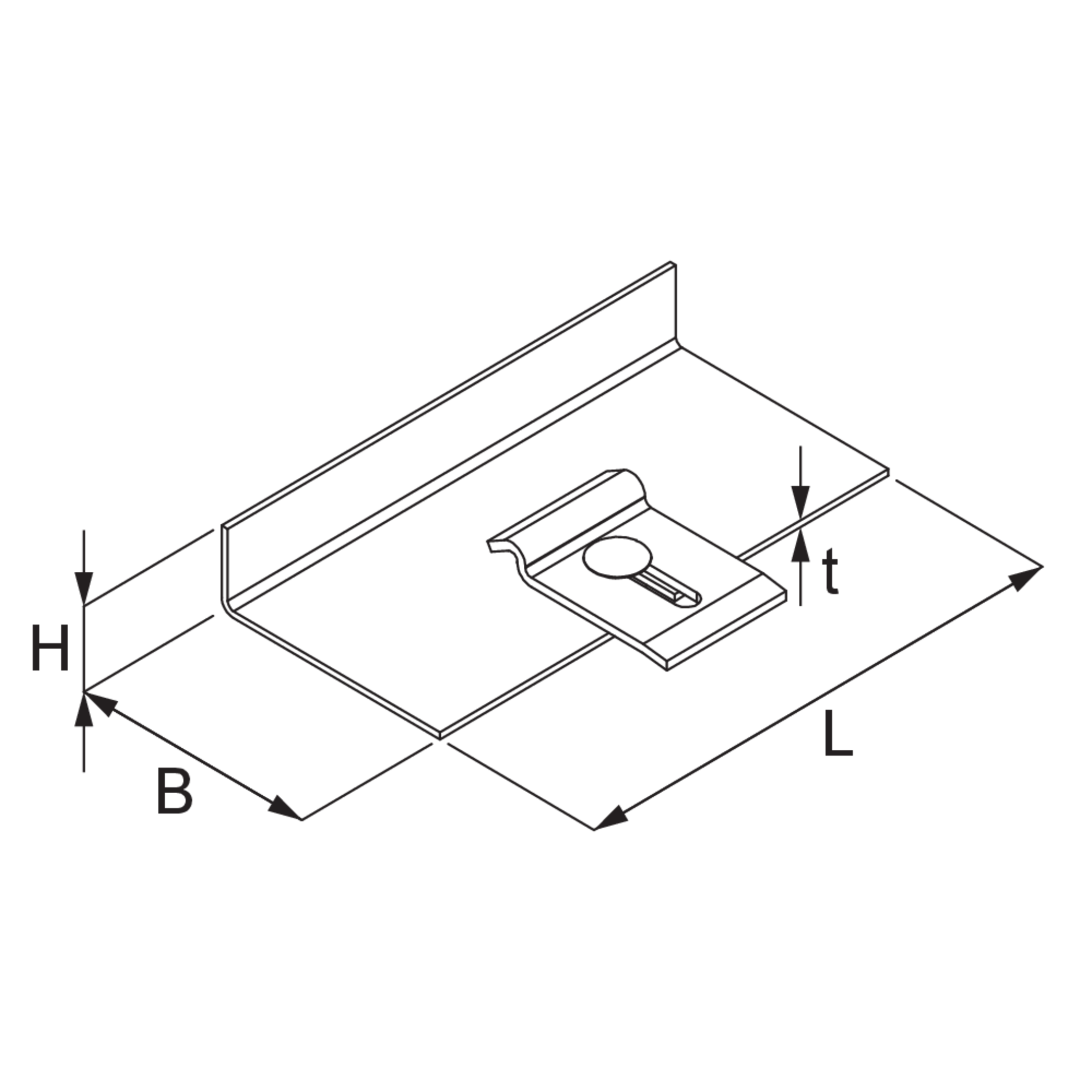

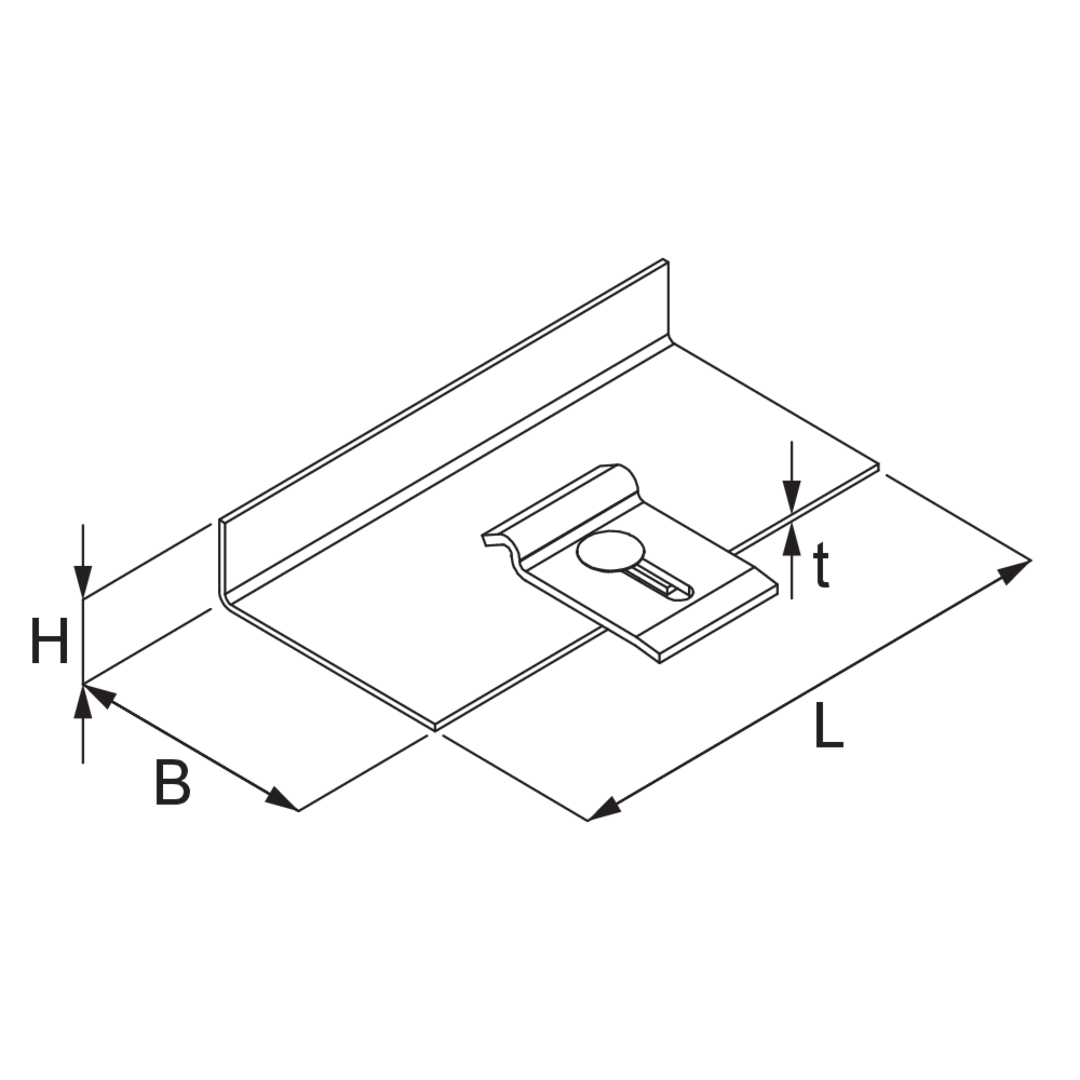

H

height

B

width

L

length

t

material thickness

G

Weight per storage unit

Included accessories
  • WLHS-K S
    Holm support for WL console
    height
    25 mm
    width
    73 mm
    length
    150 mm
    material thickness
    2.00 mm
    Weight per storage unit
    0.285 kg
    Included accessories

Steel, hot-dip galvanised

Article

H

height

B

width

L

length

t

material thickness

G

Weight per storage unit

Included accessories
  • WLHS-K F
    Holm support for WL console
    height
    25 mm
    width
    73 mm
    length
    150 mm
    material thickness
    2.00 mm
    Weight per storage unit
    0.289 kg
    Included accessories

Tender texts

Ausschreiben.de

Tender texts for this product

Open Link
Heinze.de

Tender texts for this product

Open Link


Downloads

    • en

    • de

    Wide-Span Systems - Technical Information

    Technical Information

    PDF

    Choose languageChoose language

    Wide-Span Systems - Technical Information

    Choose language to download

    • de

    Wide-span cable ladder WL 200 - Assembly instructions

    Assembly instructions for WL 200, WLA 200, WLB 200, WLK 200, EBW, WLHS, WLHS-A, WLHS-IS, WLHS-K, WLHS-T, WLKLT, WLV 200, WLVH 200, WLVV 200, WLAD, WLADR, WLBD, WLBDR, WLD, WLDR, WLD-SW, WLKD, WLKDR, WLKAB, WTR 200, WTRV 200

    PDF (1.55 MB)

    DownloadDownload
    • en

    • de

    • ru

    Price list 2026 Building extension

    Valid from February 1st, 2026

    PDF

    Choose languageChoose language

    Price list 2026 Building extension

    Choose language to download


Included accessories
