WLKL

Wide-span cable ladder hold-down clamp

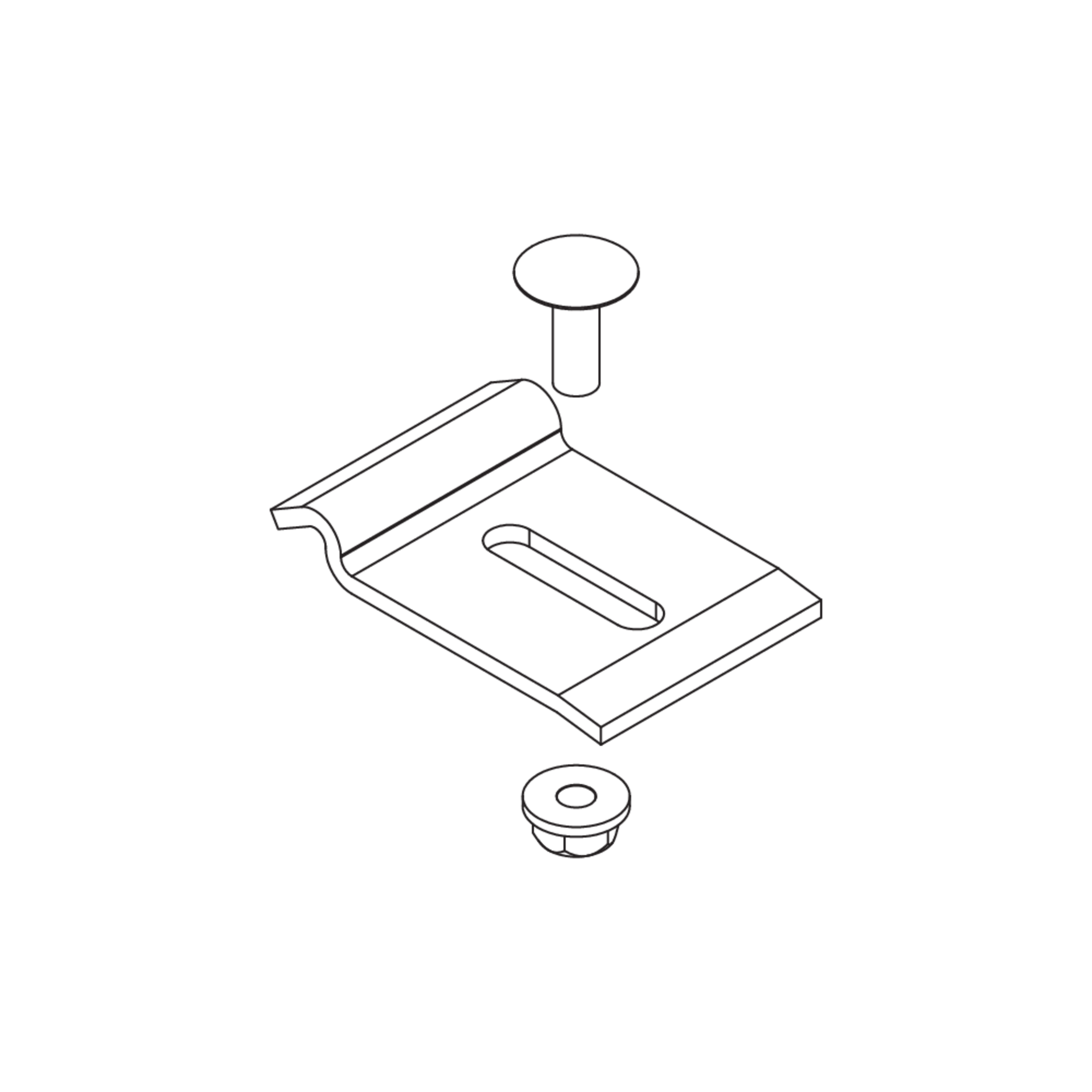

The clamp fastening set WLKL, consisting of two brackets, round-head screws and hexagon nuts each, is an accessory part for the WLHS wide-span side rail support if it is used to secure the position of a WL or WLR 200 wide-span tray on brackets of type KWS. We provide components in various materials and surface finishes to ensure that various corrosion protection requirements for different areas of application are met.

Get in touchDownload datasheet

Variants

Steel, pre-galvanised/Sendzimir process

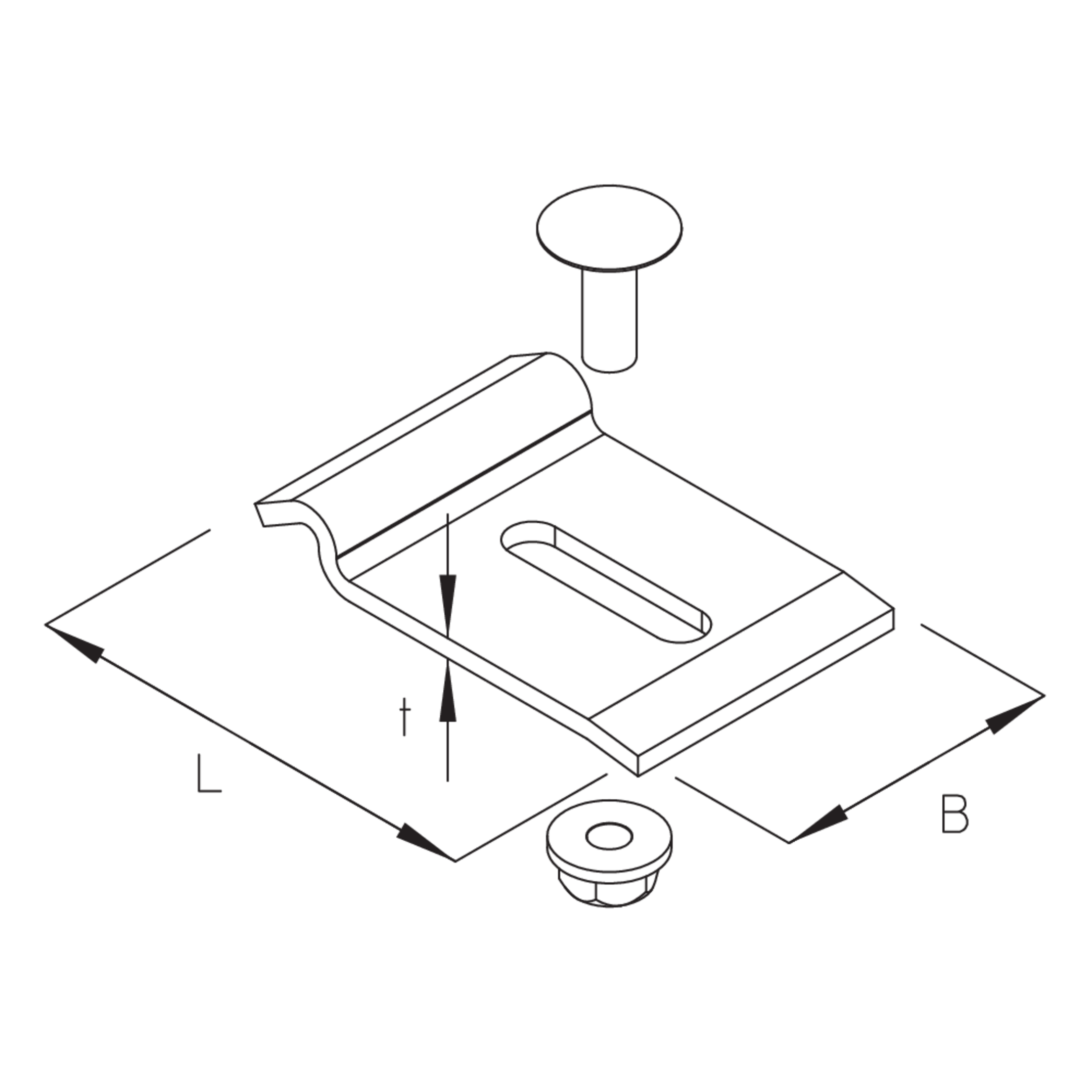

Article

H

height

B

width

L

length

t

material thickness

G

Weight per storage unit

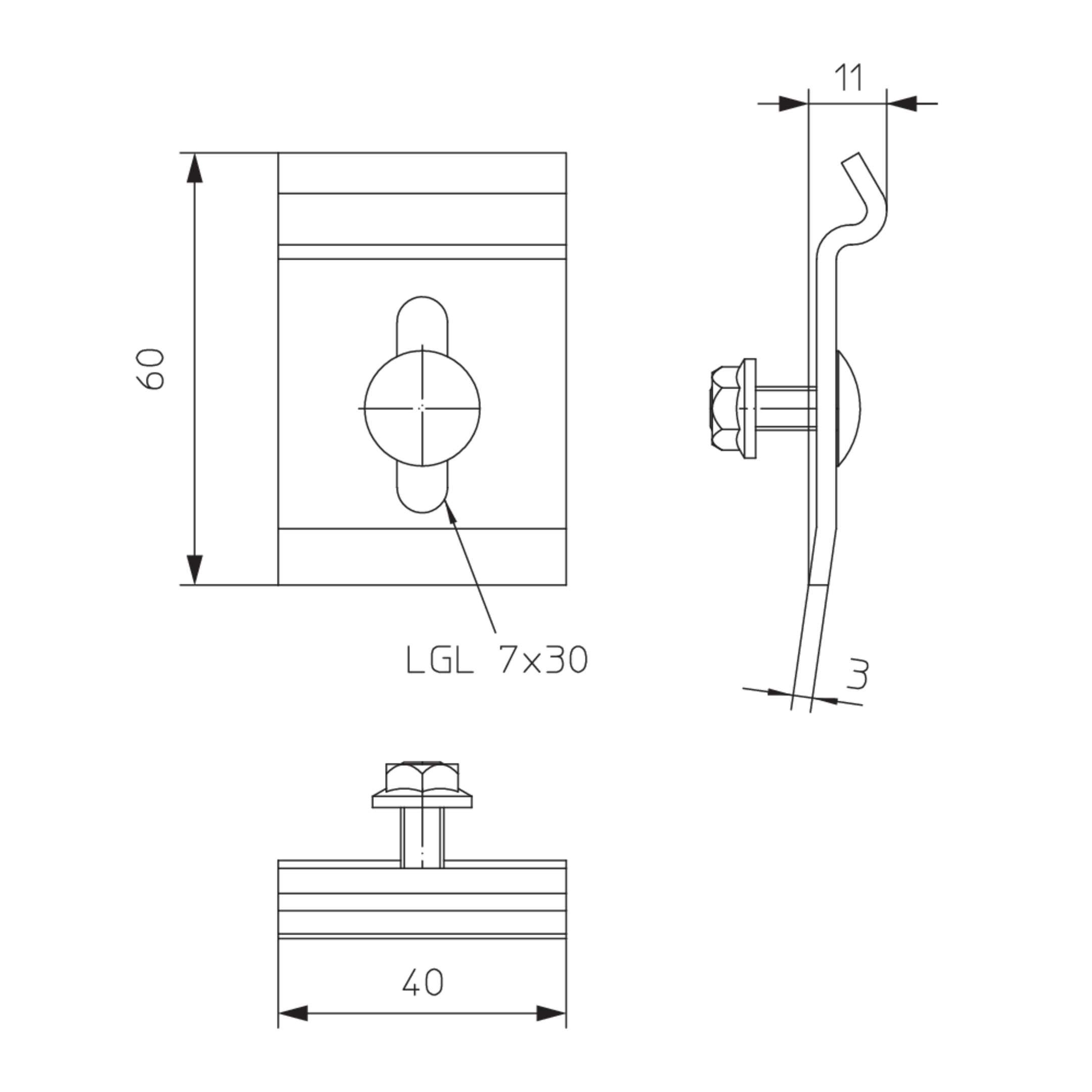

  • WLKL S
    Clamp WLKL S
    height
    11 mm
    width
    40 mm
    length
    60 mm
    material thickness
    3.00 mm
    Weight per storage unit
    0.128 kg
    Included accessories
    More information

Steel, hot-dip galvanised

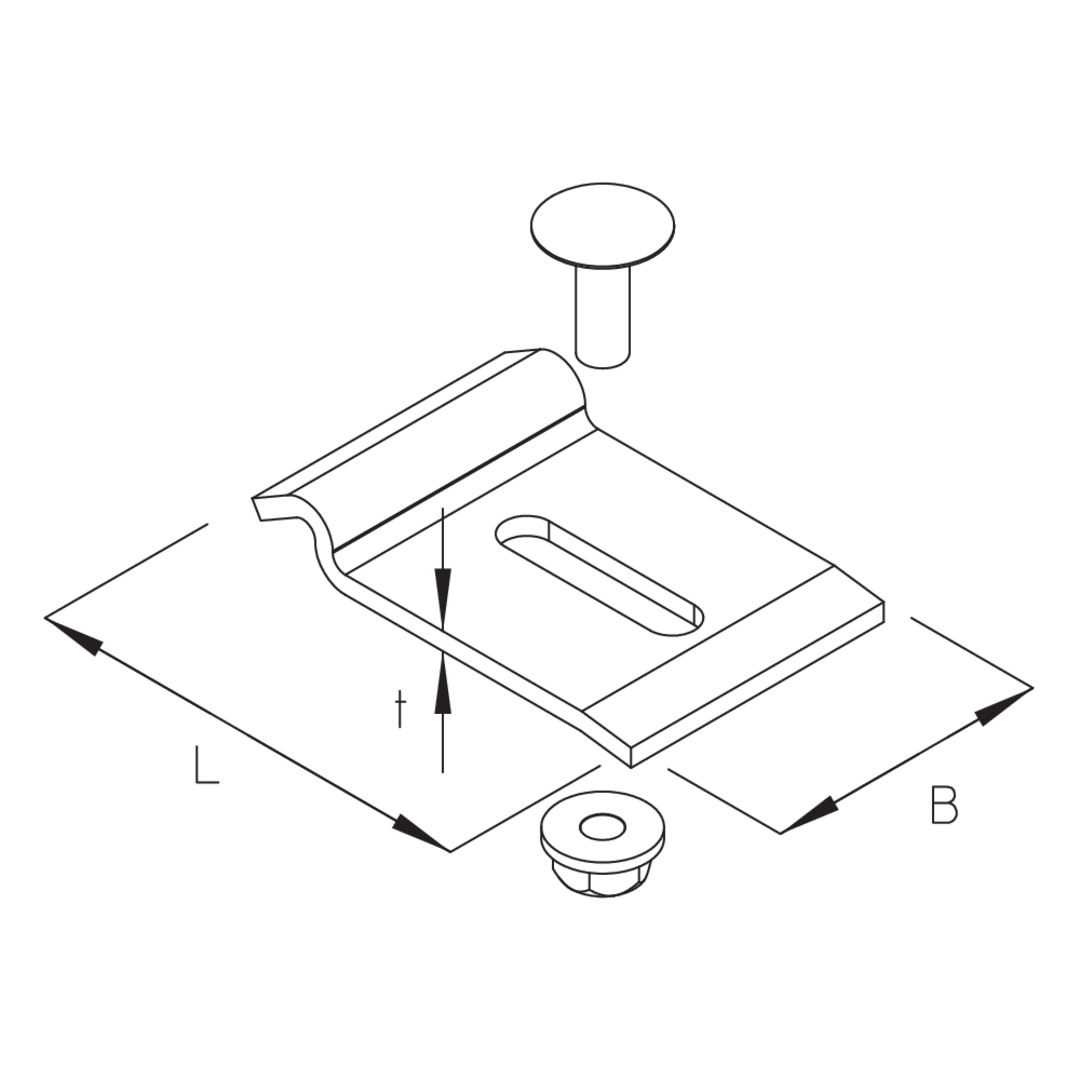

Article

H

height

B

width

L

length

t

material thickness

G

Weight per storage unit

  • WLKL F
    Clamp WLKL F
    height
    11 mm
    width
    40 mm
    length
    60 mm
    material thickness
    3.00 mm
    Weight per storage unit
    0.130 kg
    Included accessories
    More information
