MP-W

Mounting plate

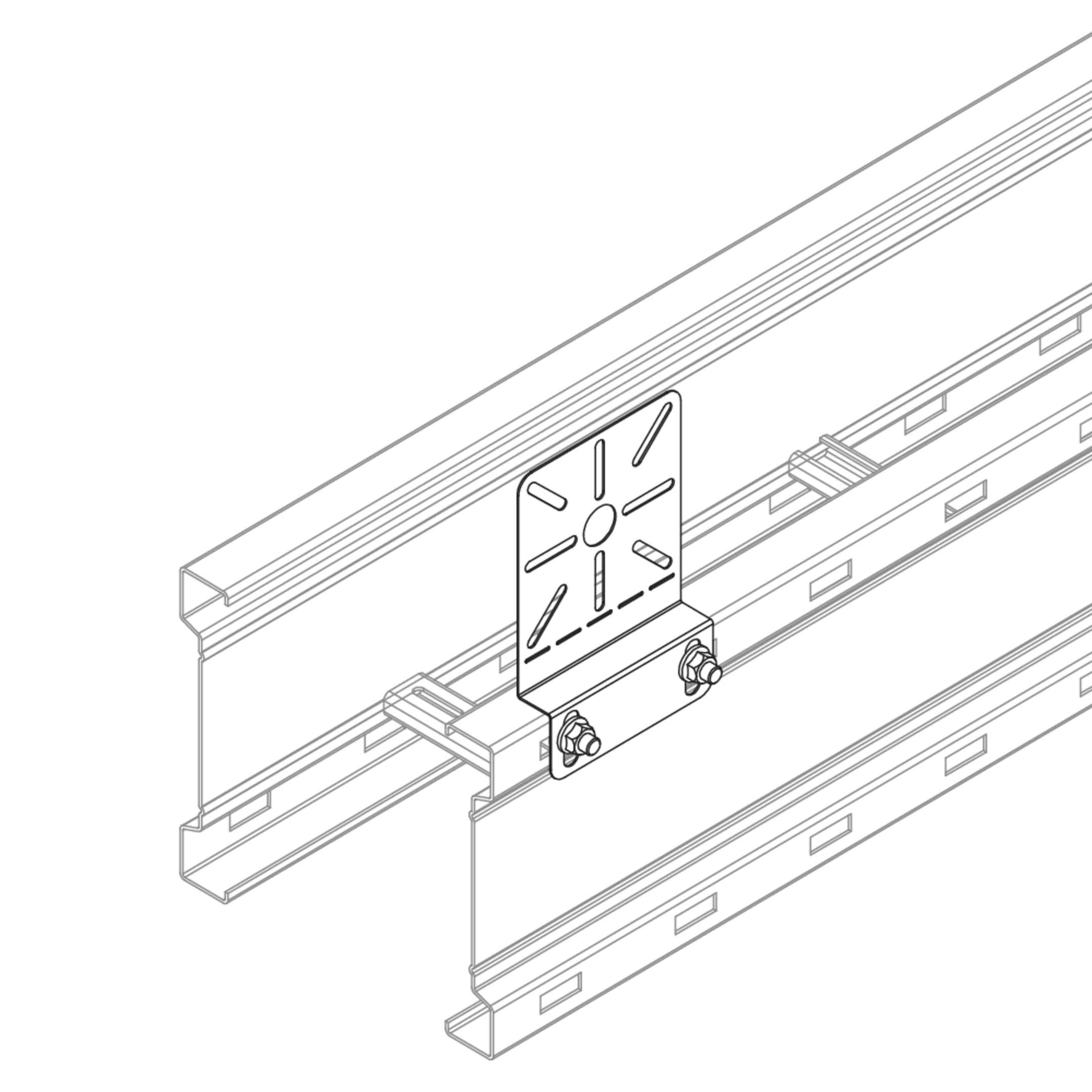

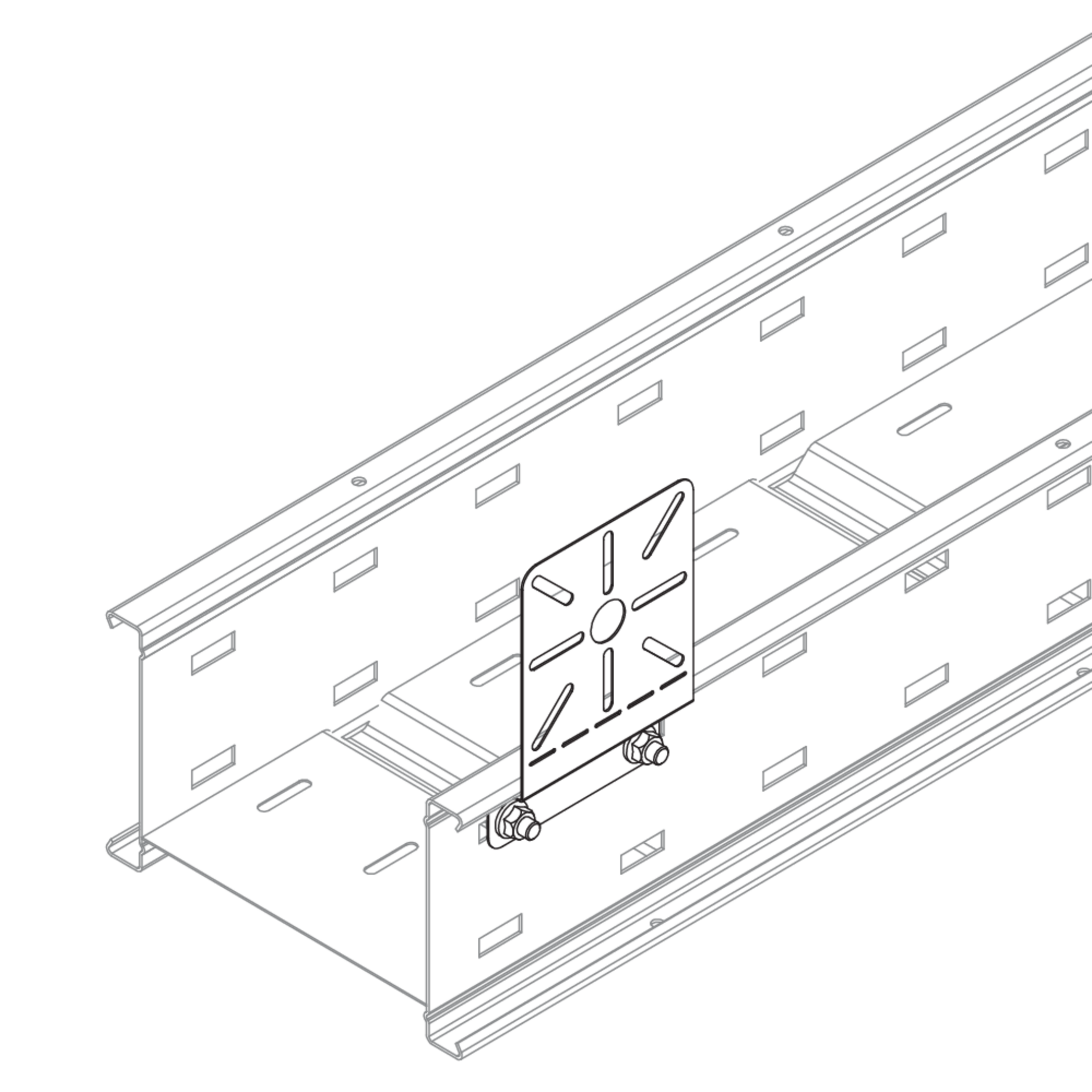

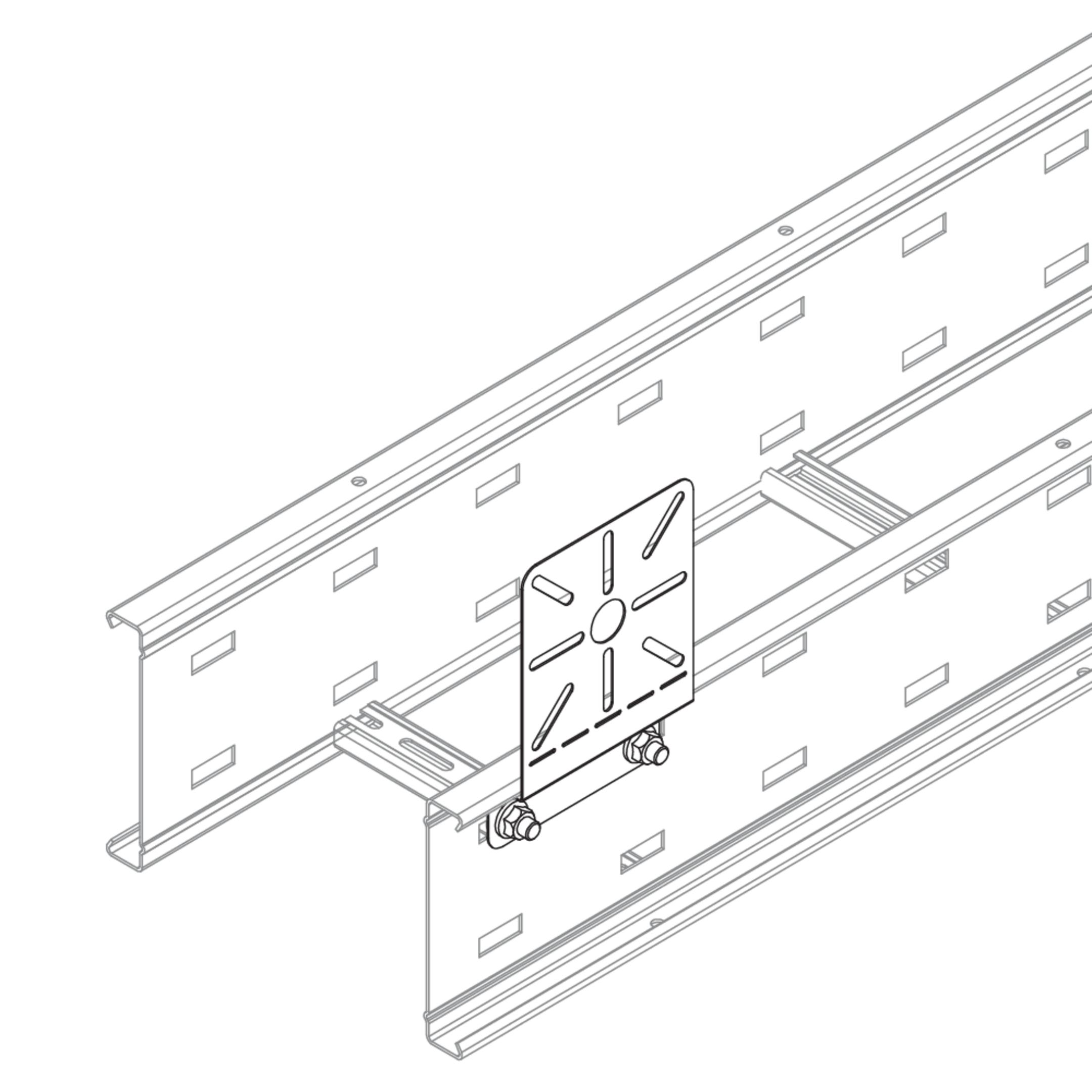

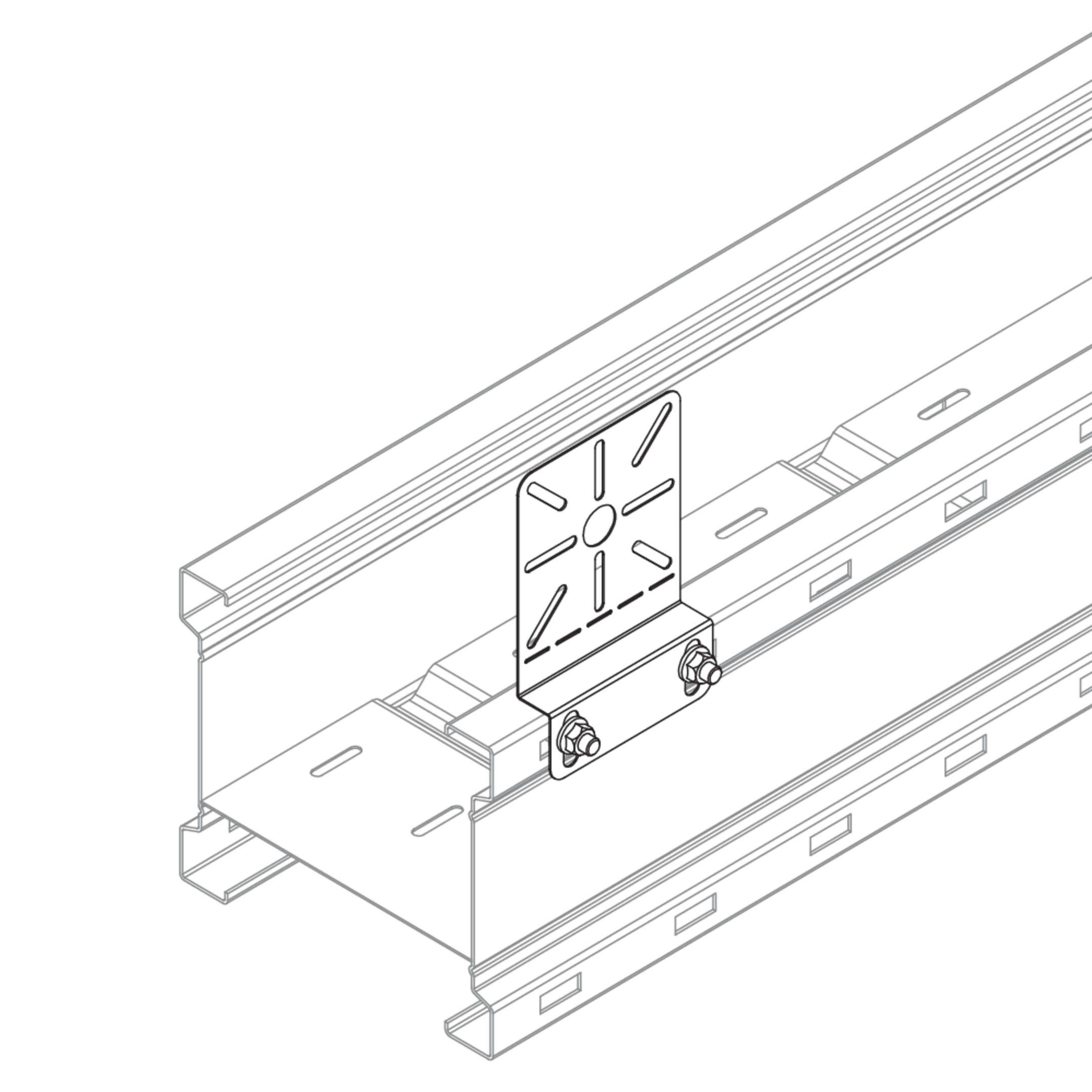

The mounting plate MP-W can be used e.g. to attach junction boxes to wide span cable trays. The plate itself is screwed twice to the side rail of the wide span cable trays using the fastening set supplied. We provide components in various materials and surface finishes to ensure that the corrosion requirements are met for all sorts of applications.

Get in touchDownload datasheet

Variants

Steel, pre-galvanised/Sendzimir process

Article

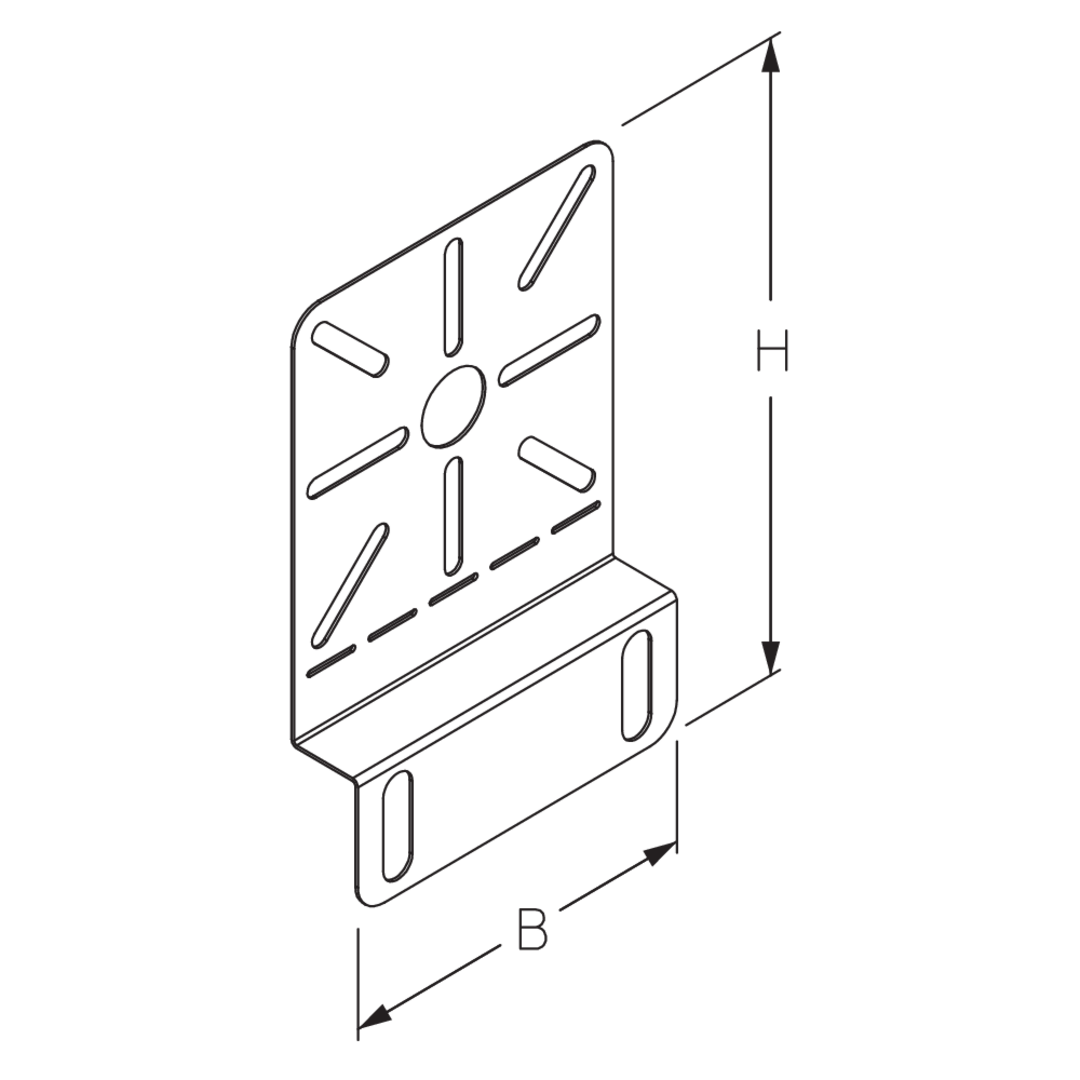

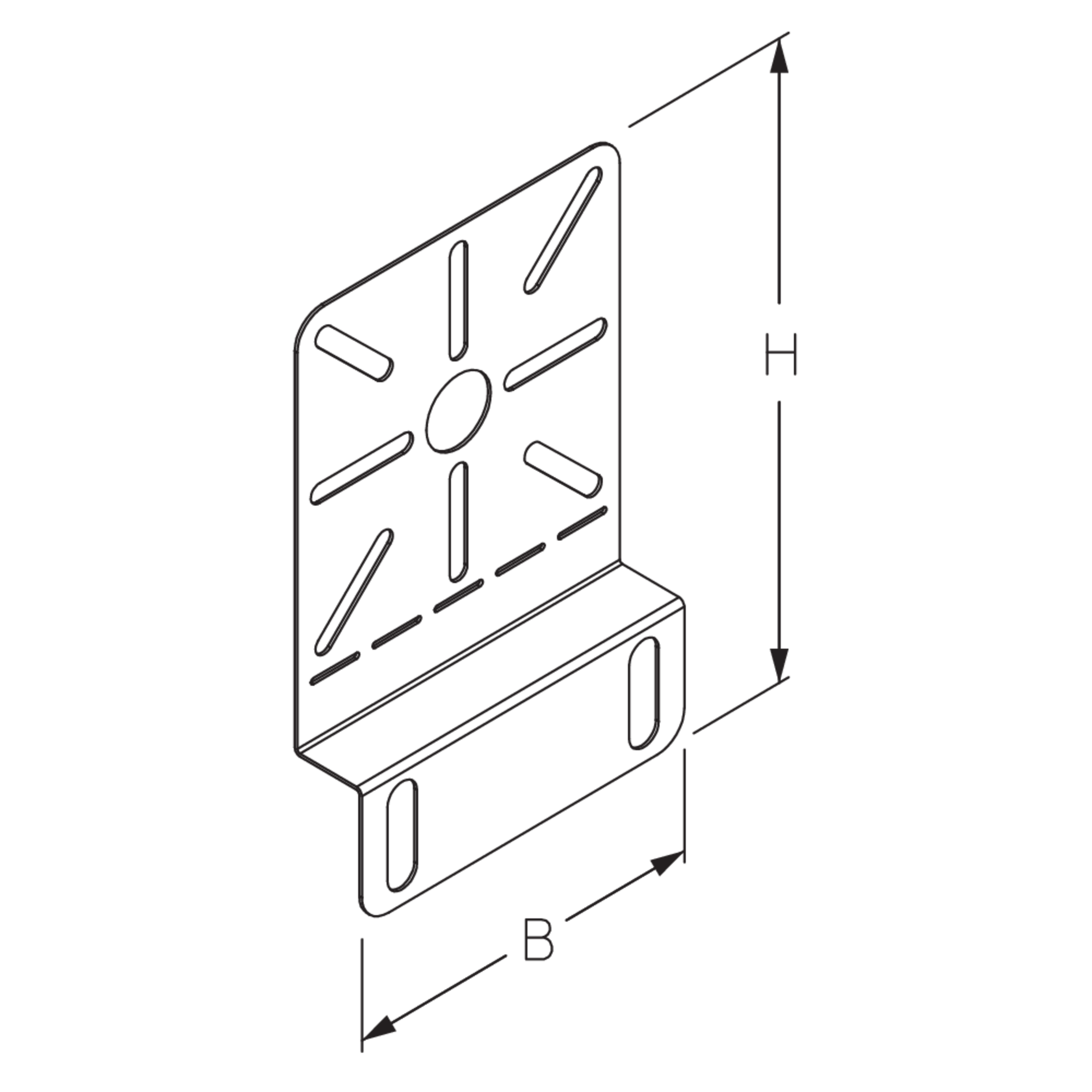

H

height

B

width

t

material thickness

G

Weight per storage unit

Included accessories
  • MP-W S
    Assembly plate MP-RG 60E4
    height
    185 mm
    width
    120 mm
    material thickness
    1.00 mm
    Weight per storage unit
    0.233 kg
    Included accessories
    More information

Steel, hot-dip galvanised

Article

H

height

B

width

t

material thickness

G

Weight per storage unit

Included accessories
  • MP-W F
    Assembly plate MP-RG 60E4
    height
    185 mm
    width
    120 mm
    material thickness
    1.00 mm
    Weight per storage unit
    0.251 kg
    Included accessories
    More information

Stainless steel, acc. to AISI 304 (BS 304S31)

Article

H

height

B

width

t

material thickness

G

Weight per storage unit

Included accessories
  • MP-W E
    Assembly plate MP-RG 60E4
    height
    185 mm
    width
    120 mm
    material thickness
    1.00 mm
    Weight per storage unit
    0.238 kg
    Included accessories
    More information

Stainless steel, acc. to AISI 316Ti (BS 320S31) / AISI 316L (BS 316S11)

Article

H

height

B

width

t

material thickness

G

Weight per storage unit

Included accessories
  • MP-W E4
    Assembly plate MP-RG 60E4
    height
    185 mm
    width
    120 mm
    material thickness
    1.00 mm
    Weight per storage unit
    0.246 kg
    Included accessories
    More information

Details

    Tender texts

    Ausschreiben.de

    Tender texts for this product

    Open Link
    Heinze.de

    Tender texts for this product

    Open Link

    Downloads

    BIM- und CAD-Data

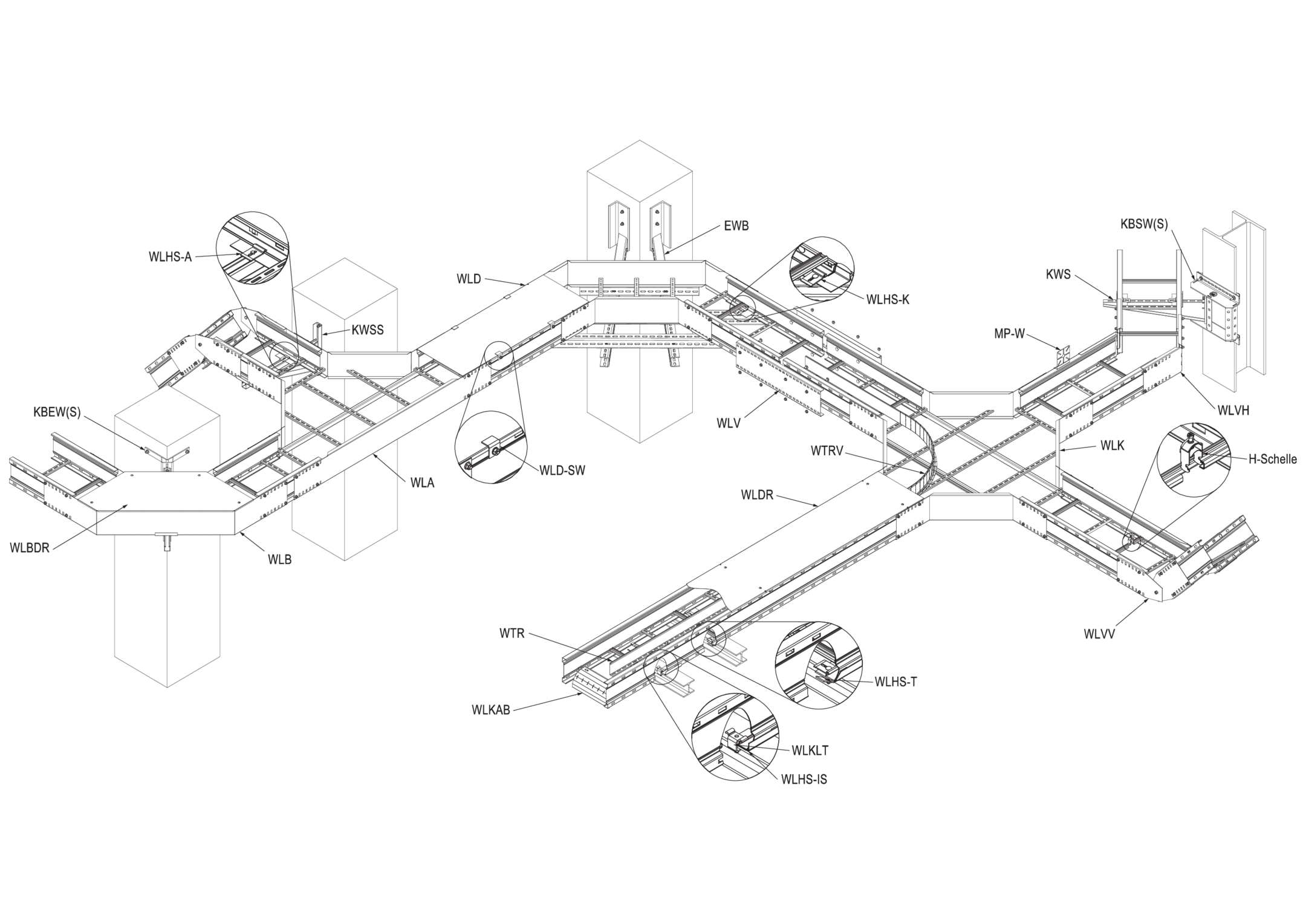

      BIM for Wide-span Systems

      BIM Data

      ZIP (12.34 MB)

      DownloadDownload
