WPLKAB

Wide-span cable ladder drop-out plate

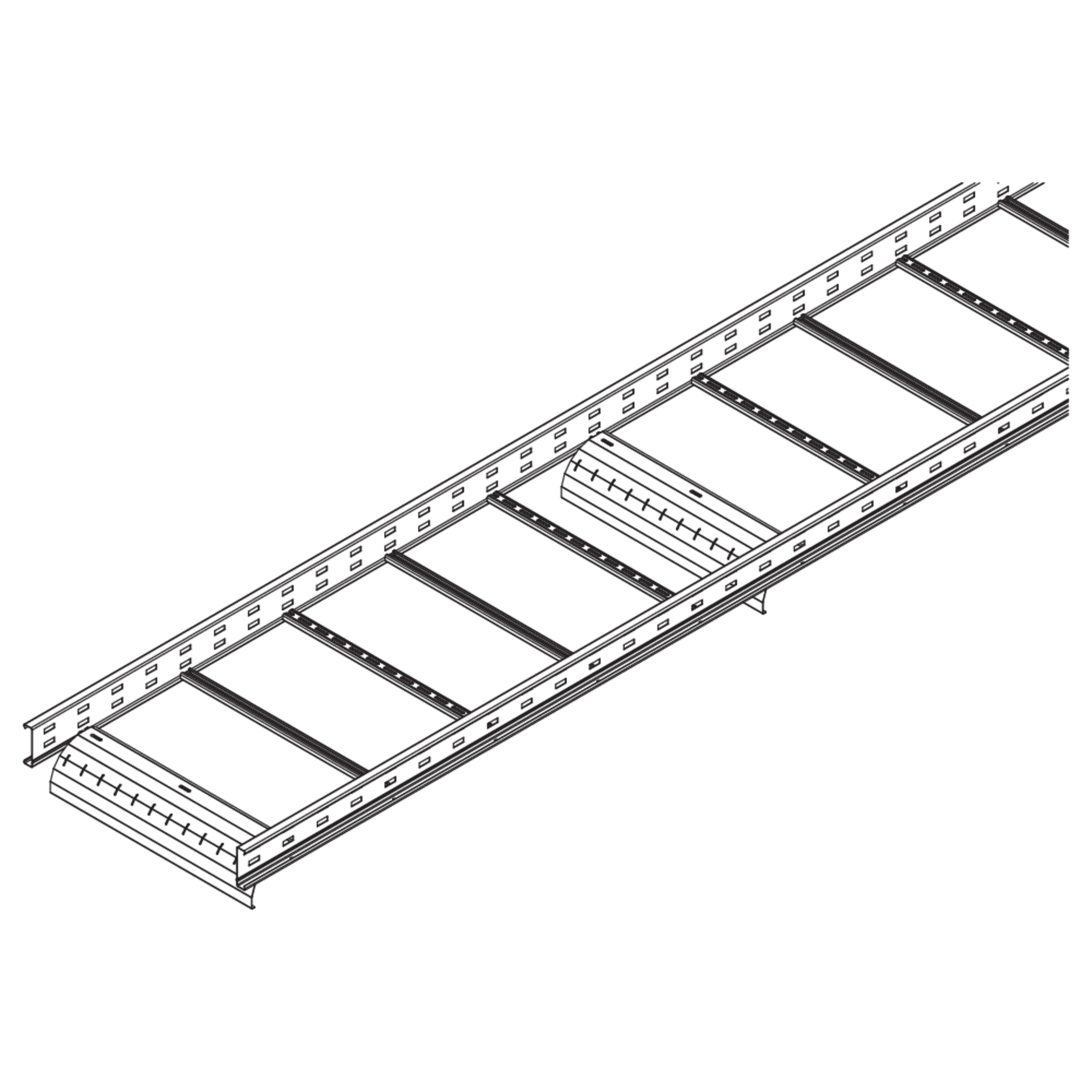

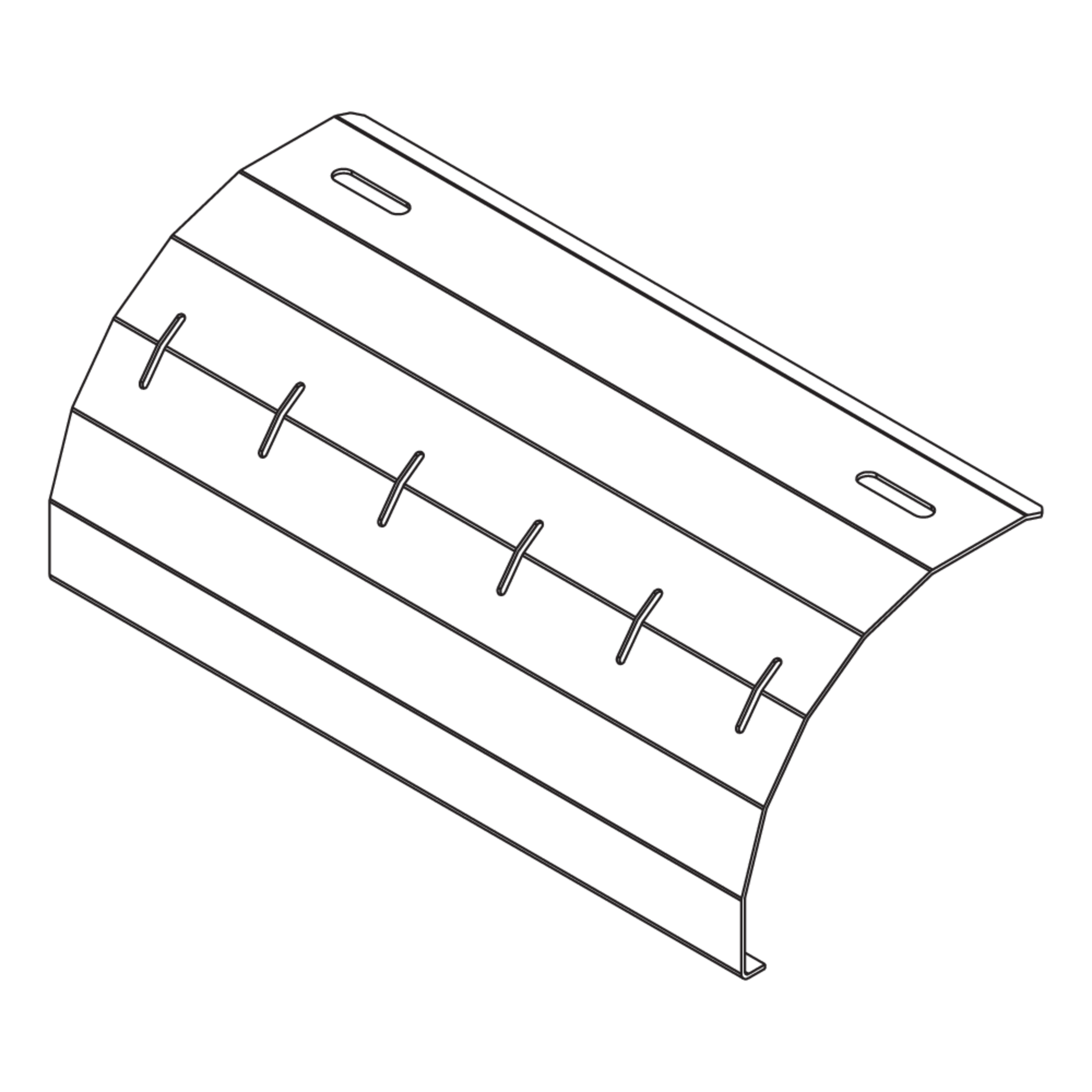

The wide-span cable ladder drop-out plate WPLKAB is used to route cables vertically out of the wide-span cable ladder WPL and to protect the cables. It is 190 to 590 mm wide corresponding to the cable ladder and has a radius of 100 mm. We provide components in various materials and surface finishes to ensure that various corrosion protection requirements for different areas of application are met.

Get in touchDownload datasheet

Variants

Steel, pre-galvanised/Sendzimir process

Article

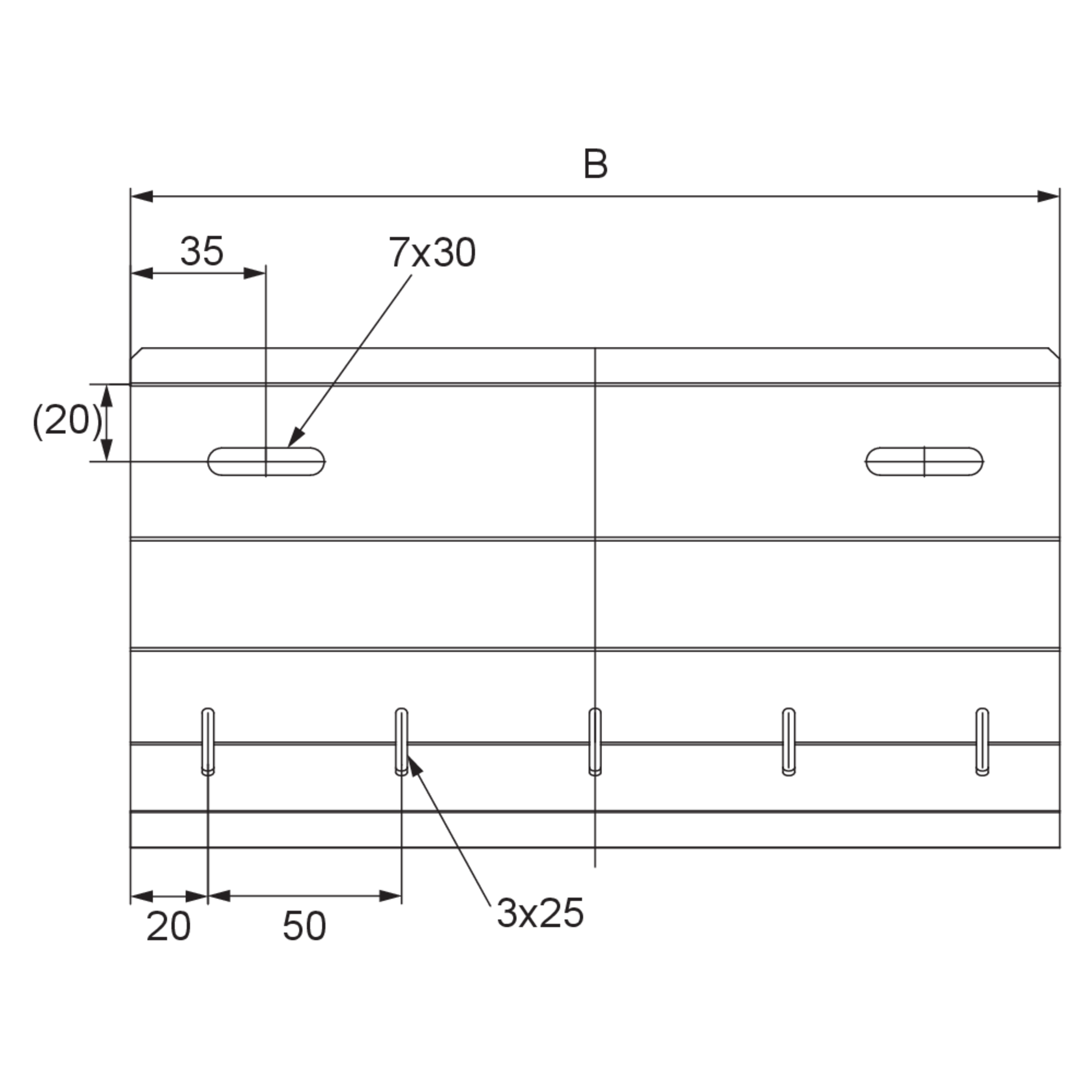

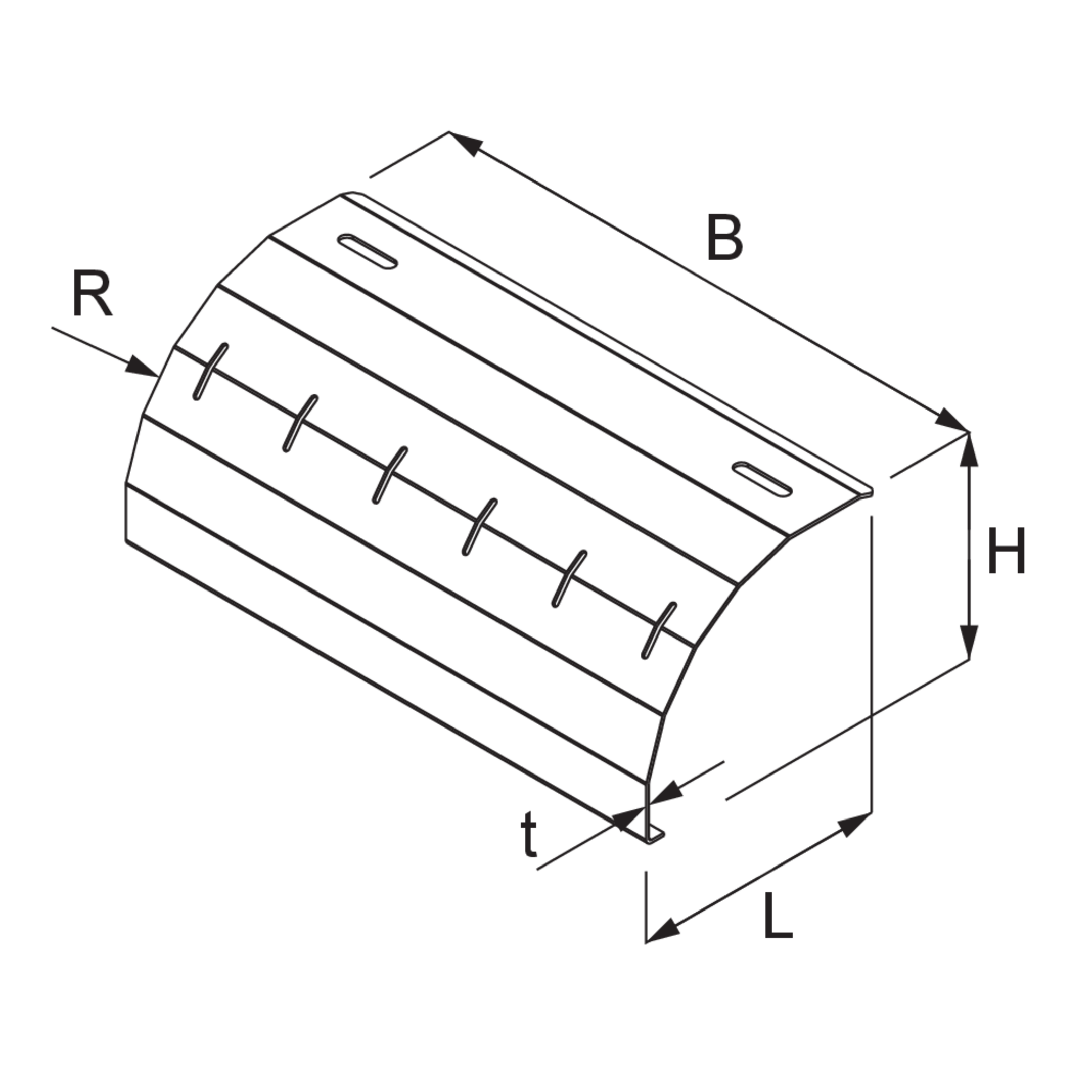

H

height

B

width

L

length

t

material thickness

R

radius

G

Weight per storage unit

Geeignet für Funktionserhalt

  • WPLKAB 20S
    End plate, Wide-span cable ladder WPKAB
    height
    110 mm
    width
    190 mm
    length
    129 mm
    material thickness
    1.50 mm
    radius
    100 mm
    Weight per storage unit
    0.492 kg
    Geeignet für Funktionserhalt
    Nein
    Included accessories
    More information
  • WPLKAB 30S
    End plate, Wide-span cable ladder WPKAB
    height
    110 mm
    width
    290 mm
    length
    129 mm
    material thickness
    1.50 mm
    radius
    100 mm
    Weight per storage unit
    0.733 kg
    Geeignet für Funktionserhalt
    Nein
    Included accessories
    More information
  • WPLKAB 40S
    End plate, Wide-span cable ladder WPKAB
    height
    110 mm
    width
    390 mm
    length
    129 mm
    material thickness
    1.50 mm
    radius
    100 mm
    Weight per storage unit
    0.974 kg
    Geeignet für Funktionserhalt
    Nein
    Included accessories
    More information
  • WPLKAB 50S
    End plate, Wide-span cable ladder WPKAB
    height
    110 mm
    width
    490 mm
    length
    129 mm
    material thickness
    1.50 mm
    radius
    100 mm
    Weight per storage unit
    1.232 kg
    Geeignet für Funktionserhalt
    Nein
    Included accessories
    More information
  • WPLKAB 60S
    End plate, Wide-span cable ladder WPKAB
    height
    110 mm
    width
    590 mm
    length
    129 mm
    material thickness
    1.50 mm
    radius
    100 mm
    Weight per storage unit
    1.473 kg
    Geeignet für Funktionserhalt
    Nein
    Included accessories
    More information

Steel, hot-dip galvanised

Article

H

height

B

width

L

length

t

material thickness

R

radius

G

Weight per storage unit

Geeignet für Funktionserhalt

  • WPLKAB 20F
    End plate, Wide-span cable ladder WPKAB
    height
    110 mm
    width
    190 mm
    length
    129 mm
    material thickness
    1.50 mm
    radius
    100 mm
    Weight per storage unit
    0.524 kg
    Geeignet für Funktionserhalt
    Nein
    Included accessories
    More information
  • WPLKAB 30F
    End plate, Wide-span cable ladder WPKAB
    height
    110 mm
    width
    290 mm
    length
    129 mm
    material thickness
    1.50 mm
    radius
    100 mm
    Weight per storage unit
    0.782 kg
    Geeignet für Funktionserhalt
    Nein
    Included accessories
    More information
  • WPLKAB 40F
    End plate, Wide-span cable ladder WPKAB
    height
    110 mm
    width
    390 mm
    length
    129 mm
    material thickness
    1.50 mm
    radius
    100 mm
    Weight per storage unit
    1.039 kg
    Geeignet für Funktionserhalt
    Nein
    Included accessories
    More information
  • WPLKAB 50F
    End plate, Wide-span cable ladder WPKAB
    height
    110 mm
    width
    490 mm
    length
    129 mm
    material thickness
    1.50 mm
    radius
    100 mm
    Weight per storage unit
    1.311 kg
    Geeignet für Funktionserhalt
    Nein
    Included accessories
    More information
  • WPLKAB 60F
    End plate, Wide-span cable ladder WPKAB
    height
    110 mm
    width
    590 mm
    length
    129 mm
    material thickness
    1.50 mm
    radius
    100 mm
    Weight per storage unit
    1.569 kg
    Geeignet für Funktionserhalt
    Nein
    Included accessories
    More information

Stainless steel, acc. to AISI 304 (BS 304S31)

Article

H

height

B

width

L

length

t

material thickness

R

radius

G

Weight per storage unit

Geeignet für Funktionserhalt

  • WPLKAB 20E
    End plate, Wide-span cable ladder WPKAB
    height
    110 mm
    width
    190 mm
    length
    129 mm
    material thickness
    1.50 mm
    radius
    100 mm
    Weight per storage unit
    0.493 kg
    Geeignet für Funktionserhalt
    Nein
    Included accessories
    More information
  • WPLKAB 30E
    End plate, Wide-span cable ladder WPKAB
    height
    110 mm
    width
    290 mm
    length
    129 mm
    material thickness
    1.50 mm
    radius
    100 mm
    Weight per storage unit
    0.736 kg
    Geeignet für Funktionserhalt
    Nein
    Included accessories
    More information
  • WPLKAB 40E
    End plate, Wide-span cable ladder WPKAB
    height
    110 mm
    width
    390 mm
    length
    129 mm
    material thickness
    1.50 mm
    radius
    100 mm
    Weight per storage unit
    0.978 kg
    Geeignet für Funktionserhalt
    Nein
    Included accessories
    More information
  • WPLKAB 50E
    End plate, Wide-span cable ladder WPKAB
    height
    110 mm
    width
    490 mm
    length
    129 mm
    material thickness
    1.50 mm
    radius
    100 mm
    Weight per storage unit
    1.237 kg
    Geeignet für Funktionserhalt
    Nein
    Included accessories
    More information
  • WPLKAB 60E
    End plate, Wide-span cable ladder WPKAB
    height
    110 mm
    width
    590 mm
    length
    129 mm
    material thickness
    1.50 mm
    radius
    100 mm
    Weight per storage unit
    1.479 kg
    Geeignet für Funktionserhalt
    Nein
    Included accessories
    More information
