KATBS

T-joint connector plate, sideways

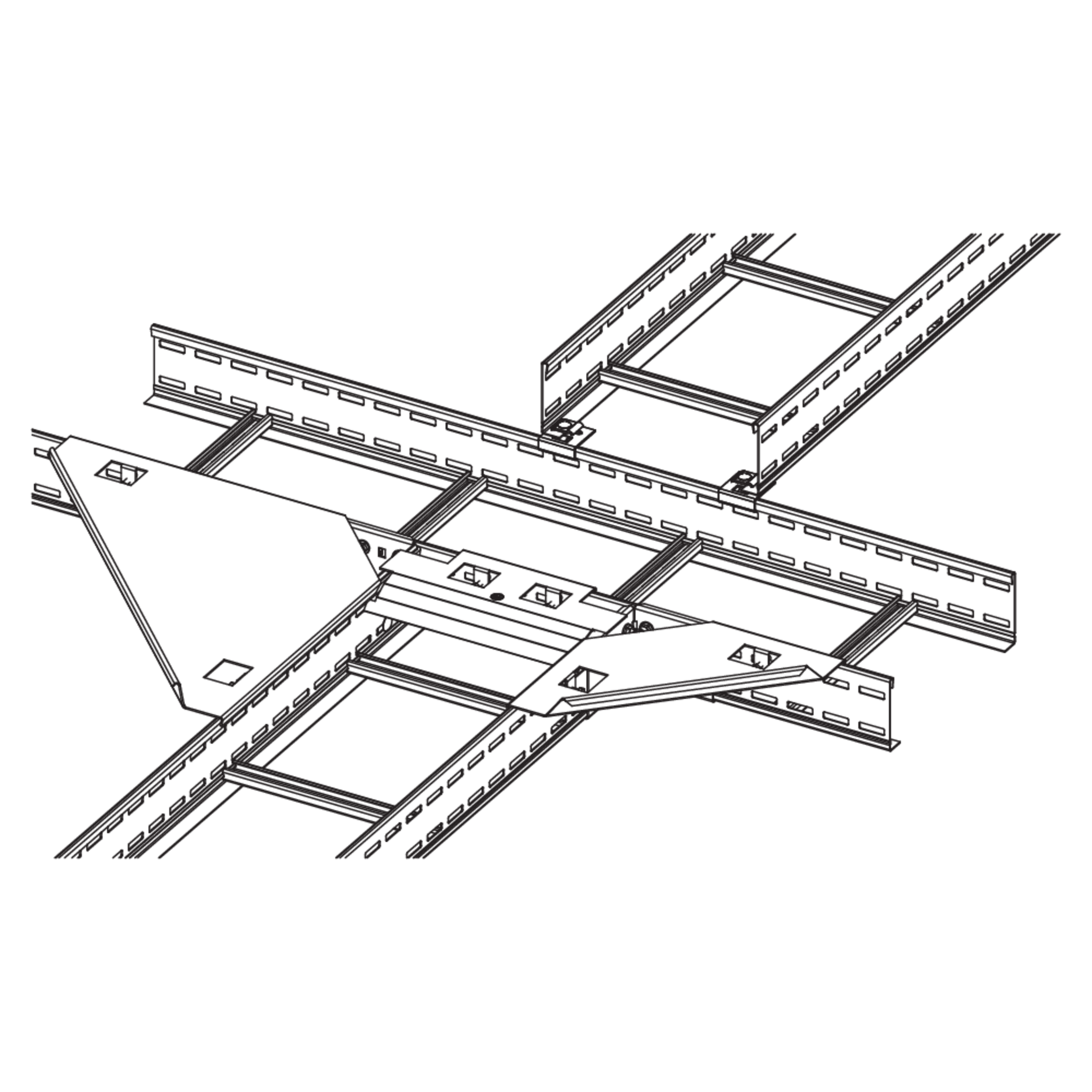

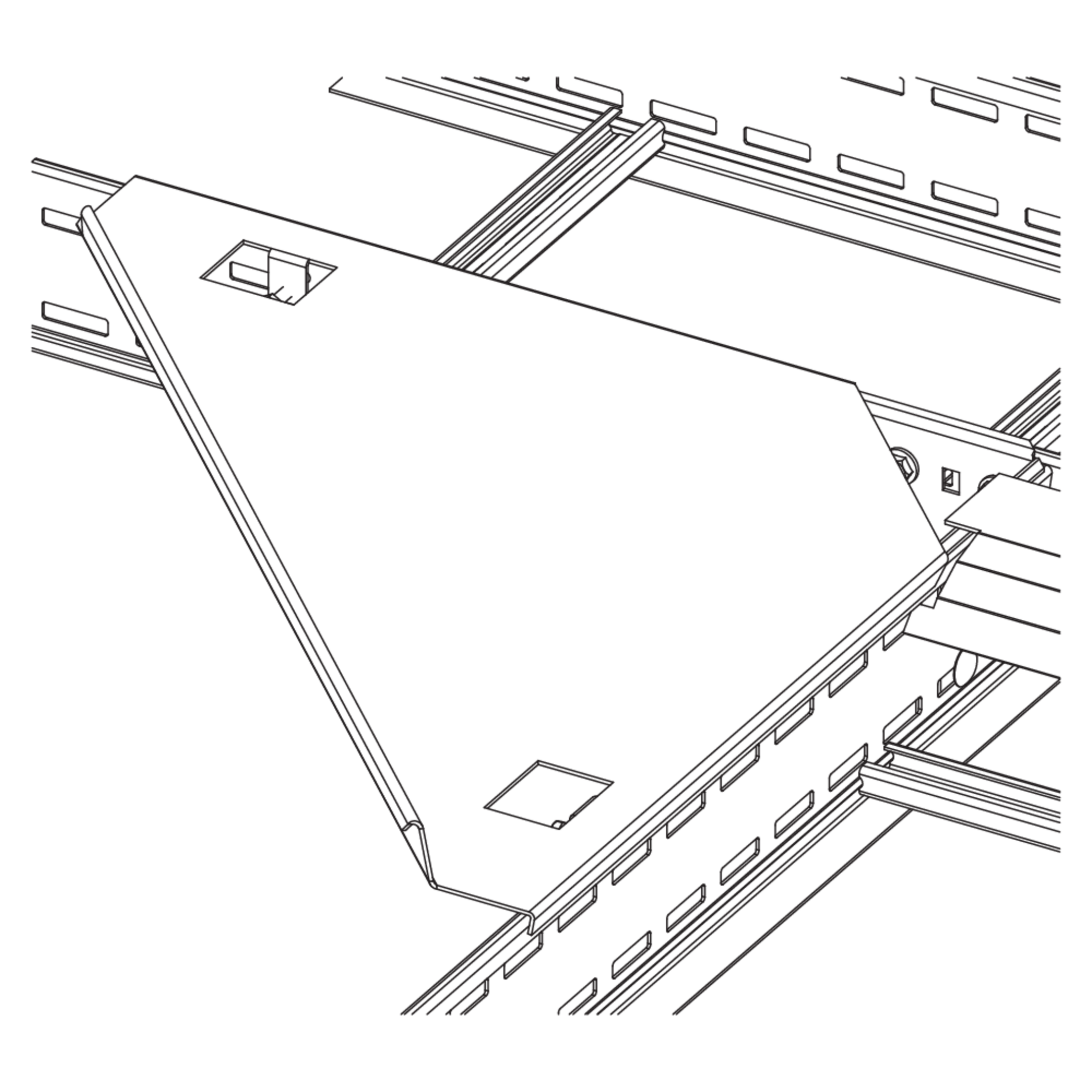

The side T-joint connector plate KATBS is used for cable protection on non-cut T-connections of RG, LGG and WPL/WPR to enable cable-friendly installation. It is used to guide cables over the rail of the cable support system without sharp edges. The sheet metal is placed on the rail and screwed in place with hexagon head screw(s) SES.

Get in touchDownload datasheet

Variants

Steel, pre-galvanised/Sendzimir process

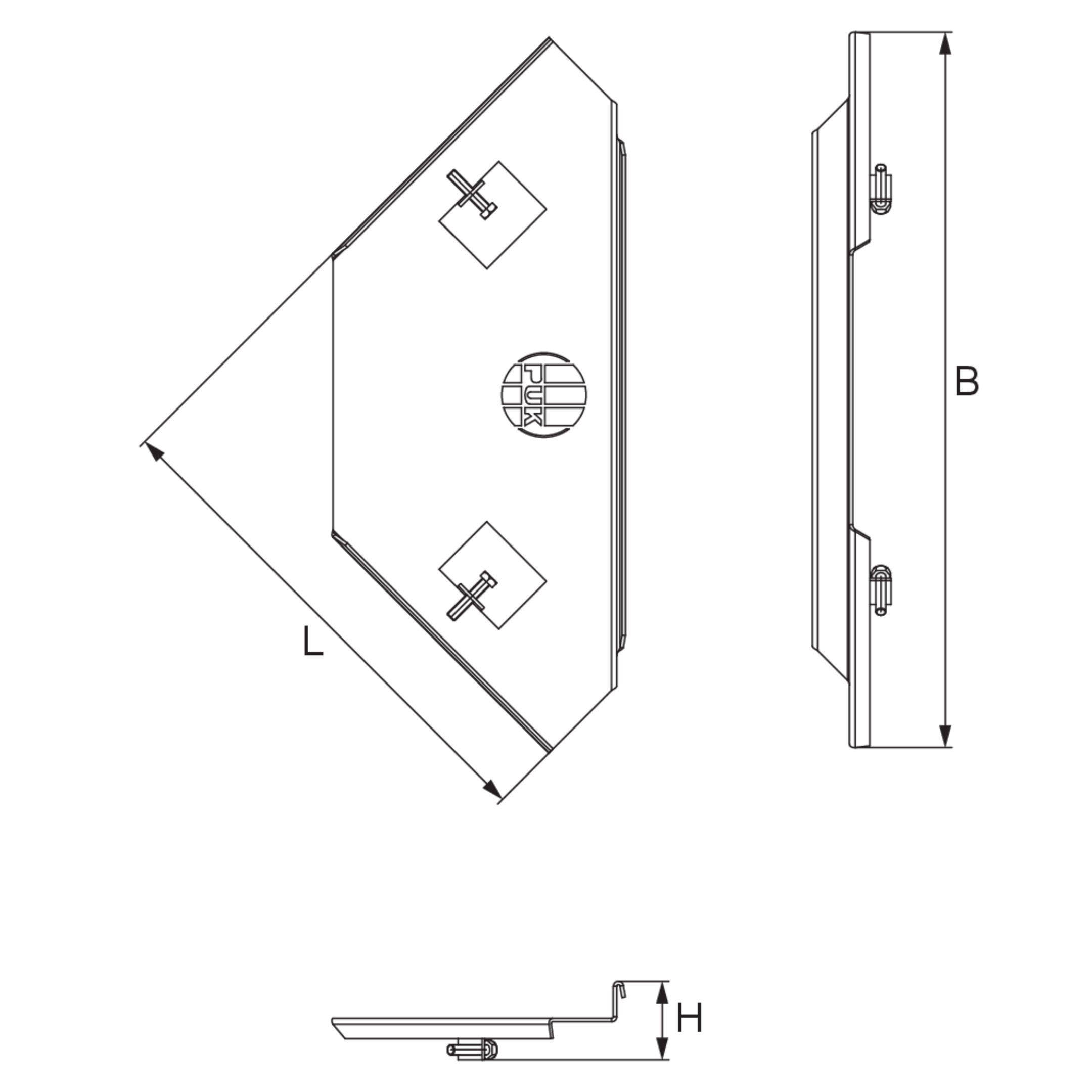

Article

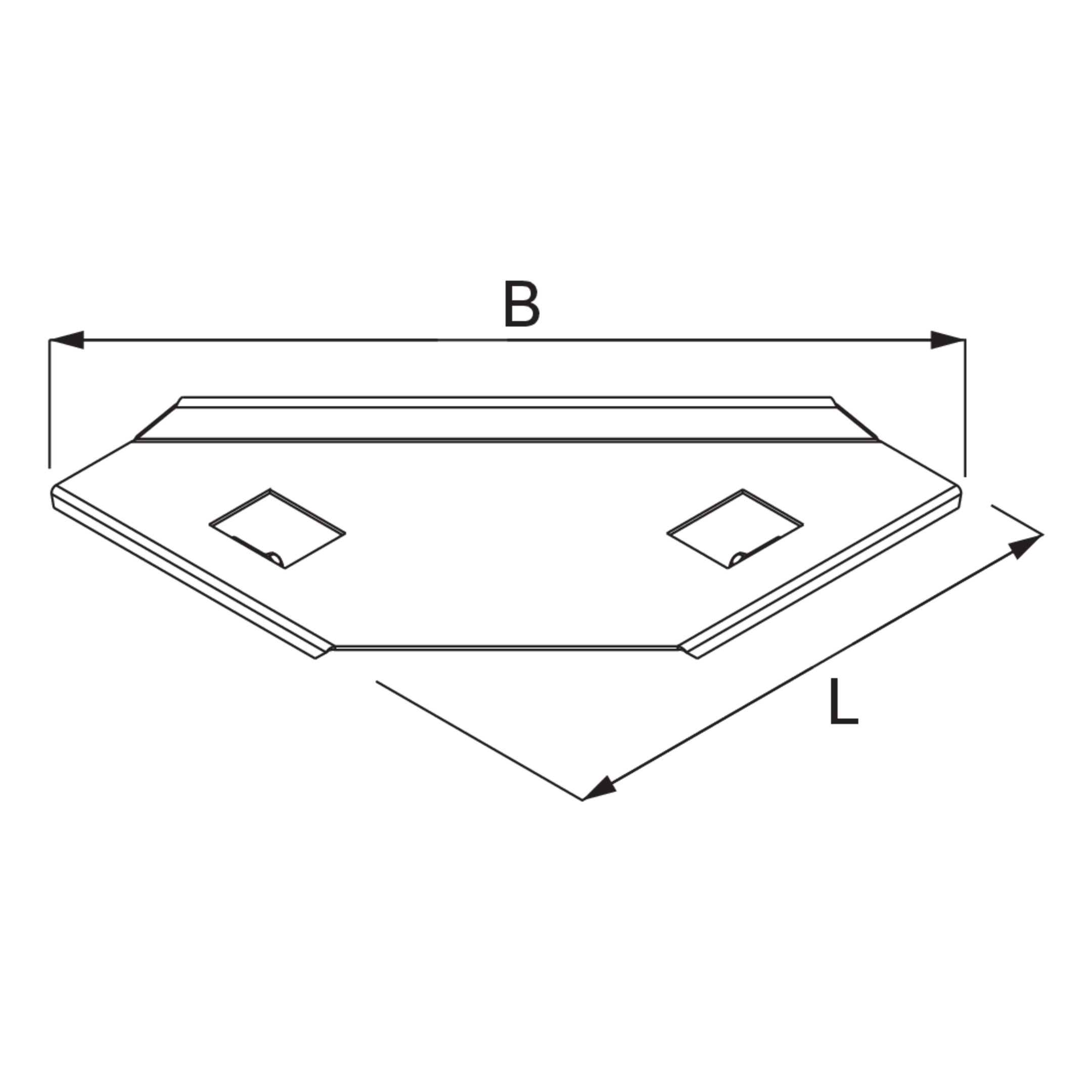

H

height

B

width

L

length

t

material thickness

G

Weight per storage unit

Included accessories
  • KATBS-300S
    Connection plate VB-BS 20S
    height
    34 mm
    width
    436 mm
    length
    300 mm
    material thickness
    2 mm
    Weight per storage unit
    1.007 kg
    Included accessories
    More information
  • KATBS-500S
    Connection plate VB-BS 20S
    height
    34 mm
    width
    719 mm
    length
    500 mm
    material thickness
    2 mm
    Weight per storage unit
    2.633 kg
    Included accessories
    More information
