WPREB

Wide-span cable tray end plate

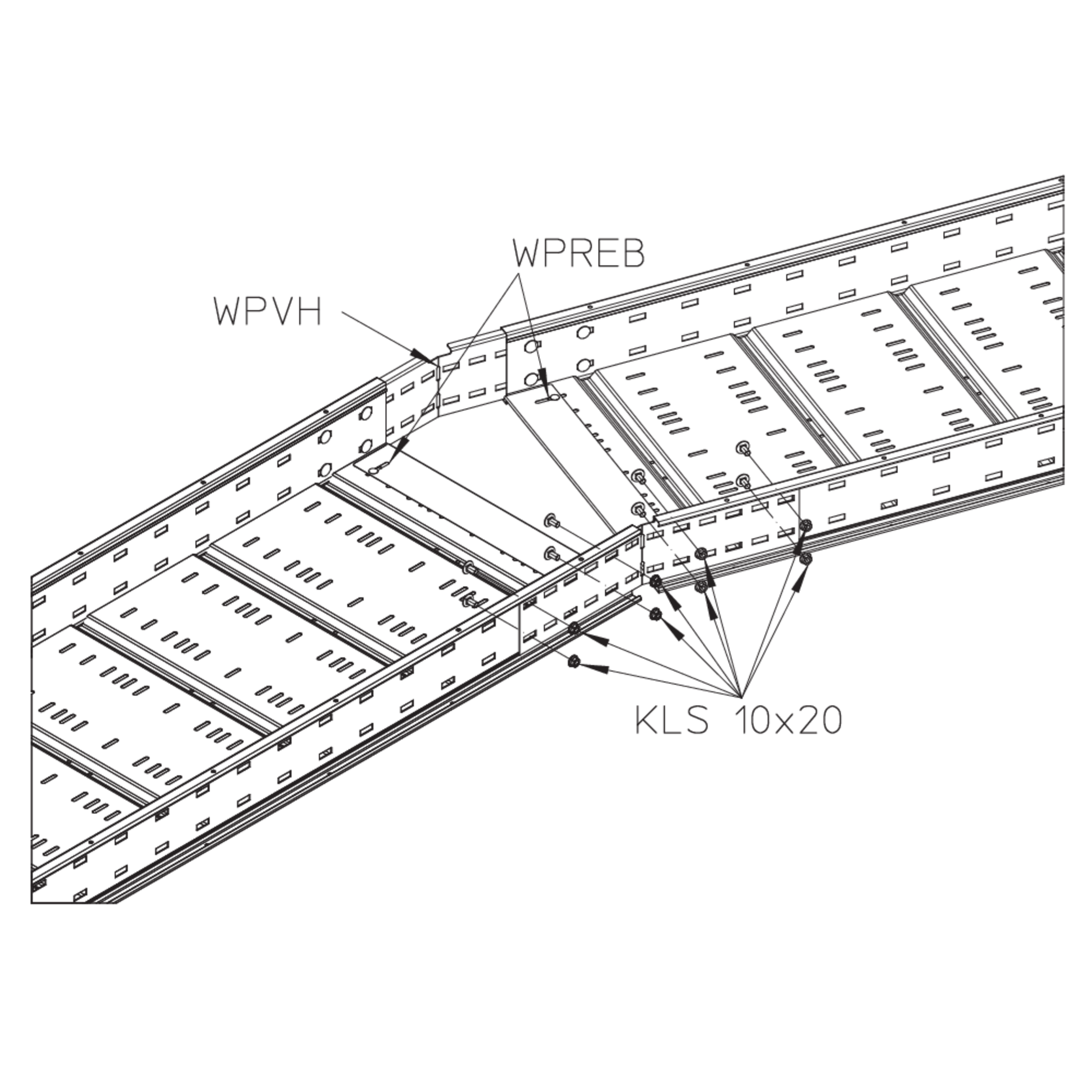

The wide-span cable tray end plate WPREB is pushed onto the tray bottom at the end of a wide-span cable tray and bolted in place. It is used to protect the cables that are fed in or out. It is also suitable for use as an intermediate element when connecting two wide-span cable trays horizontally or vertically using side connectors. The wide-span cable tray end plate is from 195 to 595 mm wide corresponding to the cable tray. We provide components in various materials and surface finishes to ensure that various corrosion protection requirements for different areas of application are met.

Get in touchDownload datasheet

Variants

Steel, pre-galvanised/Sendzimir process

Article

H

height

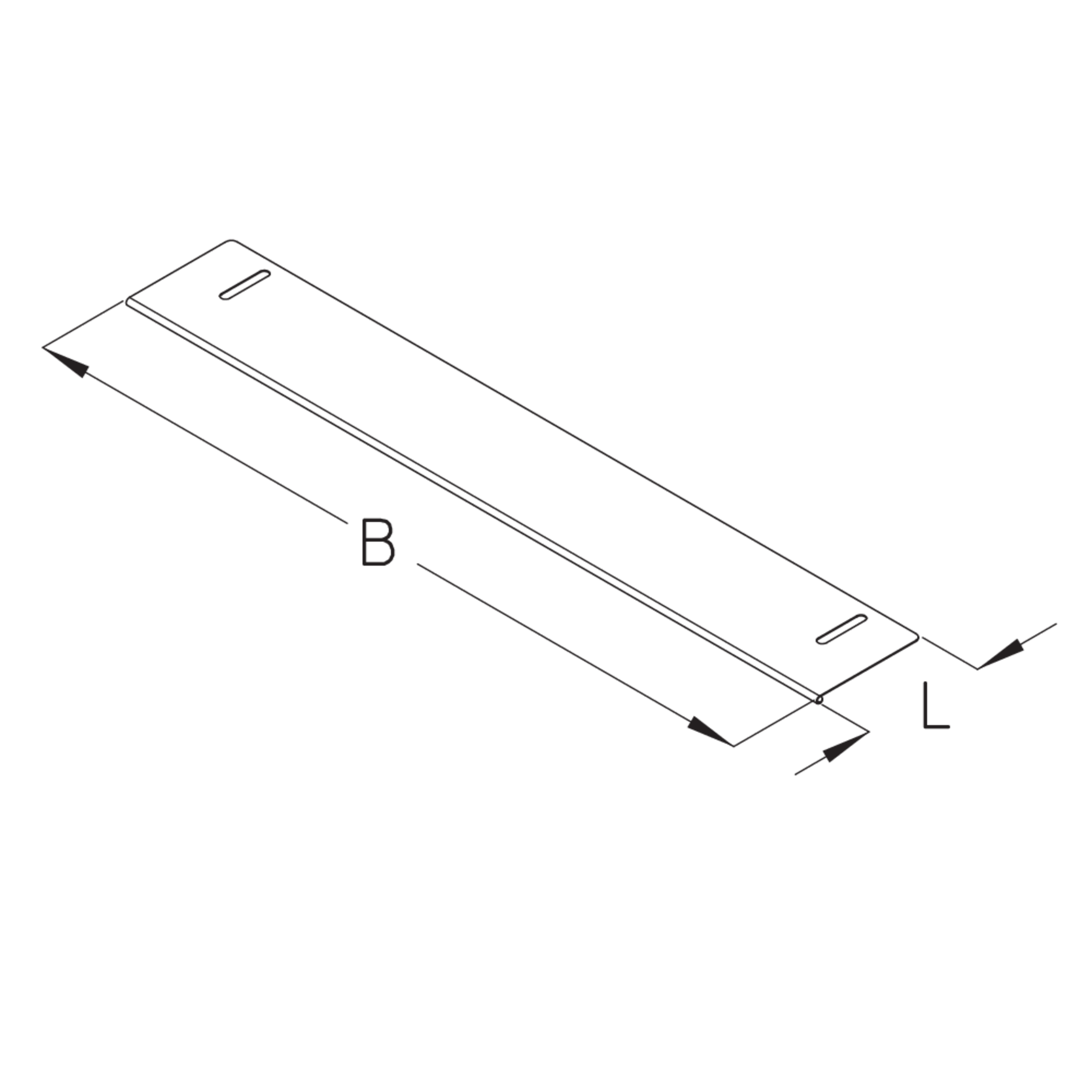

B

width

L

length

G

Weight per storage unit

  • WPREB 20S
    End plate, Wide-span cable tray WPREB
    height
    6 mm
    width
    195 mm
    length
    90 mm
    Weight per storage unit
    0.126 kg
    Included accessories
    More information
  • WPREB 30S
    End plate, Wide-span cable tray WPREB
    height
    6 mm
    width
    295 mm
    length
    90 mm
    Weight per storage unit
    0.185 kg
    Included accessories
    More information
  • WPREB 40S
    End plate, Wide-span cable tray WPREB
    height
    6 mm
    width
    395 mm
    length
    90 mm
    Weight per storage unit
    0.244 kg
    Included accessories
    More information
  • WPREB 50S
    End plate, Wide-span cable tray WPREB
    height
    6 mm
    width
    495 mm
    length
    90 mm
    Weight per storage unit
    0.302 kg
    Included accessories
    More information
  • WPREB 60S
    End plate, Wide-span cable tray WPREB
    height
    6 mm
    width
    595 mm
    length
    90 mm
    Weight per storage unit
    0.361 kg
    Included accessories
    More information

Steel, hot-dip galvanised

Article

H

height

B

width

L

length

G

Weight per storage unit

  • WPREB 20F
    End plate, Wide-span cable tray WPREB
    height
    6 mm
    width
    195 mm
    length
    90 mm
    Weight per storage unit
    0.136 kg
    Included accessories
    More information
  • WPREB 30F
    End plate, Wide-span cable tray WPREB
    height
    6 mm
    width
    295 mm
    length
    90 mm
    Weight per storage unit
    0.196 kg
    Included accessories
    More information
  • WPREB 40F
    End plate, Wide-span cable tray WPREB
    height
    6 mm
    width
    395 mm
    length
    90 mm
    Weight per storage unit
    0.266 kg
    Included accessories
    More information
  • WPREB 50F
    End plate, Wide-span cable tray WPREB
    height
    6 mm
    width
    495 mm
    length
    90 mm
    Weight per storage unit
    0.326 kg
    Included accessories
    More information
  • WPREB 60F
    End plate, Wide-span cable tray WPREB
    height
    6 mm
    width
    595 mm
    length
    90 mm
    Weight per storage unit
    0.386 kg
    Included accessories
    More information
