WLKLA

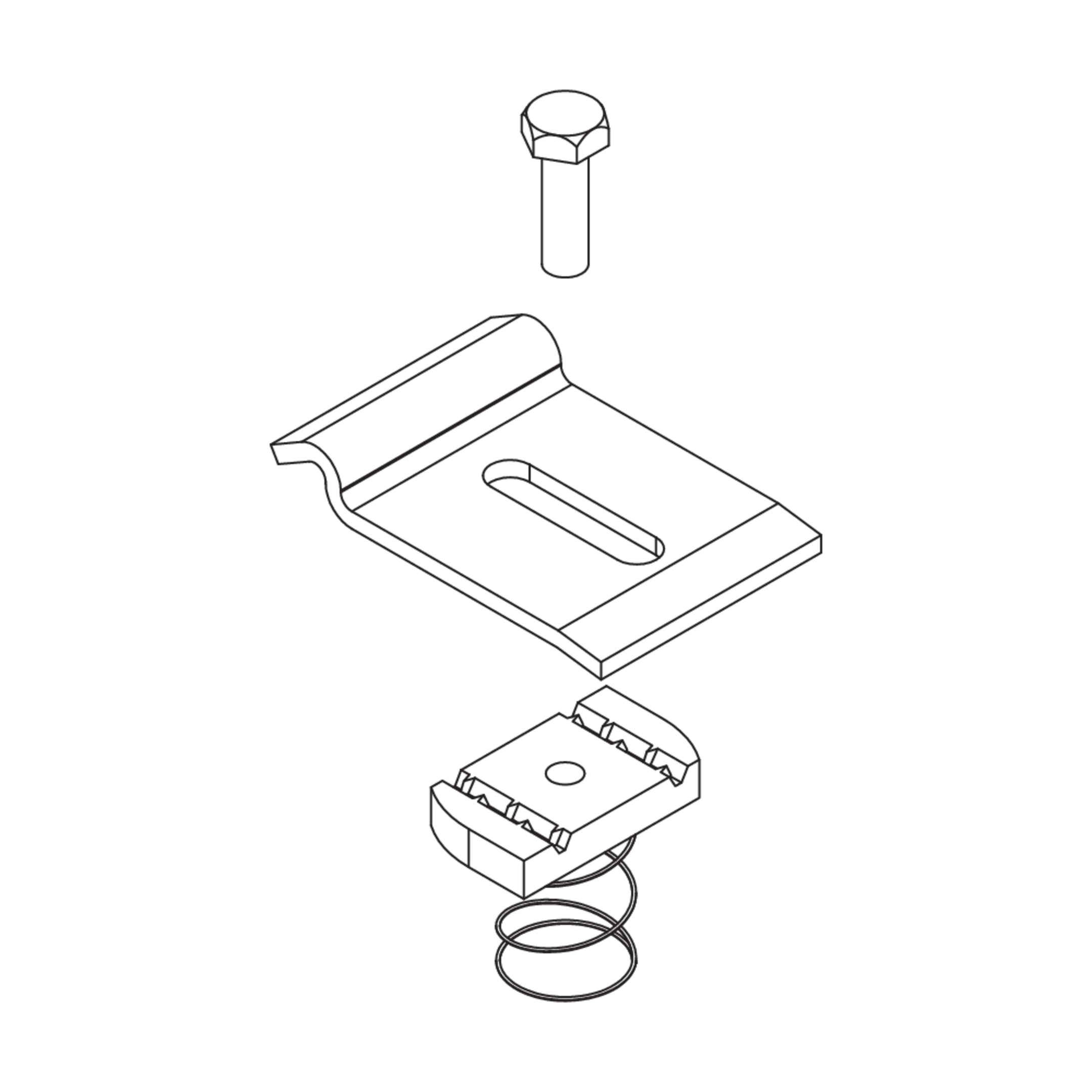

Wide-span cable ladder hold-down clamp

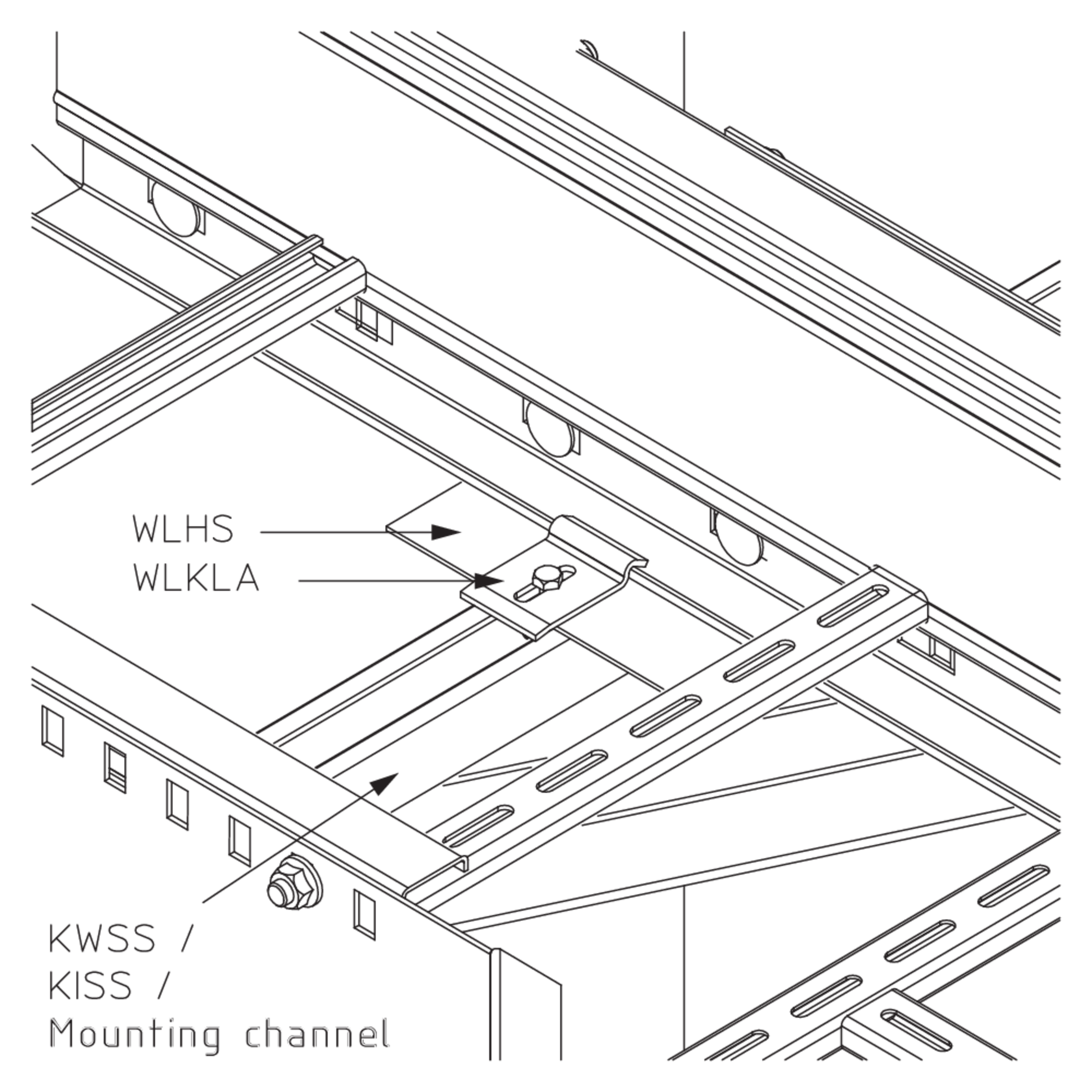

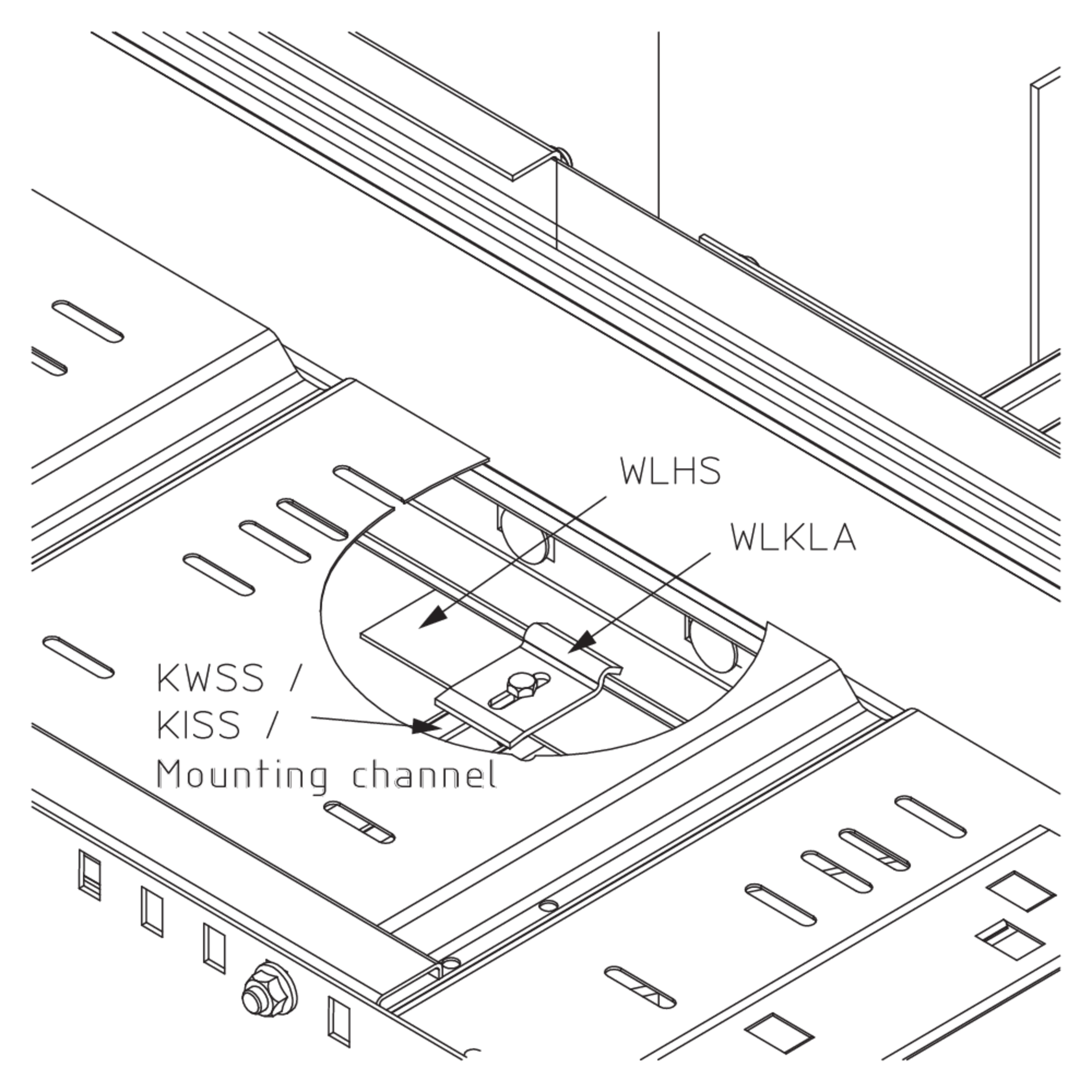

The clamping fastener WLKLA is an accessory part for the WLHS wide-span side rail support if it is used to secure the position of a WL or WLR 200 wide-span tray on profile rails or brackets of type KWSS or KISS. We provide components in various materials and surface finishes to ensure that various corrosion protection requirements for different areas of application are met.

Get in touchDownload datasheet

Variants

Steel, pre-galvanised/Sendzimir process

Article

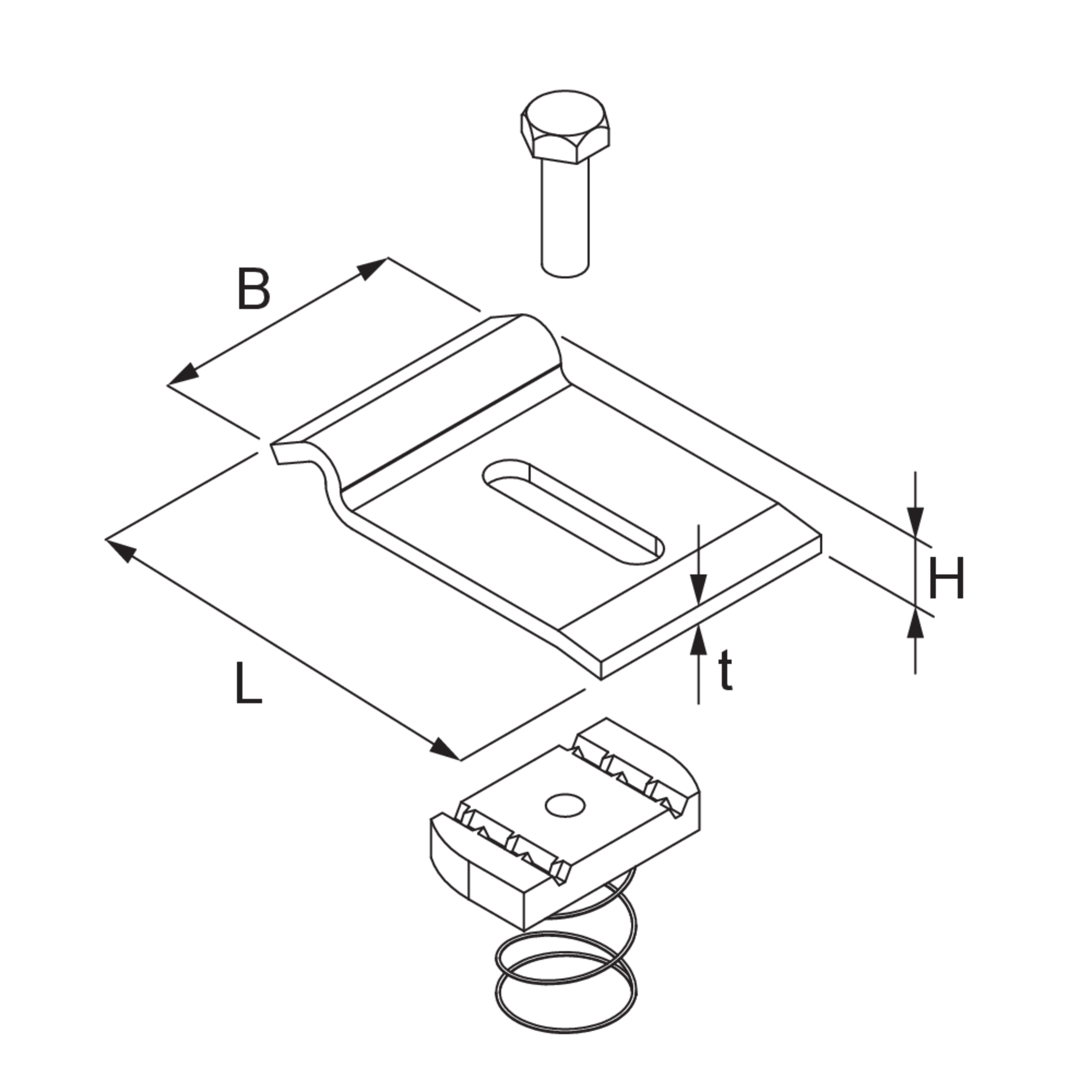

H

height

B

width

L

length

t

material thickness

G

Weight per storage unit

Included accessories
  • WLKLA S

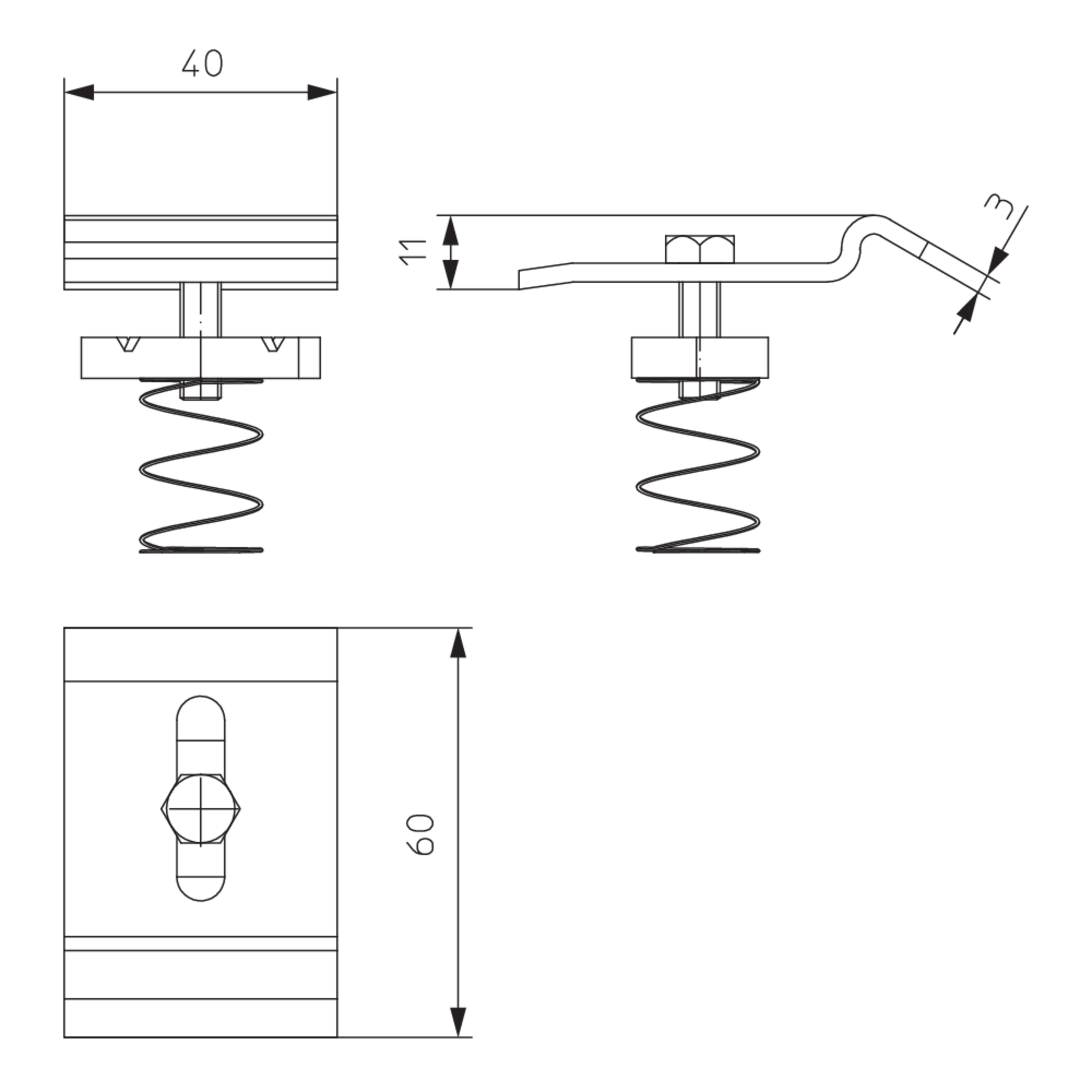

    Clamp WLKLA S
    height
    11 mm
    width
    40 mm
    length
    60 mm
    material thickness
    3.00 mm
    Weight per storage unit
    0.178 kg
    Included accessories
    More information

Steel, hot-dip galvanised

Article

H

height

B

width

L

length

t

material thickness

G

Weight per storage unit

Included accessories
  • WLKLA F
    Clamp WLKLA F
    height
    11 mm
    width
    40 mm
    length
    60 mm
    material thickness
    3.00 mm
    Weight per storage unit
    0.180 kg
    Included accessories
    More information
