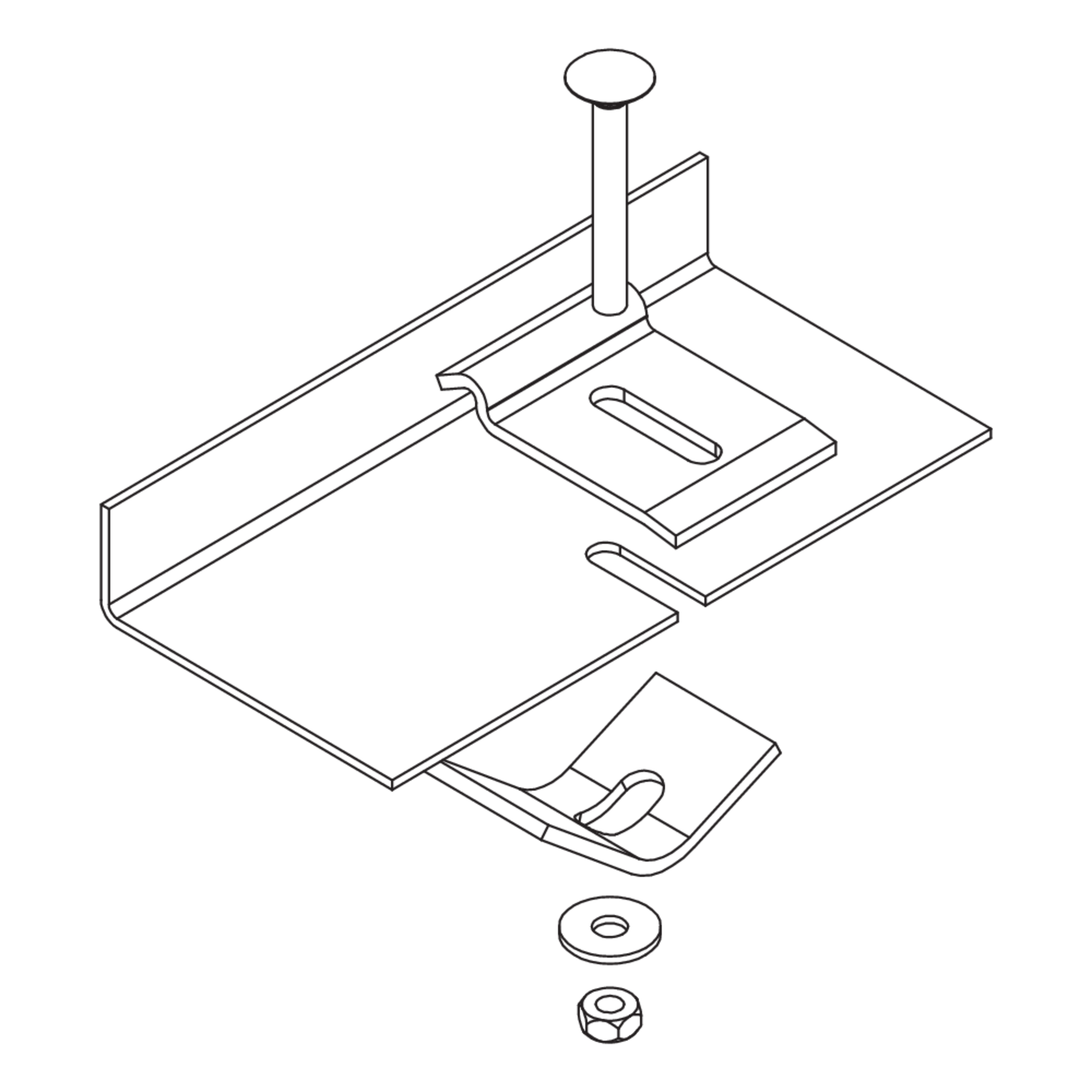

WLHS-T

Wide-span rail support (beam)

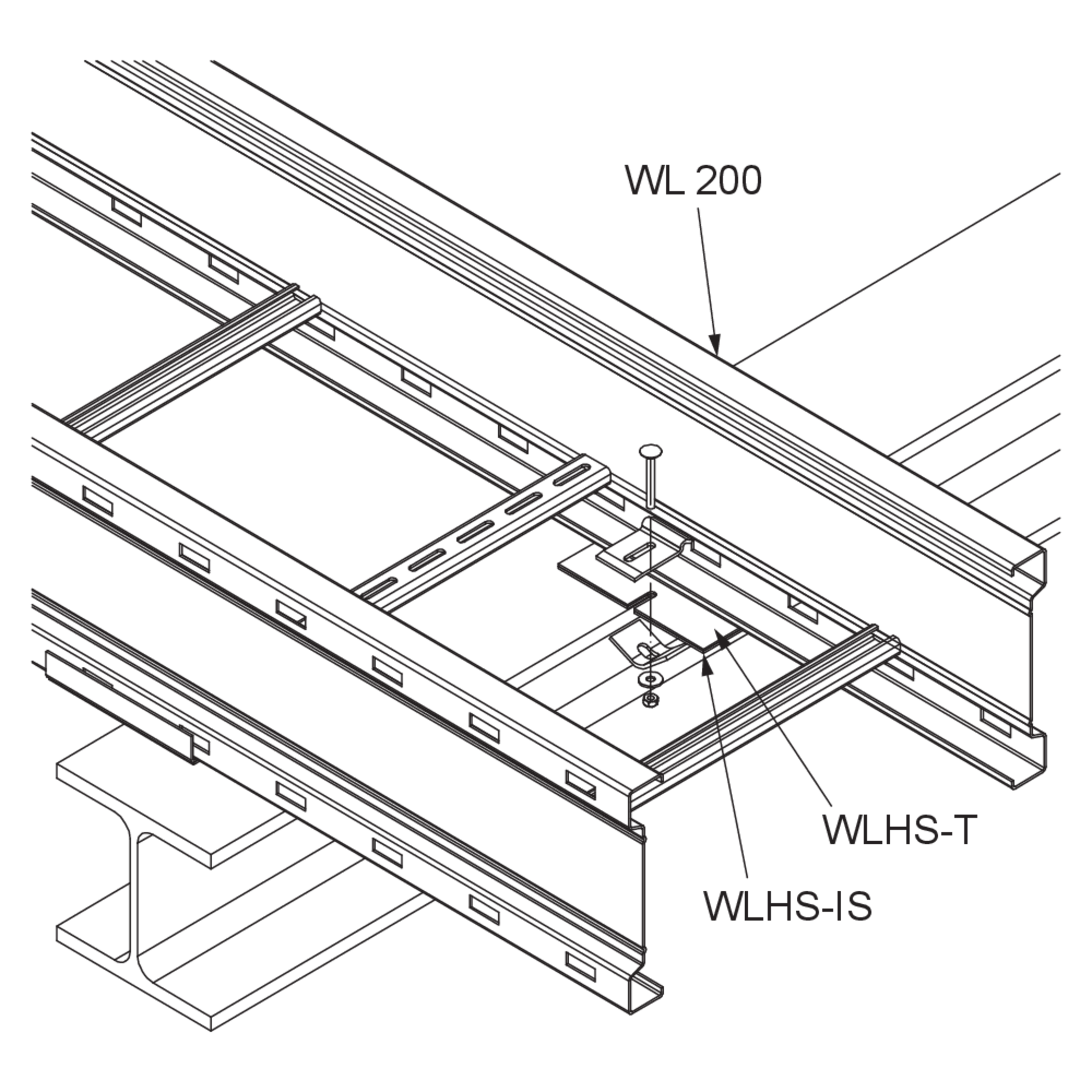

The WLHS-T wide-span rail supports are used to secure WL and WLR 200 wide-span trusses to steel sections. A range of materials and finishes ensures that the corrosion protection requirements of a wide variety of applications are met.

Get in touchDownload datasheet

Variants

Steel, pre-galvanised/Sendzimir process

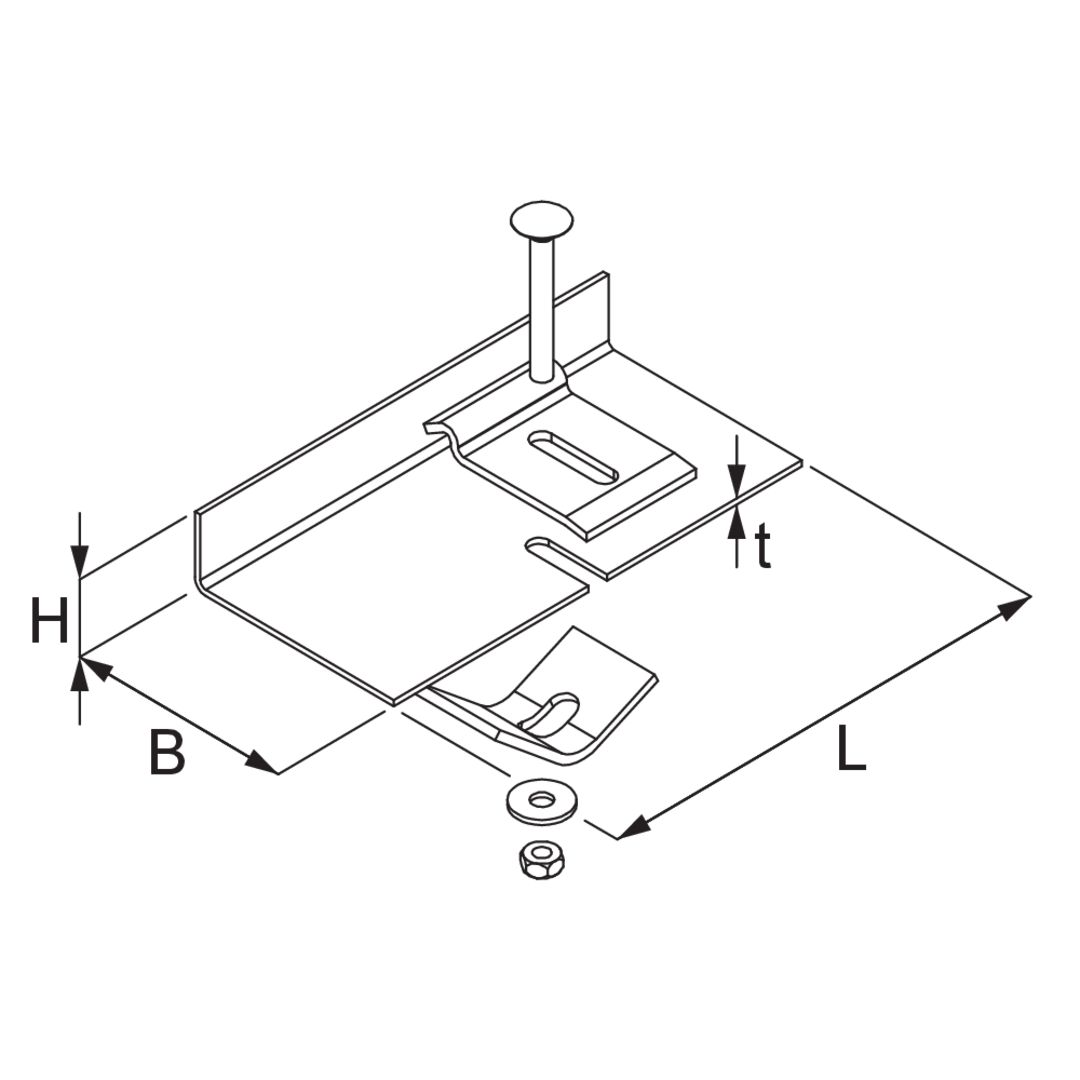

Article

H

height

B

width

L

length

t

material thickness

G

Weight per storage unit

Included accessories
  • WLHS-T S
    Holm support for WL carrier
    height
    25 mm
    width
    73 mm
    length
    150 mm
    material thickness
    2 mm
    Weight per storage unit
    0.362 kg
    Included accessories
    More information

Steel, hot-dip galvanised

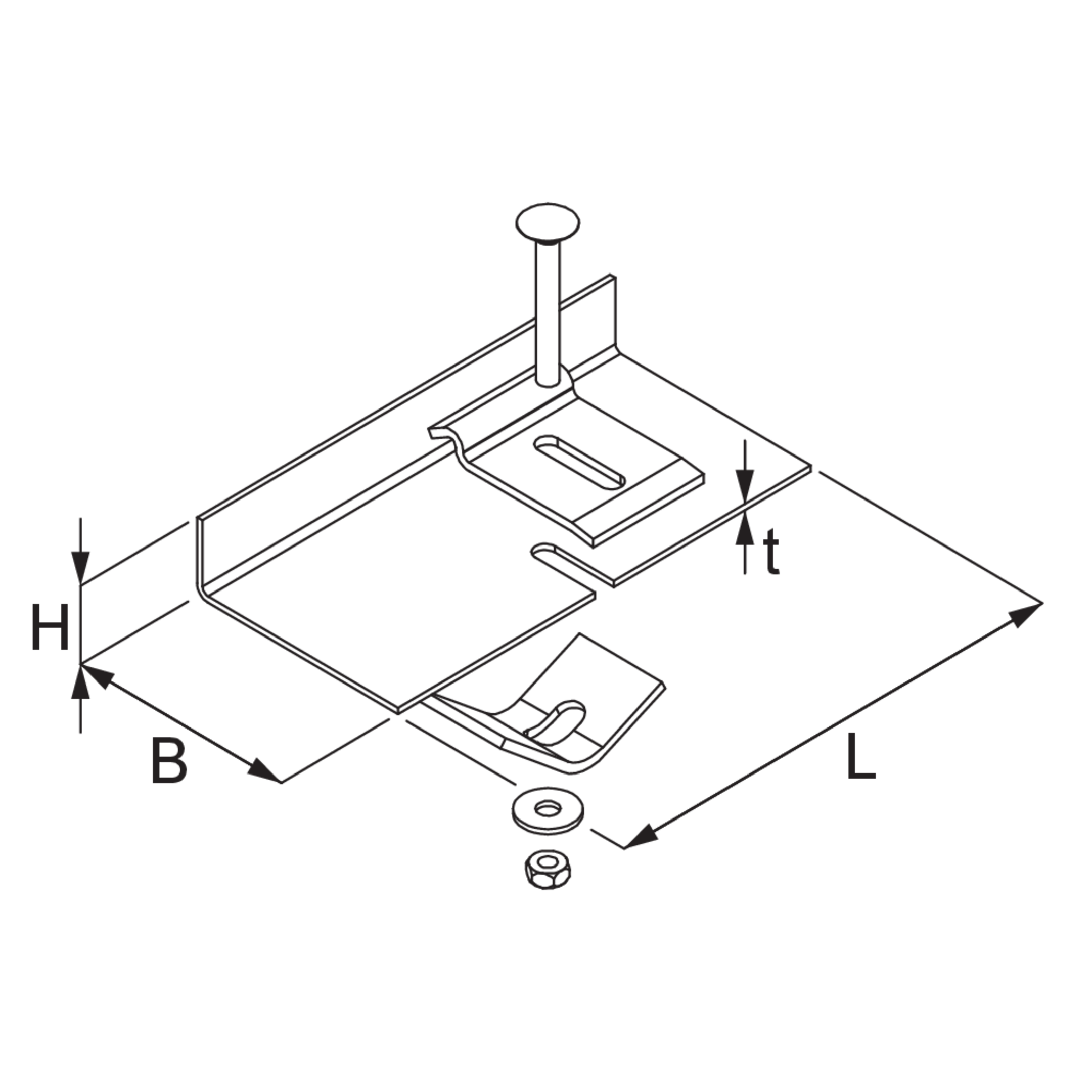

Article

H

height

B

width

L

length

t

material thickness

G

Weight per storage unit

Included accessories
  • WLHS-T F
    Holm support for WL carrier
    height
    25 mm
    width
    73 mm
    length
    150 mm
    material thickness
    2 mm
    Weight per storage unit
    0.365 kg
    Included accessories
    More information
