KATB

T-joint connector plate

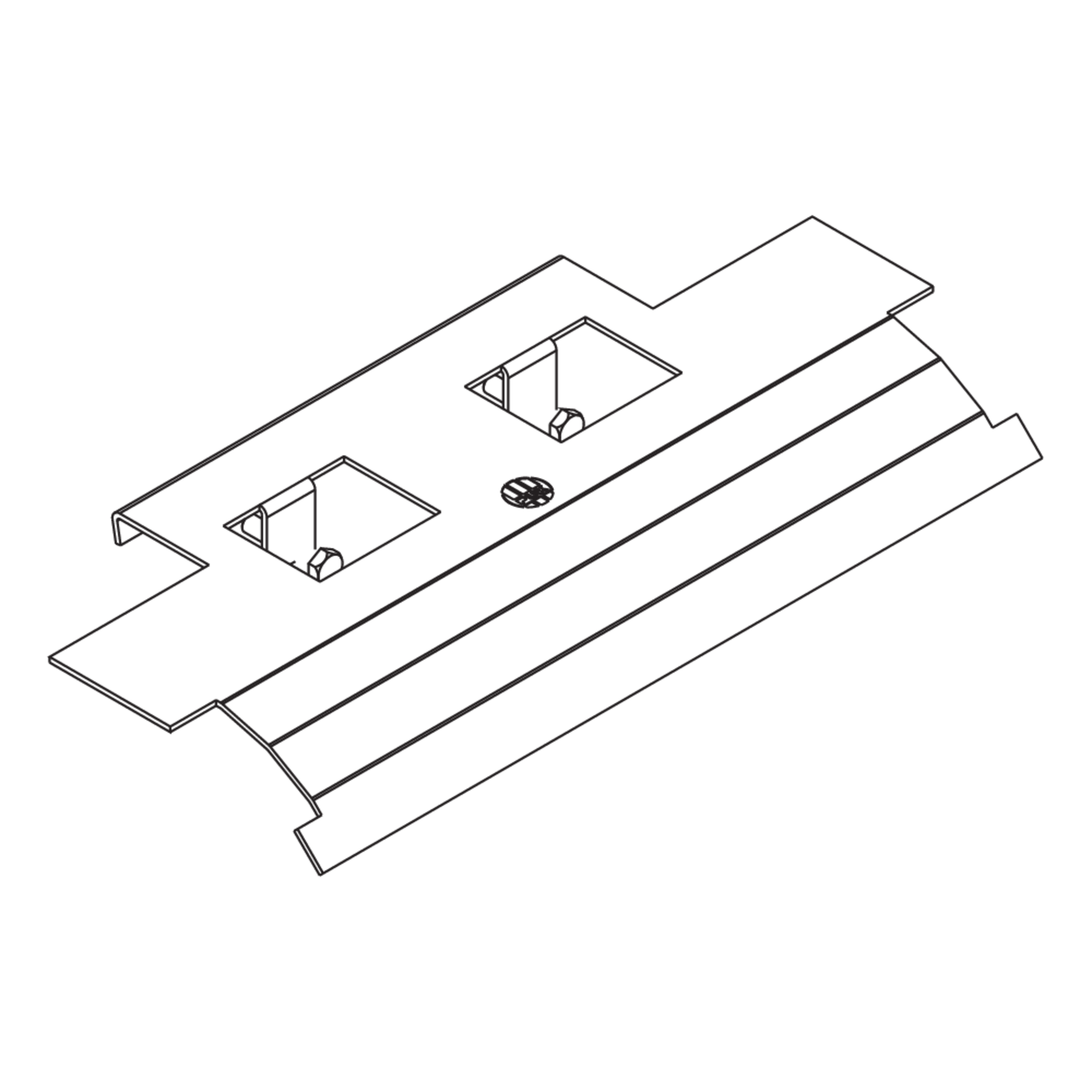

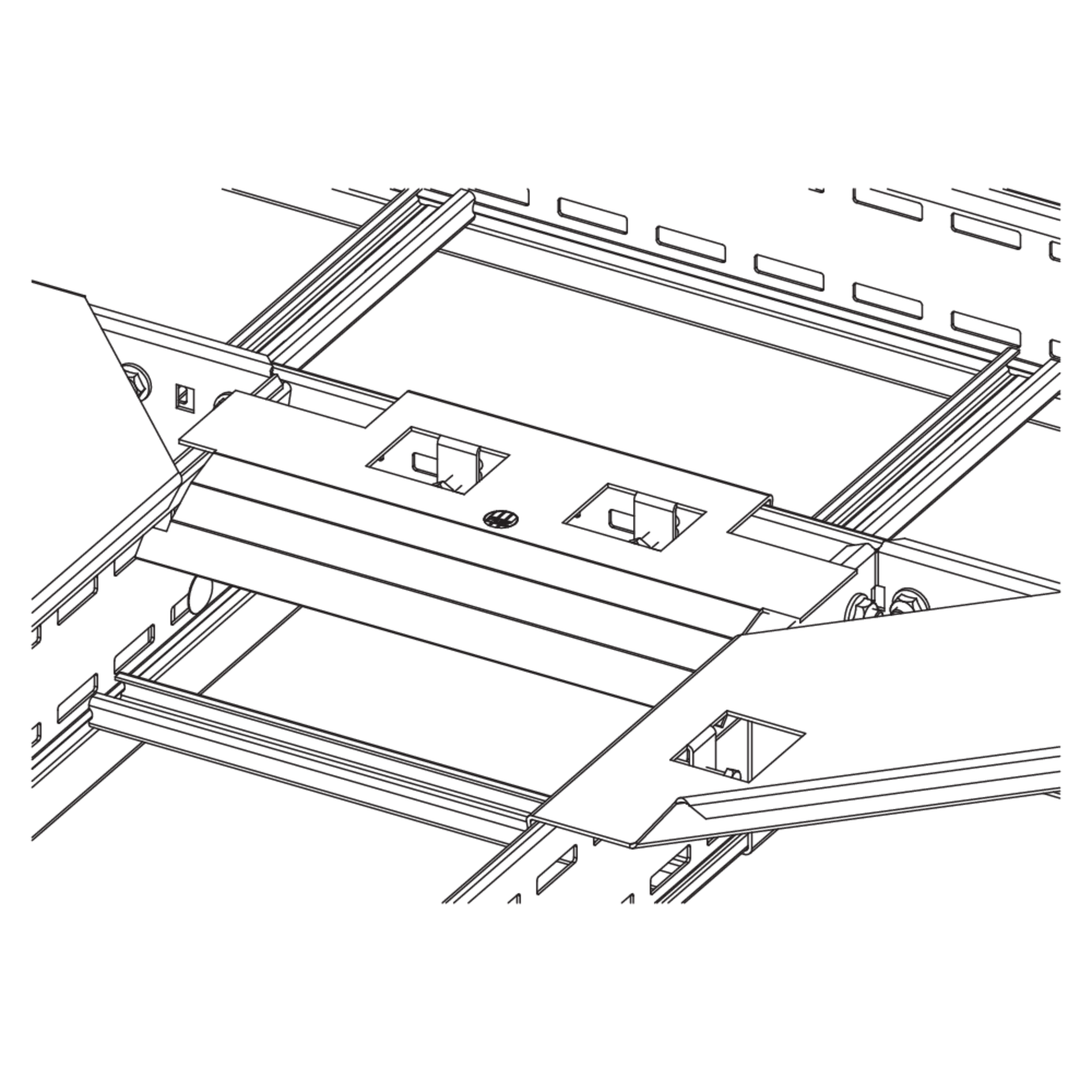

The T-joint connector plate is used for cable protection on non-cut T-connections of RG, LGG and WPL/WPR to enable cable-friendly installation. It is used to guide cables over the rail of the cable support system without sharp edges. The sheet metal is placed on the rail and screwed in place with hexagon head screw(s) SES.

Get in touchDownload datasheet

Variants

Steel, pre-galvanised/Sendzimir process

Article

H

height

B

width

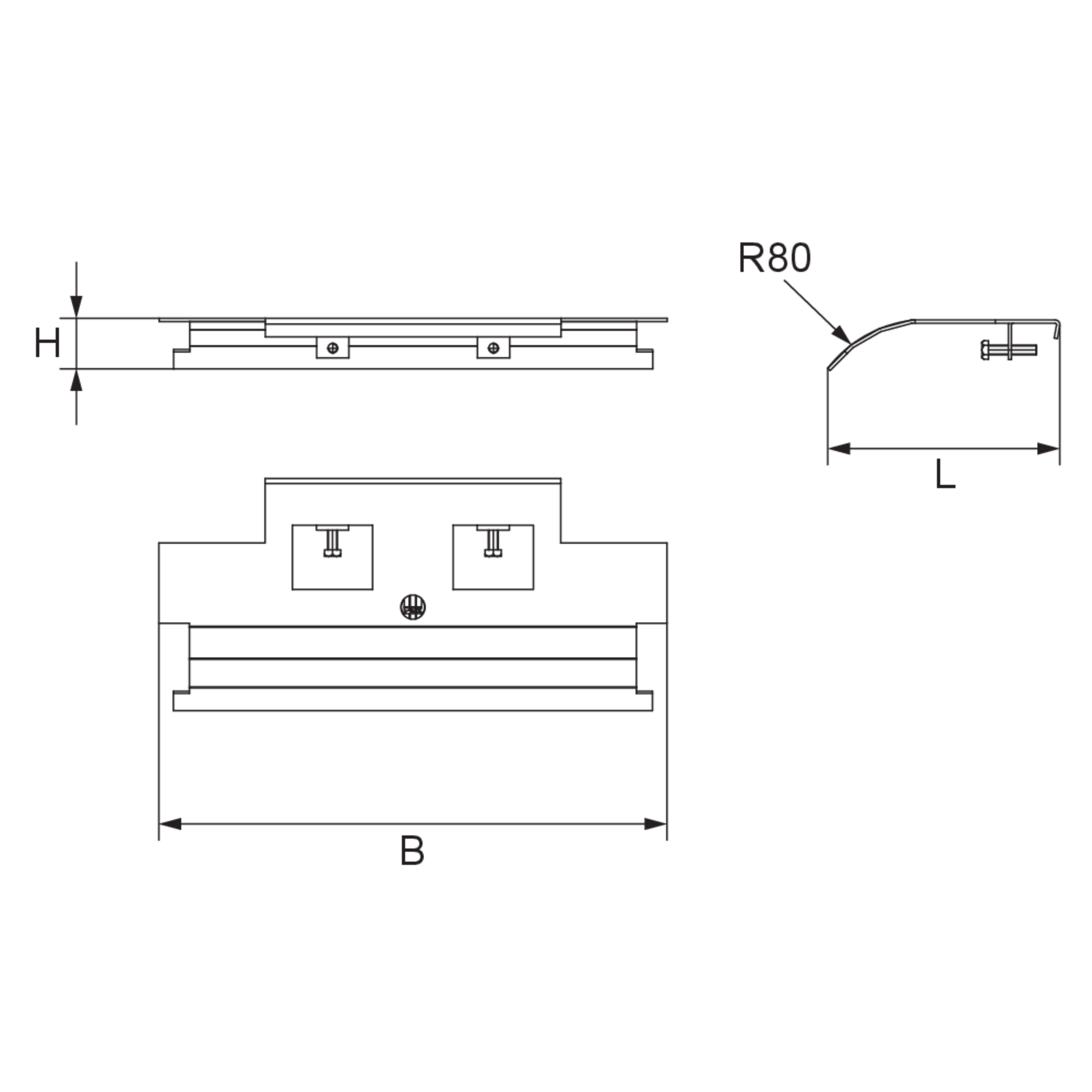

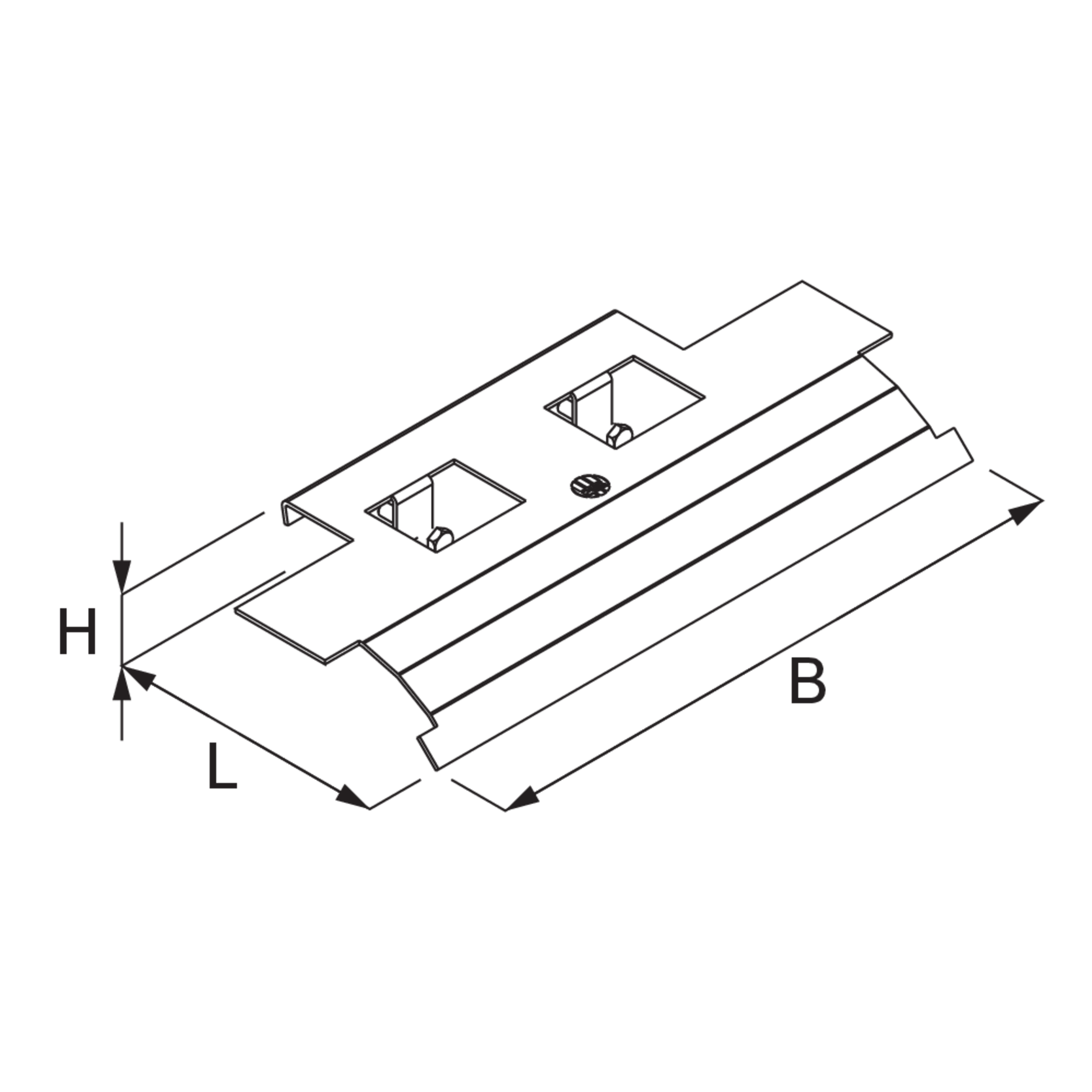

L

length

t

material thickness

G

Weight per storage unit

Included accessories
  • KATB-200S
    Connection plate VB-BS 20S
    height
    31 mm
    width
    216 mm
    length
    144 mm
    material thickness
    2 mm
    Weight per storage unit
    0.394 kg
    Included accessories
    More information
  • KATB-300S
    Connection plate VB-BS 20S
    height
    31 mm
    width
    316 mm
    length
    144 mm
    material thickness
    2 mm
    Weight per storage unit
    0.627 kg
    Included accessories
    More information
  • KATB-400S
    Connection plate VB-BS 20S
    height
    31 mm
    width
    416 mm
    length
    144 mm
    material thickness
    2 mm
    Weight per storage unit
    0.881 kg
    Included accessories
    More information
  • KATB-500S
    Connection plate VB-BS 20S
    height
    31 mm
    width
    516 mm
    length
    144 mm
    material thickness
    2 mm
    Weight per storage unit
    1.135 kg
    Included accessories
    More information
  • KATB-600S
    Connection plate VB-BS 20S
    height
    31 mm
    width
    616 mm
    length
    144 mm
    material thickness
    2 mm
    Weight per storage unit
    1.389 kg
    Included accessories
    More information
