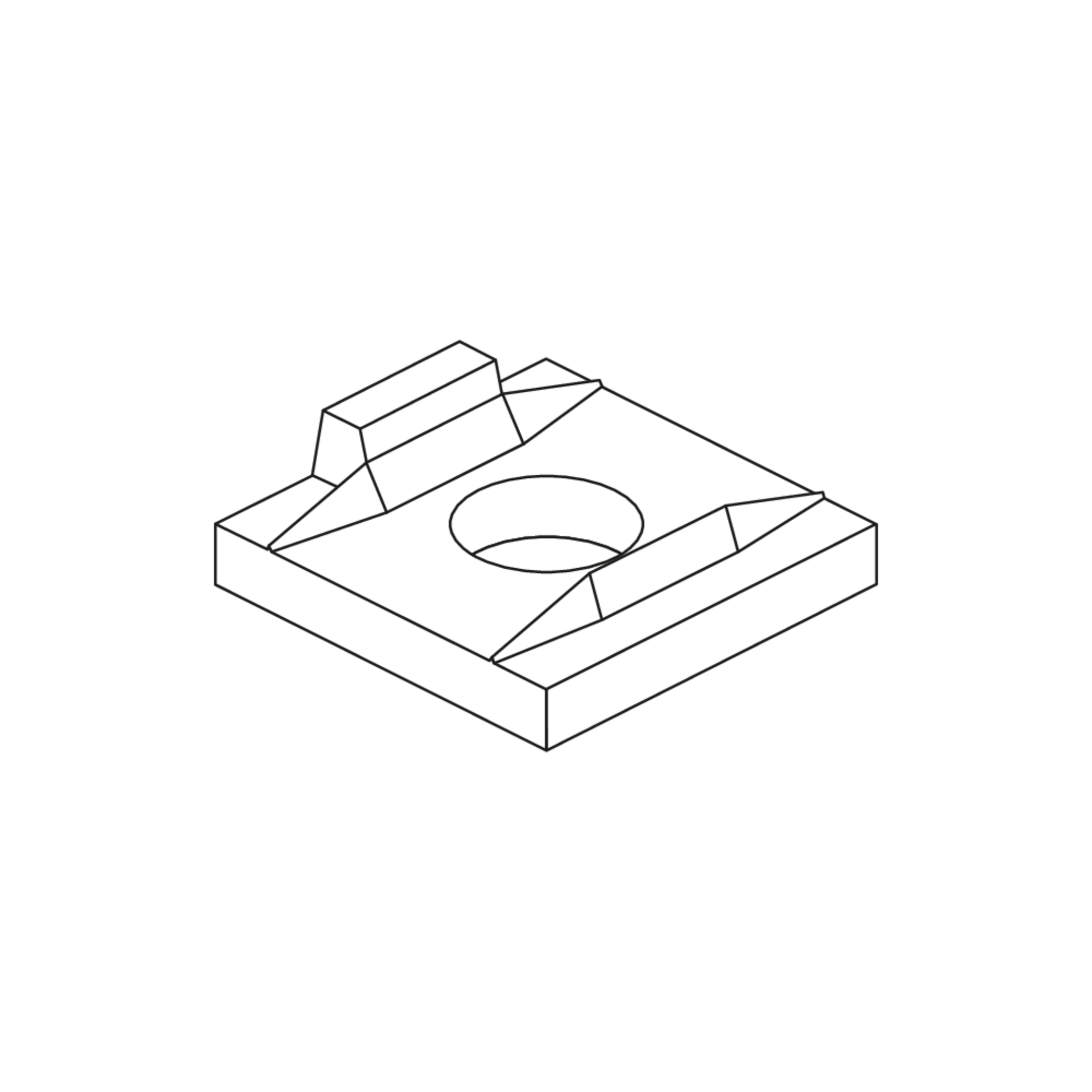

Toothed washers for slip-resistant bolt connections in slots

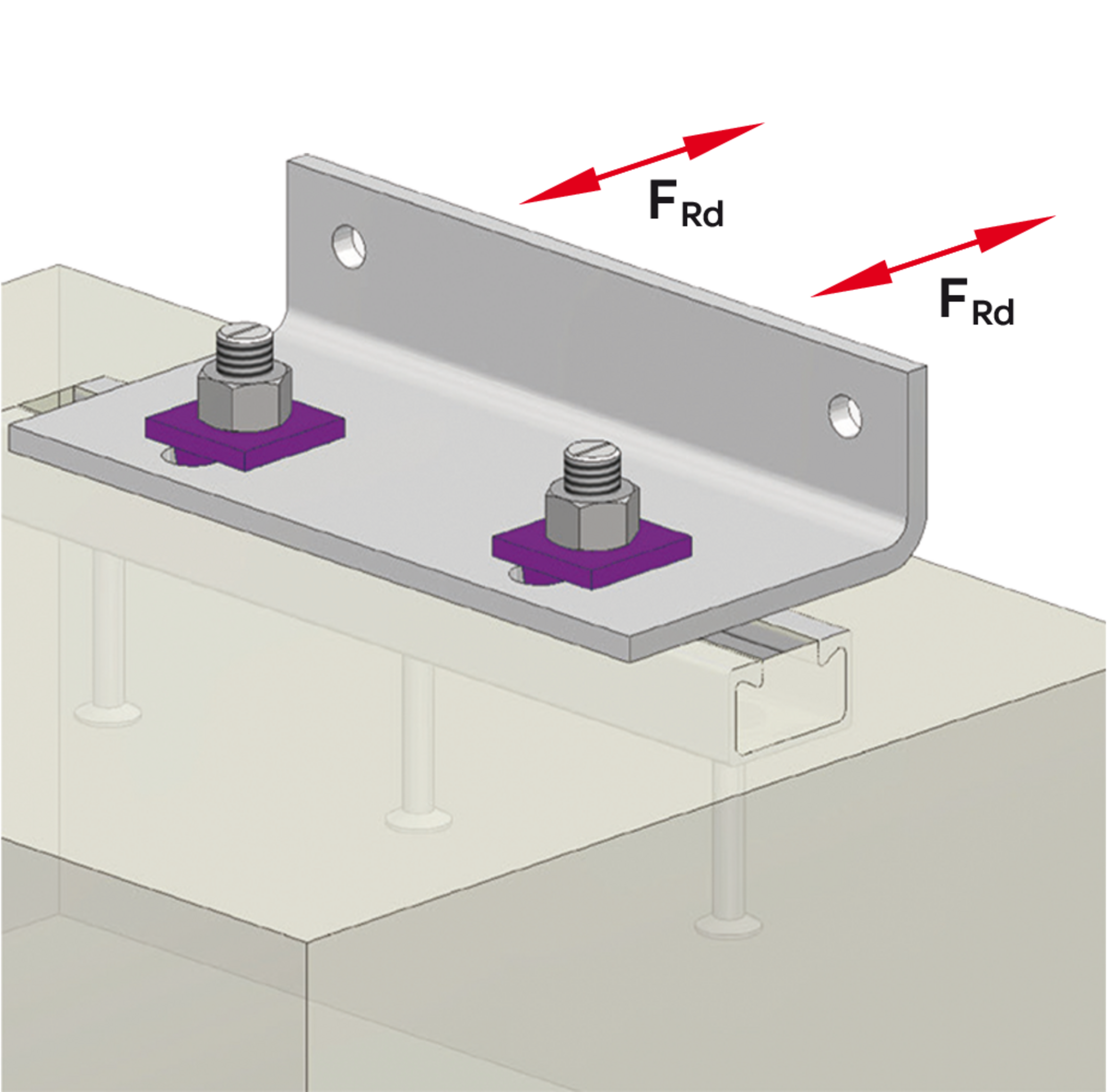

JKZS toothed washers create slip-resistant bolt connections in slots. Two notched teeth on the underside of the washer create a positive-locked connection up to 7.5 kN with a safety factor of 3. The toothed washer also allows tolerances to be compensated in the slot. It is made of hot-dip galvanised steel and suitable for M16 bolts.
H
height
B
width
L
length
D
Diameter (mm)
G
Weight per storage unit
de
en
Technical information
de
Valid from February 1st, 2026
PDF (16.57 MB)
DownloadDownloadAnzahl:
We support you at every step of your construction project. With high-quality products including dimensioning software for optimum planning. If the standard product is not suitable for your project, our manufacturers will configure a product that is precisely tailored to your needs.
