JKO28

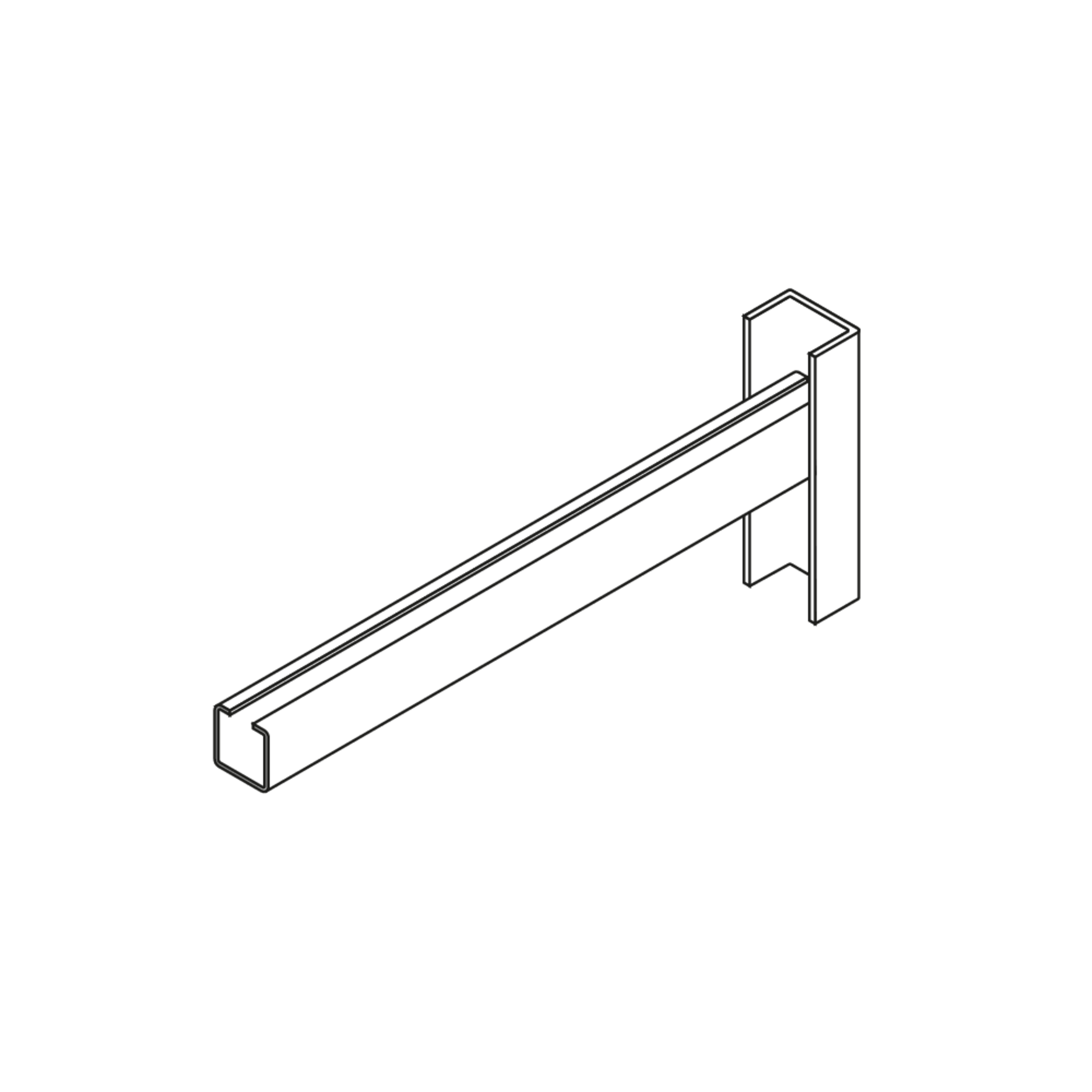

Profile bracket with support profile

JKO28 profile brackets are ready-to-install constructions for holding clamps, pipes and cable trays. They are therefore mainly used in technical building equipment. They are fastened to anchor channels or directly to the component with dowels. Special solutions are also possible upon request. The JKO28 profile bracket with cantilever profile K28/28 is made of hot-dip galvanised steel or stainless steel and is available in various lengths. It is paired with the bolts JD M6 - JD M12.

Get in touchDownload datasheet

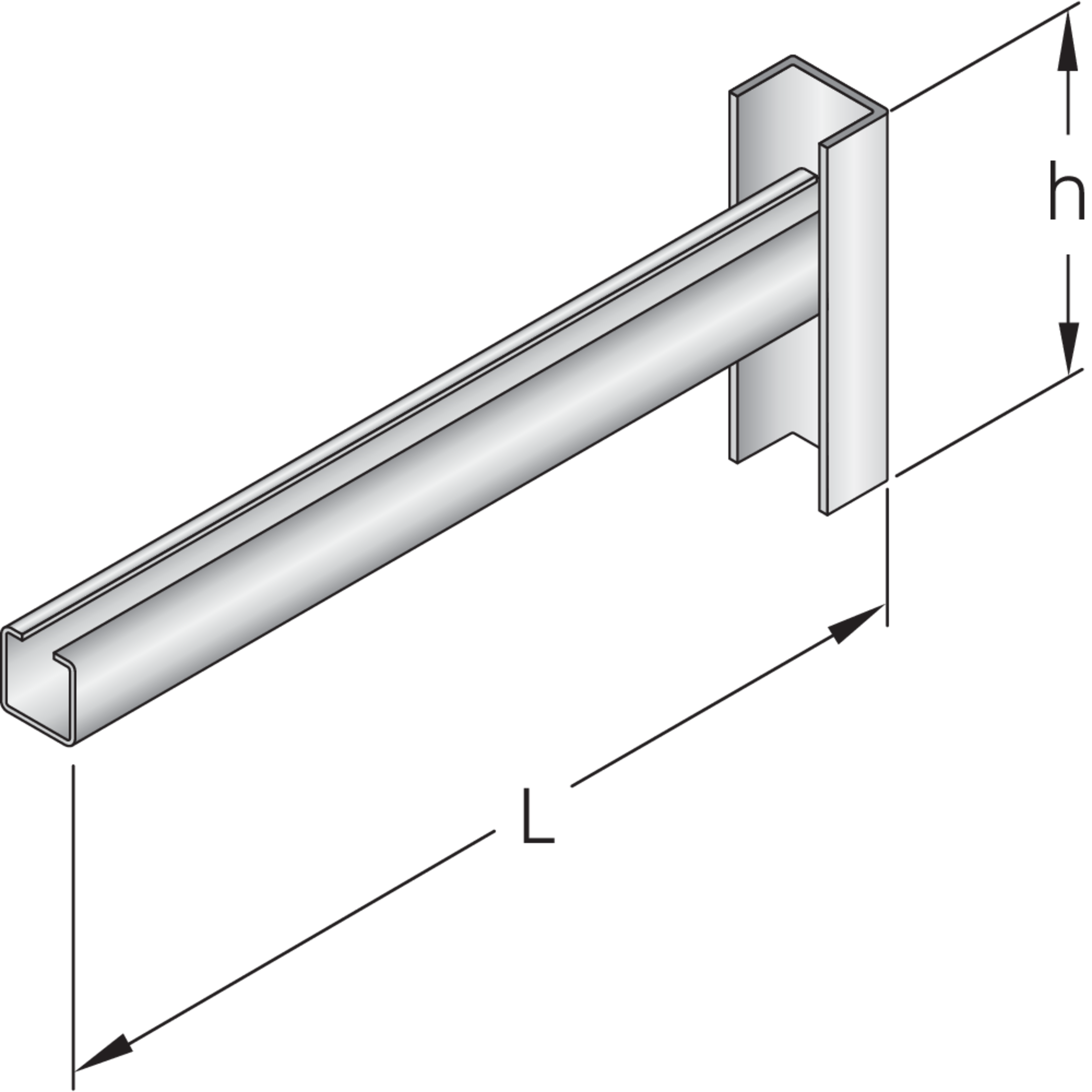

Variants

Article

H

height

B

width

L

length

G

Weight per storage unit

  • KO28-1-100 FV-0100
    JORDAHL Profile bracket type 28-1 hot-
    height
    120 mm
    width
    28 mm
    length
    100 mm
    Weight per storage unit
    0.360 kg
    More information
  • KO28-1-200 FV
    JORDAHL Profile bracket type 28-1 hot-
    height
    120 mm
    width
    28 mm
    length
    200 mm
    Weight per storage unit
    0.500 kg
    More information
  • KO28-1-300 FV
    JORDAHL Profile bracket type 28-1 hot-
    height
    120 mm
    width
    28 mm
    length
    300 mm
    Weight per storage unit
    0.630 kg
    More information
  • KO28-1-400 FV
    JORDAHL Profile bracket type 28-1 hot-
    height
    120 mm
    width
    28 mm
    length
    400 mm
    Weight per storage unit
    0.770 kg
    More information

Tender texts

Ausschreiben.de

Tender texts for this product

Open Link
Heinze.de

Tender texts for this product

Open Link

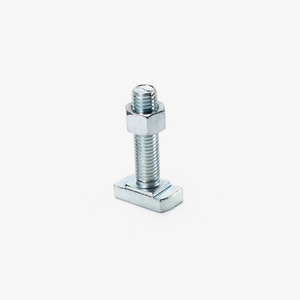

Included accessories
