JKO36

Profile bracket with support profile

JKO36 profile brackets are ready-to-install constructions for holding clamps, pipes and cable trays. They are therefore mainly used in technical building equipment. They are fastened to anchor channels or directly to the component with dowels. Special solutions are also possible upon request. The JKO36 profile bracket with cantilever profile K36/36 is made of hot-dip galvanised steel or stainless steel and is available in various lengths. It is paired with the bolts JH M10 - JH M16.

Get in touchDownload datasheet

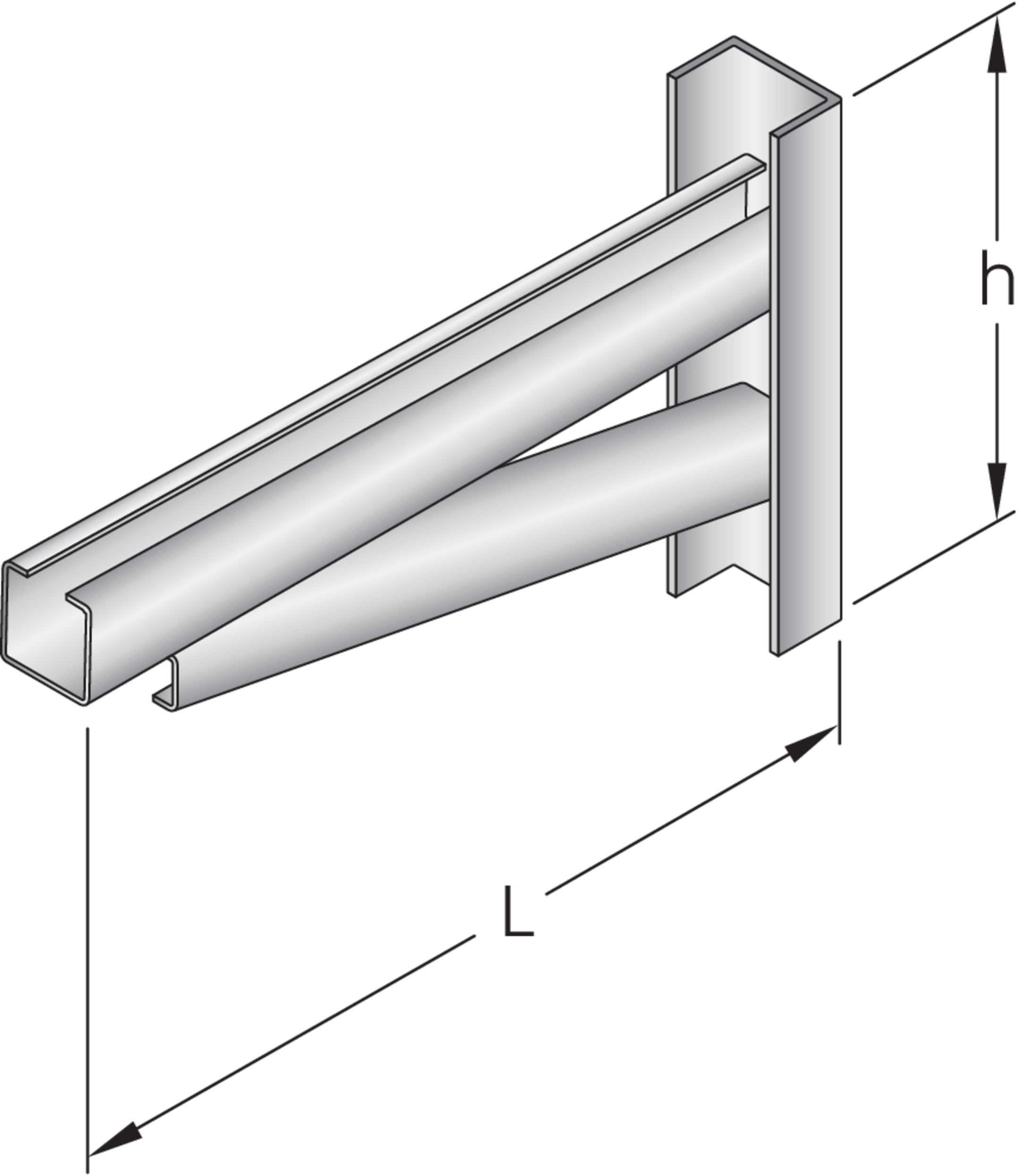

Variants

Article

H

height

B

width

L

length

G

Weight per storage unit

  • KO36-1-300 FV-0300
    JORDAHL Profile bracket type 36-1 hot-
    height
    180 mm
    width
    36 mm
    length
    300 mm
    Weight per storage unit
    1.090 kg
    More information
  • KO36-1-400 FV-0400
    JORDAHL Profile bracket type 36-1 hot-
    height
    180 mm
    width
    36 mm
    length
    400 mm
    Weight per storage unit
    1.310 kg
    More information
  • KO36-1-500 FV-0500
    JORDAHL Profile bracket type 36-1 hot-
    height
    180 mm
    width
    36 mm
    length
    500 mm
    Weight per storage unit
    1.530 kg
    More information
  • KO36-1-600 FV-0600
    JORDAHL Profile bracket type 36-1 hot-
    height
    180 mm
    width
    36 mm
    length
    600 mm
    Weight per storage unit
    1.750 kg
    More information
  • KO36-2-300 FV-0300
    JORDAHL Profile bracket type 36-2 hot-
    height
    208 mm
    width
    36 mm
    length
    300 mm
    Weight per storage unit
    1.480 kg
    More information
  • KO36-2-400 FV-0400
    JORDAHL Profile bracket type 36-2 hot-
    height
    238 mm
    width
    36 mm
    length
    400 mm
    Weight per storage unit
    2.000 kg
    More information
  • KO36-2-500 FV-0500
    JORDAHL Profile bracket type 36-2 hot-
    height
    269 mm
    width
    36 mm
    length
    500 mm
    Weight per storage unit
    2.530 kg
    More information
  • KO36-2-600 FV-0600
    JORDAHL Profile bracket type 36-2 hot-
    height
    300 mm
    width
    36 mm
    length
    600 mm
    Weight per storage unit
    3.050 kg
    More information
  • KO36-2-700 FV-0700
    JORDAHL Profile bracket type 36-2 hot-
    height
    330 mm
    width
    36 mm
    length
    700 mm
    Weight per storage unit
    3.580 kg
    More information

Tender texts

Ausschreiben.de

Tender texts for this product

Open Link
Heinze.de

Tender texts for this product

Open Link

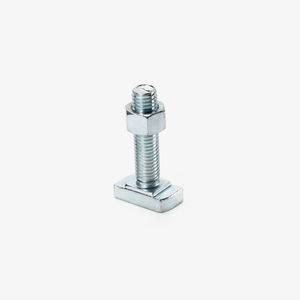

Included accessories

    Services: From planning to utilisation

    We support you at every step of your construction project. With high-quality products including dimensioning software for optimum planning. If the standard product is not suitable for your project, our manufacturers will configure a product that is precisely tailored to your needs.

    Consulting, planning, design

    Customised solutions
