JNA Series 12

Nail anchor for connecting timber components to concrete

JNA Series 12 nail anchors made of hot-dip galvanised steel and the associated anchor or brick tie channels ensure the permanent and secure connection of wooden components to adjacent reinforced concrete components. One example is fastening rafters to ring beams with using anchors. This means that they can also be used for hybrid construction. The nail anchors are inserted into the channels and nailed to the timber member at the recommended intervals.

Variants

Article

H

Höhe

B

Breite

L

Länge

L1

Länge 1

L2

Länge 2

G

Gewicht je Lagermengeneinheit

  • NA10012 FV
    JORDAHL Nagelanker Serie 12
    3 mm
    35 mm
    100 mm
    12 mm
    100 mm
    0.081 kg
  • NA13012 FV
    JORDAHL Nagelanker Serie 12
    3 mm
    35 mm
    130 mm
    12 mm
    130 mm
    0.105 kg
  • NA20012 FV
    JORDAHL Nagelanker Serie 12
    3 mm
    35 mm
    200 mm
    12 mm
    200 mm
    0.162 kg

Tender texts

Ausschreiben.de

Tender text for this product

Open Link
Heinze.de

Tender text for this product

Open Link

Downloads

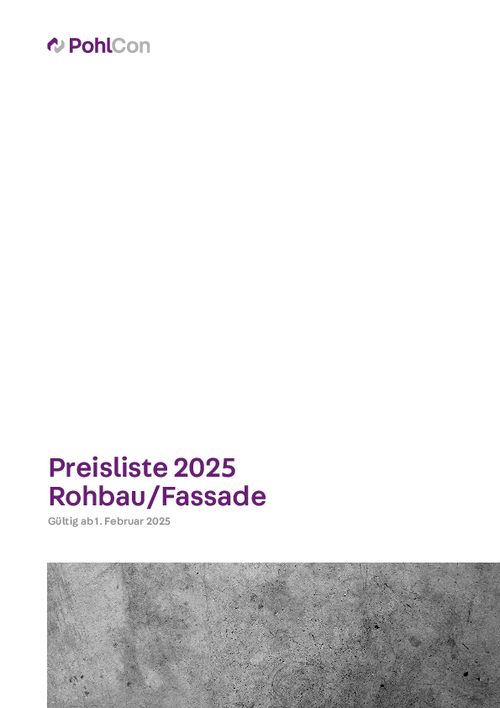

  • Price list 2025 Shell construction / facade

    Valid from February 1, 2025

    PDF, 18 MB

    de en

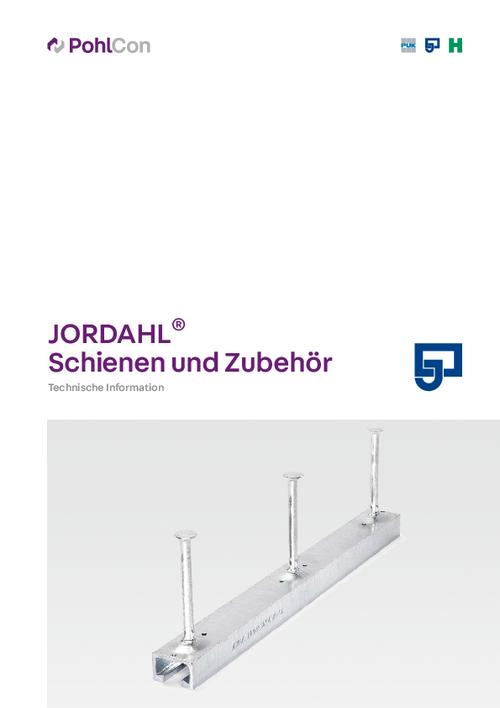

  • Technical information Channels and Accessories

    Technical information

    PDF, 14 MB

    de en
