JMA Series 12

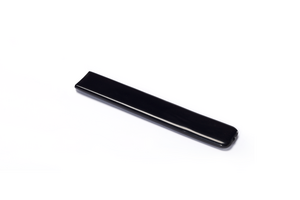

Brick tie anchor for fastening masonry to channels

The JMA brick tie anchor is made of stainless steel for use in the façade area. Hot-dip galvanised products (fv) can be used indoors. The brick tie anchor JMA Series 12 is suitable for the profiles Kt 25/15-D and K 28/15 as well as JAV parapet brick anchor and JWP windpost.

Get in touch Download datasheet

Variants

Steel, hot-dip galvanised

Article

H

height

B

width

L

length

L1

length 1

L2

length 2

G

Weight per storage unit
  • MA12012 FV
    JORDAHL brick tie anchor JMA
    height
    2 mm
    width
    25 mm
    length
    145 mm
    length 1
    20 mm
    length 2
    120 mm
    Weight per storage unit
    0.049 kg
    More information
  • MA18012 FV
    JORDAHL brick tie anchor JMA
    height
    2 mm
    width
    25 mm
    length
    205 mm
    length 1
    20 mm
    length 2
    180 mm
    Weight per storage unit
    0.065 kg
    More information
  • MA30012 FV
    JORDAHL brick tie anchor JMA
    height
    3 mm
    width
    25 mm
    length
    325 mm
    length 1
    20 mm
    length 2
    300 mm
    Weight per storage unit
    0.148 kg
    More information
  • MA8512 FV
    JORDAHL brick tie anchor JMA
    height
    2 mm
    width
    25 mm
    length
    105 mm
    length 1
    20 mm
    length 2
    85 mm
    Weight per storage unit
    0.038 kg
    More information

Stainless steel, acc. to AISI 316Ti (BS 320S31) / AISI 316L (BS 316S11)

Article

H

height

B

width

L

length

L1

length 1

L2

length 2

G

Weight per storage unit
  • MA12012 A4
    JORDAHL brick tie anchor JMA
    height
    2 mm
    width
    25 mm
    length
    145 mm
    length 1
    20 mm
    length 2
    120 mm
    Weight per storage unit
    0.046 kg
    More information
  • MA18012 A4
    JORDAHL brick tie anchor JMA
    height
    2 mm
    width
    25 mm
    length
    205 mm
    length 1
    20 mm
    length 2
    180 mm
    Weight per storage unit
    0.061 kg
    More information
  • MA30012 A4
    JORDAHL brick tie anchor JMA
    height
    3 mm
    width
    25 mm
    length
    325 mm
    length 1
    20 mm
    length 2
    300 mm
    Weight per storage unit
    0.132 kg
    More information
  • MA8512 A4
    JORDAHL brick tie anchor JMA
    height
    2 mm
    width
    25 mm
    length
    105 mm
    length 1
    20 mm
    length 2
    85 mm
    Weight per storage unit
    0.037 kg
    More information
