Square bearing plate for shimming support corbels on the compression bearing

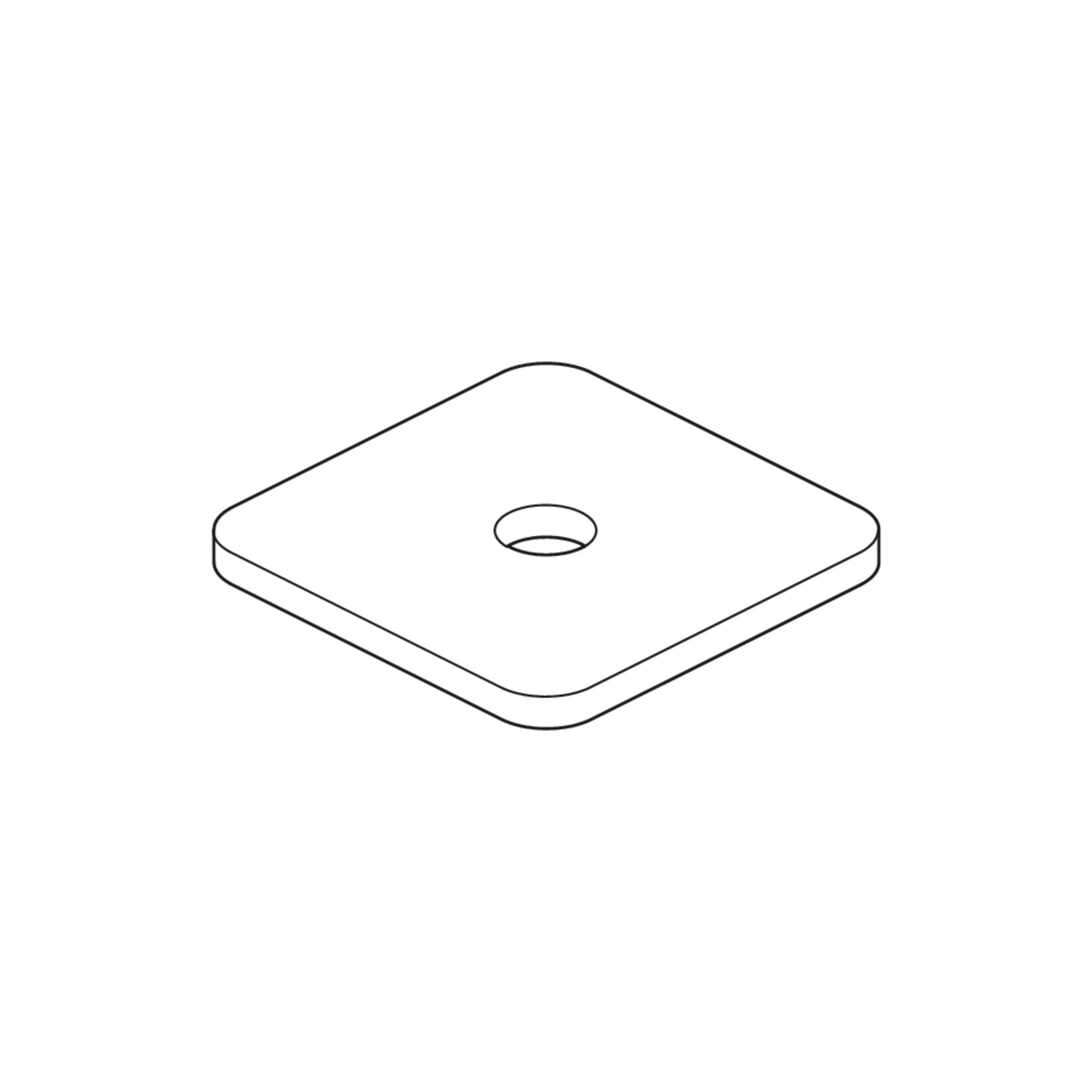

The JVL square bearing plate made of stainless steel (A4) is part of the set for the JBA support corbel, but can also be ordered separately. It is used for shimming along with the JVS horseshoe shim and enables the JBA support corbel to be vertically adjusted on the compression bearing. Similar to the US washer, the JVL square bearing plate ensures steel-to-steel contact between the bolted-on component and the anchor channel. JVL square bearing plates are available in various sizes suitable for different rail profiles and bolts.

Get in touch Download datasheet

Variants

JVL4003-08
JORDAHL Holed Shim
height
3 mm
width
40 mm
length
40 mm
Diameter (mm)
8 mm
Weight per storage unit
0.036 kg
More information
JVL4006-08
JORDAHL Holed Shim
height
6 mm
width
40 mm
length
40 mm
Diameter (mm)
8 mm
Weight per storage unit
0.072 kg
More information
JVL6503-08
JORDAHL Holed Shim
height
3 mm
width
65 mm
length
65 mm
Diameter (mm)
8 mm
Weight per storage unit
0.098 kg
More information
JVL6504-08
JORDAHL Holed Shim
height
4 mm
width
65 mm
length
65 mm
Diameter (mm)
8 mm
Weight per storage unit
0.130 kg
More information
JVL6506-08
JORDAHL Holed Shim
height
6 mm
width
65 mm
length
65 mm
Diameter (mm)
8 mm
Weight per storage unit
0.195 kg
More information
JVL8003-08
JORDAHL Holed Shim
height
3 mm
width
80 mm
length
80 mm
Diameter (mm)
8 mm
Weight per storage unit
0.149 kg
More information
JVL8006-08
JORDAHL Holed Shim
height
6 mm
width
80 mm
length
80 mm
Diameter (mm)
8 mm
Weight per storage unit
0.297 kg
More information
JVL8008-08
JORDAHL Holed Shim
height
8 mm
width
80 mm
length
80 mm
Diameter (mm)
8 mm
Weight per storage unit
0.396 kg
More information

Details

Tender texts

Ausschreiben.de

Tender texts for this product

Open Link

Heinze.de

Tender texts for this product

Open Link
