JSV50

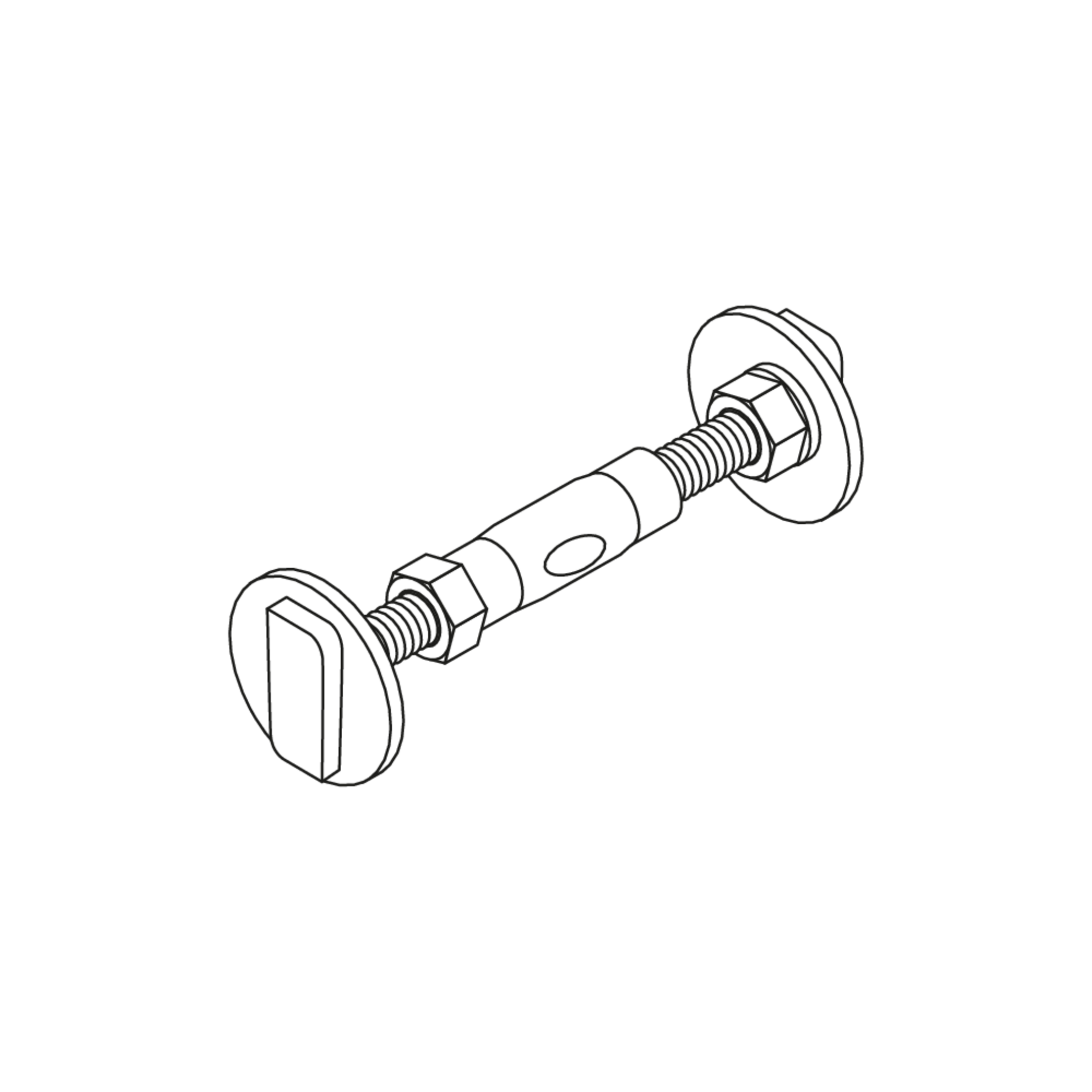

JSV50 stainless steel (A4) clamp connections create play-free, tension-resistant and compression-resistant connections between two components. The connection is made between a vertical and a horizontal anchor channel with a minimum length of 150 mm. This arrangement ensures an exact, continuously variable, three-dimensional alignment of the fastening. The JSV50 clamp connection consists of a clamp sleeve, bolts and nuts with left-hand and right-hand threads, a nut for countering the clamp sleeve and washers.
