JVS

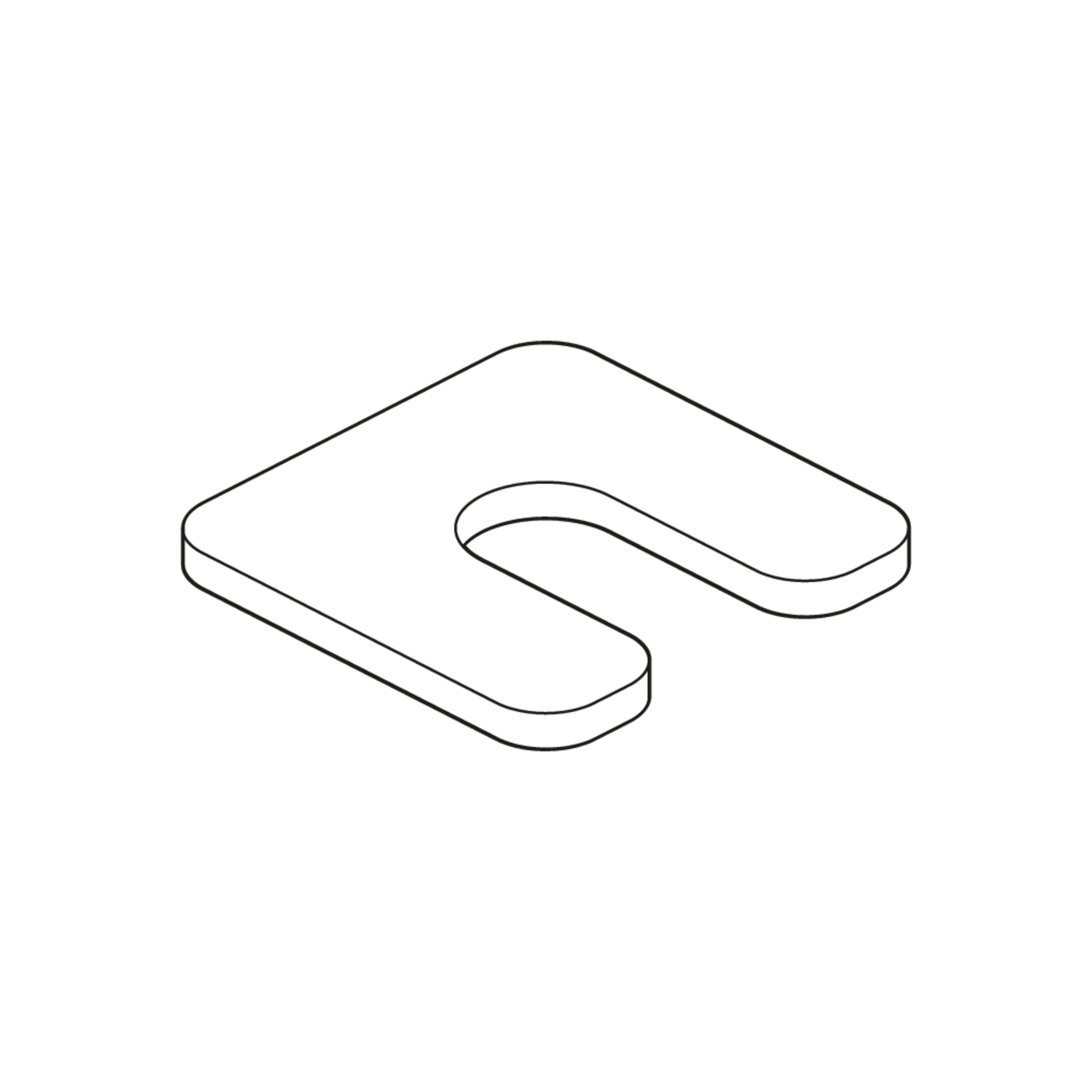

Horseshoe shim for shimming support corbels on the bearing plate

The JVS horseshoe shim made of stainless steel (A4) is part of the set for the JBA support corbel, but can also be ordered separately. It is used for shimming along with the JVL square bearing plate and enables the JBA support corbel to be vertically adjusted on the bearing plate. The slot lets it be easily fitted and removed. The JVS horseshoe shim is available in different sizes.

Get in touchDownload datasheet

Variants

Article

H

height

B

width

L

length

D

Diameter (mm)

G

Weight per storage unit

  • JVS4003-13
    JORDAHL Horseshoe Shim
    height
    3 mm
    width
    40 mm
    length
    40 mm
    Diameter (mm)
    13 mm
    Weight per storage unit
    0.030 kg
    More information
  • JVS4006-13
    JORDAHL Horseshoe Shim
    height
    6 mm
    width
    40 mm
    length
    40 mm
    Diameter (mm)
    13 mm
    Weight per storage unit
    0.060 kg
    More information
  • JVS6503-17
    JORDAHL Horseshoe Shim
    height
    3 mm
    width
    65 mm
    length
    65 mm
    Diameter (mm)
    17 mm
    Weight per storage unit
    0.083 kg
    More information
  • JVS6504-17
    JORDAHL Horseshoe Shim
    height
    4 mm
    width
    65 mm
    length
    65 mm
    Diameter (mm)
    17 mm
    Weight per storage unit
    0.111 kg
    More information
  • JVS6506-17
    JORDAHL Horseshoe Shim
    height
    6 mm
    width
    65 mm
    length
    65 mm
    Diameter (mm)
    17 mm
    Weight per storage unit
    0.167 kg
    More information
  • JVS8003-21
    JORDAHL Horseshoe Shim
    height
    3 mm
    width
    80 mm
    length
    80 mm
    Diameter (mm)
    21 mm
    Weight per storage unit
    0.126 kg
    More information
  • JVS8006-21
    JORDAHL Horseshoe Shim
    height
    6 mm
    width
    80 mm
    length
    80 mm
    Diameter (mm)
    21 mm
    Weight per storage unit
    0.252 kg
    More information
  • JVS8008-21
    JORDAHL Horseshoe Shim
    height
    8 mm
    width
    80 mm
    length
    80 mm
    Diameter (mm)
    21 mm
    Weight per storage unit
    0.336 kg
    More information
