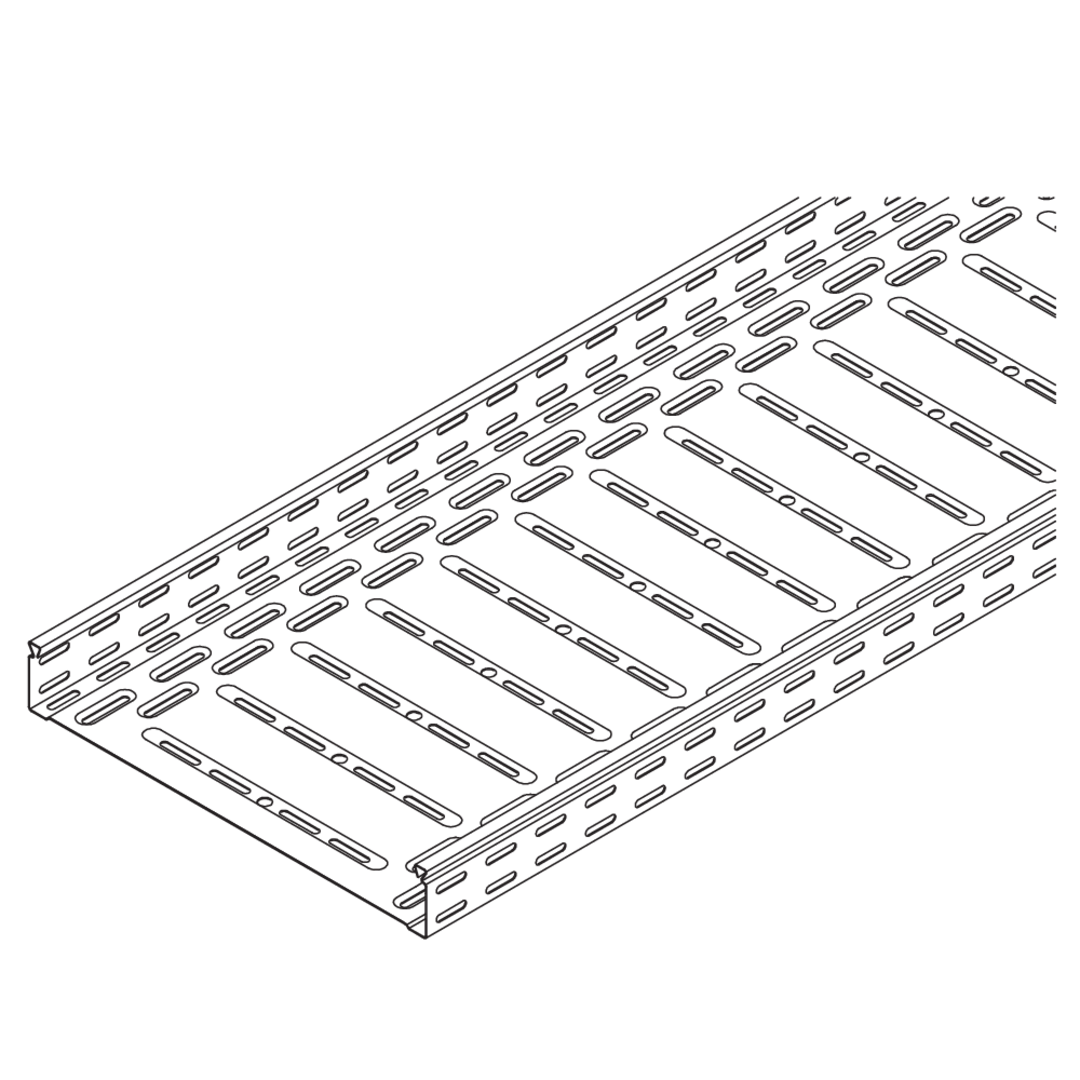

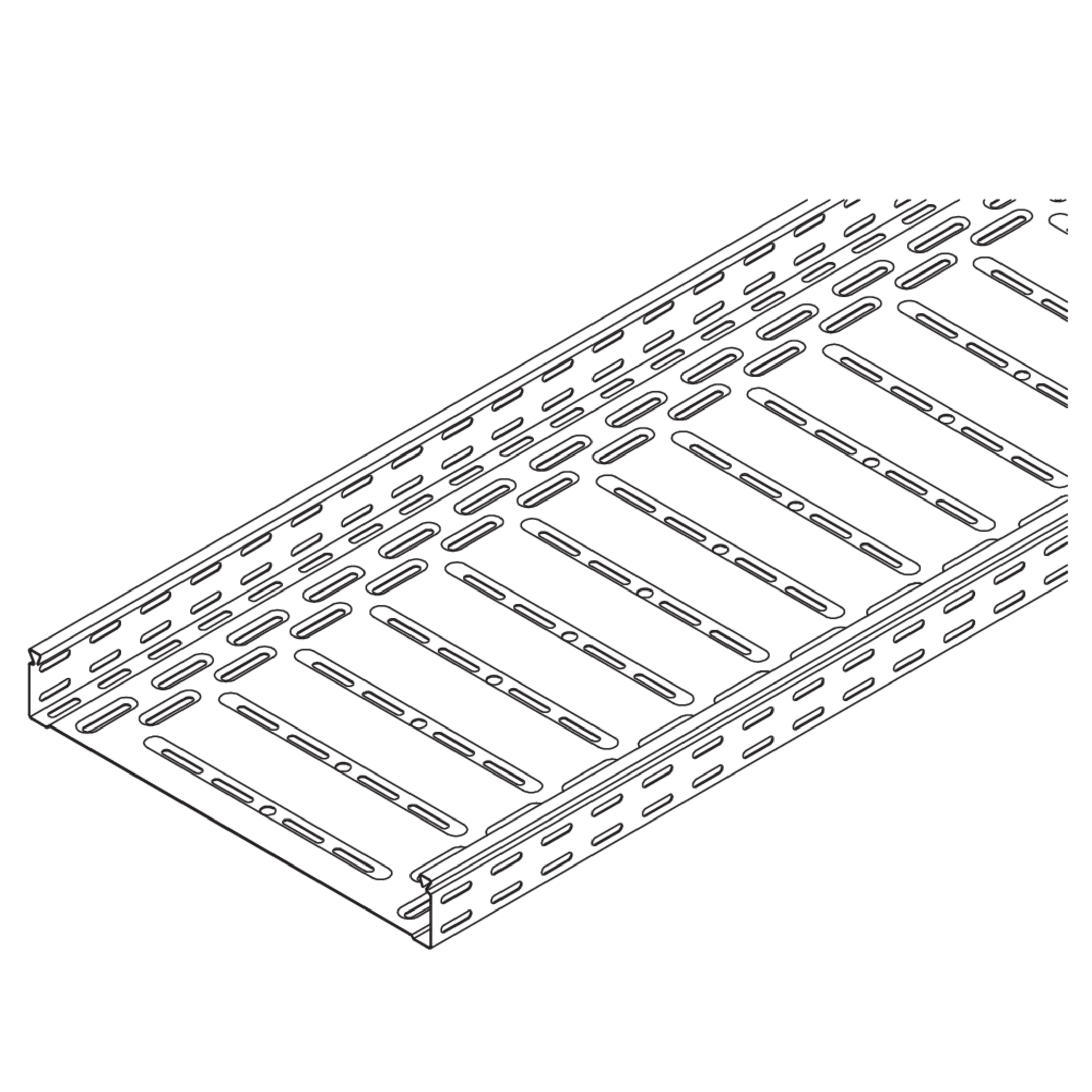

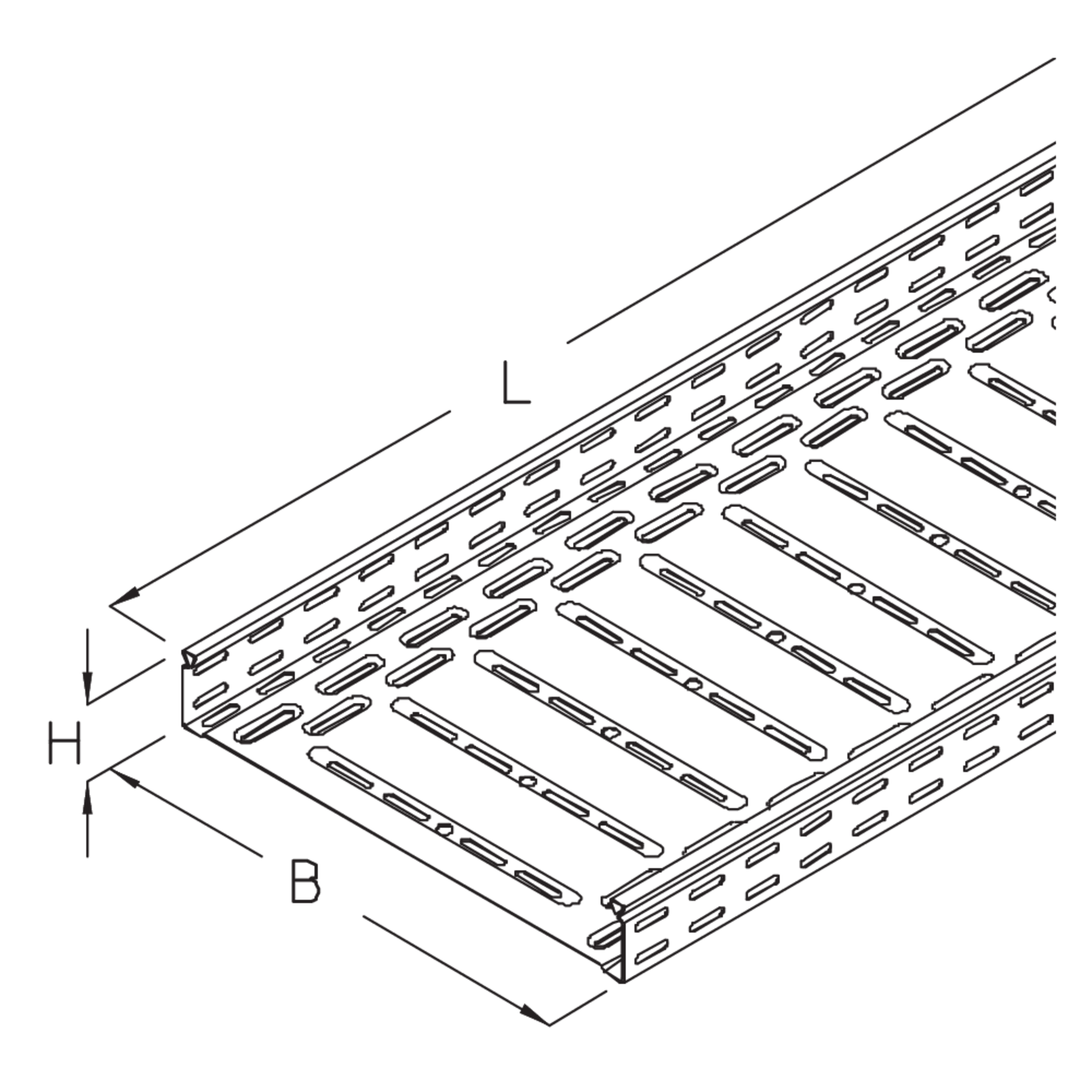

RGM 60

Cable tray, perforated, height = 60 mm, t = 1 mm

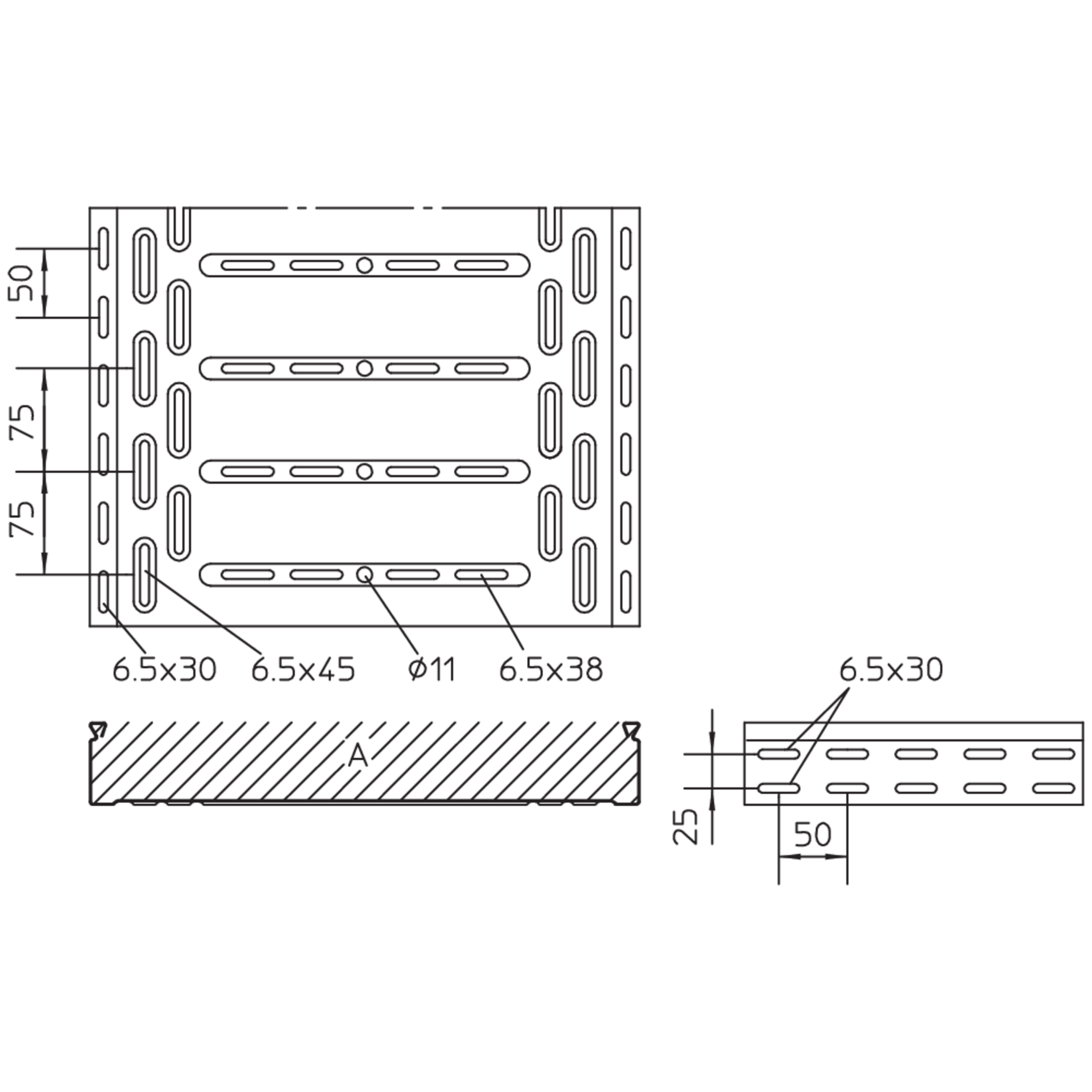

The perforated cable trays RGM 60 have sides 60 mm high and are available in widths from 100 to 400 mm. The standard length is 3000 mm. The cables have a material thickness of 1 mm. We provide components in various materials and surface finishes to ensure that the corrosion requirements are met for all sorts of applications.

The magnetic shielding attenuation is 22 dB without the cover and 30 dB with the cover.

Get in touchDownload datasheet

Variants

Steel, pre-galvanised/Sendzimir process

Article

H

height

B

width

L

length

t

material thickness

QSK

distributed load control cable

A

cross section area

G

Weight per storage unit

Produktstatus

  • RGM 60-10S
    Cable tray, perforated
    height
    60 mm
    width
    100 mm
    length
    3000 mm
    material thickness
    1.00 mm
    distributed load control cable
    0.09 kN/m
    cross section area
    57 cm2
    Weight per storage unit
    5.570 kg
    Produktstatus
    Neu
    More information
  • RGM 60-20S
    Cable tray, perforated
    height
    60 mm
    width
    200 mm
    length
    3000 mm
    material thickness
    1.00 mm
    distributed load control cable
    0.17 kN/m
    cross section area
    117 cm2
    Weight per storage unit
    7.570 kg
    Produktstatus
    Neu
    More information
  • RGM 60-30S
    Cable tray, perforated
    height
    60 mm
    width
    300 mm
    length
    3000 mm
    material thickness
    1.00 mm
    distributed load control cable
    0.26 kN/m
    cross section area
    177 cm2
    Weight per storage unit
    9.780 kg
    Produktstatus
    Neu
    More information
  • RGM 60-40S
    Cable tray, perforated
    height
    60 mm
    width
    400 mm
    length
    3000 mm
    material thickness
    1.00 mm
    distributed load control cable
    0.34 kN/m
    cross section area
    237 cm2
    Weight per storage unit
    11.980 kg
    Produktstatus
    Neu
    More information

Steel, hot-dip galvanised

Article

H

height

B

width

L

length

t

material thickness

QSK

distributed load control cable

A

cross section area

G

Weight per storage unit

Produktstatus

  • RGM 60-10F
    Cable tray, perforated
    height
    60 mm
    width
    100 mm
    length
    3000 mm
    material thickness
    1.00 mm
    distributed load control cable
    0.09 kN/m
    cross section area
    57 cm2
    Weight per storage unit
    6.070 kg
    Produktstatus
    Neu
    More information
  • RGM 60-20F
    Cable tray, perforated
    height
    60 mm
    width
    200 mm
    length
    3000 mm
    material thickness
    1.00 mm
    distributed load control cable
    0.17 kN/m
    cross section area
    117 cm2
    Weight per storage unit
    8.260 kg
    Produktstatus
    Neu
    More information
  • RGM 60-30F
    Cable tray, perforated
    height
    60 mm
    width
    300 mm
    length
    3000 mm
    material thickness
    1.00 mm
    distributed load control cable
    0.26 kN/m
    cross section area
    177 cm2
    Weight per storage unit
    10.670 kg
    Produktstatus
    Neu
    More information
  • RGM 60-40F
    Cable tray, perforated
    height
    60 mm
    width
    400 mm
    length
    3000 mm
    material thickness
    1.00 mm
    distributed load control cable
    0.34 kN/m
    cross section area
    237 cm2
    Weight per storage unit
    13.070 kg
    Produktstatus
    Neu
    More information

Stainless steel, acc. to AISI 304 (BS 304S31)

Article

H

height

B

width

L

length

t

material thickness

QSK

distributed load control cable

A

cross section area

G

Weight per storage unit

Produktstatus

  • RGM 60-10E
    Cable tray, perforated
    height
    60 mm
    width
    100 mm
    length
    3000 mm
    material thickness
    1.00 mm
    distributed load control cable
    0.09 kN/m
    cross section area
    57 cm2
    Weight per storage unit
    5.600 kg
    Produktstatus
    Neu
    More information
  • RGM 60-20E
    Cable tray, perforated
    height
    60 mm
    width
    200 mm
    length
    3000 mm
    material thickness
    1.00 mm
    distributed load control cable
    0.17 kN/m
    cross section area
    117 cm2
    Weight per storage unit
    7.620 kg
    Produktstatus
    Neu
    More information
  • RGM 60-30E
    Cable tray, perforated
    height
    60 mm
    width
    300 mm
    length
    3000 mm
    material thickness
    1.00 mm
    distributed load control cable
    0.26 kN/m
    cross section area
    177 cm2
    Weight per storage unit
    9.840 kg
    Produktstatus
    Neu
    More information
  • RGM 60-40E
    Cable tray, perforated
    height
    60 mm
    width
    400 mm
    length
    3000 mm
    material thickness
    1.00 mm
    distributed load control cable
    0.34 kN/m
    cross section area
    237 cm2
    Weight per storage unit
    12.060 kg
    Produktstatus
    Neu
    More information

Stainless steel, acc. to AISI 316Ti (BS 320S31) / AISI 316L (BS 316S11)

Article

H

height

B

width

L

length

t

material thickness

QSK

distributed load control cable

A

cross section area

G

Weight per storage unit

Produktstatus

  • RGM 60-10E4
    Cable tray, perforated
    height
    60 mm
    width
    100 mm
    length
    3000 mm
    material thickness
    1.00 mm
    distributed load control cable
    0.09 kN/m
    cross section area
    57 cm2
    Weight per storage unit
    5.670 kg
    Produktstatus
    Neu
    More information
  • RGM 60-20E4
    Cable tray, perforated
    height
    60 mm
    width
    200 mm
    length
    3000 mm
    material thickness
    1.00 mm
    distributed load control cable
    0.17 kN/m
    cross section area
    117 cm2
    Weight per storage unit
    7.720 kg
    Produktstatus
    Neu
    More information
  • RGM 60-30E4
    Cable tray, perforated
    height
    60 mm
    width
    300 mm
    length
    3000 mm
    material thickness
    1.00 mm
    distributed load control cable
    0.26 kN/m
    cross section area
    177 cm2
    Weight per storage unit
    9.960 kg
    Produktstatus
    Neu
    More information
  • RGM 60-40E4
    Cable tray, perforated
    height
    60 mm
    width
    400 mm
    length
    3000 mm
    material thickness
    1.00 mm
    distributed load control cable
    0.34 kN/m
    cross section area
    237 cm2
    Weight per storage unit
    12.210 kg
    Produktstatus
    Neu
    More information

Tender texts

Ausschreiben.de

Tender texts for this product

Open Link
Heinze.de

Tender texts for this product

Open Link

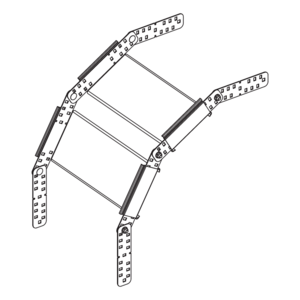

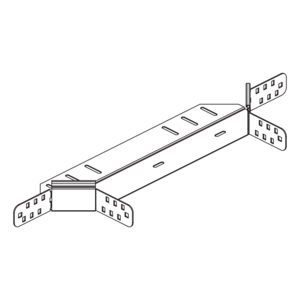

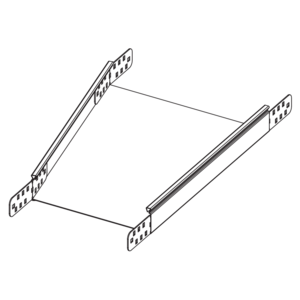

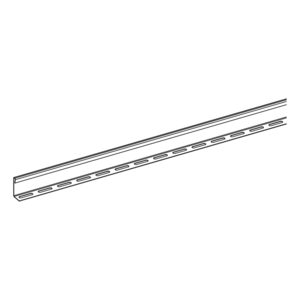

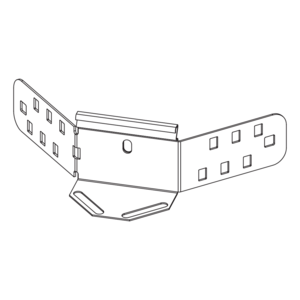

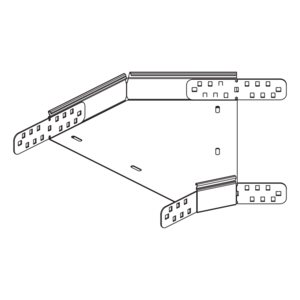

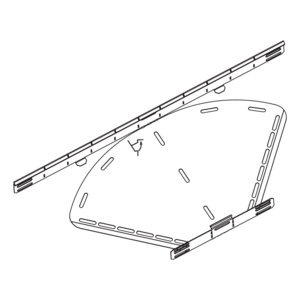

Accessories

Downloads

    • de

    • en

    Cable trays - Technical information

    Technical Information

    PDF

    Choose languageChoose language

    Cable trays - Technical information

    Choose language to download

    • de

    • en

    • es

    Cable support systems - Complete catalogue

    Catalogue for cable trays, mesh cable trays, cable ladders, wide-span systems, vertical ladders, floor ducts, cable clamps, cable support troughs, rigid conduits, marine cable ladders, support systems, fastening accessories and more.

    PDF

    Choose languageChoose language

    Cable support systems - Complete catalogue

    Choose language to download

    • de

    • en

    • es

    Cable trays - Assembly instructions

    Assembly instruction for R, RG, RGM, RGS, RGL, RI, RIS, RD, RDR, RID, RIDR, RB, RIB, RBV, RAE, RAA, RA, RIA, RK, RVB, RR, RDS, RBD, RBDR, RIBDS, RBD45, RBVD, RBVDR, RAED, RAAD, RAADR, RAD, RADR, RIADS, RKD, RKDR, RRD, RRDR

    PDF

    Choose languageChoose language

    Cable trays - Assembly instructions

    Choose language to download

    • de

    Cable Tray R 60, RG 60 - Compact overview

    Compact overview of cable trays and accessories: R, RG, RGV, VB, RTR, DB, DKSL, KDU, KHUSS, GBAR, KWF, MA, KWMS, RD, RKAB, RTRV, RBV, RVB, REB

    PDF (1.12 MB)

    DownloadDownload

    • de

    • en

    Safe working load (Cable tray RGM 60)

    Certificate, tested in accordance to DIN EN 61537

    PDF

    Choose languageChoose language

    Safe working load (Cable tray RGM 60)

    Choose language to download

    • de

    • en

    Price list 2026 Building extension

    Valid from February 1st, 2026

    PDF

    Choose languageChoose language

    Price list 2026 Building extension

    Choose language to download

BIM- und CAD-Data

    BIM for cable trays

    Bim data

    ZIP (9.58 MB)

    DownloadDownload

Load diagram

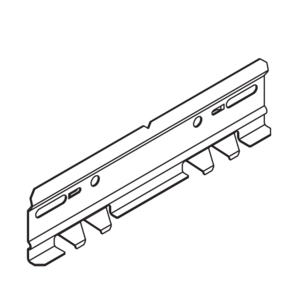

Included accessories
