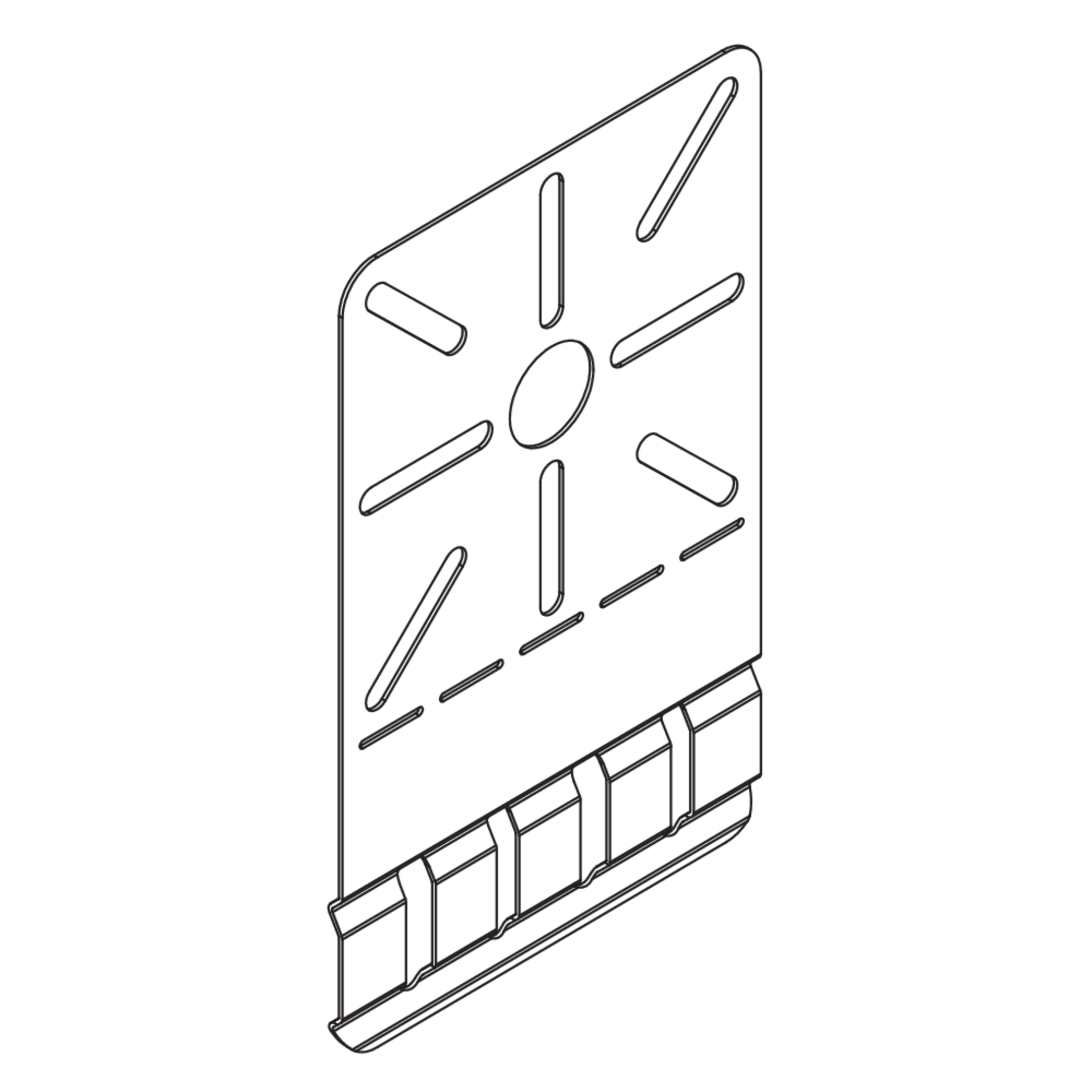

MP-G

Mounting plate

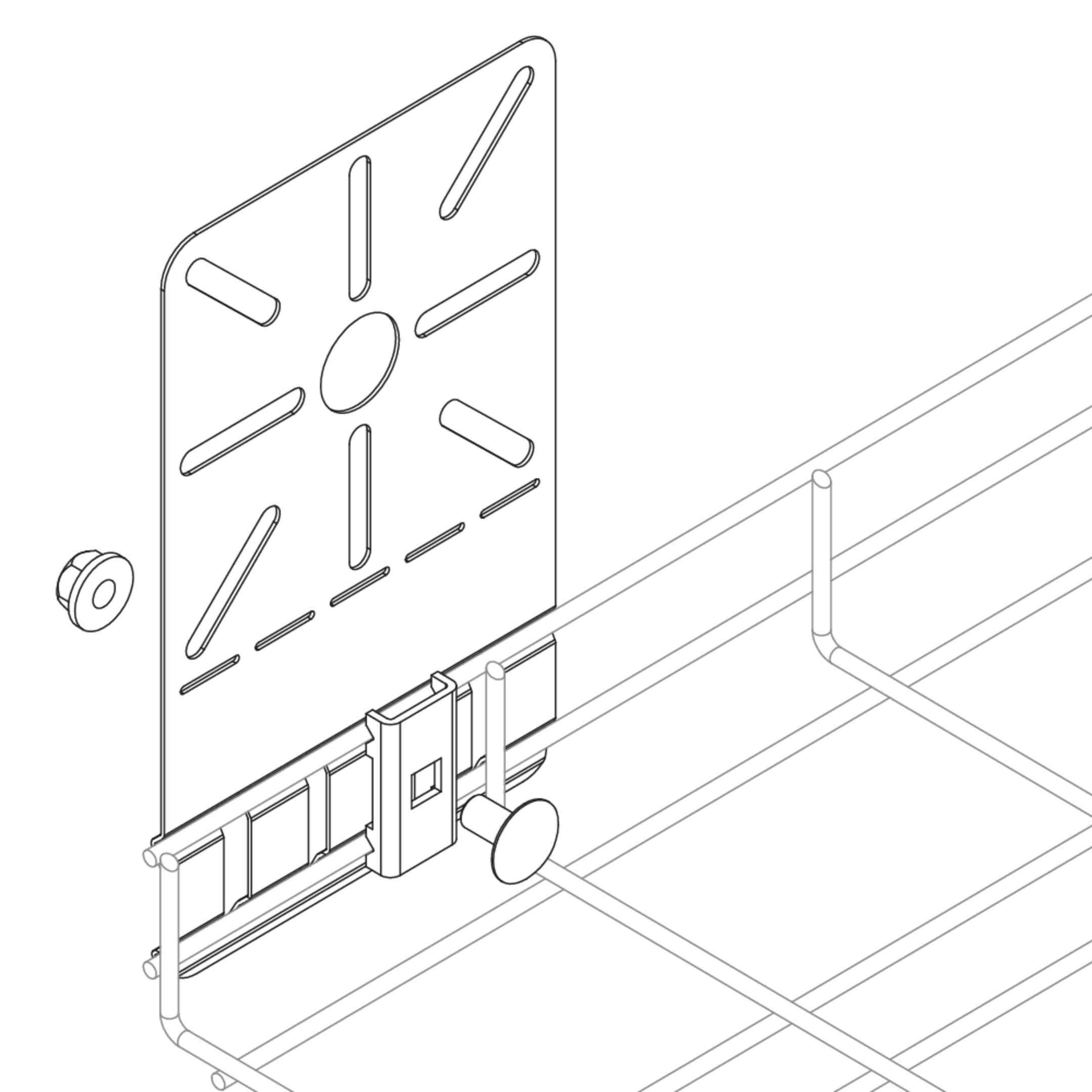

The mounting plate MP-G can be used e.g. to attach junction boxes to mesh cable trays. The plate itself is mounted on the mesh cable tray with the mesh cable tray connector GV 30. We provide components in various materials and surface finishes to ensure that the corrosion requirements are met for all sorts of applications.

Get in touchDownload datasheet

Variants

Steel, pre-galvanised/Sendzimir process

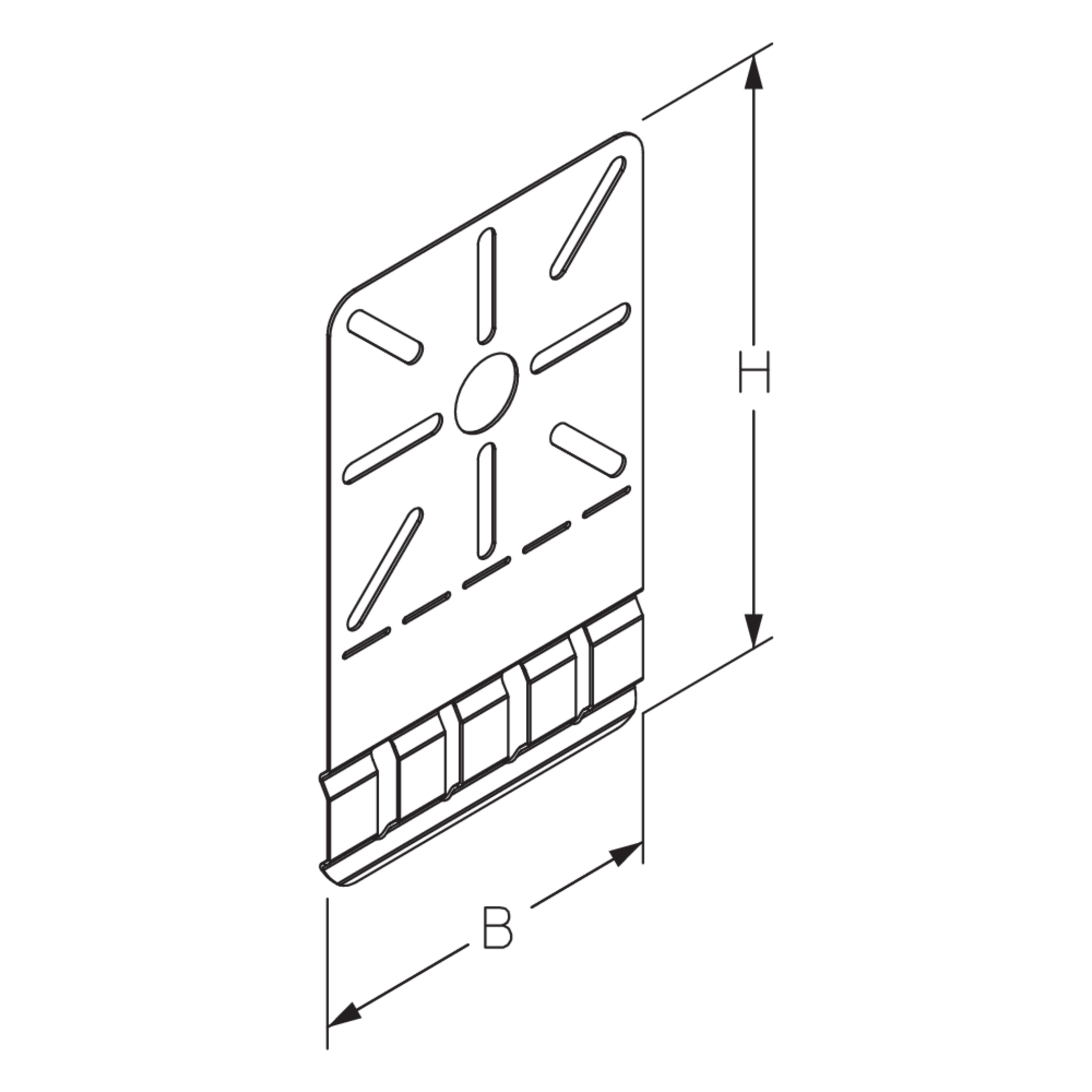

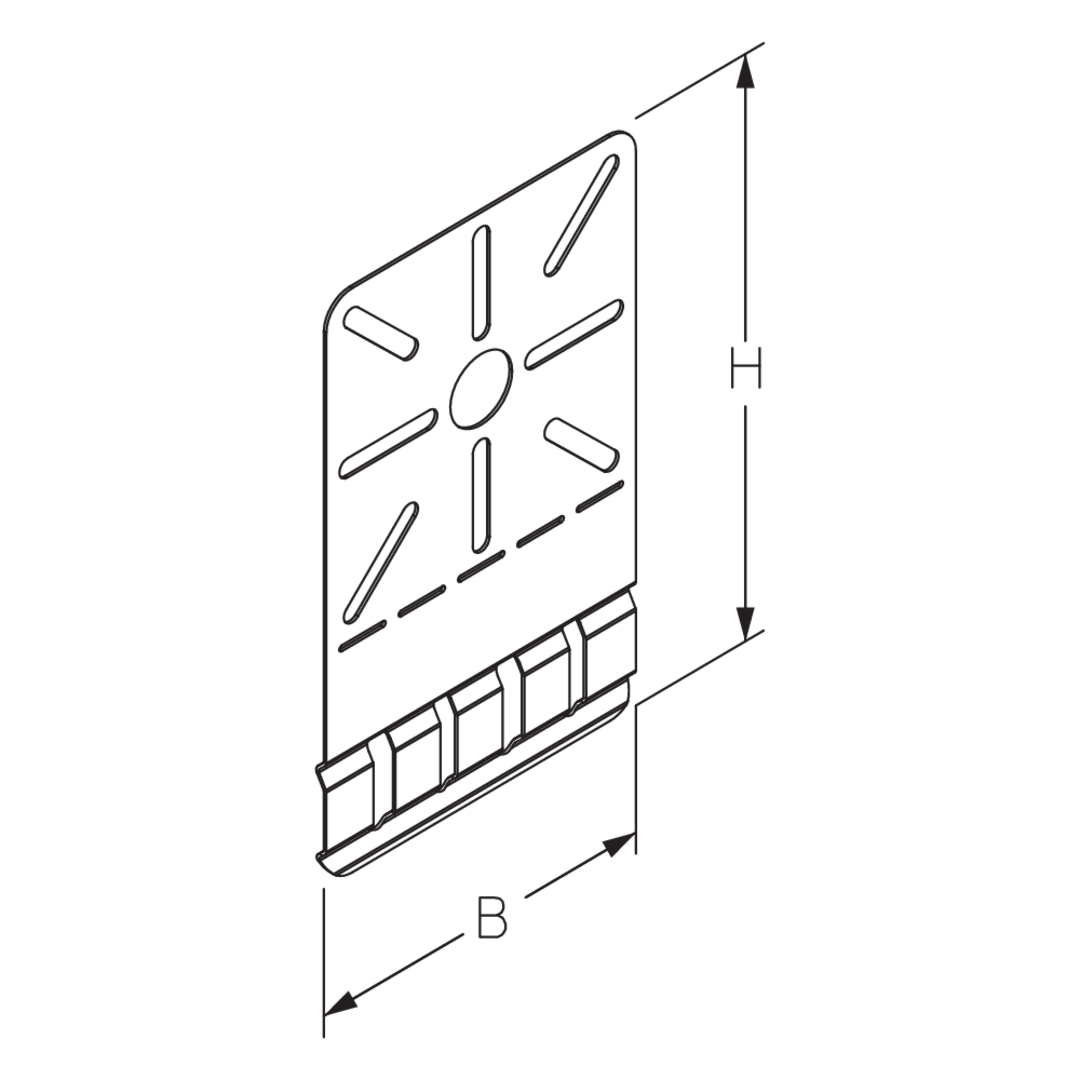

Article

H

height

B

width

t

material thickness

G

Weight per storage unit

Included accessories
  • MP-G 50S
    Assembly plate MP-G 50S
    height
    198 mm
    width
    120 mm
    material thickness
    1.00 mm
    Weight per storage unit
    0.165 kg
    Included accessories
    More information

Steel, hot-dip galvanised

Article

H

height

B

width

t

material thickness

G

Weight per storage unit

Included accessories
  • MP-G 50F
    Assembly plate MP-G 50F
    height
    198 mm
    width
    120 mm
    material thickness
    1.00 mm
    Weight per storage unit
    0.175 kg
    Included accessories
    More information

Stainless steel, acc. to AISI 316Ti (BS 320S31) / AISI 316L (BS 316S11)

Article

H

height

B

width

t

material thickness

G

Weight per storage unit

Included accessories
  • MP-G 50E4
    Assembly plate MP-G 50E4
    height
    198 mm
    width
    120 mm
    material thickness
    1.00 mm
    Weight per storage unit
    0.164 kg
    Included accessories
    More information

Details
