GV-L 30

Mesh cable tray universal connector

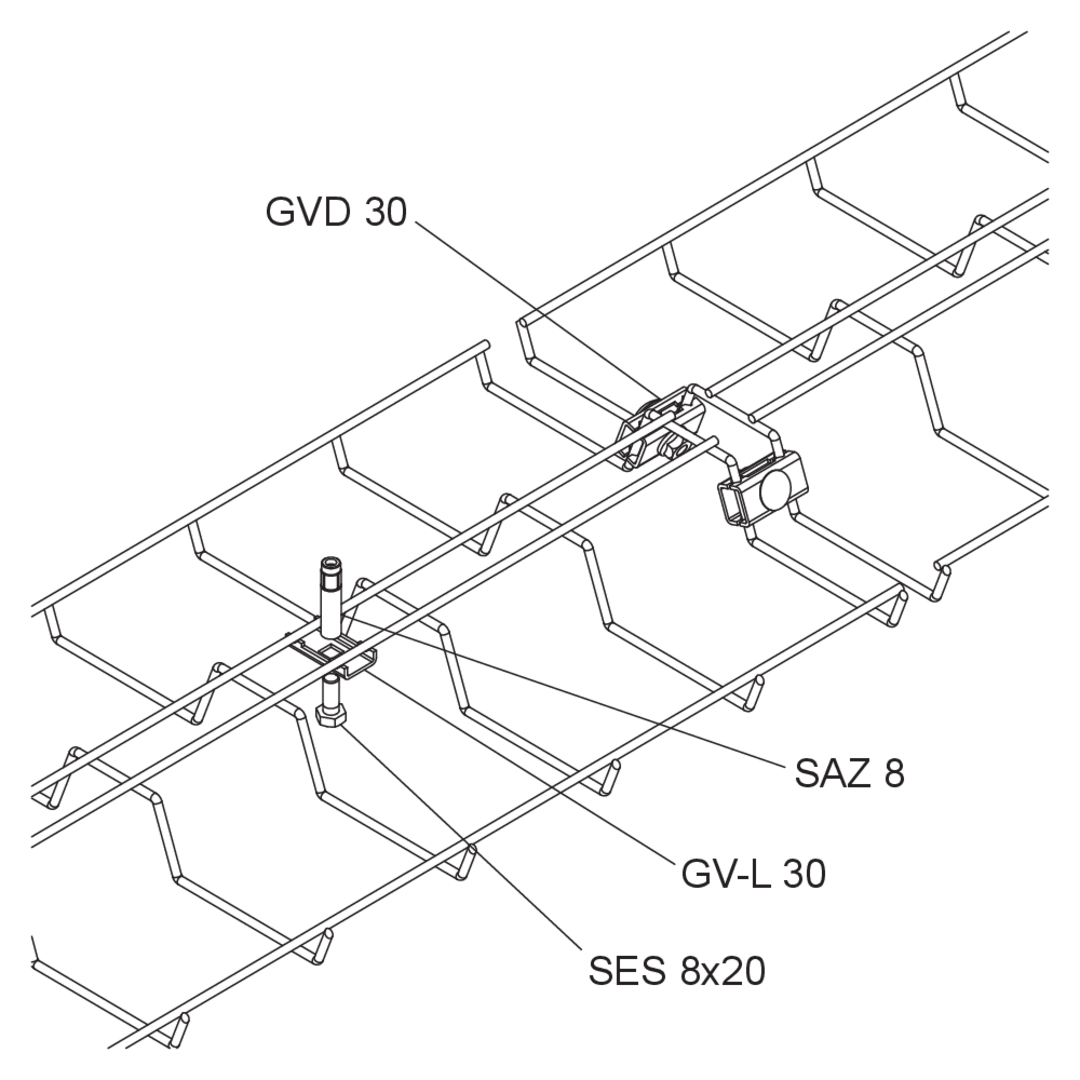

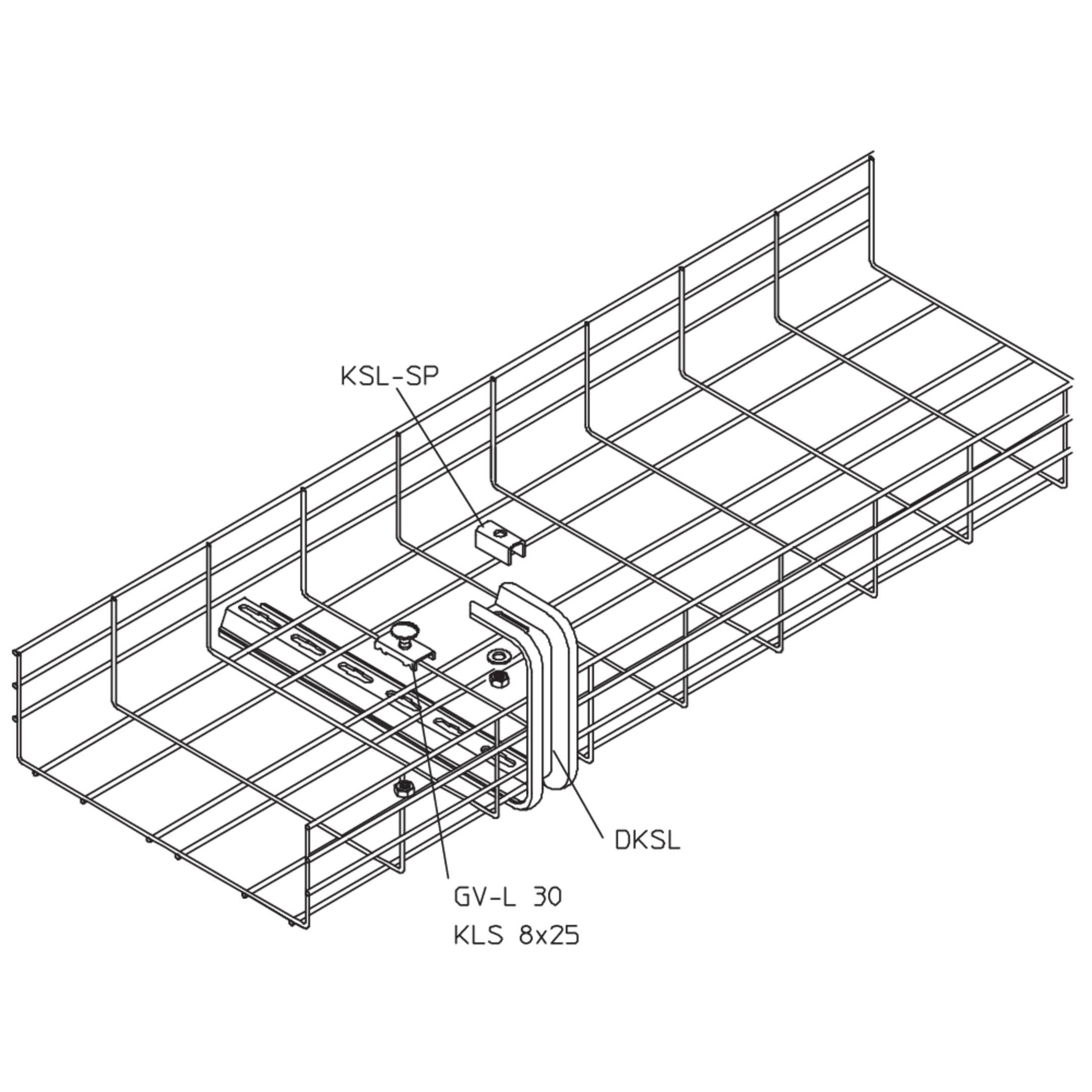

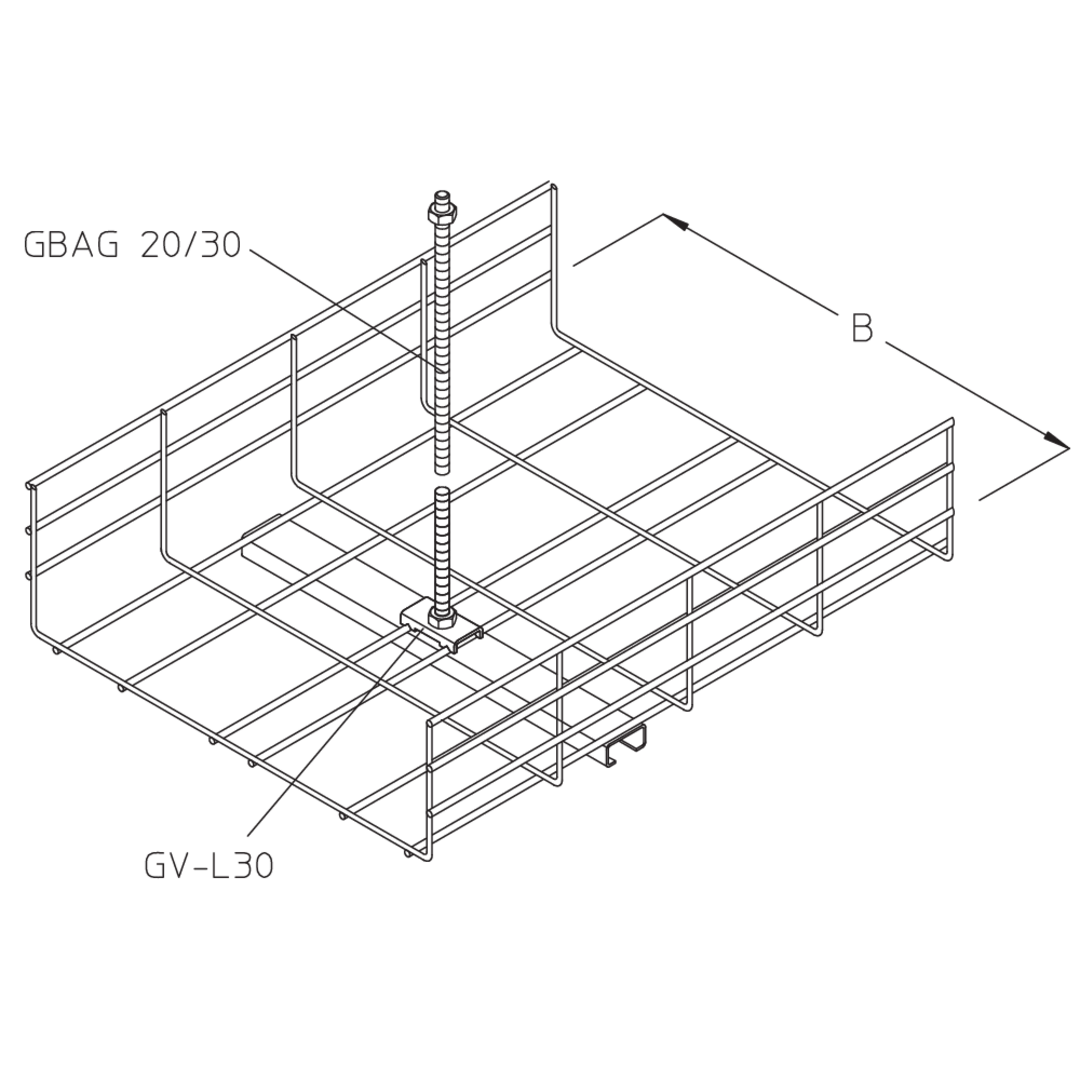

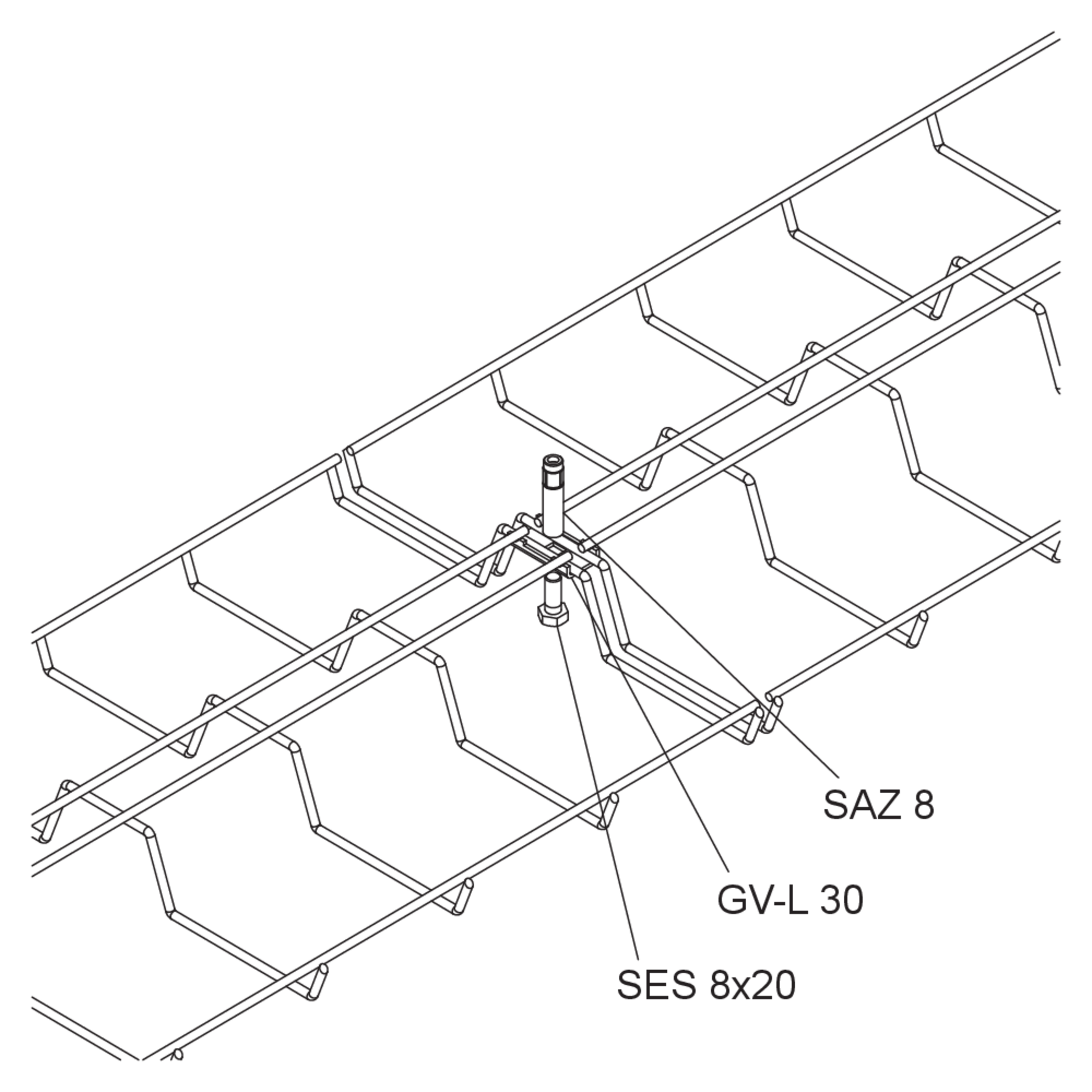

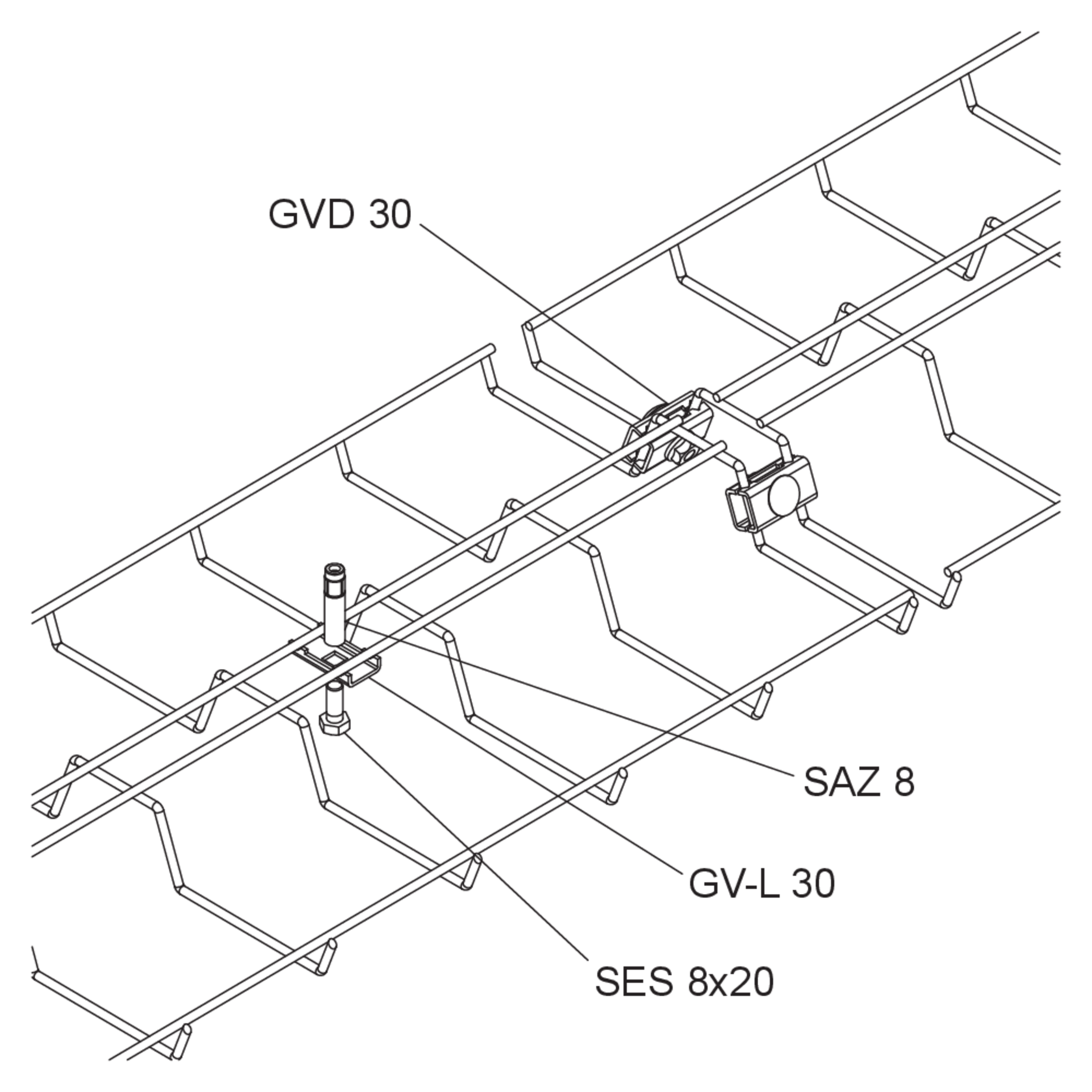

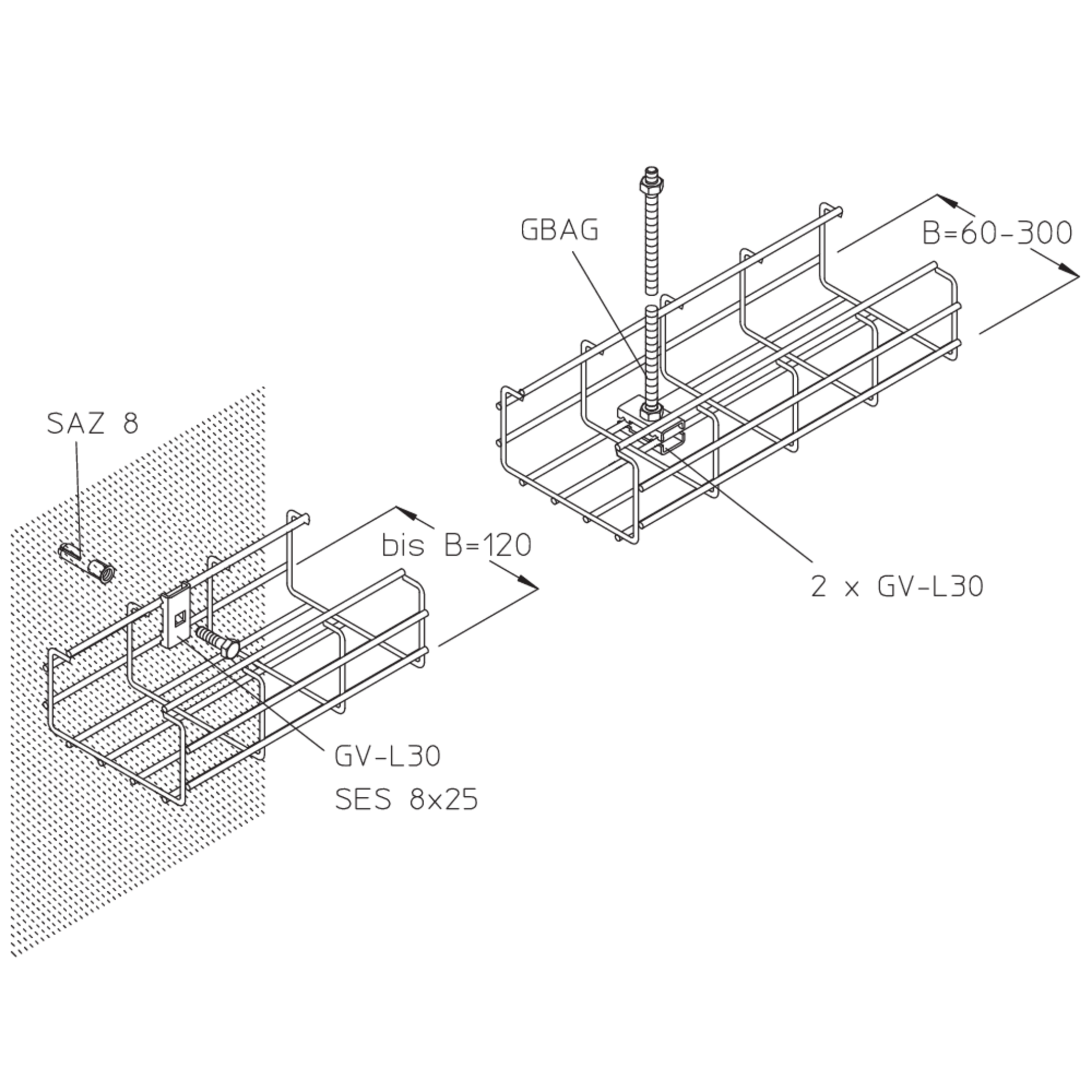

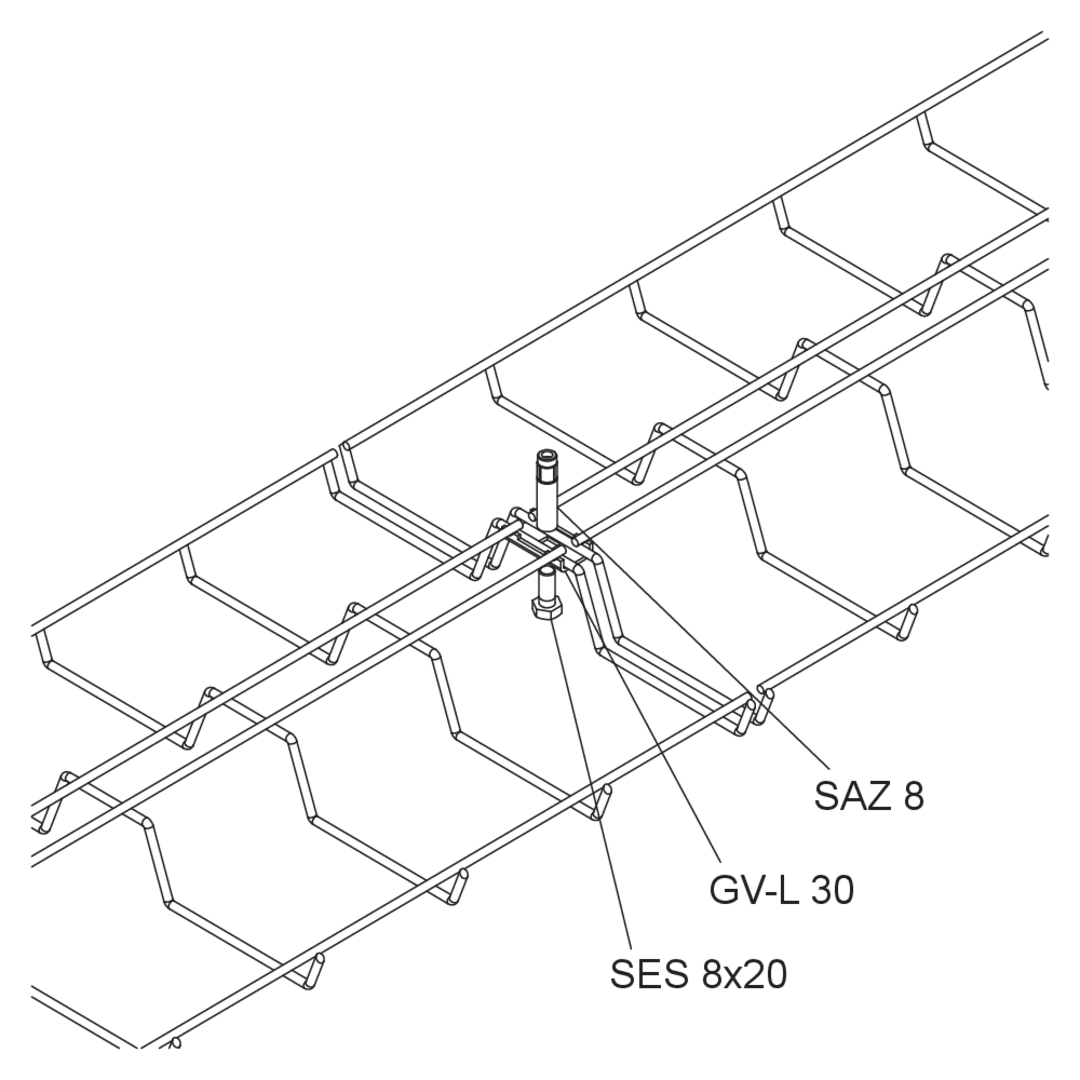

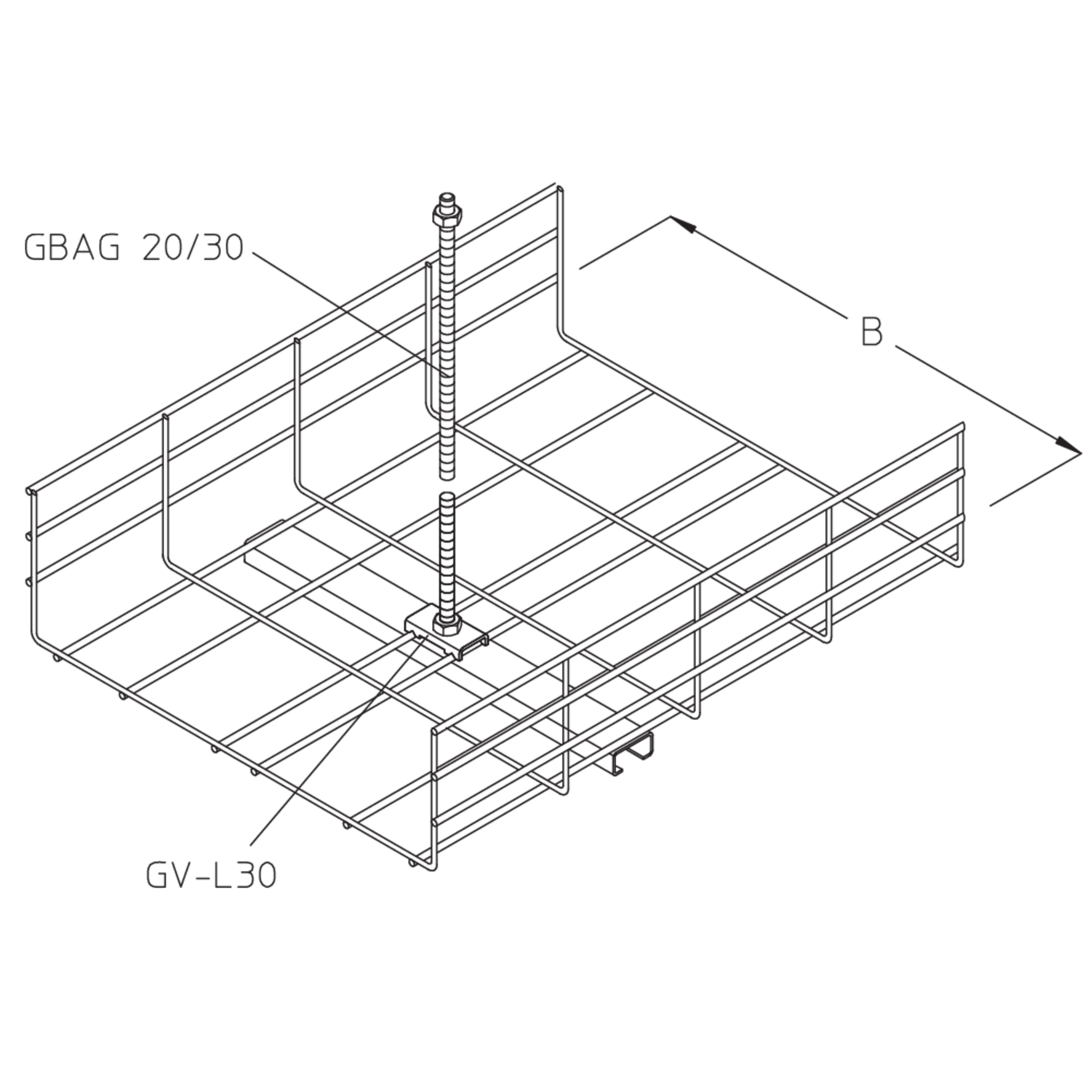

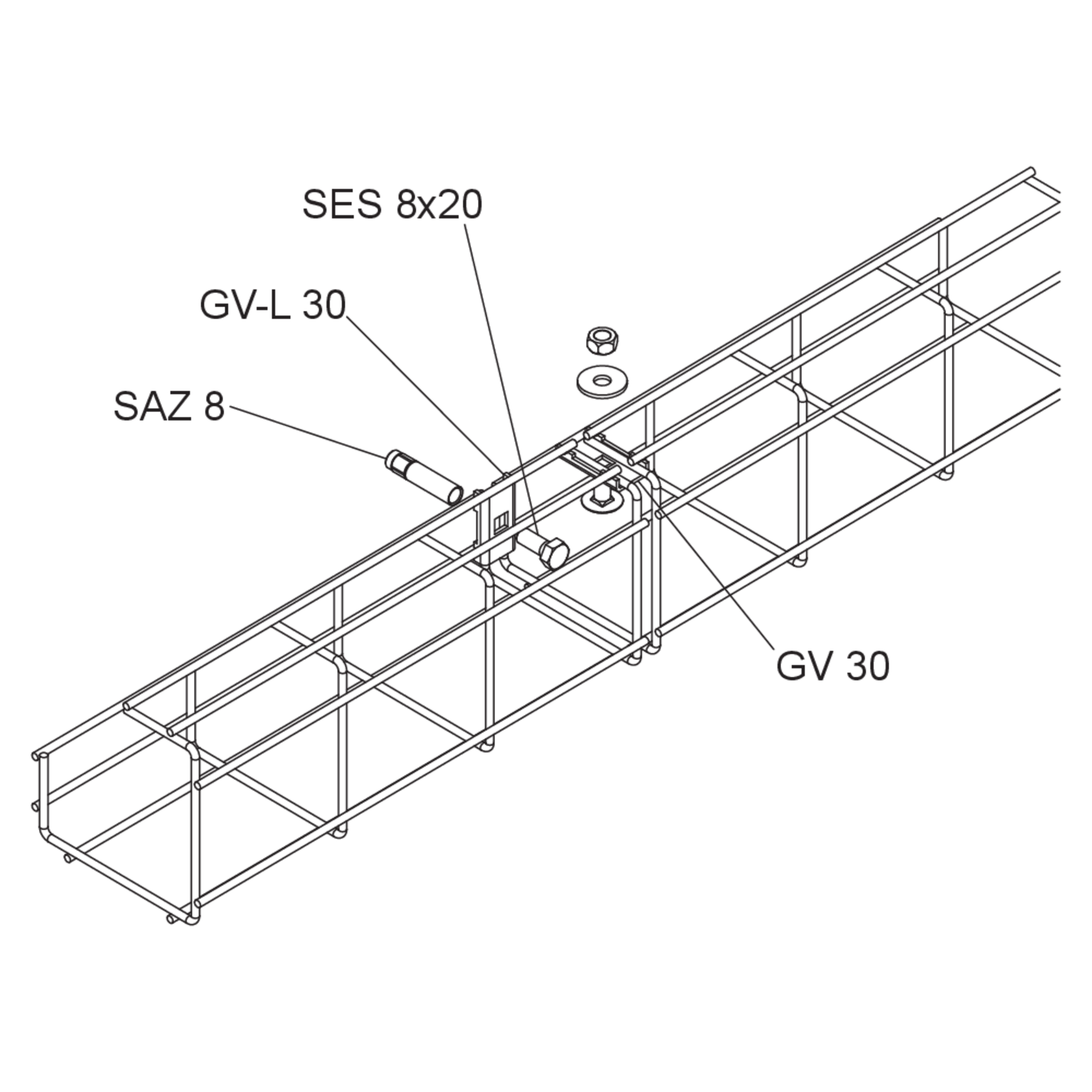

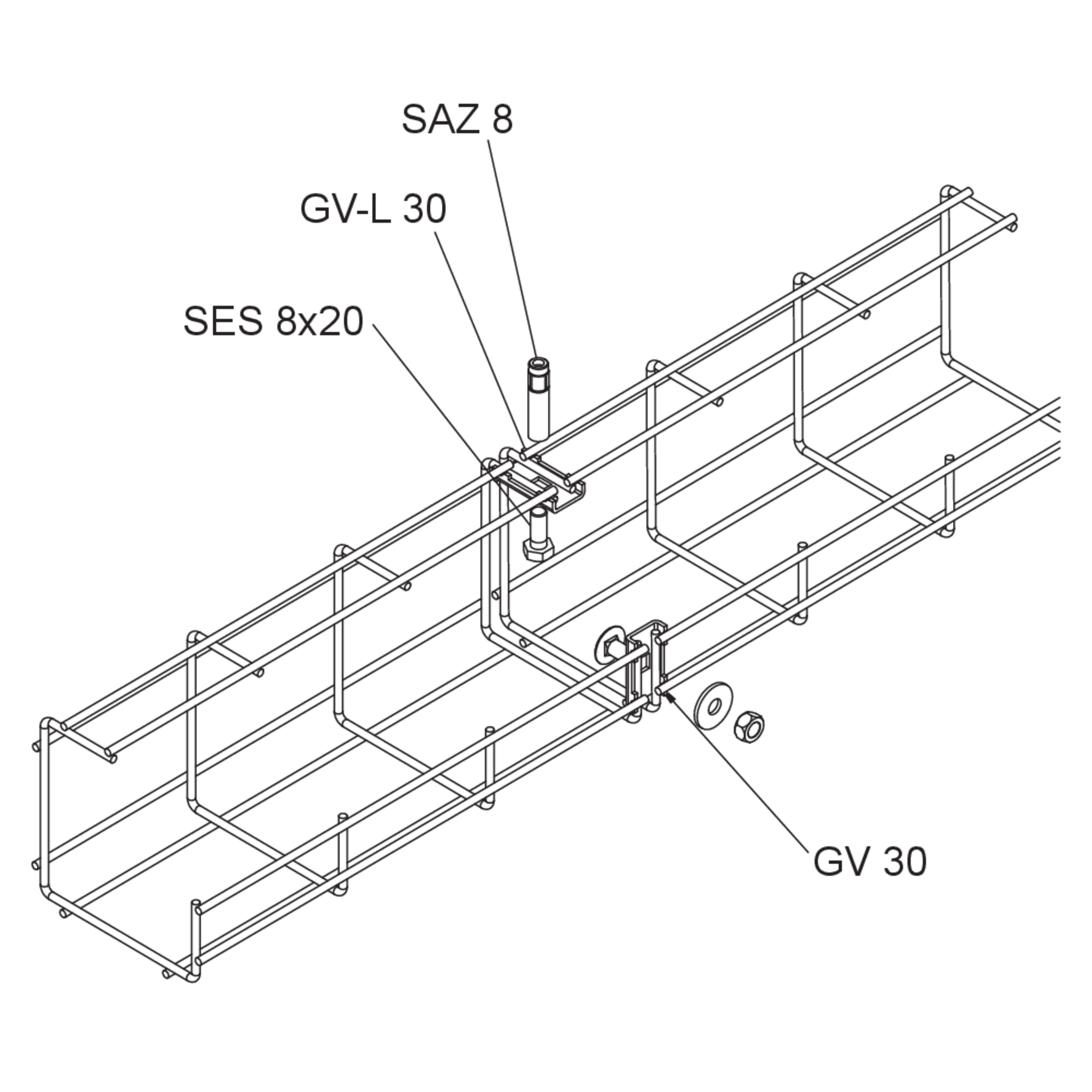

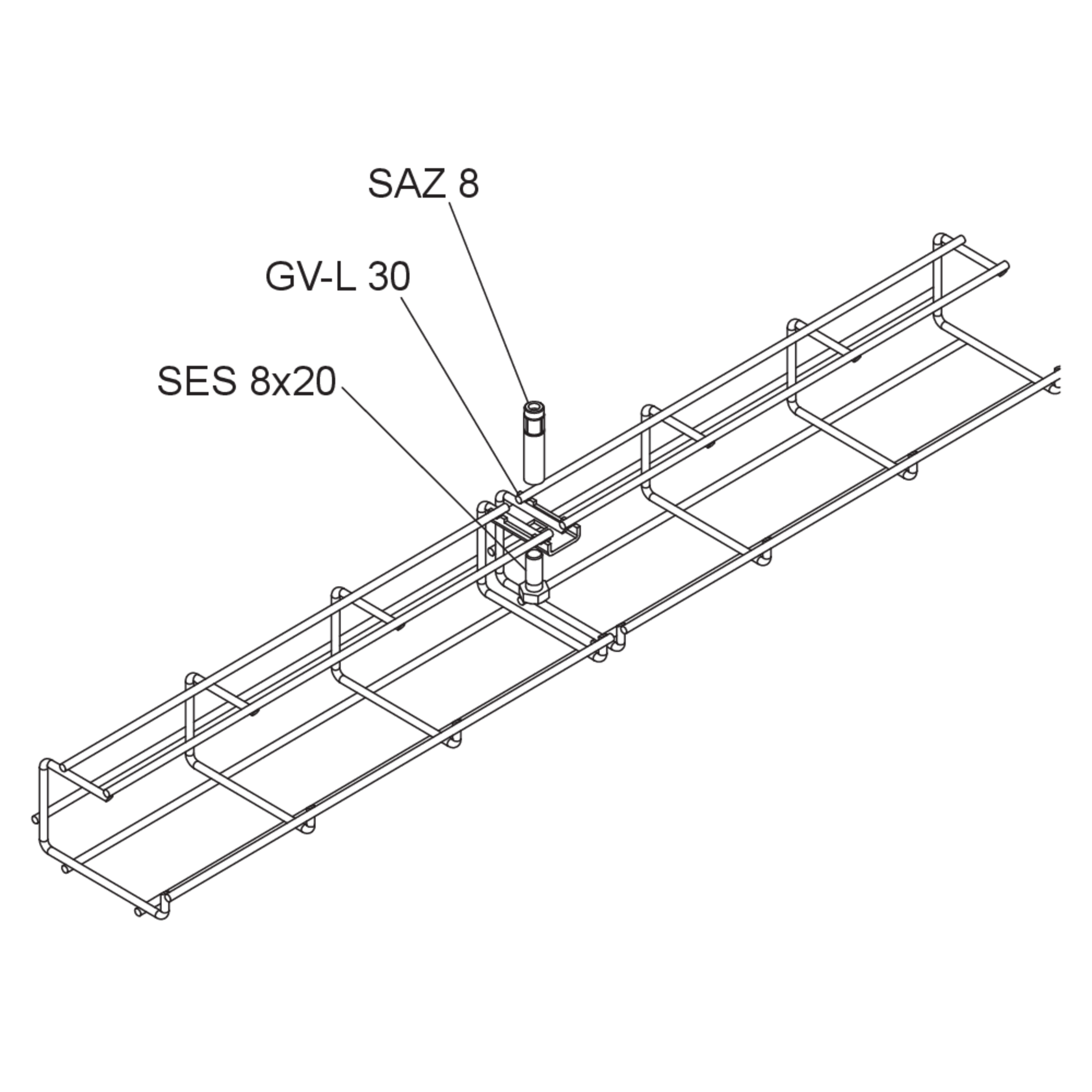

The mesh cable tray connector GV-L 30 is used to install mesh cable trays on walls and ceilings in accordance with the installation instructions. We provide components in various materials and surface finishes to ensure that the corrosion requirements are met for all sorts of applications.

Get in touchDownload datasheet

Variants

Steel, hot-dip galvanised

Article

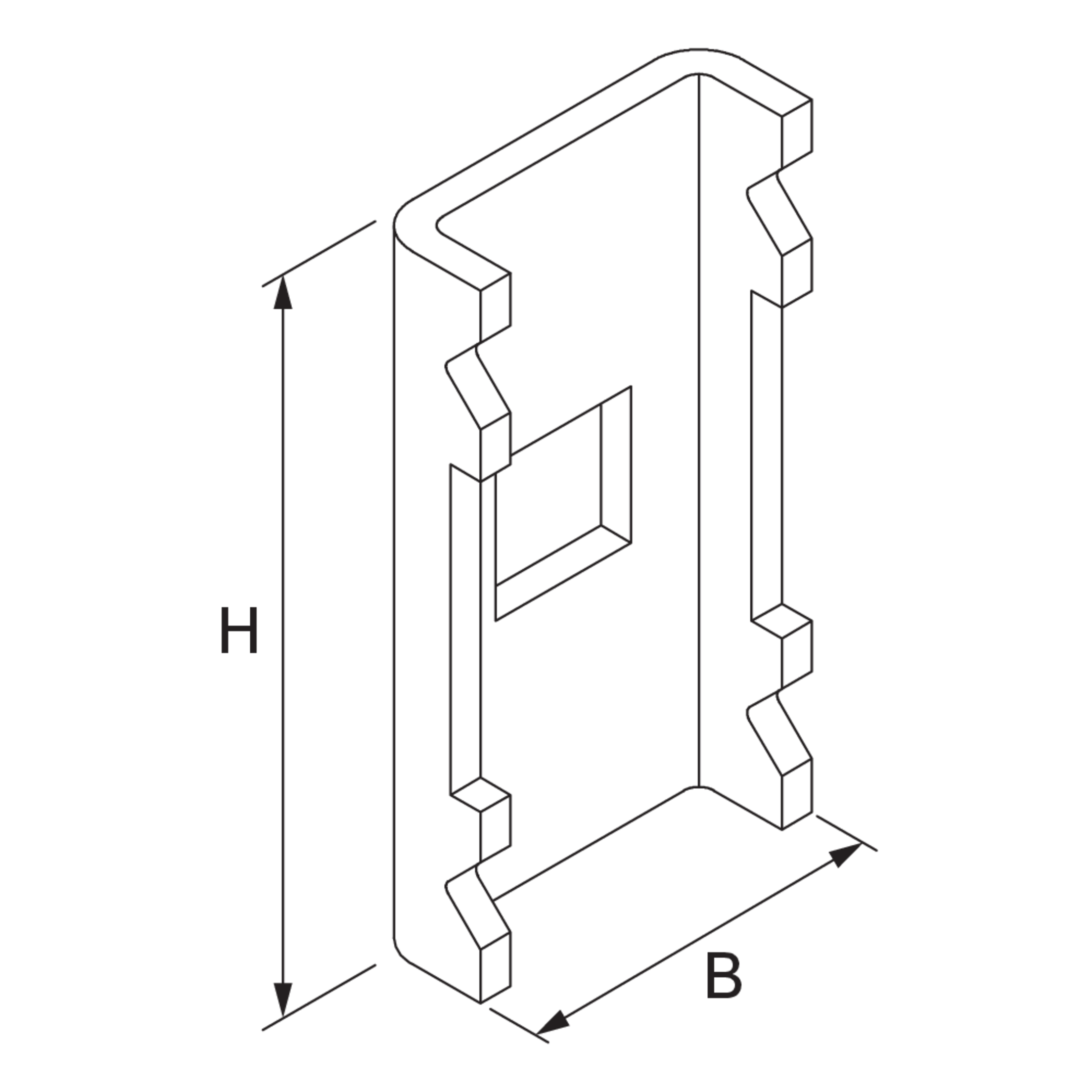

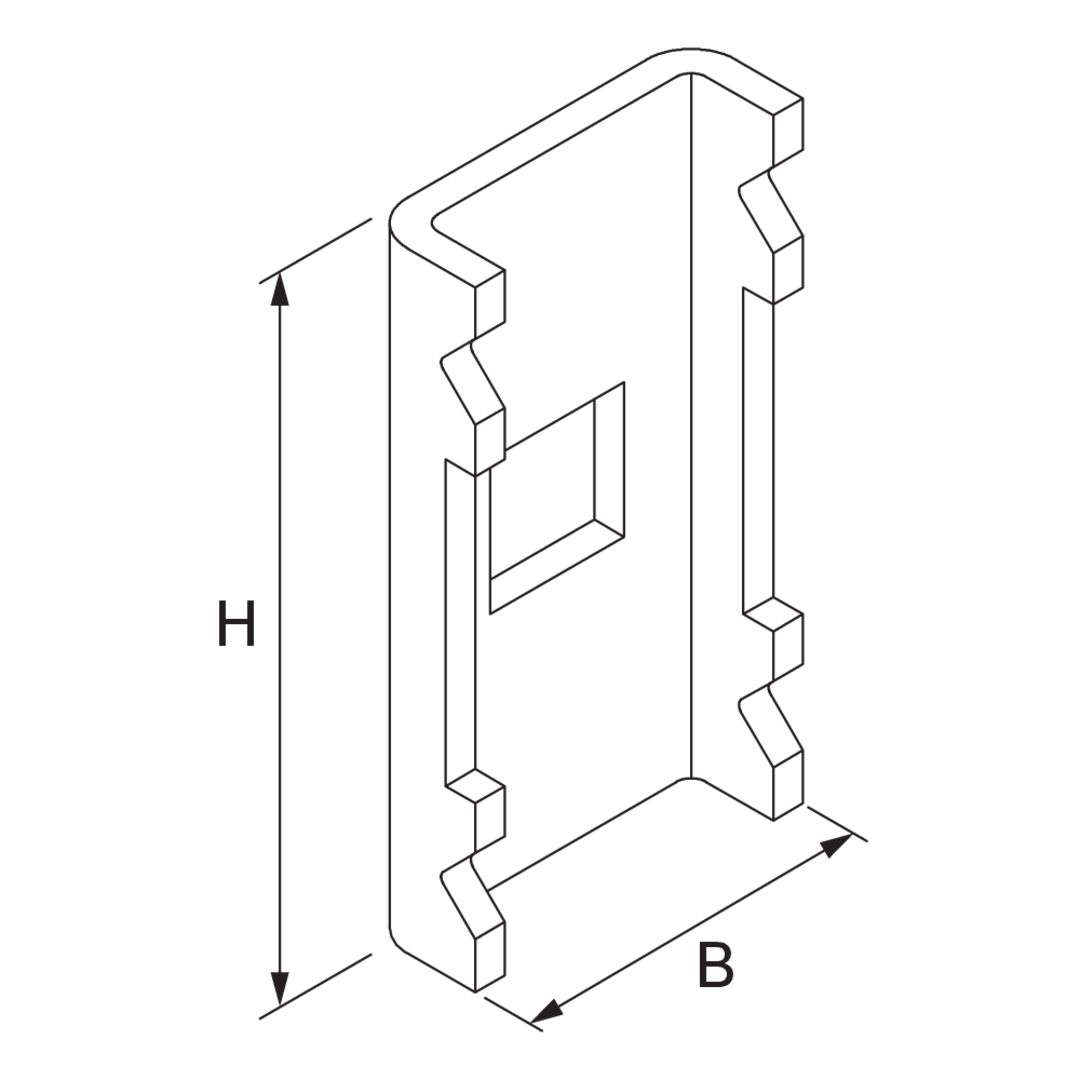

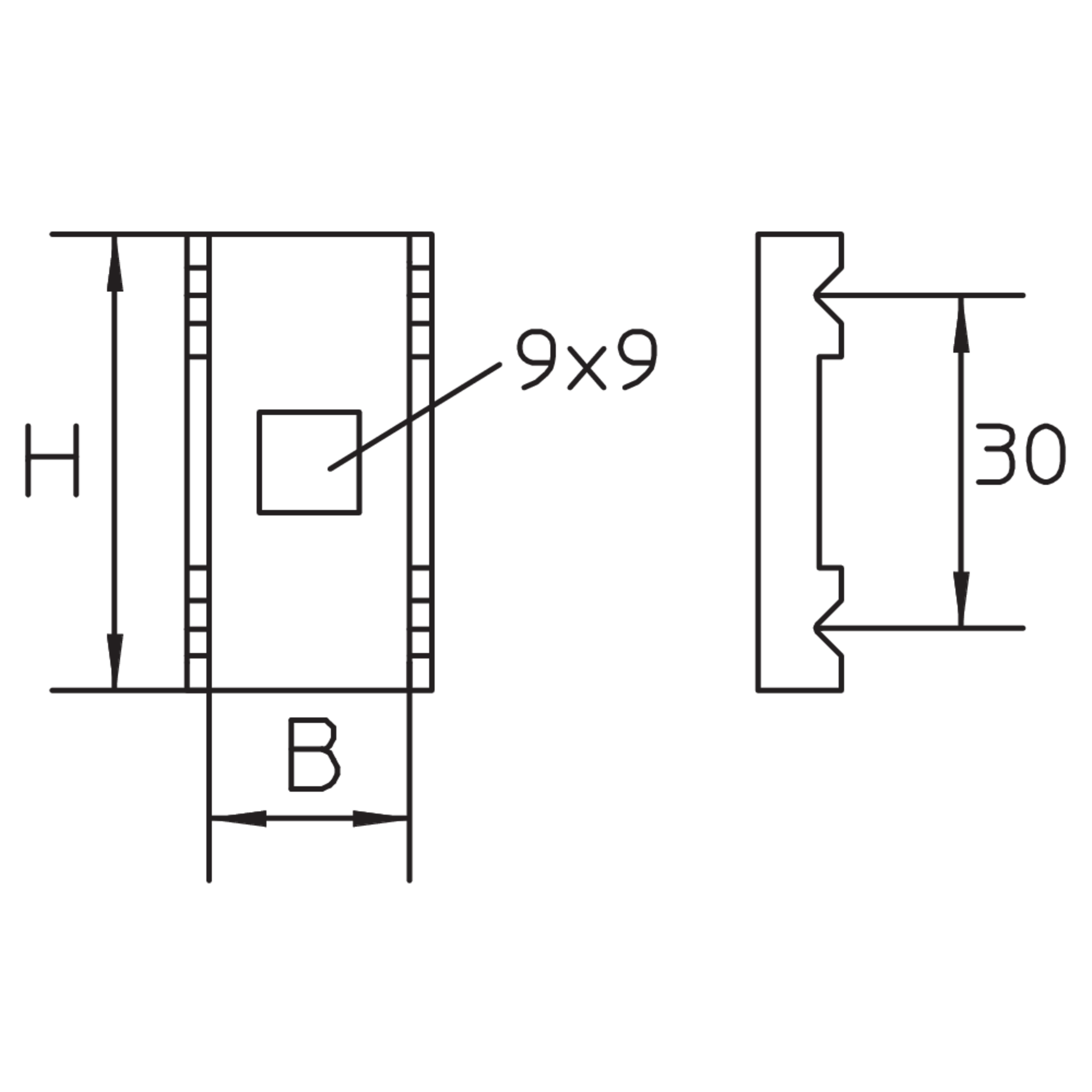

H

height

B

width

L

length

G

Weight per storage unit

  • GV-L 30F
    Mounting bracket GV-L 30F
    height
    41 mm
    width
    22 mm
    length
    8 mm
    Weight per storage unit
    0.017 kg
    More information

steel, galvanic zinc plated

Article

H

height

B

width

L

length

G

Weight per storage unit

  • GV-L 30GV
    Mounting bracket GV-L 30F
    height
    41 mm
    width
    22 mm
    length
    8 mm
    Weight per storage unit
    0.017 kg
    More information

Stainless steel, acc. to AISI 304 (BS 304S31)

Article

H

height

B

width

L

length

G

Weight per storage unit

  • GV-L 30E
    Mounting bracket GV-L 30E
    height
    41 mm
    width
    22 mm
    length
    8 mm
    Weight per storage unit
    0.016 kg
    More information

Stainless steel, acc. to AISI 316Ti (BS 320S31) / AISI 316L (BS 316S11)

Article

H

height

B

width

L

length

G

Weight per storage unit

  • GV-L 30E4
    Connector bracket
    height
    41 mm
    width
    22 mm
    length
    8 mm
    Weight per storage unit
    0.016 kg
    More information
