Variants
Stainless steel, acc. to AISI 304 (BS 304S31)
Article
G
Weight per storage unit
- GH 6X24E
wire-mesh cable trays mounting hookWeight per storage unit0.006 kg

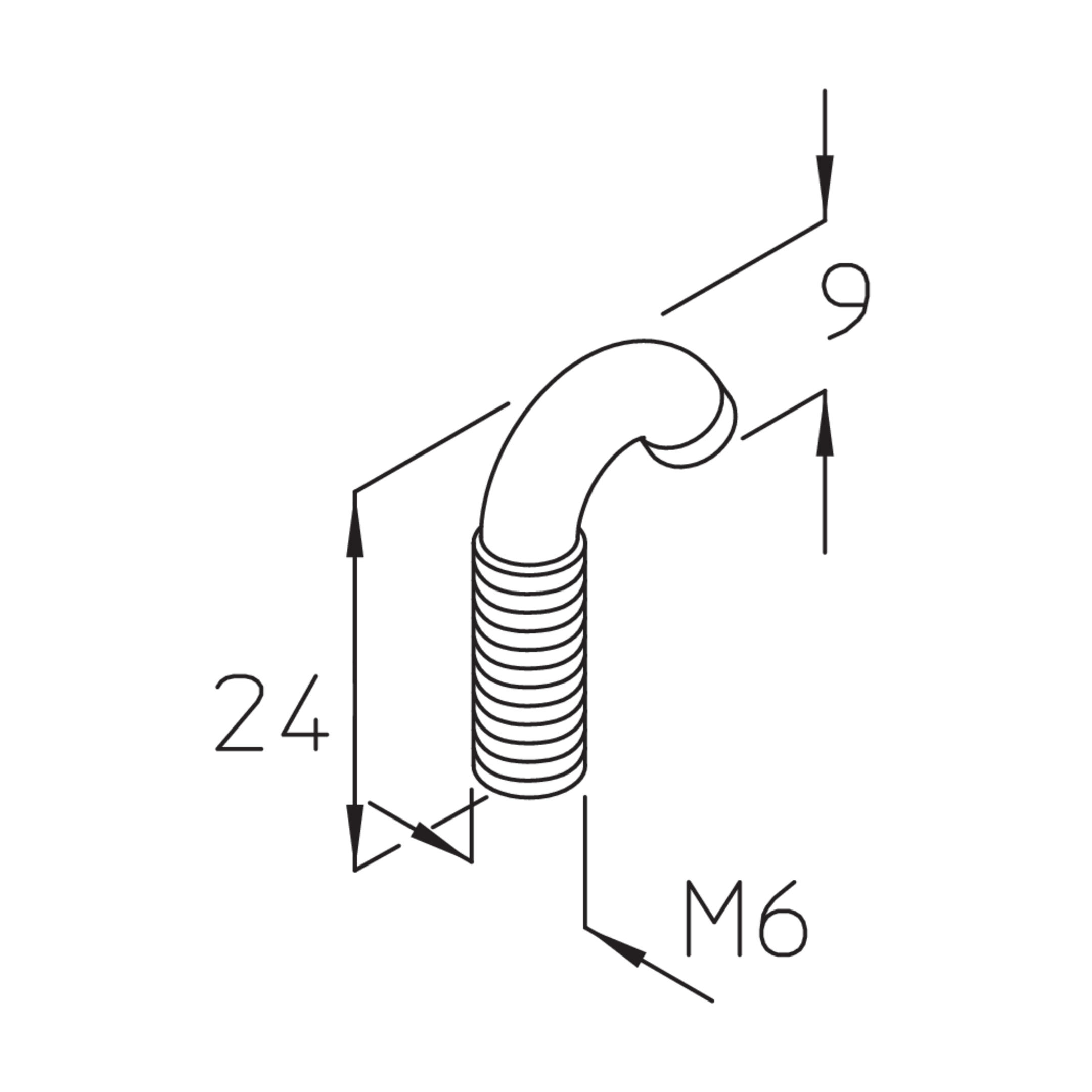

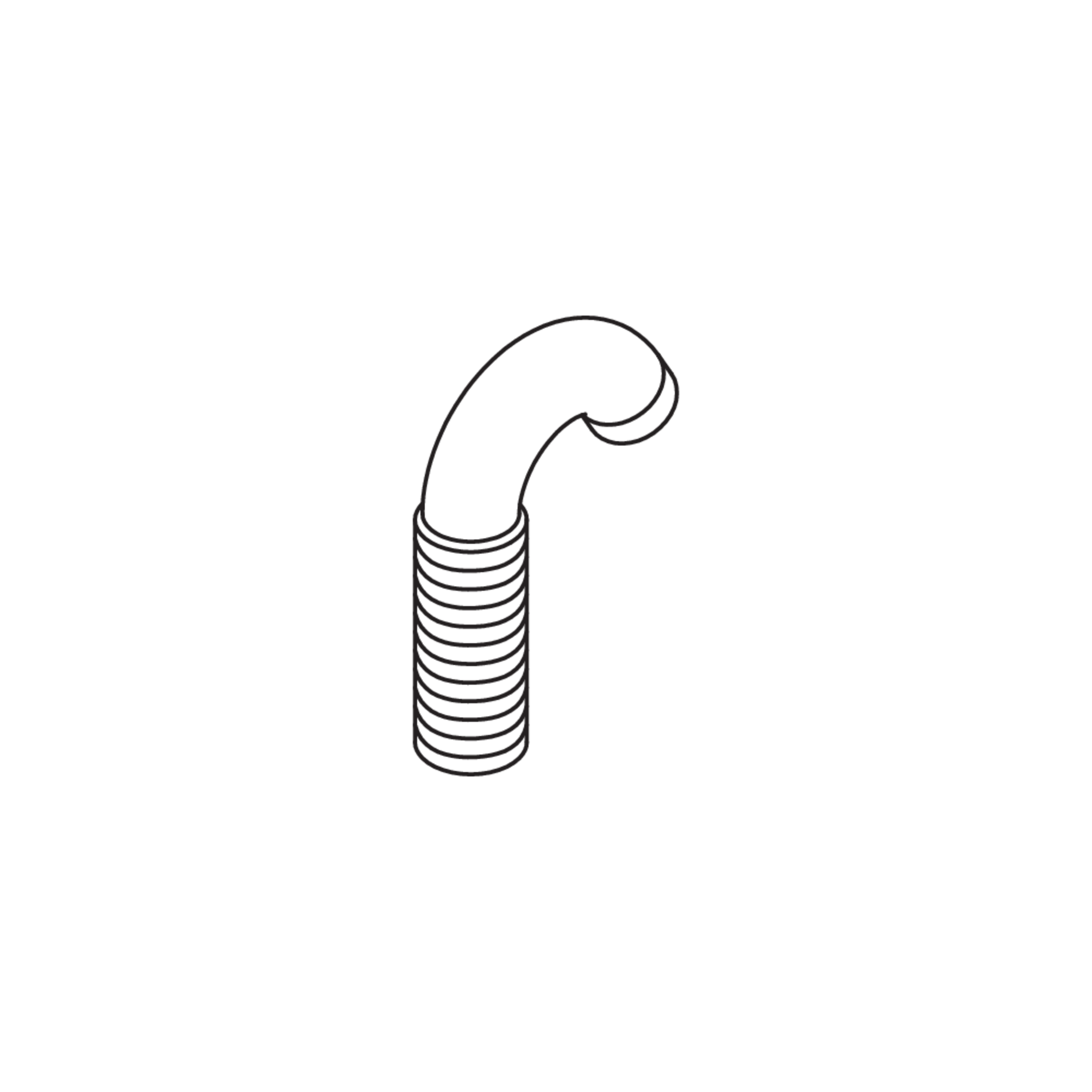

GH 6x24
Mounting hooks

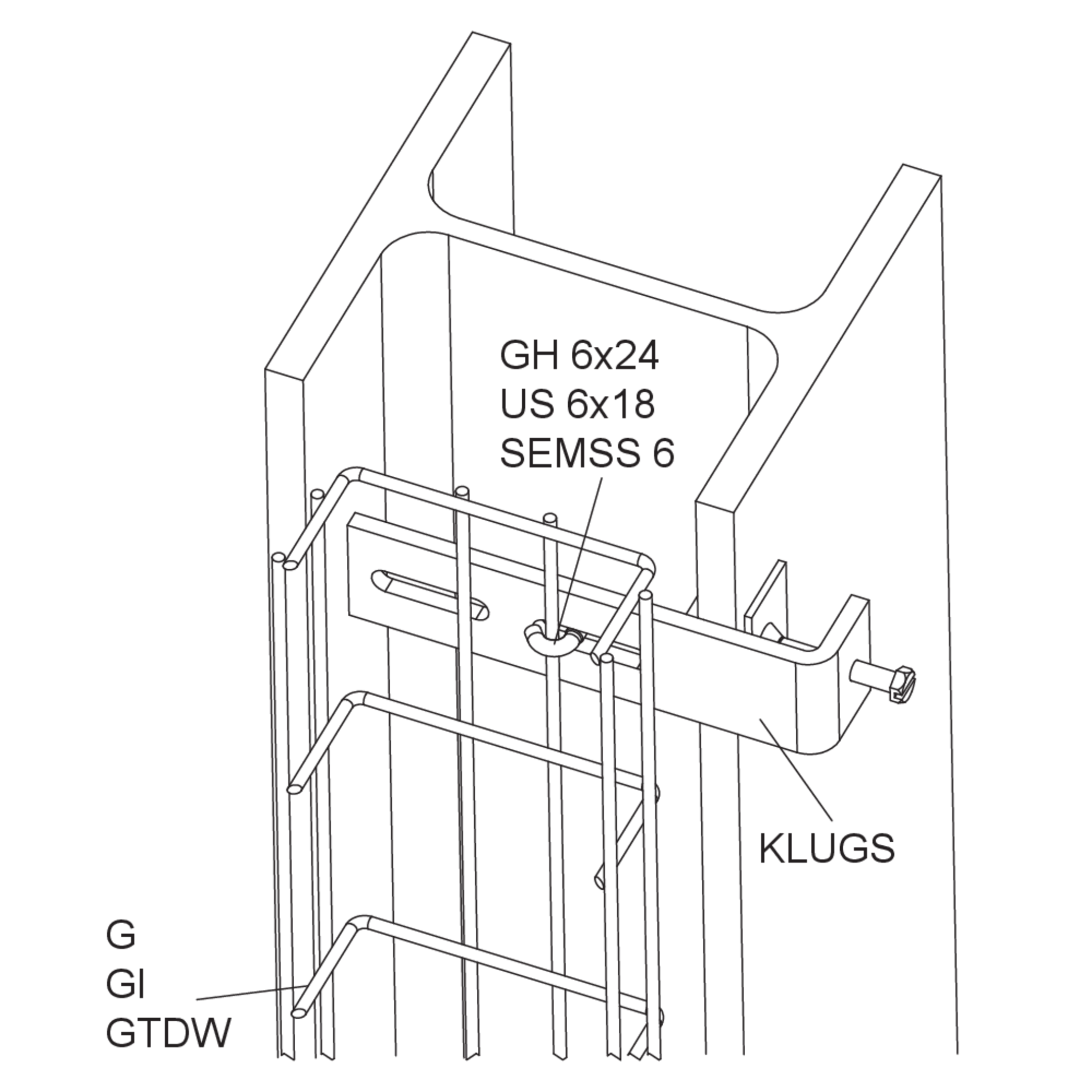

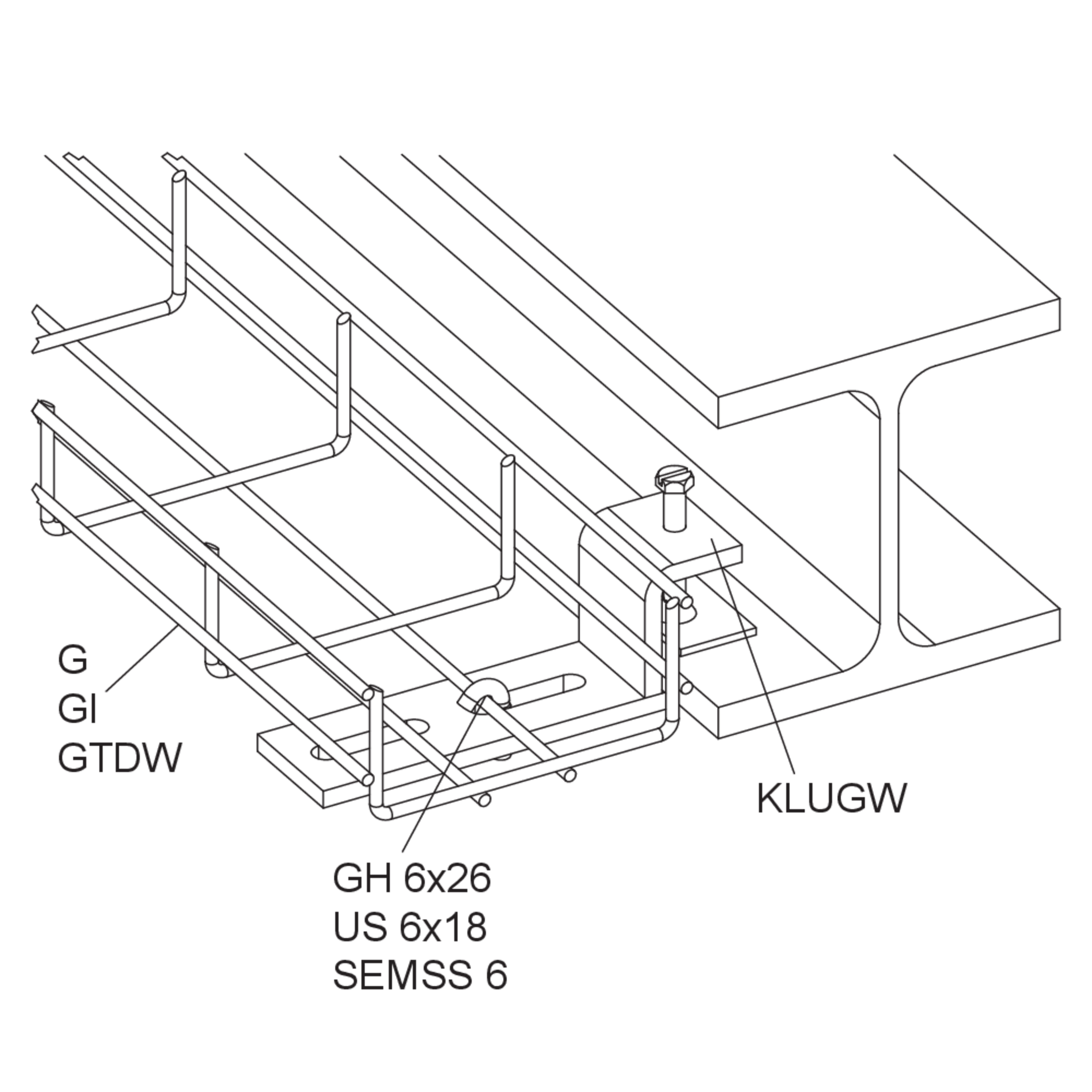

The fastening hook GH 6x24 can be used to fasten mesh cable trays or to mount parts on mesh cable trays. It is part of the storm protection bracket GD-SW or GID-SW. In addition, it can be used along with the KLUGS and KLUGW fixing clamps and the MKD L connecting link when installing mesh cable trays on steel beams. It is made of stainless steel.
Details
Tender texts
Downloads
de
en
de
en
de
de
en
de
en
Cable trays - Assembly instructions
Assembly instructions for G 50, G 100, GI, GTD 30, GTDW, GVR, GV 30, GVD 30, GVU, GVK, GV-L, GBH, GBHK, GTR, GK-A, GD, GDR, GD-SW,
Mesh cable trays - Technical information
Technical Information
Mesh cable trays G - Compact overview
Compact overview of mesh cable trays and accessories: G 50, G 100, GDR, GD, GKAB, DB, DKSL, KDU, KDAG, KHUSS, GBAG, HB, KWF, KHA, KW, KA, connectors, dividers, spacer brackets
PDF (532.66 KB)
DownloadDownload
Price list 2026 Building extension
Valid from February 1st, 2026
Price list 2026 Building extension (Excel)
Valid from February 1, 2026
ZIP
Choose languageChoose languageIncluded accessories
