GBHKK

Short spacer bracket for G 35 mesh cable tray

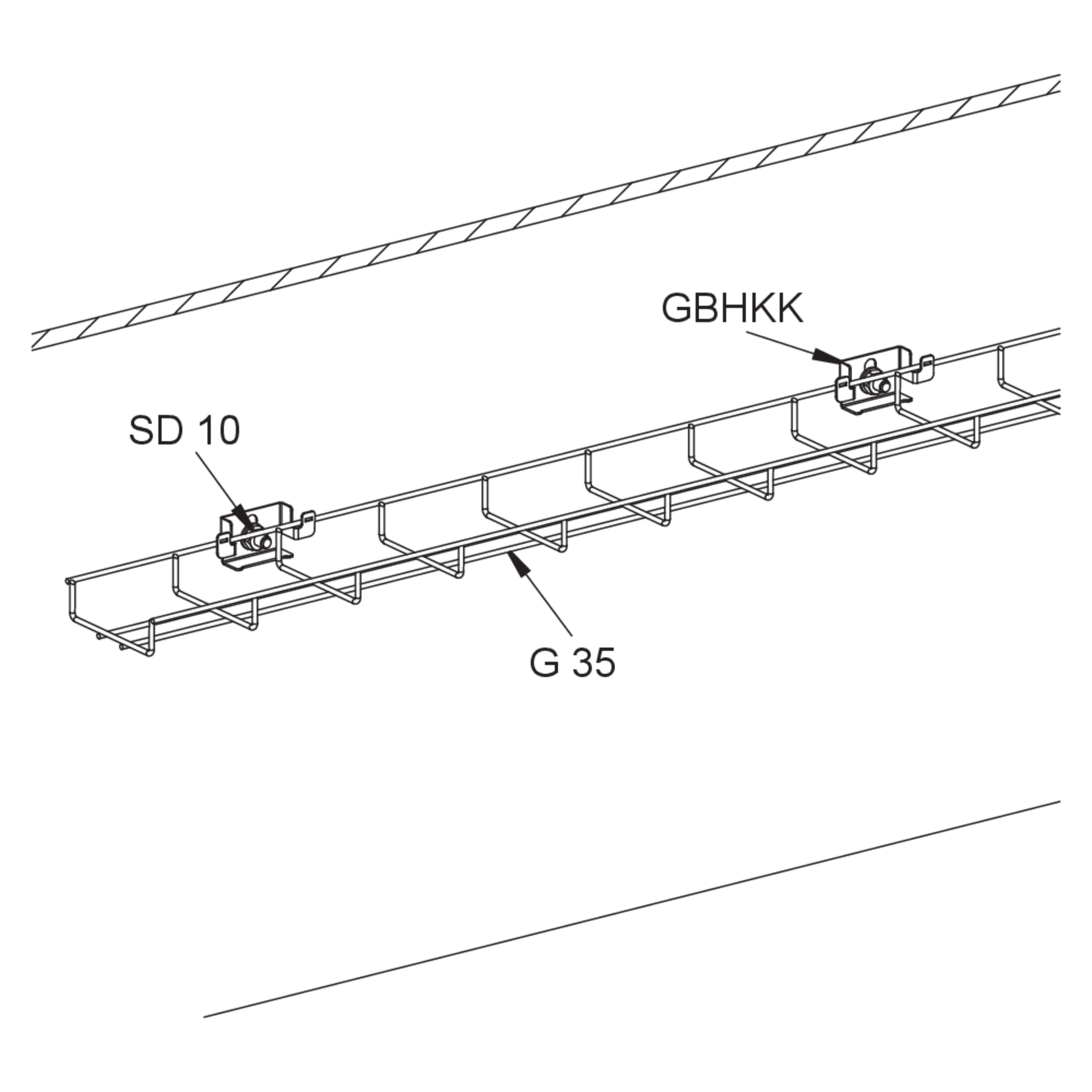

Using the GBHKK spacer bracket, the G 35 mesh cable trays can be mounted horizontally up to 100 mm wide on the side longitudinal wire with a short distance to the wall. The GBHKK spacer bracket is suitable for support distances of up to 1000 mm. Various materials and surfaces ensure that the corrosion requirements of a wide range of applications are met.

Get in touchDownload datasheet

Variants

Steel, pre-galvanised/Sendzimir process

Article

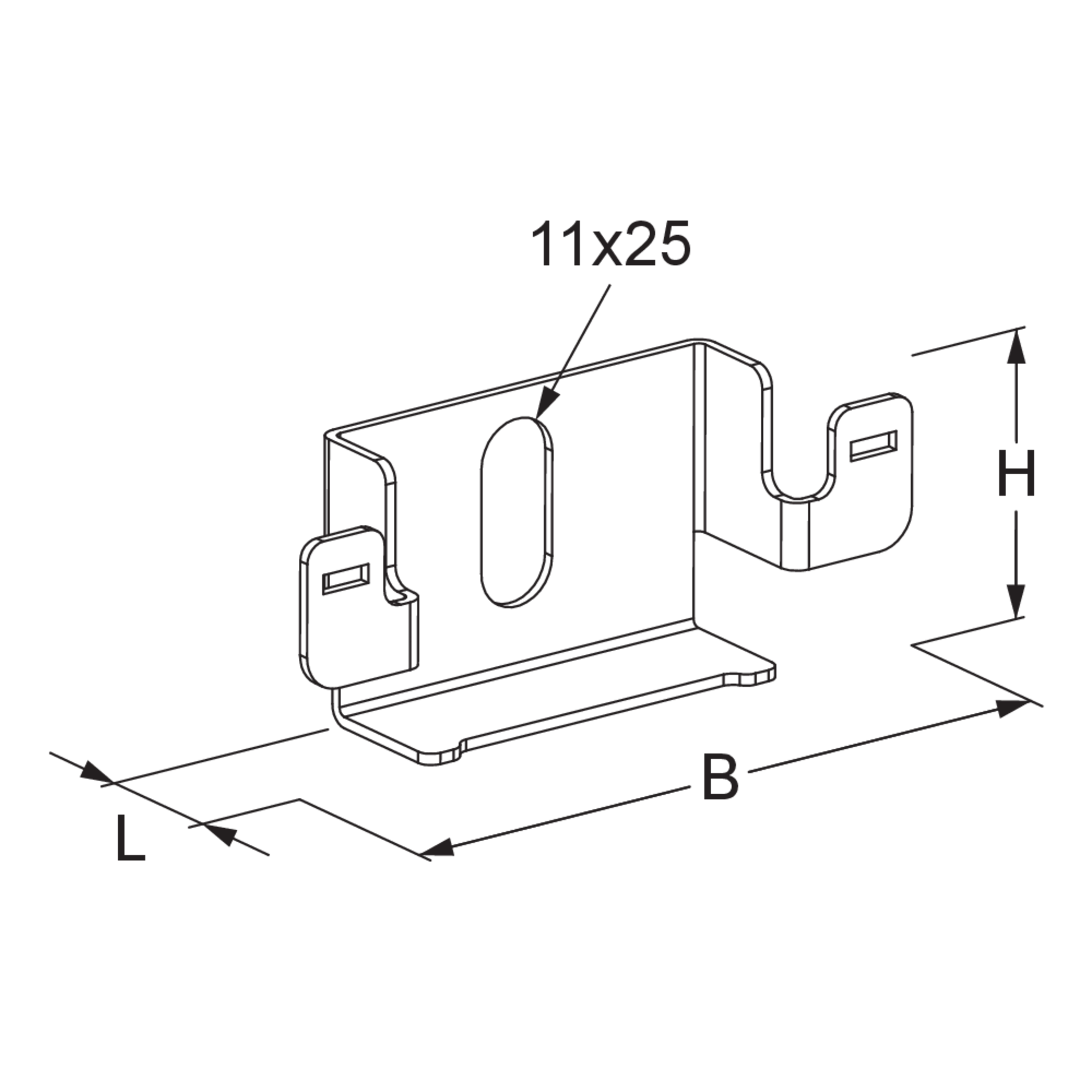

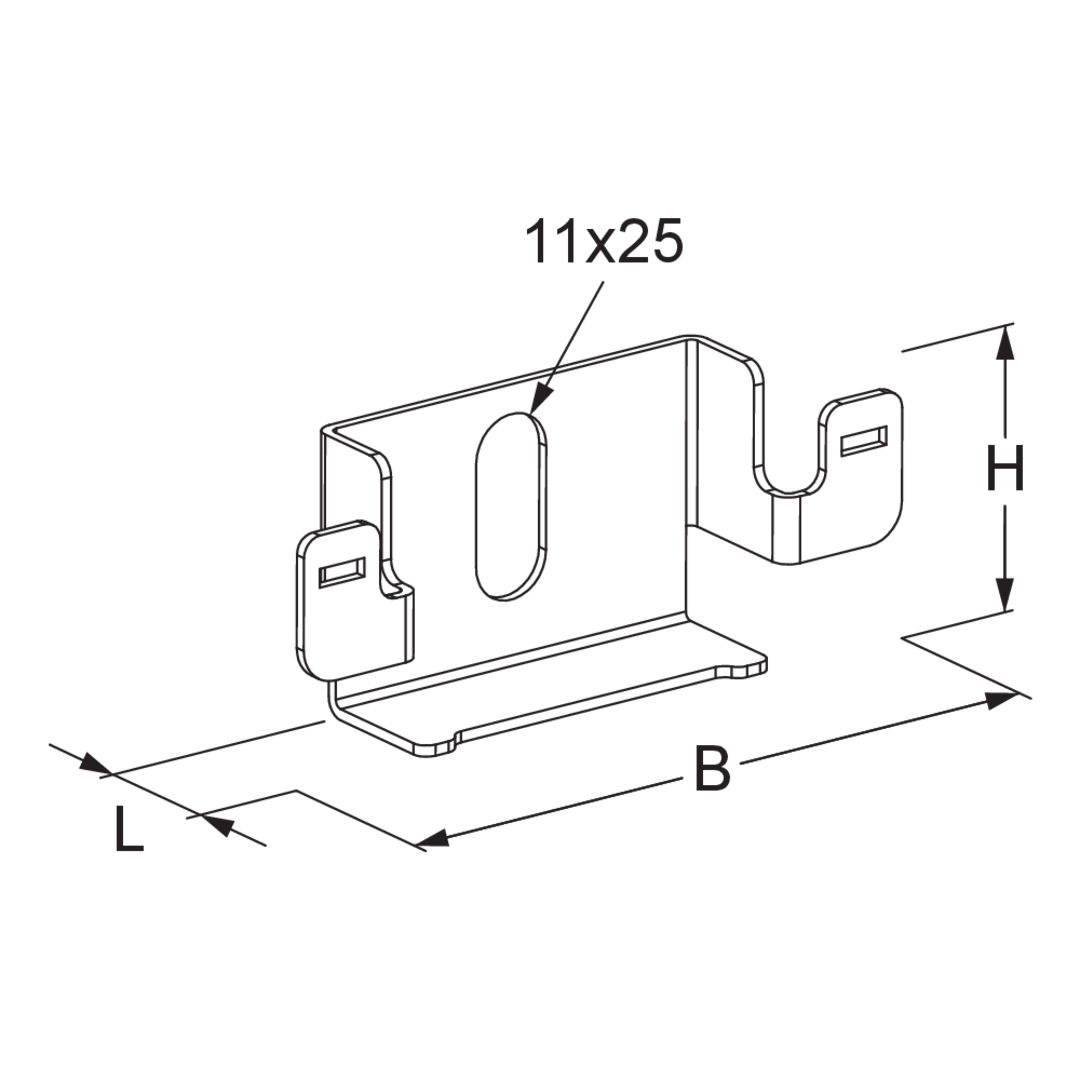

H

height

B

width

L

length

G

Weight per storage unit

  • GBHKK S
    Wire mesh tray holder short
    height
    39 mm
    width
    94 mm
    length
    21 mm
    Weight per storage unit
    0.049 kg
    More information

Stainless steel, acc. to AISI 304 (BS 304S31)

Article

H

height

B

width

L

length

G

Weight per storage unit

  • GBHKK E
    Wire mesh tray holder short
    height
    39 mm
    width
    94 mm
    length
    21 mm
    Weight per storage unit
    0.050 kg
    More information

Tender texts

Ausschreiben.de

Tender texts for this product

Open Link
Heinze.de

Tender texts for this product

Open Link

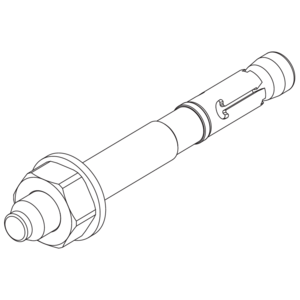

Included accessories
