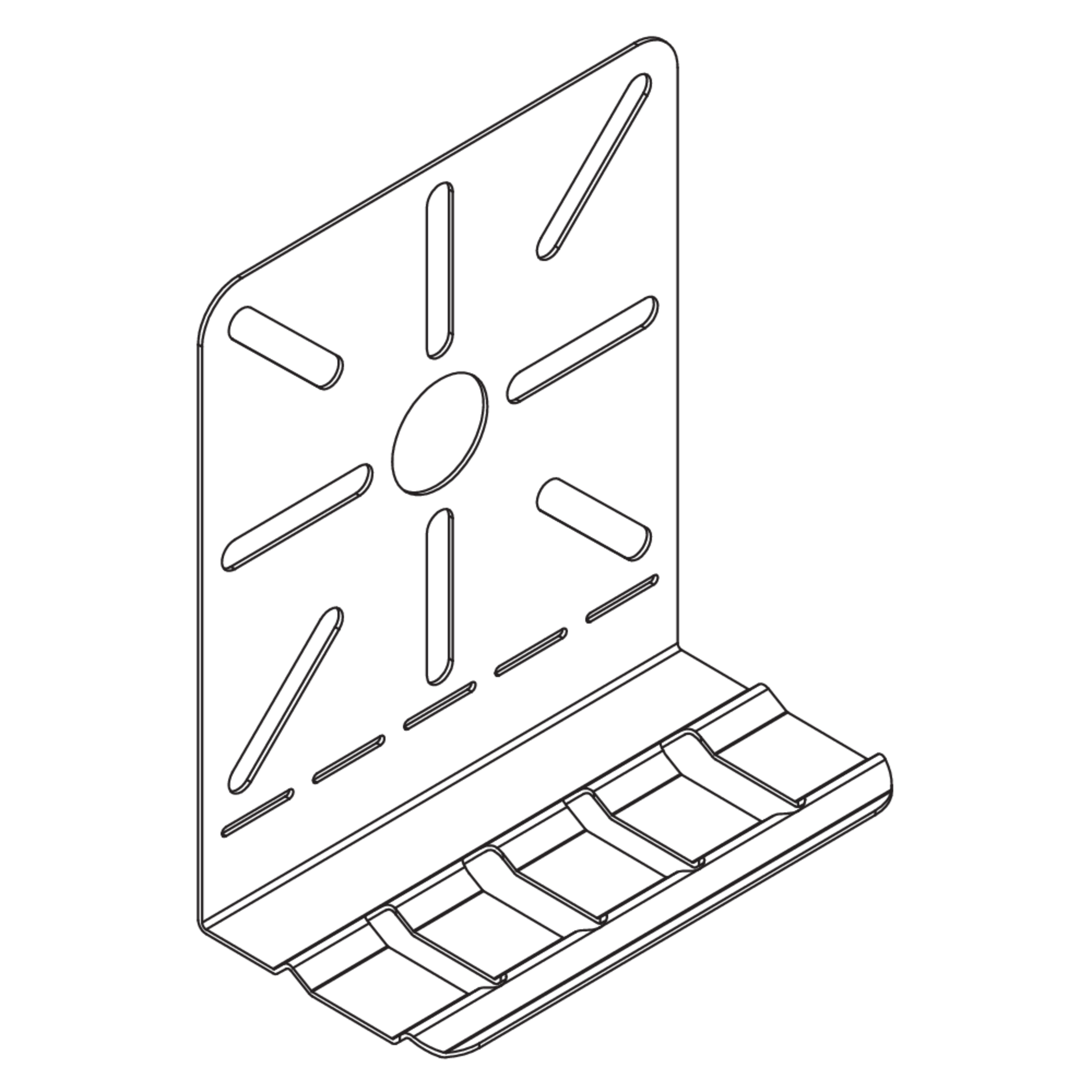

Mounting plate 90°

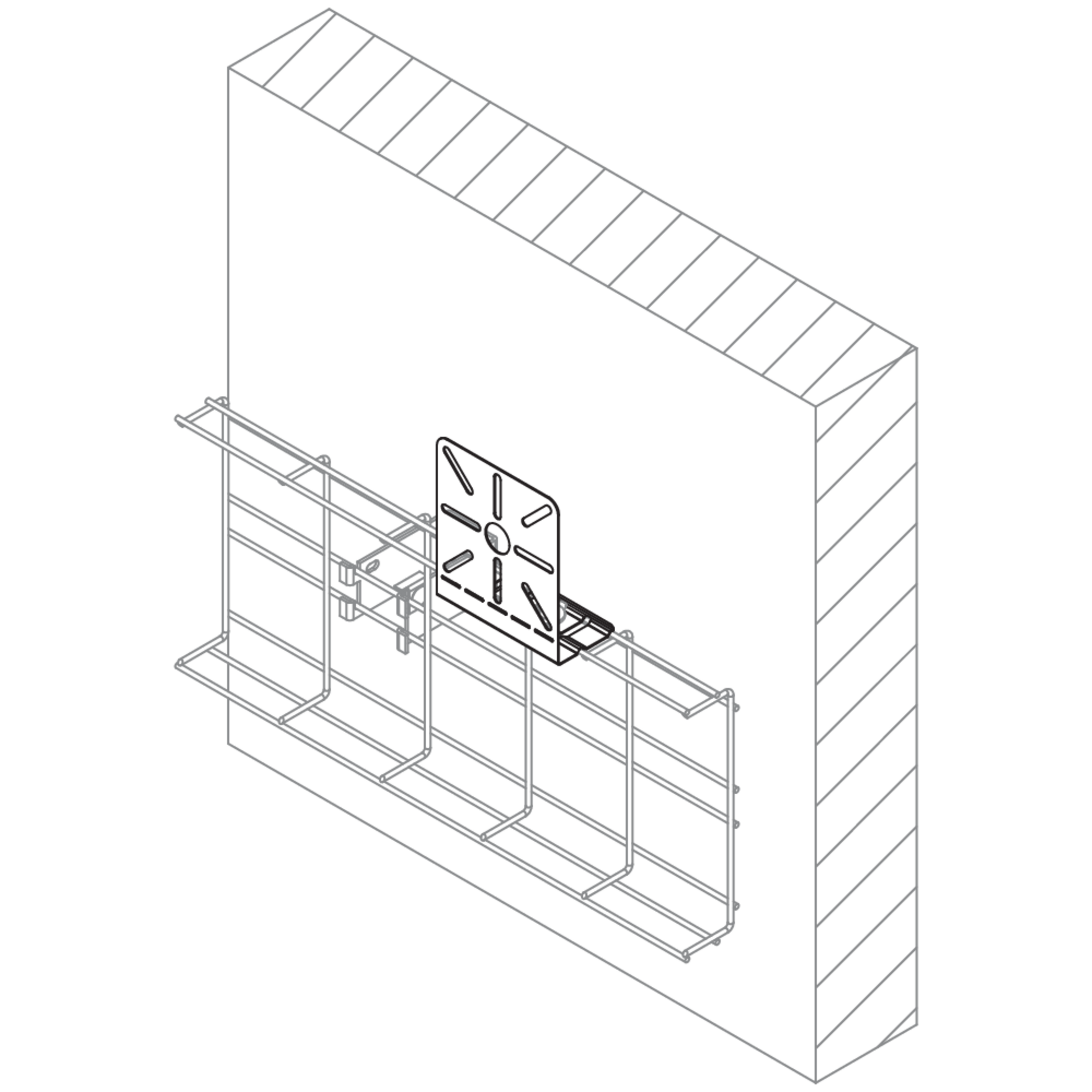

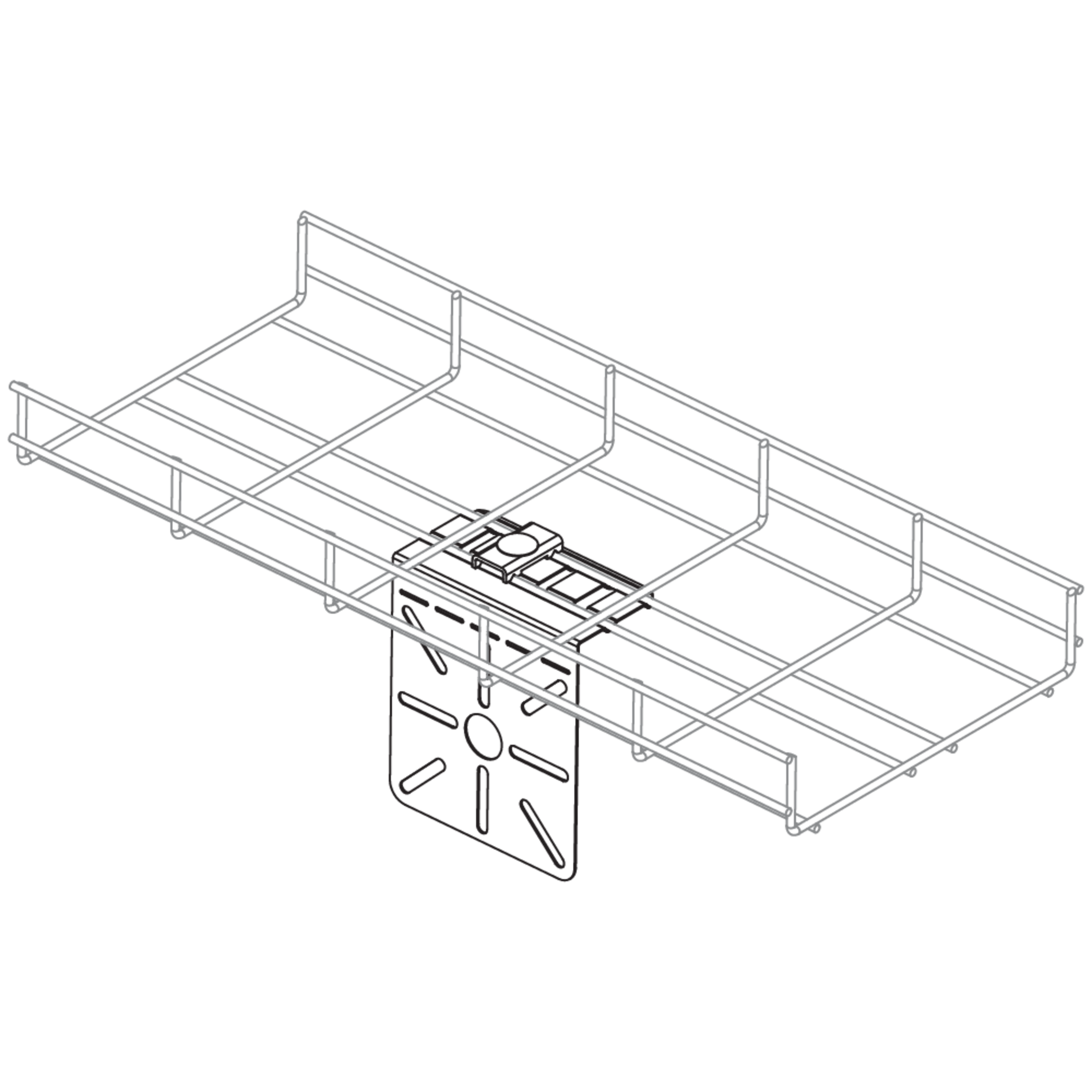

The mounting plate MP-G90 can be used e.g. to attach junction boxes to mesh cable trays. The panel itself is mounted on the mesh cable tray with the mesh cable tray connector GV 30. Additional mounting solutions are possible thank to the 90° angled fastener. We provide components in various materials and surface finishes to ensure that the corrosion requirements are met for all sorts of applications.
