RS 60

Cable tray, unperforated, heavy, height = 60 mm

RS 60 unperforated cable trays have sides 60 mm high and are available in widths from 100 to 600 mm. The standard length is 3000 mm. We provide components in various materials and surface finishes to ensure that the corrosion requirements are met for all sorts of applications.

No stepping

Get in touch Download datasheet

Variants

Steel, pre-galvanised/Sendzimir process

RS 60-10S
Cable tray, heavy, unperforated RS
height
60 mm
width
100 mm
length
3000 mm
material thickness
1.50 mm
distributed load control cable
0.09 kN/m
cross section area
57 cm²
Weight per storage unit
9.200 kg
Geeignet für Funktionserhalt
Nein
More information
RS 60-20S
Cable tray, heavy, unperforated RS
height
60 mm
width
200 mm
length
3000 mm
material thickness
1.50 mm
distributed load control cable
0.17 kN/m
cross section area
117 cm²
Weight per storage unit
12.600 kg
Geeignet für Funktionserhalt
Nein
More information
RS 60-30S
Cable tray, heavy, unperforated RS
height
60 mm
width
300 mm
length
3000 mm
material thickness
1.50 mm
distributed load control cable
0.26 kN/m
cross section area
177 cm²
Weight per storage unit
15.900 kg
Geeignet für Funktionserhalt
Nein
More information
RS 60-40S
Cable tray, heavy, unperforated RS
height
60 mm
width
400 mm
length
3000 mm
material thickness
1.50 mm
distributed load control cable
0.34 kN/m
cross section area
237 cm²
Weight per storage unit
18.900 kg
Geeignet für Funktionserhalt
Nein
More information
RS 60-50S
Cable tray, heavy, unperforated RS
height
60 mm
width
500 mm
length
3000 mm
material thickness
1.50 mm
distributed load control cable
0.43 kN/m
cross section area
297 cm²
Weight per storage unit
22.100 kg
Geeignet für Funktionserhalt
Nein
More information
RS 60-60S
Cable tray, heavy, unperforated RS
height
60 mm
width
600 mm
length
3000 mm
material thickness
1.50 mm
distributed load control cable
0.52 kN/m
cross section area
357 cm²
Weight per storage unit
25.600 kg
Geeignet für Funktionserhalt
Nein
More information

Steel, hot-dip galvanised

RS 60-10F
Cable tray, heavy, unperforated RS
height
60 mm
width
100 mm
length
3000 mm
material thickness
1.50 mm
distributed load control cable
0.09 kN/m
cross section area
57 cm²
Weight per storage unit
9.573 kg
Geeignet für Funktionserhalt
Nein
More information
RS 60-20F
Cable tray, heavy, unperforated RS
height
60 mm
width
200 mm
length
3000 mm
material thickness
1.50 mm
distributed load control cable
0.17 kN/m
cross section area
117 cm²
Weight per storage unit
13.319 kg
Geeignet für Funktionserhalt
Nein
More information
RS 60-30F
Cable tray, heavy, unperforated RS
height
60 mm
width
300 mm
length
3000 mm
material thickness
1.50 mm
distributed load control cable
0.26 kN/m
cross section area
177 cm²
Weight per storage unit
17.066 kg
Geeignet für Funktionserhalt
Nein
More information
RS 60-40F
Cable tray, heavy, unperforated RS
height
60 mm
width
400 mm
length
3000 mm
material thickness
1.50 mm
distributed load control cable
0.34 kN/m
cross section area
237 cm²
Weight per storage unit
20.812 kg
Geeignet für Funktionserhalt
Nein
More information
RS 60-50F
Cable tray, heavy, unperforated RS
height
60 mm
width
500 mm
length
3000 mm
material thickness
1.50 mm
distributed load control cable
0.43 kN/m
cross section area
297 cm²
Weight per storage unit
24.559 kg
Geeignet für Funktionserhalt
Nein
More information
RS 60-60F
Cable tray, heavy, unperforated RS
height
60 mm
width
600 mm
length
3000 mm
material thickness
1.50 mm
distributed load control cable
0.52 kN/m
cross section area
357 cm²
Weight per storage unit
28.305 kg
Geeignet für Funktionserhalt
Nein
More information

Details

No stepping
Electr. conductivity checked according to DIN EN 61537

Tender texts

Ausschreiben.de

Tender texts for this product

Open Link

Heinze.de

Tender texts for this product

Open Link

Accessories

Downloads

de
en
**Price list 2025 Building extension**
Valid from February 1st, 2025, updated version from 31/03/2025.
PDF
Choose languageChoose language
**Price list 2025 Building extension**
Choose language to download
German (46.14 MB)
English (46.09 MB)

de
en
**Cable trays - Technical information**
Technical Information
PDF
Choose languageChoose language
**Cable trays - Technical information**
Choose language to download
German (2.83 MB)
English (2.65 MB)

de
en
**Cable support systems - Complete catalogue**
Catalogue for cable trays, mesh cable trays, cable ladders, wide-span systems, vertical ladders, floor ducts, cable clamps, cable support troughs, rigid conduits, marine cable ladders, support systems, fastening accessories and more.
PDF
Choose languageChoose language
**Cable support systems - Complete catalogue**
Choose language to download
German (28.65 MB)
English (138.29 MB)

de
en
**Cable trays - Assembly instructions**
Assembly Instructions
PDF
Choose languageChoose language
**Cable trays - Assembly instructions**
Choose language to download
German (2.59 MB)
English (2.61 MB)

BIM- und CAD-Data

BIM for cable trays

Bim data

ZIP, 9.58 MB

DownloadDownload

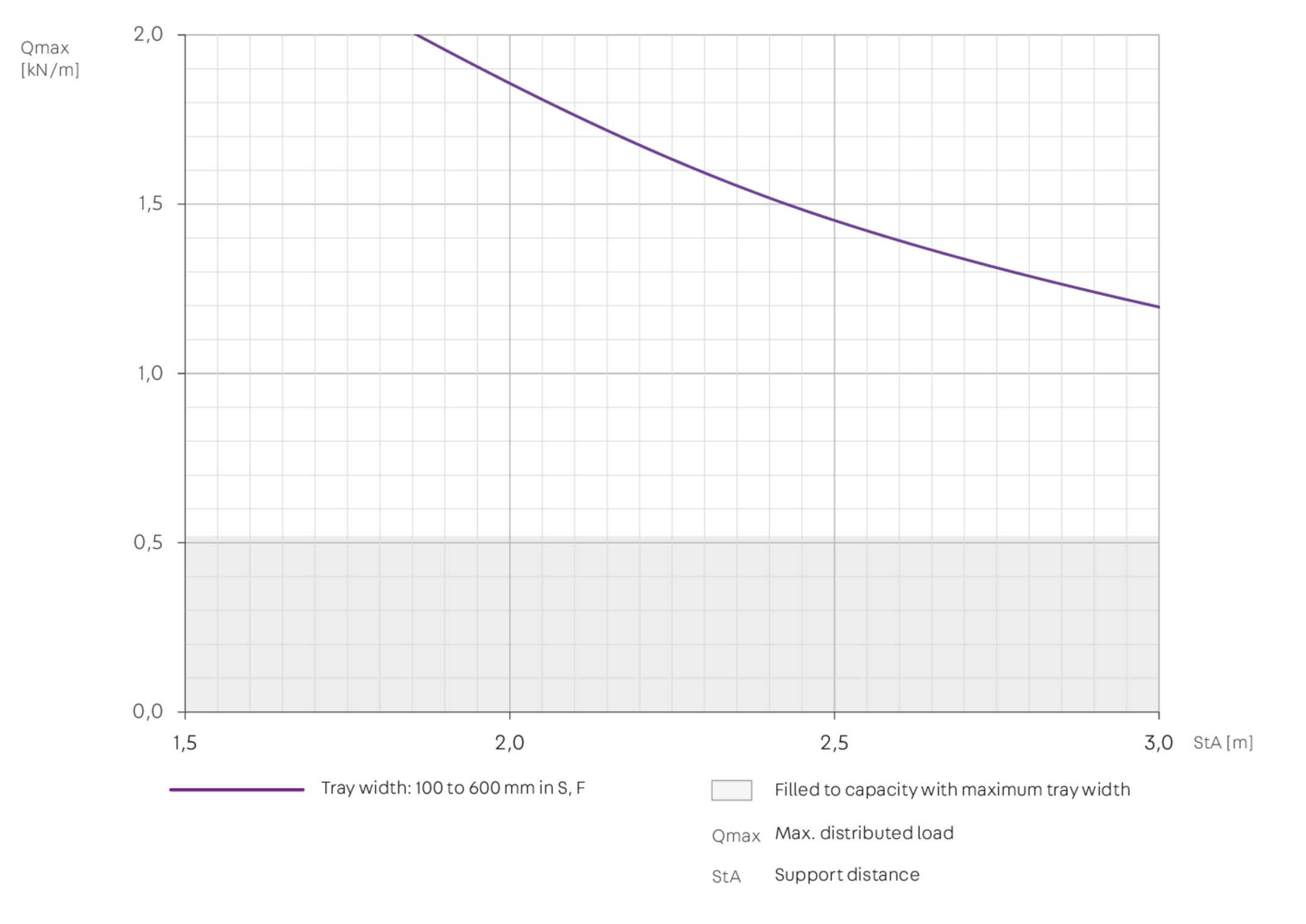

Load diagram

Included accessories
