JM K 28/15

Mounting channels, cold-formed

The mounting channel JM K 28/15 has environmental product declaration EPD-JDL-20200260-IBB1-DE and is made of hot-dip galvanised steel (fv), stainless steel (A4) or rolled plain steel (wb). It has a static load-bearing capacity of the normal force (NRd) of 4.9 kN. The mounting channel is available in the standard length of 6000 mm and is paired with the bolts JD M6 - JD M12. The profile is 28 mm wide and 15 mm high.

Environmental Product Declaration (EPD): EPD-JDL-20200260-IBB1-DE
Get in touchDownload datasheet

Variants

steel, bright

Article

HP

profile height

BP

profile width

L

length

t

Material strength profile

A

cross section area

G

Weight per storage unit

  • JMK2815 R-6000
    JORDAHL mounting channel K28/15
    profile height
    15 mm
    profile width
    28 mm
    length
    6000 mm
    Material strength profile
    2.3 mm
    cross section area
    1.417 cm2
    Weight per storage unit
    6.672 kg
    More information

Steel, hot-dip galvanised

Article

HP

profile height

BP

profile width

L

length

t

Material strength profile

A

cross section area

G

Weight per storage unit

  • JMK2815 FV-6000
    JORDAHL mounting channel K28/15
    profile height
    15 mm
    profile width
    28 mm
    length
    6000 mm
    Material strength profile
    2.3 mm
    cross section area
    1.417 cm2
    Weight per storage unit
    7.338 kg
    More information

Stainless steel, acc. to AISI 316Ti (BS 320S31) / AISI 316L (BS 316S11)

Article

HP

profile height

BP

profile width

L

length

t

Material strength profile

A

cross section area

G

Weight per storage unit

  • JMK2815 A4-6000
    JORDAHL mounting channel K28/15
    profile height
    15 mm
    profile width
    28 mm
    length
    6000 mm
    Material strength profile
    2.3 mm
    cross section area
    1.417 cm2
    Weight per storage unit
    6.804 kg
    More information

Details

  • Environmental Product Declaration (EPD): EPD-JDL-20200260-IBB1-DE
  • Environmental Product Declaration EPD-JDL-20200260-IBB1-DE

Tender texts

Ausschreiben.de

Tender texts for this product

Open Link
Heinze.de

Tender texts for this product

Open Link

Downloads

BIM- und CAD-Data

    CAD Details Mounting Channels JM

    CAD Data

    ZIP (527.16 KB)

    DownloadDownload

    BIM Data Mounting Channels JM

    BIM Data

    ZIP (266.84 KB)

    DownloadDownload

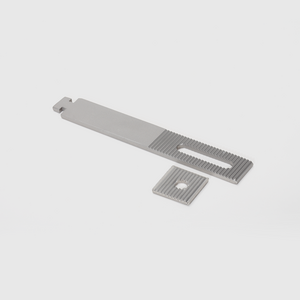

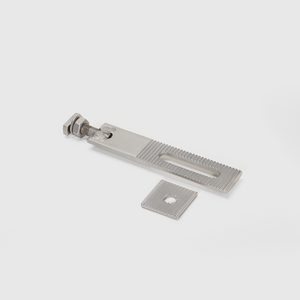

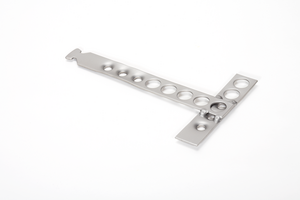

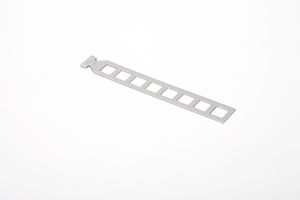

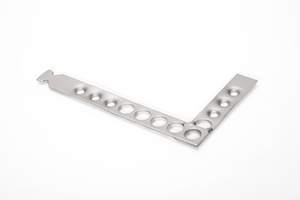

Included accessories
