JVB-Z

Connection straps

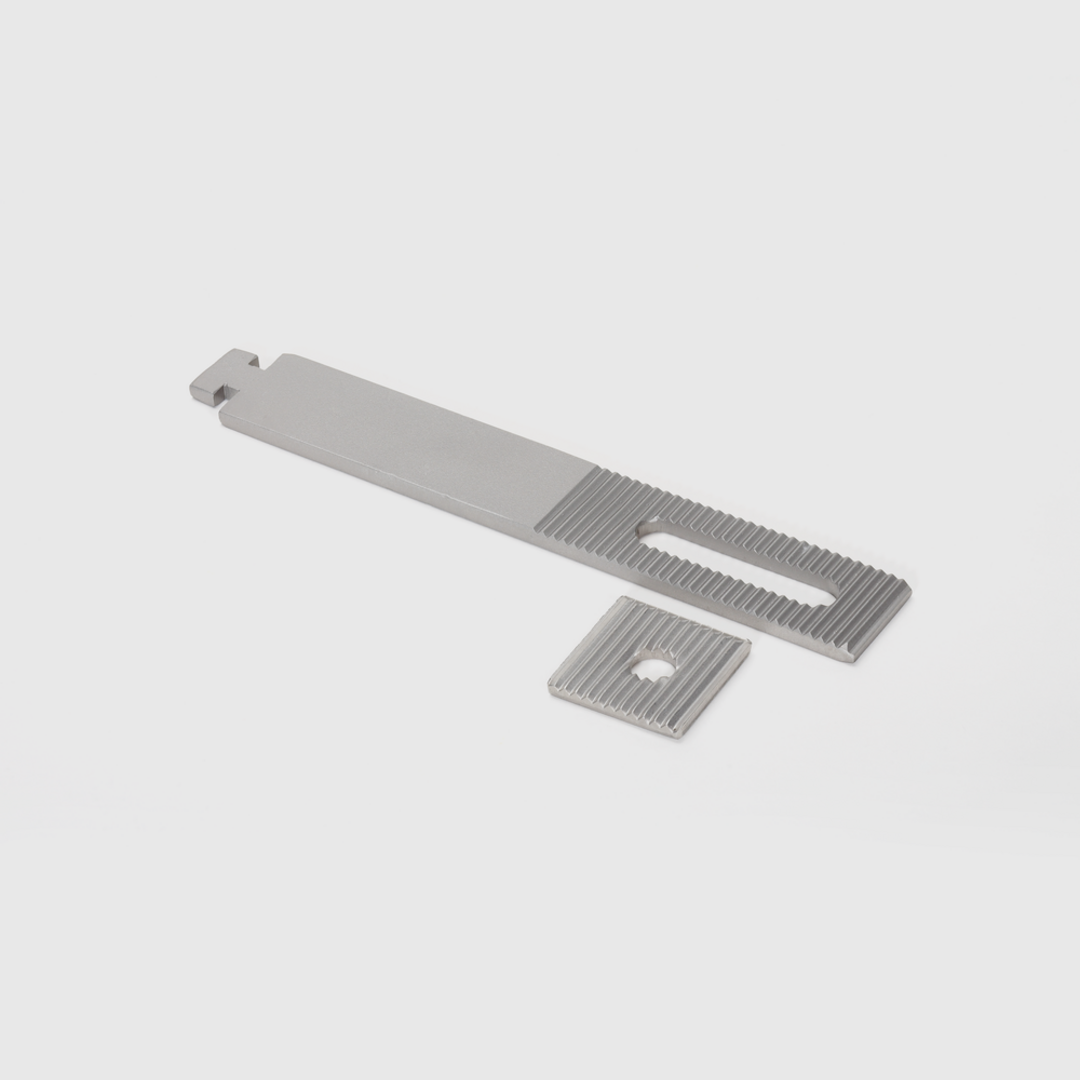

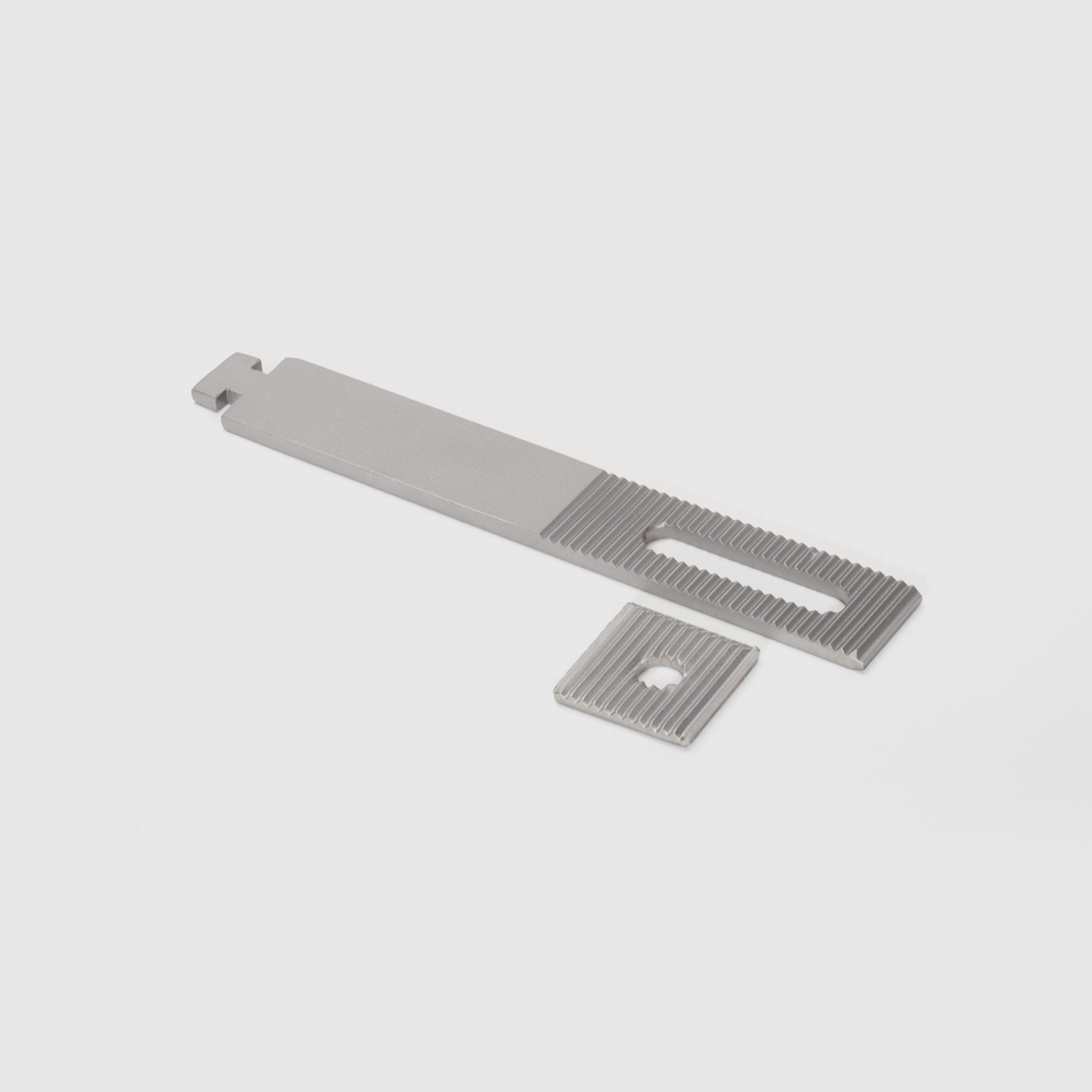

The toothed connection straps JVB-Z are designed for connections that are only subjected to tensile loads. They allow tolerances of ±20 mm to be compensated. They are available in various lengths and are made of galvanised steel or stainless steel. The series 12 connection strap JVB-Z is suitable for profiles of the anchor channels JTA K 28/15. Series 18, on the other hand, is designed for K 38/17 rail profiles.

Get in touchDownload datasheet

Variants

steel, galvanic zinc plated

Article

H

height

B

width

L

length

L1

length 1

L2

length 2

G

Weight per storage unit

  • JVB115Z12 GV
    JORDAHL Toothed Strap Type
    height
    5 mm
    width
    30 mm
    length
    125 mm
    length 1
    10 mm
    length 2
    115 mm
    Weight per storage unit
    0.148 kg
    More information
  • JVB115Z18 GV
    JORDAHL Toothed Strap Type
    height
    5 mm
    width
    30 mm
    length
    125 mm
    length 1
    12 mm
    length 2
    115 mm
    Weight per storage unit
    0.148 kg
    More information
  • JVB140Z12 GV
    JORDAHL Toothed Strap Type
    height
    5 mm
    width
    30 mm
    length
    150 mm
    length 1
    10 mm
    length 2
    140 mm
    Weight per storage unit
    0.177 kg
    More information
  • JVB140Z18 GV
    JORDAHL Toothed Strap Type
    height
    5 mm
    width
    30 mm
    length
    150 mm
    length 1
    12 mm
    length 2
    140 mm
    Weight per storage unit
    0.177 kg
    More information
  • JVB165Z12 GV
    JORDAHL Toothed Strap Type
    height
    5 mm
    width
    30 mm
    length
    175 mm
    length 1
    10 mm
    length 2
    165 mm
    Weight per storage unit
    0.206 kg
    More information
  • JVB165Z18 GV
    JORDAHL Toothed Strap Type
    height
    5 mm
    width
    30 mm
    length
    175 mm
    length 1
    12 mm
    length 2
    165 mm
    Weight per storage unit
    0.207 kg
    More information
  • JVB190Z12 GV
    JORDAHL Toothed Strap Type
    height
    5 mm
    width
    30 mm
    length
    200 mm
    length 1
    10 mm
    length 2
    190 mm
    Weight per storage unit
    0.236 kg
    More information
  • JVB190Z18 GV
    JORDAHL Toothed Strap Type
    height
    5 mm
    width
    30 mm
    length
    200 mm
    length 1
    12 mm
    length 2
    190 mm
    Weight per storage unit
    0.236 kg
    More information
  • JVB215Z12 GV
    JORDAHL Toothed Strap Type
    height
    5 mm
    width
    30 mm
    length
    225 mm
    length 1
    10 mm
    length 2
    215 mm
    Weight per storage unit
    0.265 kg
    More information
  • JVB215Z18 GV
    JORDAHL Toothed Strap Type JVB-215-Z/18
    height
    5 mm
    width
    30 mm
    length
    225 mm
    length 1
    12 mm
    length 2
    215 mm
    Weight per storage unit
    0.265 kg
    More information
  • JVB240Z12 GV
    JORDAHL Toothed Strap Type
    height
    5 mm
    width
    30 mm
    length
    250 mm
    length 1
    10 mm
    length 2
    240 mm
    Weight per storage unit
    0.294 kg
    More information
  • JVB240Z18 GV
    JORDAHL Toothed Strap Type
    height
    5 mm
    width
    30 mm
    length
    250 mm
    length 1
    12 mm
    length 2
    240 mm
    Weight per storage unit
    0.298 kg
    More information
  • JVB90Z12 GV
    JORDAHL Toothed Strap Type
    height
    5 mm
    width
    30 mm
    length
    100 mm
    length 1
    10 mm
    length 2
    90 mm
    Weight per storage unit
    0.138 kg
    More information

Stainless steel, acc. to AISI 316Ti (BS 320S31) / AISI 316L (BS 316S11)

Article

H

height

B

width

L

length

L1

length 1

L2

length 2

G

Weight per storage unit

  • JVB115Z12 A4
    JORDAHL Toothed Strap Type
    height
    5 mm
    width
    30 mm
    length
    125 mm
    length 1
    10 mm
    length 2
    115 mm
    Weight per storage unit
    0.148 kg
    More information
  • JVB115Z18 A4
    JORDAHL Toothed Strap Type
    height
    5 mm
    width
    30 mm
    length
    125 mm
    length 1
    12 mm
    length 2
    115 mm
    Weight per storage unit
    0.148 kg
    More information
  • JVB140Z12 A4
    JORDAHL Toothed Strap Type
    height
    5 mm
    width
    30 mm
    length
    150 mm
    length 1
    10 mm
    length 2
    140 mm
    Weight per storage unit
    0.159 kg
    More information
  • JVB140Z18 A4
    JORDAHL Toothed Strap Type
    height
    5 mm
    width
    30 mm
    length
    150 mm
    length 1
    12 mm
    length 2
    140 mm
    Weight per storage unit
    0.177 kg
    More information
  • JVB165Z12 A4
    JORDAHL Toothed Strap Type
    height
    5 mm
    width
    30 mm
    length
    175 mm
    length 1
    10 mm
    length 2
    165 mm
    Weight per storage unit
    0.206 kg
    More information
  • JVB165Z18 A4
    JORDAHL Toothed Strap Type
    height
    5 mm
    width
    30 mm
    length
    175 mm
    length 1
    12 mm
    length 2
    165 mm
    Weight per storage unit
    0.206 kg
    More information
  • JVB190Z12 A4
    JORDAHL Toothed Strap Type
    height
    5 mm
    width
    30 mm
    length
    200 mm
    length 1
    10 mm
    length 2
    190 mm
    Weight per storage unit
    0.236 kg
    More information
  • JVB190Z18 A4
    JORDAHL Toothed Strap Type
    height
    5 mm
    width
    30 mm
    length
    200 mm
    length 1
    12 mm
    length 2
    190 mm
    Weight per storage unit
    0.236 kg
    More information
  • JVB215Z12 A4
    JORDAHL Toothed Strap Type
    height
    5 mm
    width
    30 mm
    length
    225 mm
    length 1
    10 mm
    length 2
    215 mm
    Weight per storage unit
    0.265 kg
    More information
  • JVB215Z18 A4
    JORDAHL Toothed Strap Type
    height
    5 mm
    width
    30 mm
    length
    225 mm
    length 1
    12 mm
    length 2
    215 mm
    Weight per storage unit
    0.265 kg
    More information
  • JVB240Z12 A4
    JORDAHL Toothed Strap Type
    height
    5 mm
    width
    30 mm
    length
    250 mm
    length 1
    10 mm
    length 2
    240 mm
    Weight per storage unit
    0.294 kg
    More information
  • JVB240Z18 A4
    JORDAHL Toothed Strap Type
    height
    5 mm
    width
    30 mm
    length
    250 mm
    length 1
    12 mm
    length 2
    240 mm
    Weight per storage unit
    0.298 kg
    More information
  • JVB90Z12 A4
    JORDAHL Toothed Strap Type
    height
    5 mm
    width
    30 mm
    length
    100 mm
    length 1
    10 mm
    length 2
    90 mm
    Weight per storage unit
    0.038 kg
    More information
