JMA-Q Series 12

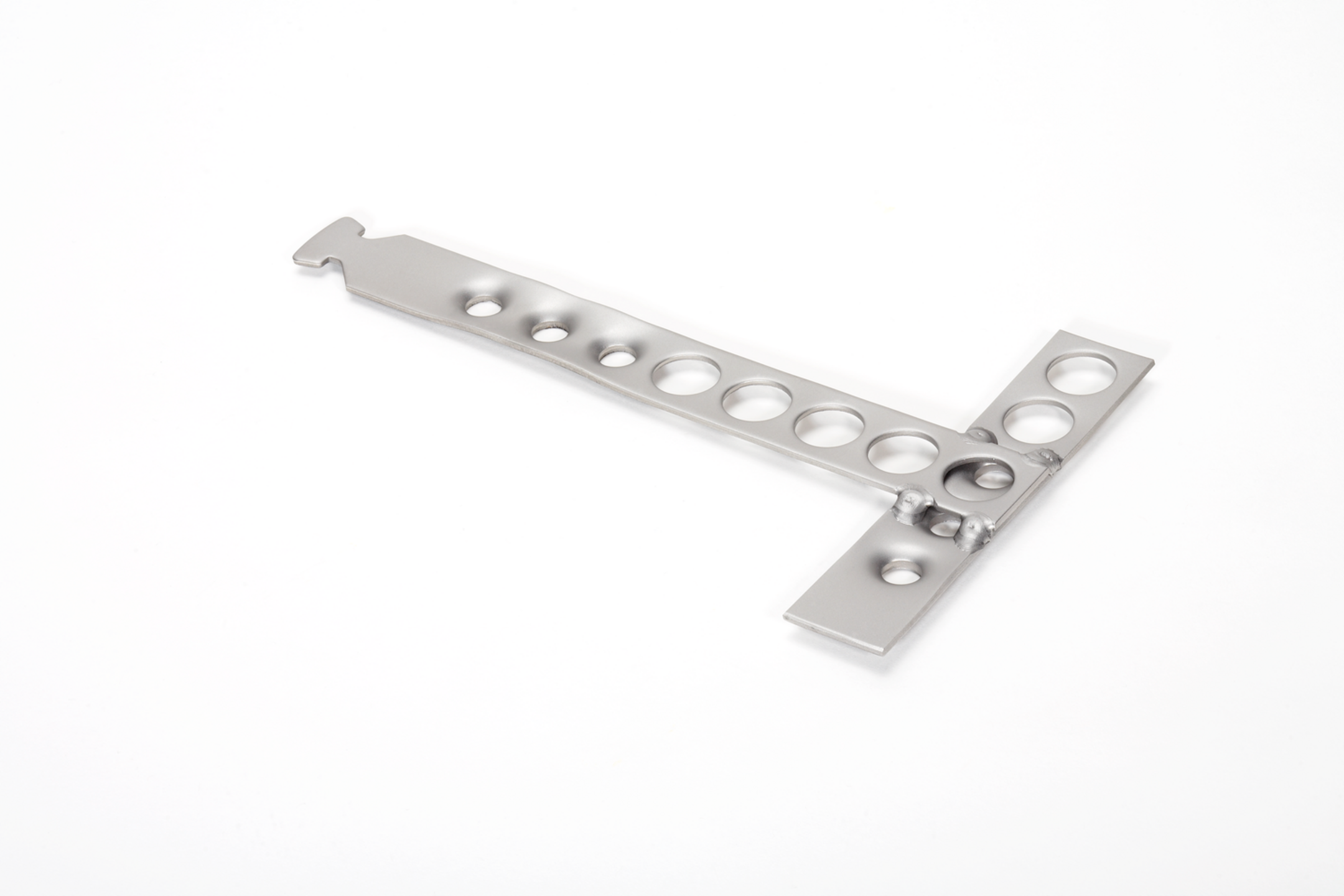

Brick tie anchor for fastening masonry to channels

The brick tie anchor JMA-Q in T-shape of the series 12 is made of stainless steel or hot-dip galvanised steel and is suitable for the profiles Kt 25/15-D and K 28/15.

Get in touch Download datasheet

Variants

Article

H

B

L

L1

L2

W

  • MA120120Q12 A4
    JORDAHL brick tie anchor JMA-Q
    2 mm
    120 mm
    145 mm
    20 mm
    120 mm
    0.123 kg
    More information
  • MA120120Q12 FV
    JORDAHL brick tie anchor JMA-Q
    2 mm
    120 mm
    145 mm
    20 mm
    120 mm
    0.174 kg
    More information
  • MA120180Q12 A4
    JORDAHL brick tie anchor JMA-Q
    2 mm
    180 mm
    145 mm
    20 mm
    120 mm
    0.143 kg
    More information
  • MA120180Q12 FV
    JORDAHL brick tie anchor JMA-Q
    2 mm
    180 mm
    145 mm
    20 mm
    120 mm
    0.191 kg
    More information
  • MA180120Q12 FV
    JORDAHL brick tie anchor JMA-Q
    2 mm
    120 mm
    205 mm
    20 mm
    180 mm
    0.191 kg
    More information
  • MA180180Q12 A4
    JORDAHL brick tie anchor JMA-Q
    2 mm
    180 mm
    205 mm
    20 mm
    180 mm
    0.164 kg
    More information
  • MA180180Q12 FV
    JORDAHL brick tie anchor JMA-Q
    2 mm
    180 mm
    205 mm
    20 mm
    180 mm
    0.208 kg
    More information
  • MA180300Q12 A4
    JORDAHL brick tie anchor JMA-Q
    2 mm
    300 mm
    205 mm
    20 mm
    180 mm
    0.205 kg
    More information
  • MA180300Q12 FV
    JORDAHL brick tie anchor JMA-Q
    2 mm
    300 mm
    205 mm
    20 mm
    180 mm
    0.000 kg
    More information
  • MA300120Q12 A4
    JORDAHL brick tie anchor JMA-Q
    3 mm
    120 mm
    325 mm
    20 mm
    300 mm
    0.183 kg
    More information
  • MA300120Q12 FV
    JORDAHL brick tie anchor JMA-Q
    3 mm
    120 mm
    325 mm
    20 mm
    300 mm
    0.250 kg
    More information
  • MA300180Q12 A4
    JORDAHL brick tie anchor JMA-Q
    3 mm
    180 mm
    325 mm
    20 mm
    300 mm
    0.205 kg
    More information
  • MA300180Q12 FV
    JORDAHL brick tie anchor JMA-Q
    3 mm
    180 mm
    325 mm
    20 mm
    300 mm
    0.268 kg
    More information
  • MA300300Q12 A4
    JORDAHL brick tie anchor JMA-Q
    3 mm
    300 mm
    325 mm
    20 mm
    300 mm
    0.247 kg
    More information
  • MA300300Q12 FV
    JORDAHL brick tie anchor JMA-Q
    3 mm
    300 mm
    325 mm
    20 mm
    300 mm
    0.228 kg
    More information
  • MA85120Q12 A4
    JORDAHL brick tie anchor JMA-Q
    2 mm
    120 mm
    105 mm
    20 mm
    85 mm
    0.109 kg
    More information
  • MA85120Q12 FV
    JORDAHL brick tie anchor JMA-Q
    2 mm
    120 mm
    105 mm
    20 mm
    85 mm
    0.152 kg
    More information
  • MA85180Q12 A4
    JORDAHL brick tie anchor JMA-Q
    2 mm
    180 mm
    105 mm
    20 mm
    85 mm
    0.130 kg
    More information
  • MA85180Q12 FV
    JORDAHL brick tie anchor JMA-Q
    2 mm
    180 mm
    105 mm
    20 mm
    85 mm
    0.169 kg
    More information
  • MA85300Q12 A4
    JORDAHL brick tie anchor JMA-Q
    2 mm
    300 mm
    105 mm
    20 mm
    85 mm
    0.171 kg
    More information
  • MA85300Q12 FV
    JORDAHL brick tie anchor JMA-Q
    2 mm
    300 mm
    105 mm
    20 mm
    85 mm
    0.229 kg
    More information
