JVB-ZS

Connection straps

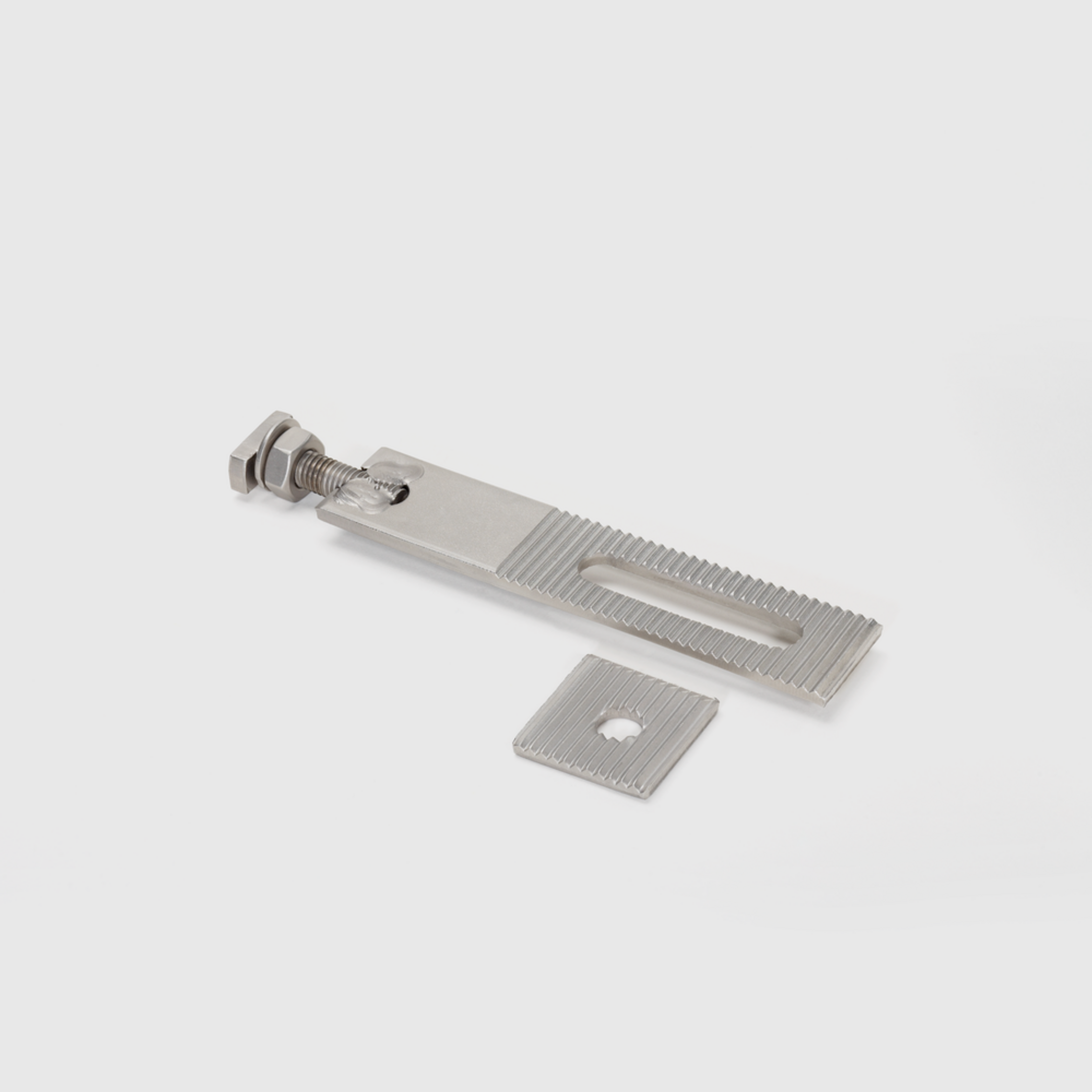

The toothed connection straps JVB-ZS with welded-on bolts are suitable for transmitting tensile and compressive forces. They are available in various lengths and made of either galvanised steel or stainless steel. The series 12 connection strap JVB-ZS is suitable for profiles of the anchor channels JTA K 28/15. Series 18 is suitable for K 38/17 rail profiles.

Get in touchDownload datasheet

Variants

steel, galvanic zinc plated

Article

H

height

B

width

L

length

L1

length 1

L2

length 2

G

Weight per storage unit

  • JVB115ZS12 GV
    JORDAHL Toothed Strap Type
    height
    5 mm
    width
    30 mm
    length
    125 mm
    length 1
    10 mm
    length 2
    115 mm
    Weight per storage unit
    0.159 kg
    More information
  • JVB140ZS12 GV
    JORDAHL Toothed Strap Type JVB-140-ZS/12
    height
    5 mm
    width
    30 mm
    length
    147 mm
    length 1
    10 mm
    length 2
    140 mm
    Weight per storage unit
    0.188 kg
    More information
  • JVB140ZS18 GV
    JORDAHL Toothed Strap Type
    height
    5 mm
    width
    30 mm
    length
    147 mm
    length 1
    12 mm
    length 2
    140 mm
    Weight per storage unit
    0.201 kg
    More information
  • JVB165ZS12 GV
    JORDAHL Toothed Strap Type
    height
    5 mm
    width
    30 mm
    length
    172 mm
    length 1
    10 mm
    length 2
    165 mm
    Weight per storage unit
    0.217 kg
    More information
  • JVB165ZS18 GV
    JORDAHL Toothed Strap Type
    height
    5 mm
    width
    30 mm
    length
    172 mm
    length 1
    12 mm
    length 2
    165 mm
    Weight per storage unit
    0.230 kg
    More information
  • JVB190ZS12 GV
    JORDAHL Toothed Strap Type JVB-190-ZS/12
    height
    5 mm
    width
    30 mm
    length
    197 mm
    length 1
    10 mm
    length 2
    190 mm
    Weight per storage unit
    0.246 kg
    More information
  • JVB190ZS18 GV
    JORDAHL Toothed Strap Type
    height
    5 mm
    width
    30 mm
    length
    197 mm
    length 1
    12 mm
    length 2
    190 mm
    Weight per storage unit
    0.260 kg
    More information
  • JVB215ZS12 GV
    JORDAHL Toothed Strap Type
    height
    5 mm
    width
    30 mm
    length
    122 mm
    length 1
    10 mm
    length 2
    215 mm
    Weight per storage unit
    0.276 kg
    More information
  • JVB215ZS18 GV
    JORDAHL Toothed Strap Type
    height
    5 mm
    width
    30 mm
    length
    122 mm
    length 1
    12 mm
    length 2
    215 mm
    Weight per storage unit
    0.289 kg
    More information

Stainless steel, acc. to AISI 316Ti (BS 320S31) / AISI 316L (BS 316S11)

Article

H

height

B

width

L

length

L1

length 1

L2

length 2

G

Weight per storage unit

  • JVB115ZS12 A4
    JORDAHL Toothed Strap Type
    height
    5 mm
    width
    30 mm
    length
    125 mm
    length 1
    10 mm
    length 2
    115 mm
    Weight per storage unit
    0.159 kg
    More information
  • JVB140ZS12 A4
    JORDAHL Toothed Strap Type
    height
    5 mm
    width
    30 mm
    length
    147 mm
    length 1
    10 mm
    length 2
    140 mm
    Weight per storage unit
    0.188 kg
    More information
  • JVB140ZS18 A4
    JORDAHL Toothed Strap Type
    height
    5 mm
    width
    30 mm
    length
    147 mm
    length 1
    12 mm
    length 2
    140 mm
    Weight per storage unit
    0.201 kg
    More information
  • JVB165ZS12 A4
    JORDAHL Toothed Strap Type
    height
    5 mm
    width
    30 mm
    length
    172 mm
    length 1
    10 mm
    length 2
    165 mm
    Weight per storage unit
    0.217 kg
    More information
  • JVB165ZS18 A4
    JORDAHL Toothed Strap Type
    height
    5 mm
    width
    30 mm
    length
    172 mm
    length 1
    12 mm
    length 2
    165 mm
    Weight per storage unit
    0.230 kg
    More information
  • JVB190ZS12 A4
    JORDAHL Toothed Strap Type
    height
    5 mm
    width
    30 mm
    length
    197 mm
    length 1
    10 mm
    length 2
    190 mm
    Weight per storage unit
    0.246 kg
    More information
  • JVB190ZS18 A4
    JORDAHL Toothed Strap Type
    height
    5 mm
    width
    30 mm
    length
    197 mm
    length 1
    12 mm
    length 2
    190 mm
    Weight per storage unit
    0.260 kg
    More information
  • JVB215ZS12 A4
    JORDAHL Toothed Strap Type
    height
    5 mm
    width
    30 mm
    length
    122 mm
    length 1
    10 mm
    length 2
    215 mm
    Weight per storage unit
    0.276 kg
    More information
  • JVB215ZS18 A4
    JORDAHL Toothed Strap Type
    height
    5 mm
    width
    30 mm
    length
    122 mm
    length 1
    12 mm
    length 2
    215 mm
    Weight per storage unit
    0.289 kg
    More information
