JD M10

Tee-head bolt

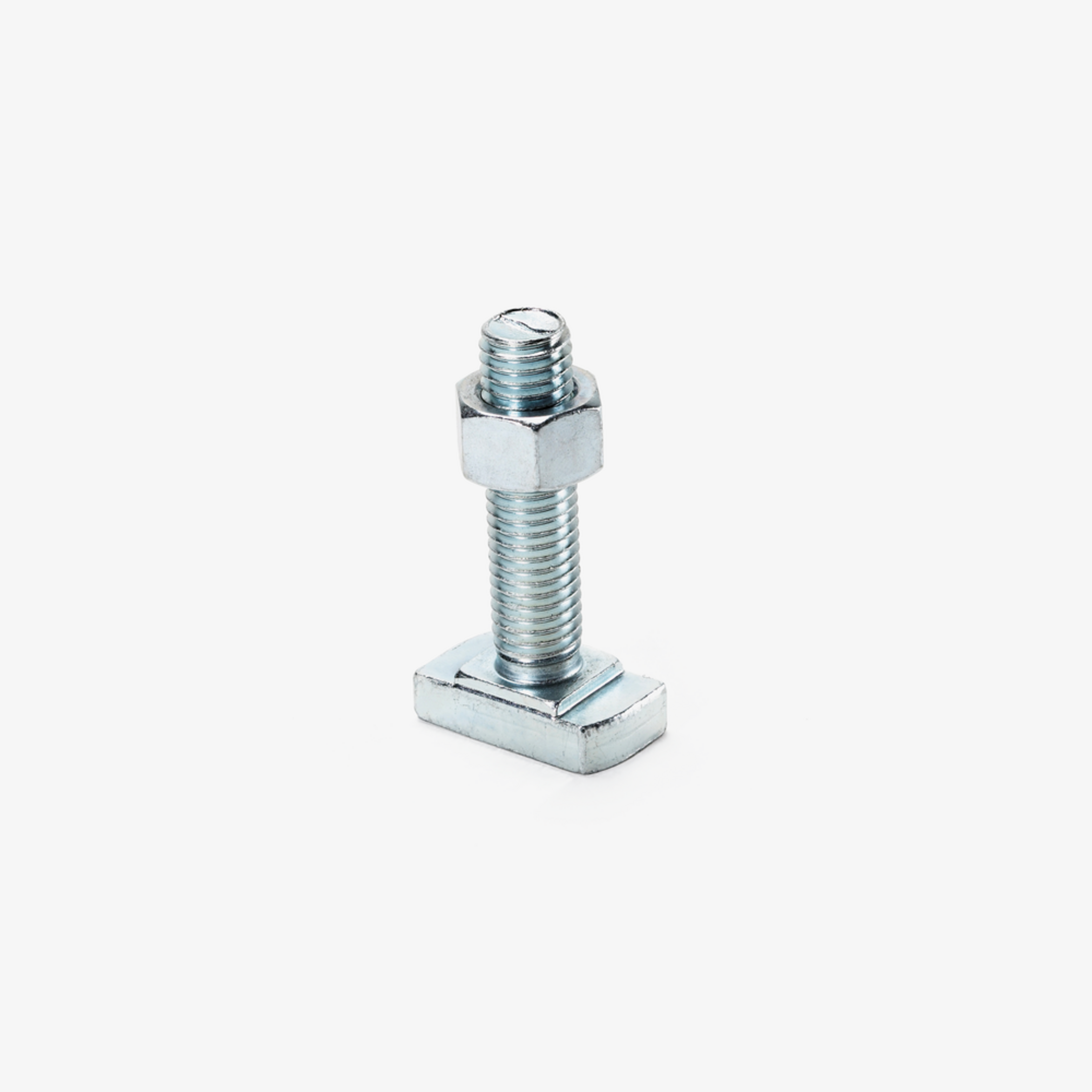

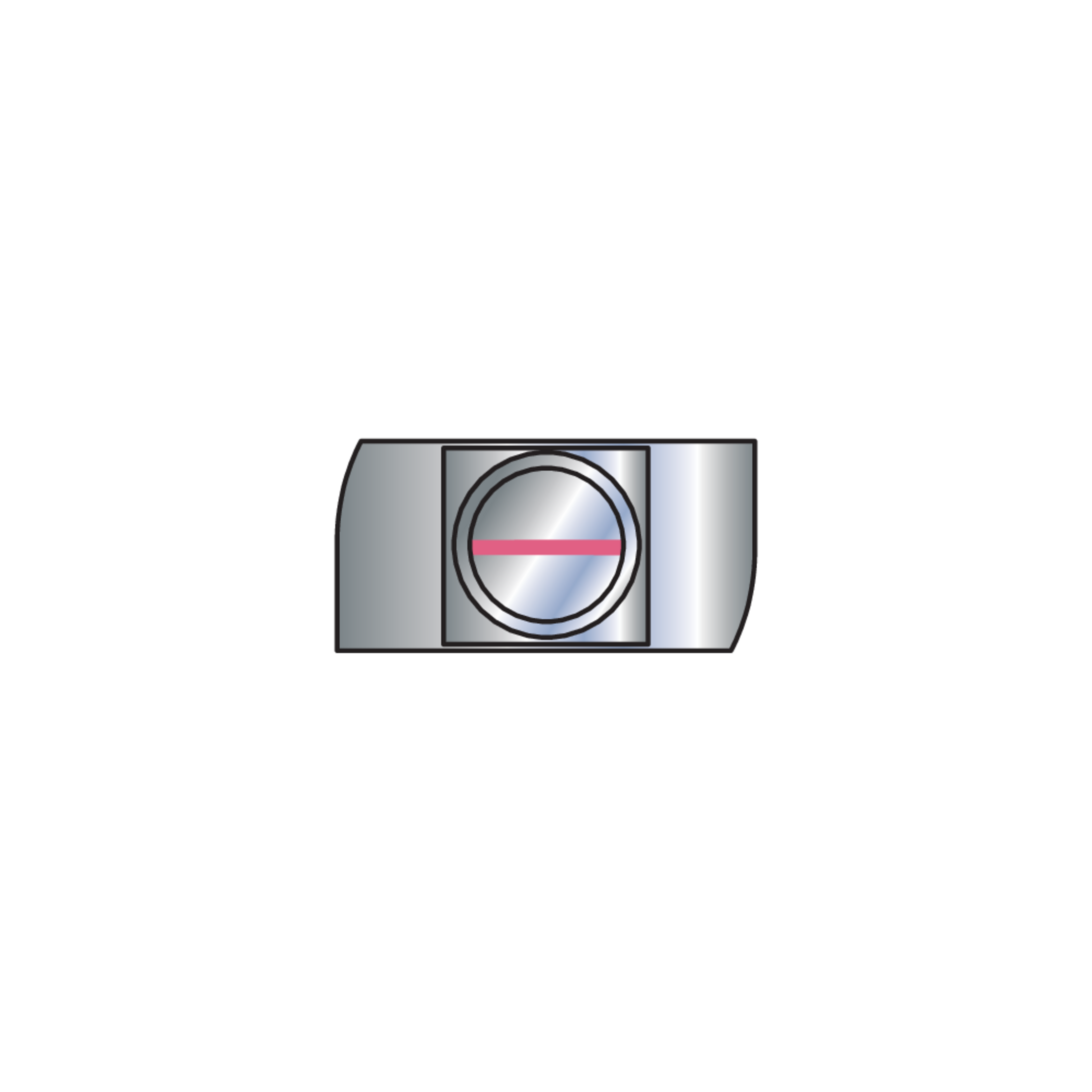

JD M10 have European Technical Assessment ETA-09/0338. They are used to attach companion structures to K 28/28, K 28/15, K 28/12 and W 29/20 anchor channels and mounting channels. They have a hammer-shaped head and a notch at the end of the shaft. The bolts are made of hot-dip galvanised steel, galvanised steel or stainless steel and are available in various lengths. The JD M10 are supplied with the nuts.

European Technical Assessment: ETA-09/0338
Get in touchDownload datasheet

Variants

Steel, hot-dip galvanised

Article

L

length

Strength class

Fire protection

MG

thread size (metric)

G

Weight per storage unit

  • JD1030 FV
    JORDAHL bolt JD M10x30
    length
    30 mm
    Strength class
    4.6
    Fire protection
    Yes (1)
    thread size (metric)
    M10
    Weight per storage unit
    0.038 kg
    More information
  • JD1040 FV
    JORDAHL bolt JD M10x40
    length
    40 mm
    Strength class
    4.6
    Fire protection
    Yes (1)
    thread size (metric)
    M10
    Weight per storage unit
    0.043 kg
    More information
  • JD1060 FV
    JORDAHL bolt JD M10x60
    length
    60 mm
    Strength class
    4.6
    Fire protection
    Yes (1)
    thread size (metric)
    M10
    Weight per storage unit
    0.053 kg
    More information
  • JD1080 FV
    JORDAHL bolt JD M10x80
    length
    80 mm
    Strength class
    4.6
    Fire protection
    Yes (1)
    thread size (metric)
    M10
    Weight per storage unit
    0.063 kg
    More information
  • JD10100 FV
    JORDAHL bolt JD M10x100
    length
    100 mm
    Strength class
    4.6
    Fire protection
    Yes (1)
    thread size (metric)
    M10
    Weight per storage unit
    0.073 kg
    More information

steel, galvanic zinc plated

Article

L

length

Strength class

Fire protection

MG

thread size (metric)

G

Weight per storage unit

  • JD1015 GV
    JORDAHL bolt JD M10x15
    length
    15 mm
    Strength class
    4.6
    Fire protection
    Yes (1)
    thread size (metric)
    M10
    Weight per storage unit
    0.028 kg
    More information
  • JD1020 GV
    JORDAHL bolt JD M10x20
    length
    20 mm
    Strength class
    4.6
    Fire protection
    Yes (1)
    thread size (metric)
    M10
    Weight per storage unit
    0.030 kg
    More information
  • JD1025 GV
    JORDAHL bolt JD M10x25
    length
    25 mm
    Strength class
    4.6
    Fire protection
    Yes (1)
    thread size (metric)
    M10
    Weight per storage unit
    0.033 kg
    More information
  • JD1030 GV
    JORDAHL bolt JD M10x30
    length
    30 mm
    Strength class
    4.6
    Fire protection
    Yes (1)
    thread size (metric)
    M10
    Weight per storage unit
    0.035 kg
    More information
  • JD1040 GV
    JORDAHL bolt JD M10x40
    length
    40 mm
    Strength class
    4.6
    Fire protection
    Yes (1)
    thread size (metric)
    M10
    Weight per storage unit
    0.040 kg
    More information
  • JD1050 GV
    JORDAHL bolt JD M10x50
    length
    50 mm
    Strength class
    4.6
    Fire protection
    Yes (1)
    thread size (metric)
    M10
    Weight per storage unit
    0.045 kg
    More information
  • JD1060 GV
    JORDAHL bolt JD M10x60
    length
    60 mm
    Strength class
    4.6
    Fire protection
    Yes (1)
    thread size (metric)
    M10
    Weight per storage unit
    0.050 kg
    More information
  • JD1080 GV
    JORDAHL bolt JD M10x80
    length
    80 mm
    Strength class
    4.6
    Fire protection
    Yes (1)
    thread size (metric)
    M10
    Weight per storage unit
    0.060 kg
    More information
  • JD10100 GV
    JORDAHL bolt JD M10x100
    length
    100 mm
    Strength class
    4.6
    Fire protection
    Yes (1)
    thread size (metric)
    M10
    Weight per storage unit
    0.070 kg
    More information
  • JD10125 GV
    JORDAHL bolt JD M10x125
    length
    125 mm
    Strength class
    4.6
    Fire protection
    Yes (1)
    thread size (metric)
    M10
    Weight per storage unit
    0.083 kg
    More information
  • JD10150 GV
    JORDAHL bolt JD M10x150
    length
    150 mm
    Strength class
    4.6
    Fire protection
    Yes (1)
    thread size (metric)
    M10
    Weight per storage unit
    0.095 kg
    More information

Stainless steel, acc. to AISI 316Ti (BS 320S31) / AISI 316L (BS 316S11)

Article

L

length

Fire protection

MG

thread size (metric)

G

Weight per storage unit

  • JD1020 A4
    JORDAHL bolt JD M10x20
    length
    20 mm
    Fire protection
    Yes (1)
    thread size (metric)
    M10
    Weight per storage unit
    0.031 kg
    More information
  • JD1025 A4
    JORDAHL bolt JD M10x25
    length
    25 mm
    Fire protection
    Yes (1)
    thread size (metric)
    M10
    Weight per storage unit
    0.033 kg
    More information
  • JD1030 A4
    JORDAHL bolt JD M10x30
    length
    30 mm
    Fire protection
    Yes (1)
    thread size (metric)
    M10
    Weight per storage unit
    0.036 kg
    More information
  • JD1040 A4
    JORDAHL bolt JD M10x40
    length
    40 mm
    Fire protection
    Yes (1)
    thread size (metric)
    M10
    Weight per storage unit
    0.041 kg
    More information
  • JD1050 A4
    JORDAHL bolt JD M10x50
    length
    50 mm
    Fire protection
    Yes (1)
    thread size (metric)
    M10
    Weight per storage unit
    0.046 kg
    More information
  • JD1060 A4
    JORDAHL bolt JD M10x60
    length
    60 mm
    Fire protection
    Yes (1)
    thread size (metric)
    M10
    Weight per storage unit
    0.051 kg
    More information
  • JD1080 A4
    JORDAHL bolt JD M10x80
    length
    80 mm
    Fire protection
    Yes (1)
    thread size (metric)
    M10
    Weight per storage unit
    0.061 kg
    More information
  • JD10100 A4
    JORDAHL bolt JD M10x100
    length
    100 mm
    Fire protection
    Yes (1)
    thread size (metric)
    M10
    Weight per storage unit
    0.071 kg
    More information

Details

  • European Technical Assessment: ETA-09/0338
  • Approved throughout Europe by ETA-09/0338
