WPLA 120

Wide-span cable ladder tee, height = 120 mm

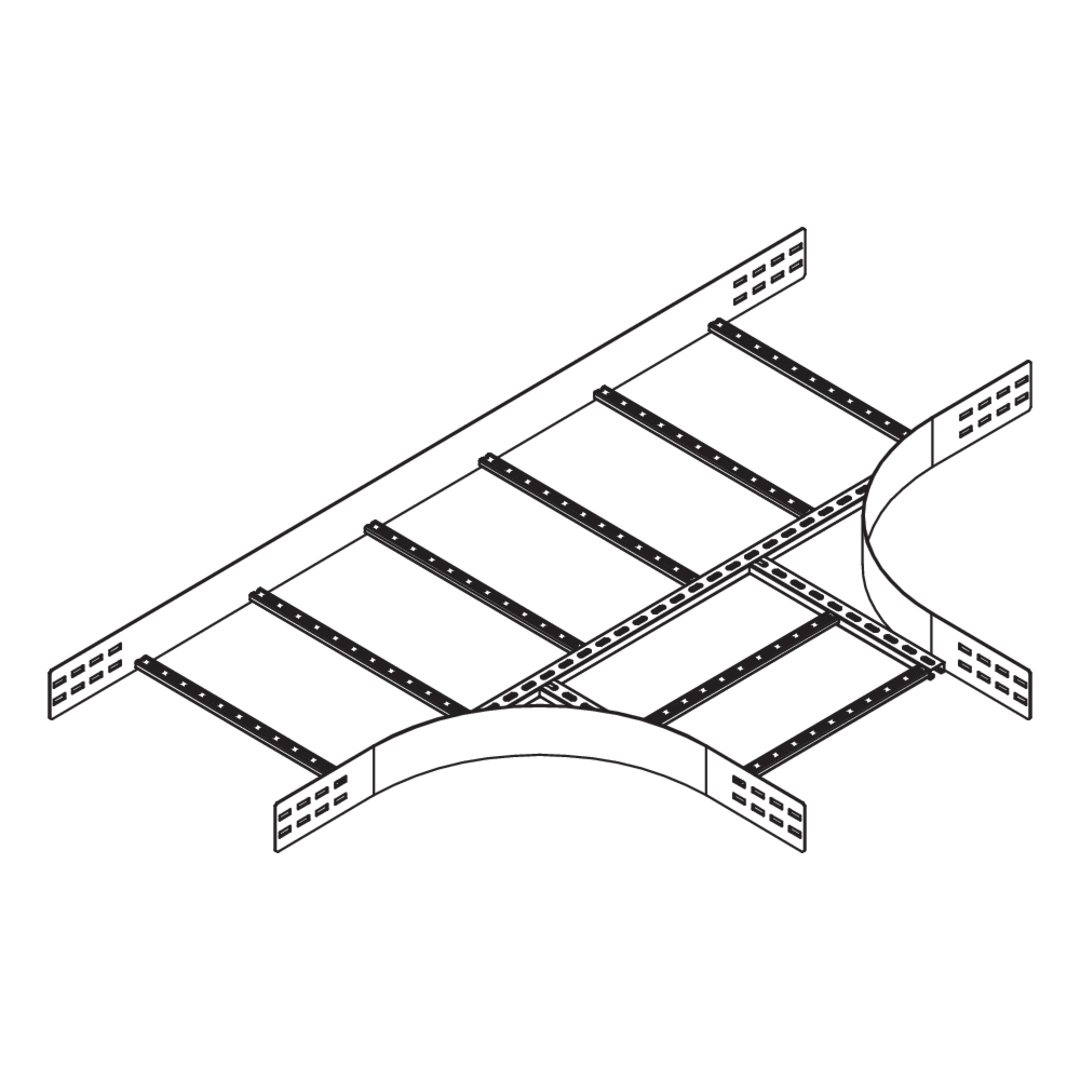

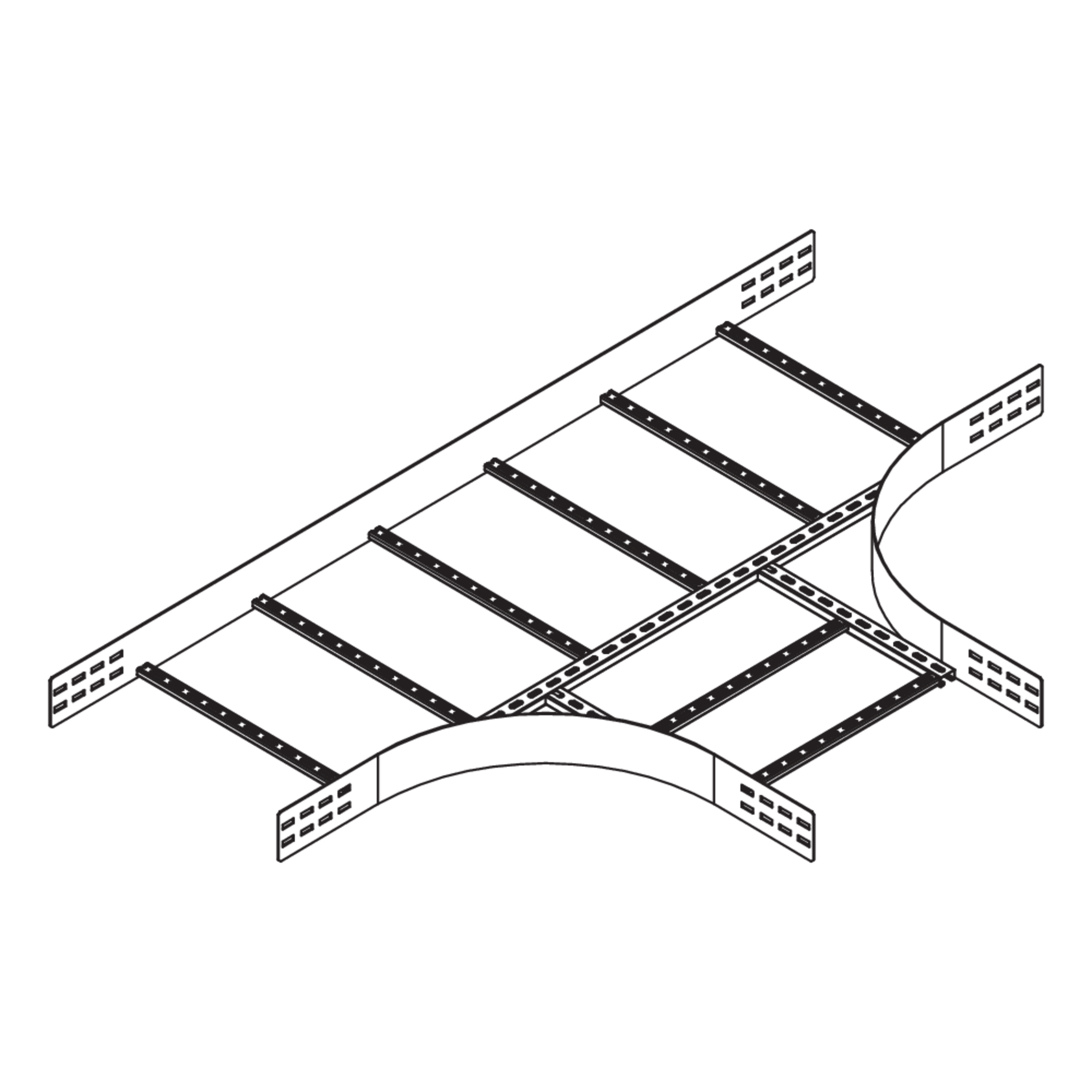

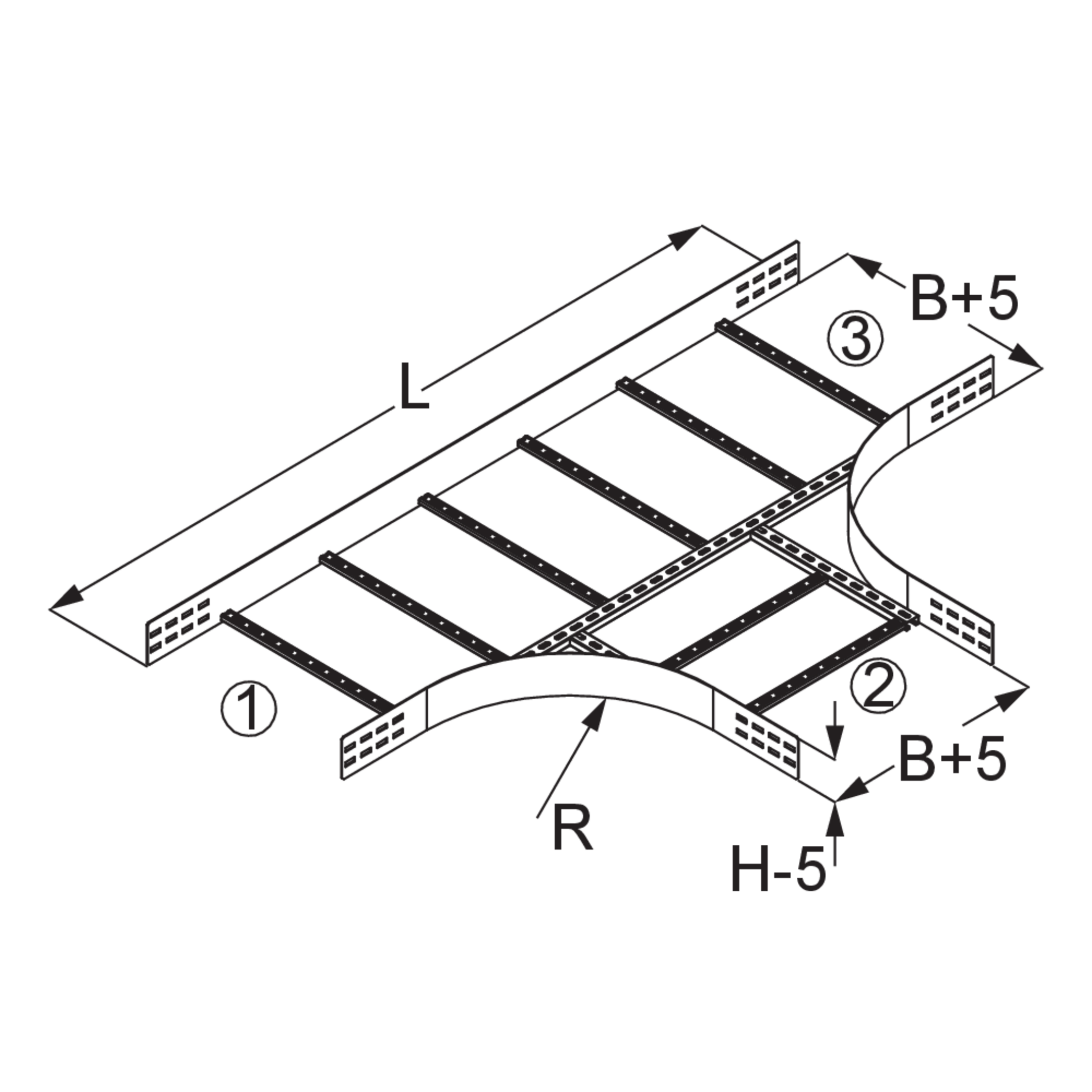

The T-shaped wide-span cable ladder branch WPLA 120 with integrated connectors allows the direction of the cable routing to be changed in the form of a branch. It is suitable for wide-span cable ladders with rails 120 mm high and is 200 to 600 mm wide. The branch is inserted between two wide-span cable ladders. The connecting rack can then be pushed in. We provide components in various materials and surface finishes to ensure that various corrosion protection requirements for different areas of application are met. Special designs with different connection widths ①, ②, ③ or different radii R can be requested.

Get in touchDownload datasheet

Variants

Steel, hot-dip galvanised

Article

H

height

B

width

L

length

R

radius

G

Weight per storage unit

Included accessories

  • WPLA 120-20F
    Wide-span cable ladder branch-piece WPLA
    height
    120 mm
    width
    200 mm
    length
    1635 mm
    radius
    450 mm
    Weight per storage unit
    15.330 kg
    Included accessories
    More information
  • WPLA 120-30F
    Wide-span cable ladder branch-piece WPLA
    height
    120 mm
    width
    300 mm
    length
    1735 mm
    radius
    450 mm
    Weight per storage unit
    16.370 kg
    Included accessories
    More information
  • WPLA 120-40F
    Wide-span cable ladder branch-piece WPLA
    height
    120 mm
    width
    400 mm
    length
    1835 mm
    radius
    450 mm
    Weight per storage unit
    17.290 kg
    Included accessories
    More information
  • WPLA 120-50F
    Wide-span cable ladder branch-piece WPLA
    height
    120 mm
    width
    500 mm
    length
    1935 mm
    radius
    450 mm
    Weight per storage unit
    18.210 kg
    Included accessories
    More information
  • WPLA 120-60F
    Wide-span cable ladder branch-piece WPLA
    height
    120 mm
    width
    600 mm
    length
    2035 mm
    radius
    450 mm
    Weight per storage unit
    19.540 kg
    Included accessories
    More information

Details

  • Creates horizontal changes of the cable routing direction in the form of a branch
  • Cable-friendly guide
