Wide-span cable ladder add-on corner

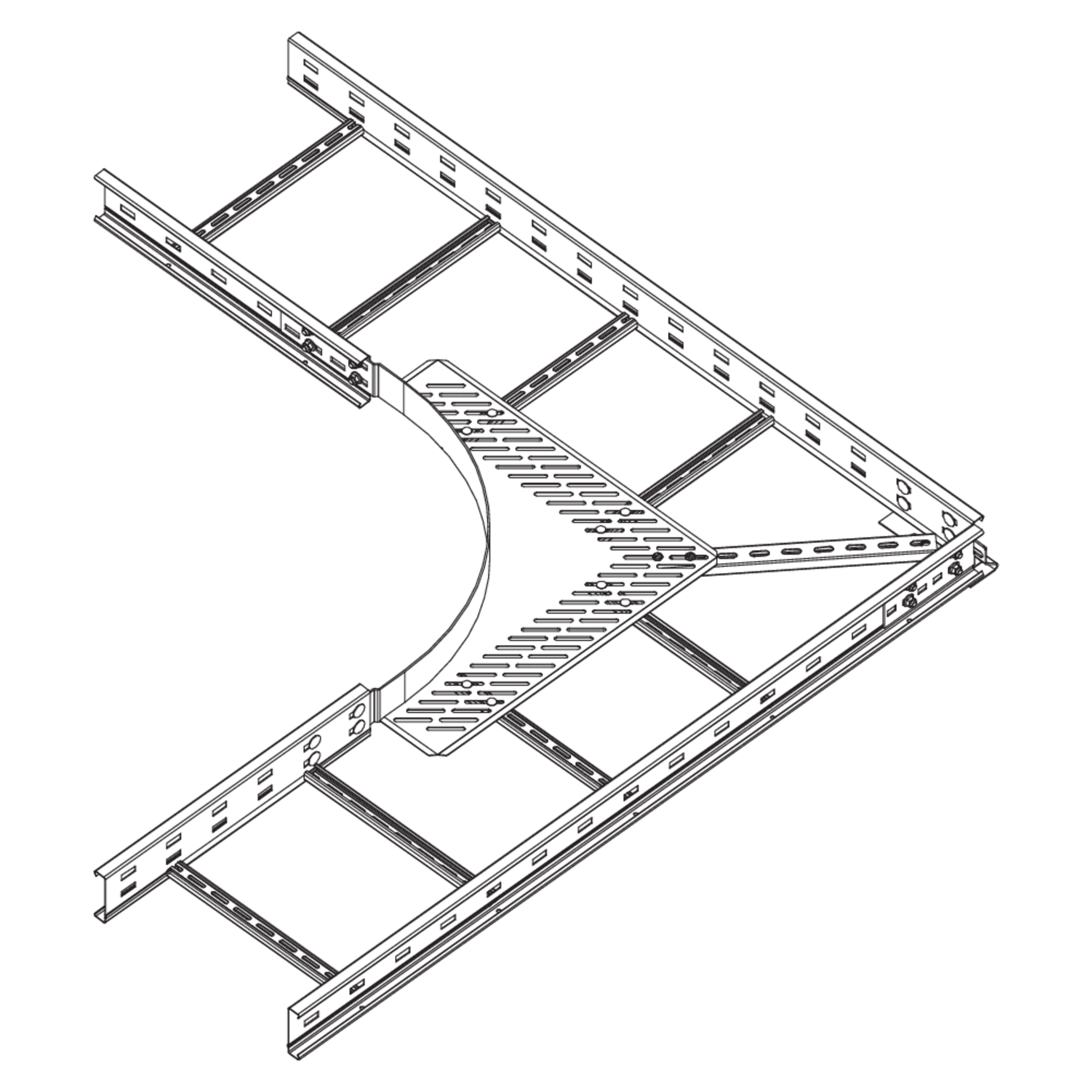

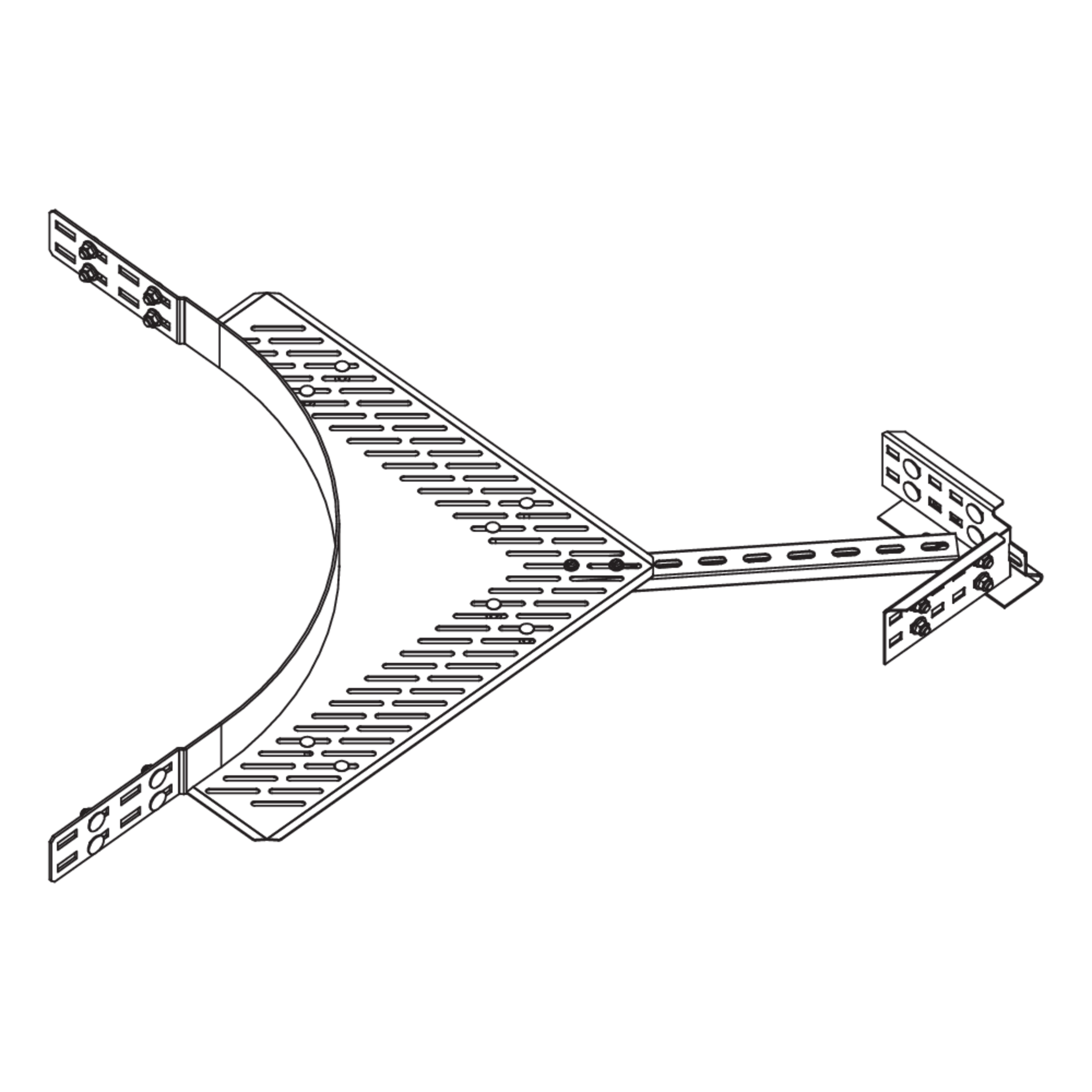

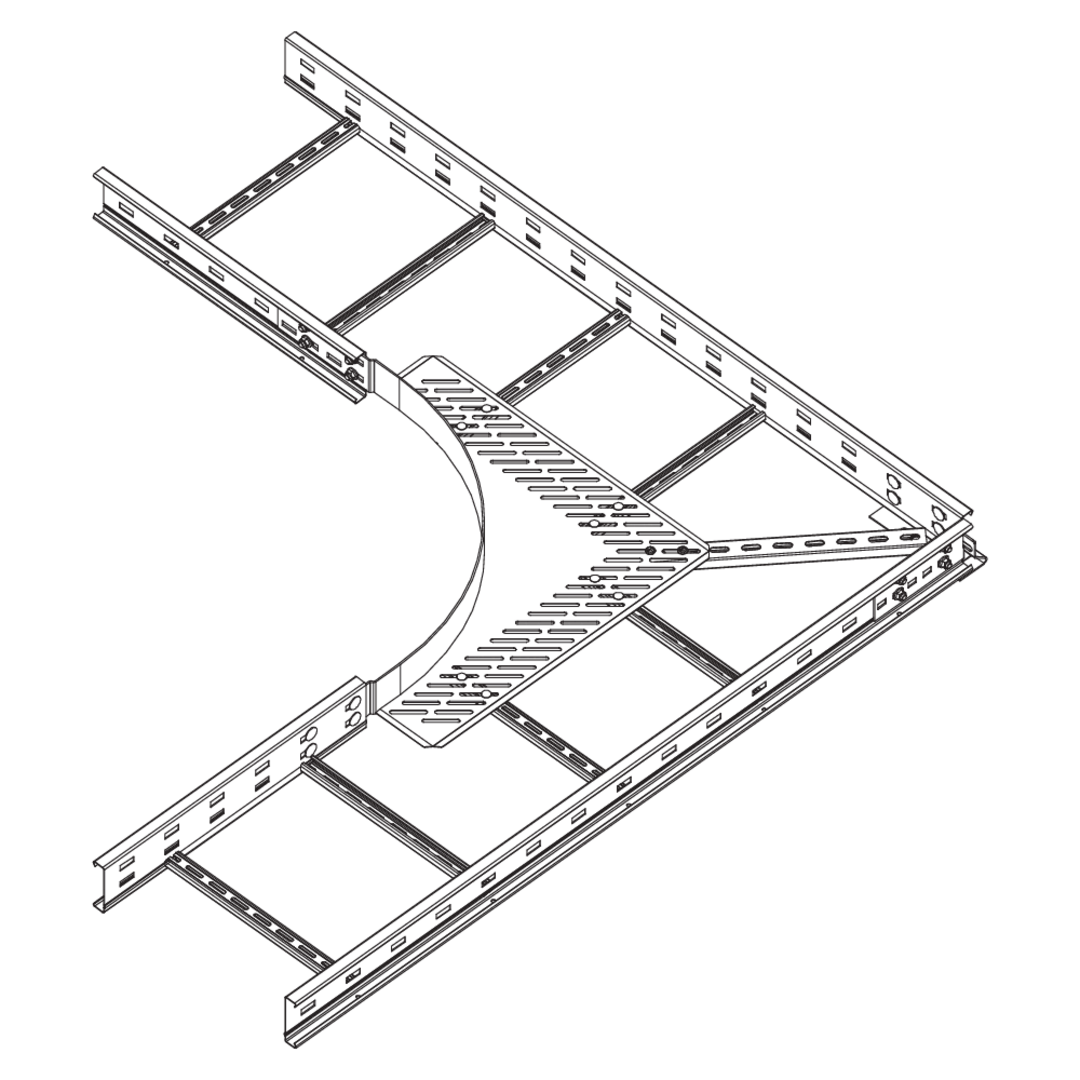

The wide-span cable ladder attachment corner WPLEAB 100 allows the direction of cable routing to be changed horizontally by 90° and is suitable for wide-span cable ladders with side rails 100 mm high. As specified in the installation instructions, the WPEA attachment corner element is first mounted on the previously cut cable ladder and then the connecting tray is bolted to the corner attachment and corner connector. Finally, the additional rung is added towards the corner. We provide components in various materials and surface finishes to ensure that various corrosion protection requirements for different areas of application are met.

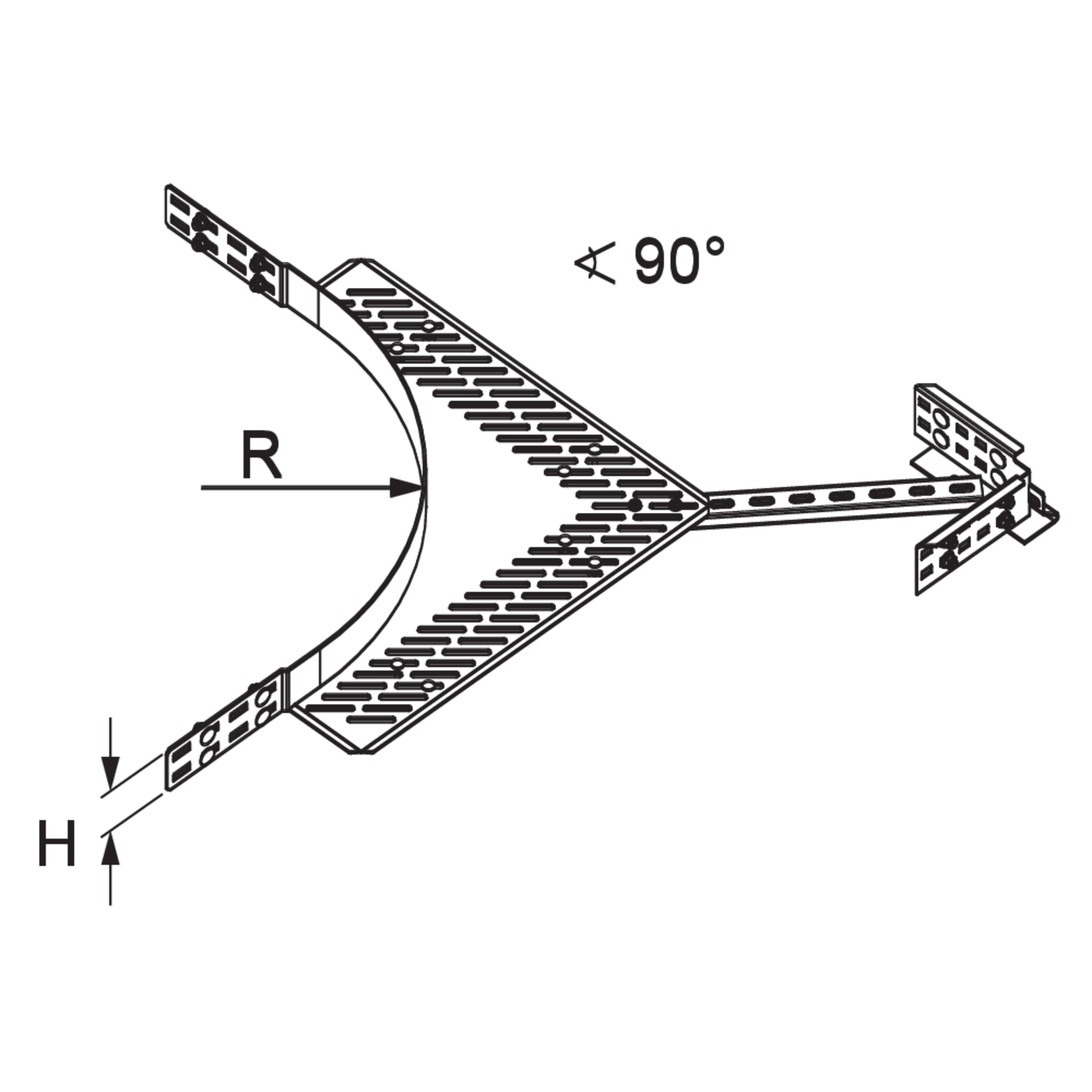

H
height
R
radius
W
Angle
G
Weight per storage unit
de
en
Valid from February 1st, 2025, updated version from 31/03/2025.
