WLB 200

Wide-span cable ladder bend, height = 200 mm

The wide-span floor duct bends WLB 200 with integrated connectors allow the direction of cable routing to be changed horizontally by 90°. They are suitable for WL 200 wide-span cable conductors and are from 200 to 600 mm wide. The bend is pushed into the wide-span cable ladder and then bolted in place. The connecting rack is then assembled to the bend. They are made of hot-dip galvanised steel.

Get in touchDownload datasheet

Variants

Steel, hot-dip galvanised

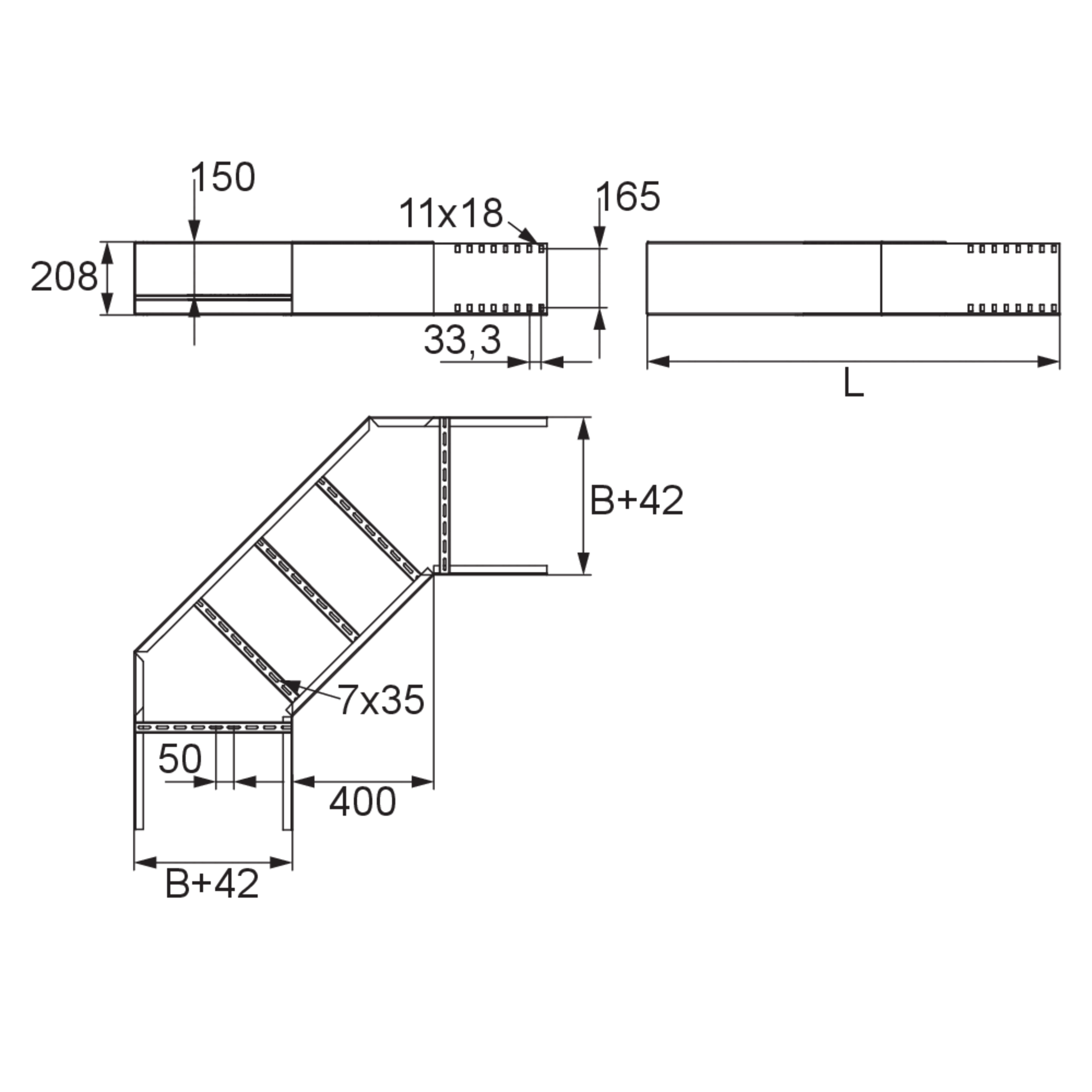

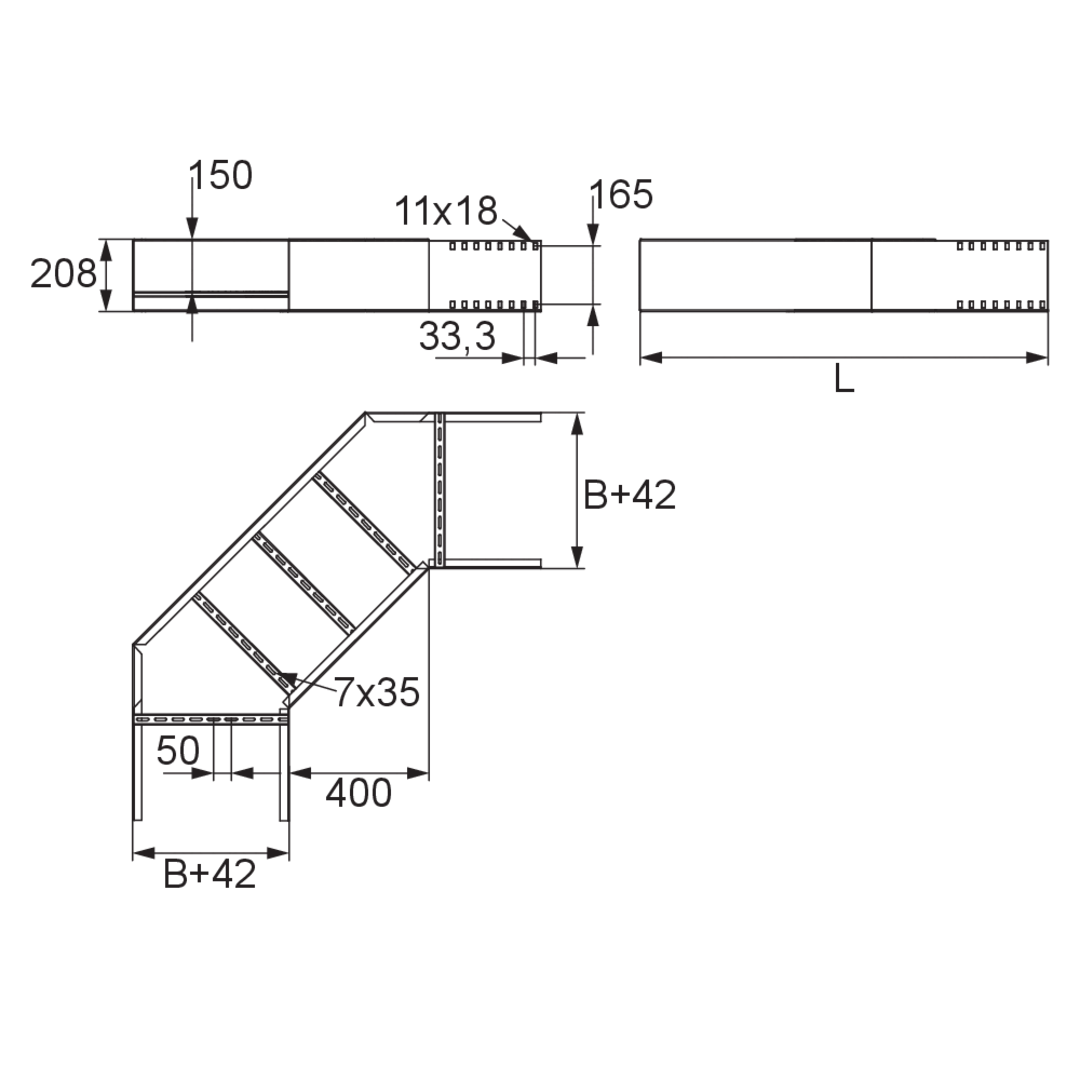

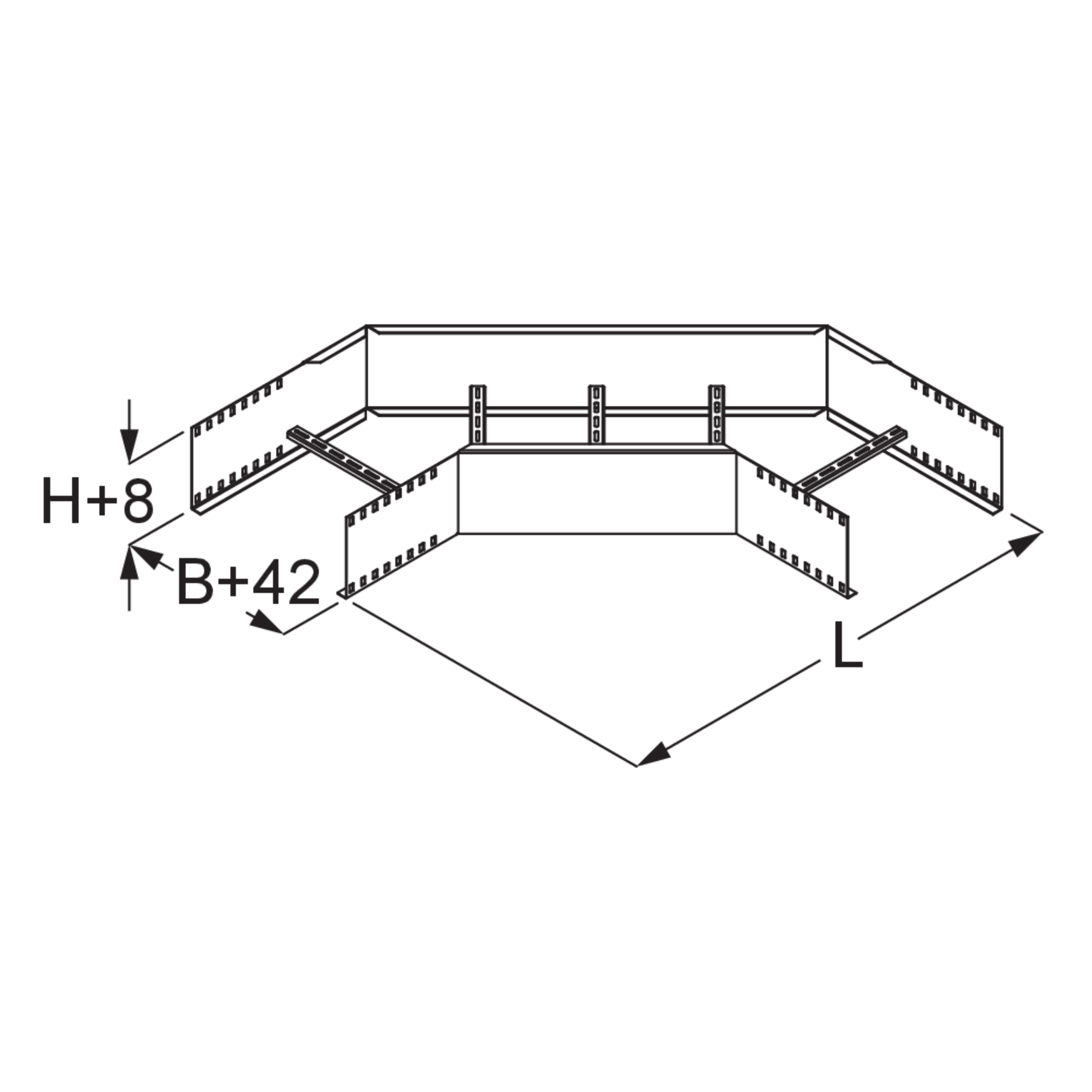

Article

H

height

B

width

L

length

direction

Direction change

W

Angle

G

Weight per storage unit

Included accessories

  • WLB 200-20F
    Bend WLB 200-20F
    height
    200 mm
    width
    200 mm
    length
    952 mm
    Direction change
    horizontal
    Angle
    90°
    Weight per storage unit
    15.000 kg
    Included accessories
    More information
  • WLB 200-30F
    Bend WLB 200-30F
    height
    200 mm
    width
    300 mm
    length
    1052 mm
    Direction change
    horizontal
    Angle
    90°
    Weight per storage unit
    16.320 kg
    Included accessories
    More information
  • WLB 200-40F
    Bend WLB 200-40F
    height
    200 mm
    width
    400 mm
    length
    1152 mm
    Direction change
    horizontal
    Angle
    90°
    Weight per storage unit
    17.460 kg
    Included accessories
    More information
  • WLB 200-50F
    Bend WLB 200-50F
    height
    200 mm
    width
    500 mm
    length
    1252 mm
    Direction change
    horizontal
    Angle
    90°
    Weight per storage unit
    18.690 kg
    Included accessories
    More information
  • WLB 200-60F
    Bend WLB 200-60F
    height
    200 mm
    width
    600 mm
    length
    1352 mm
    Direction change
    horizontal
    Angle
    90°
    Weight per storage unit
    19.920 kg
    Included accessories
    More information

Details

  • Creates horizontal changes of the cable routing direction by 90°.
  • Cable-friendly guide

Tender texts

Ausschreiben.de

Tender texts for this product

Open Link
Heinze.de

Tender texts for this product

Open Link
