WPLS 100

Wide-span cable ladder riser, height = 100 mm

The wide-span floor duct riser WPLS 100 with integrated connectors allows the direction of cable routing to be changed vertically by 90° upwards. It is suitable for wide-span cable ladders with rails 100 mm high and is 200 to 600 mm wide. The riser is pushed into the wide-span cable ladder and then bolted in place. The connecting rack is then mounted on the riser. It has a radius of 525 mm. We provide components in various materials and surface finishes to ensure that various corrosion protection requirements for different areas of application are met.

Get in touchDownload datasheet

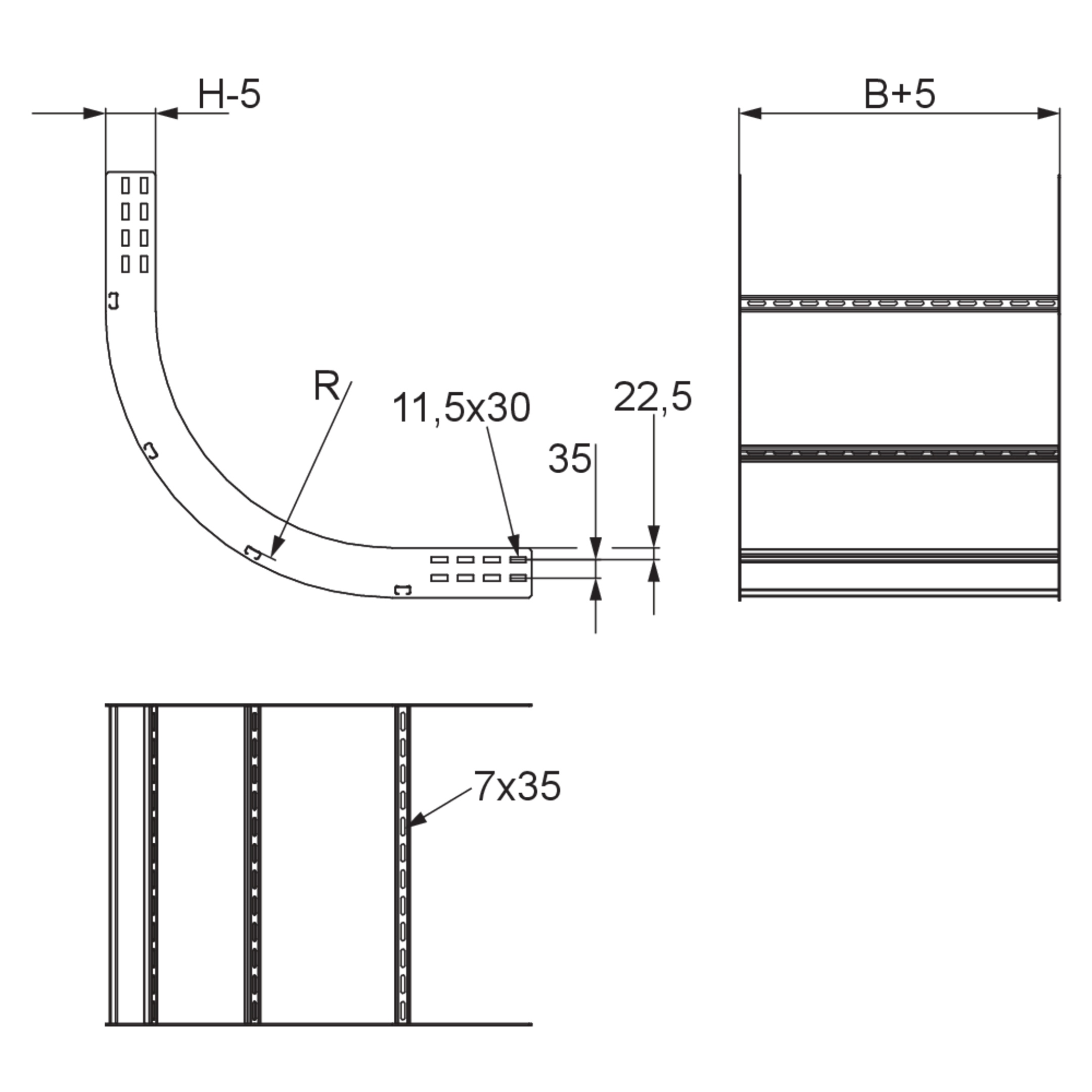

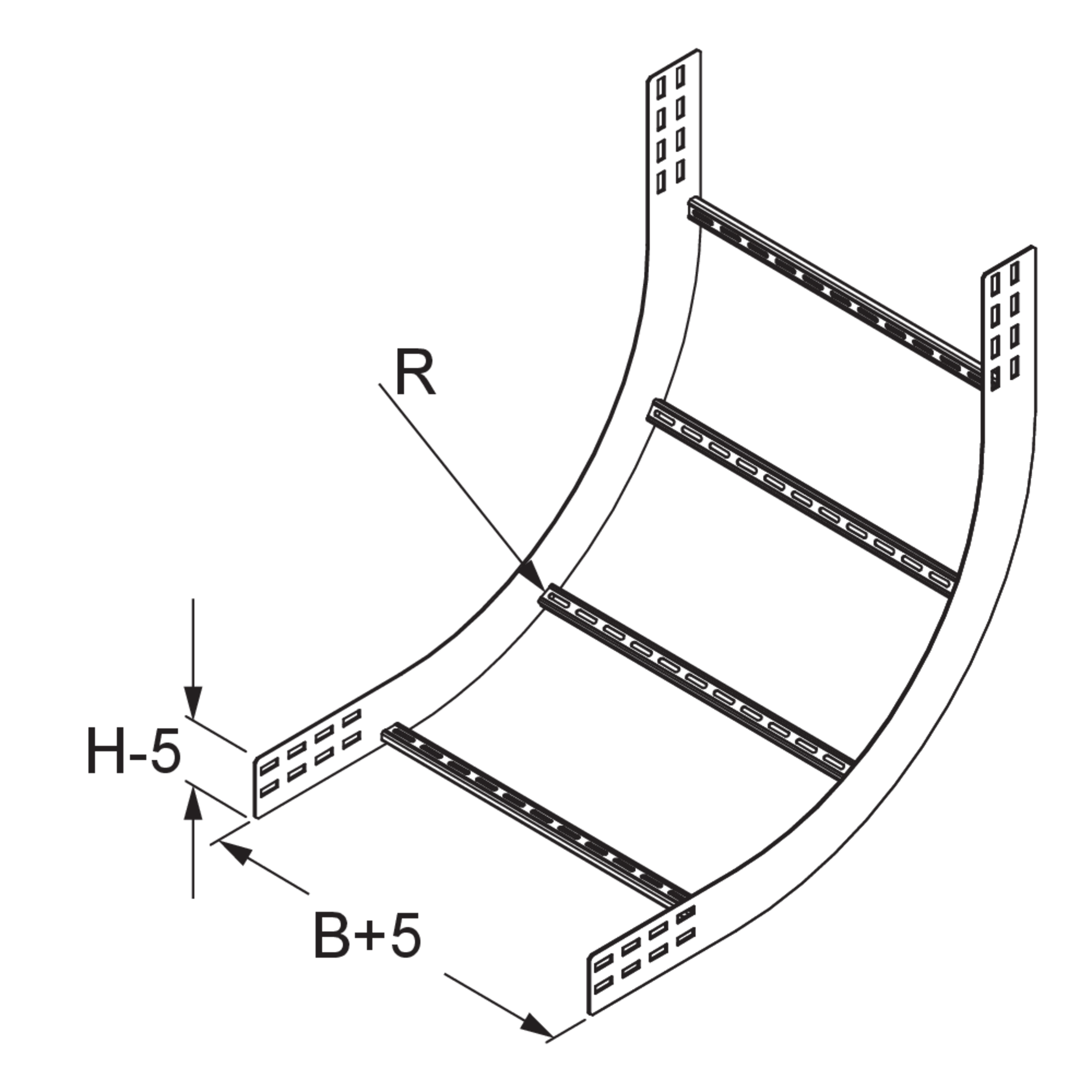

Variants

Stainless steel, acc. to AISI 304 (BS 304S31)

Article

H

height

B

width

R

radius

direction

Direction change

W

Angle

G

Weight per storage unit

Geeignet für Funktionserhalt

  • WPLS 100-20E
    Wide-span cable ladder inside riser WPLS
    height
    100 mm
    width
    200 mm
    radius
    525 mm
    Direction change
    vertically rising
    Angle
    90°
    Weight per storage unit
    6.770 kg
    Geeignet für Funktionserhalt
    Nein
    Included accessories
    More information
  • WPLS 100-30E
    Wide-span cable ladder inside riser WPLS
    height
    100 mm
    width
    300 mm
    radius
    525 mm
    Direction change
    vertically rising
    Angle
    90°
    Weight per storage unit
    7.040 kg
    Geeignet für Funktionserhalt
    Nein
    Included accessories
    More information
  • WPLS 100-40E
    Wide-span cable ladder inside riser WPLS
    height
    100 mm
    width
    400 mm
    radius
    525 mm
    Direction change
    vertically rising
    Angle
    90°
    Weight per storage unit
    7.320 kg
    Geeignet für Funktionserhalt
    Nein
    Included accessories
    More information
  • WPLS 100-50E
    Wide-span cable ladder inside riser WPLS
    height
    100 mm
    width
    500 mm
    radius
    525 mm
    Direction change
    vertically rising
    Angle
    90°
    Weight per storage unit
    7.600 kg
    Geeignet für Funktionserhalt
    Nein
    Included accessories
    More information
  • WPLS 100-60E
    Wide-span cable ladder inside riser WPLS
    height
    100 mm
    width
    600 mm
    radius
    525 mm
    Direction change
    vertically rising
    Angle
    90°
    Weight per storage unit
    7.870 kg
    Geeignet für Funktionserhalt
    Nein
    Included accessories
    More information

Details

  • Changes the cable routing direction vertically by 90° upwards
  • Cable-friendly guide
