Wide-span add-on corner

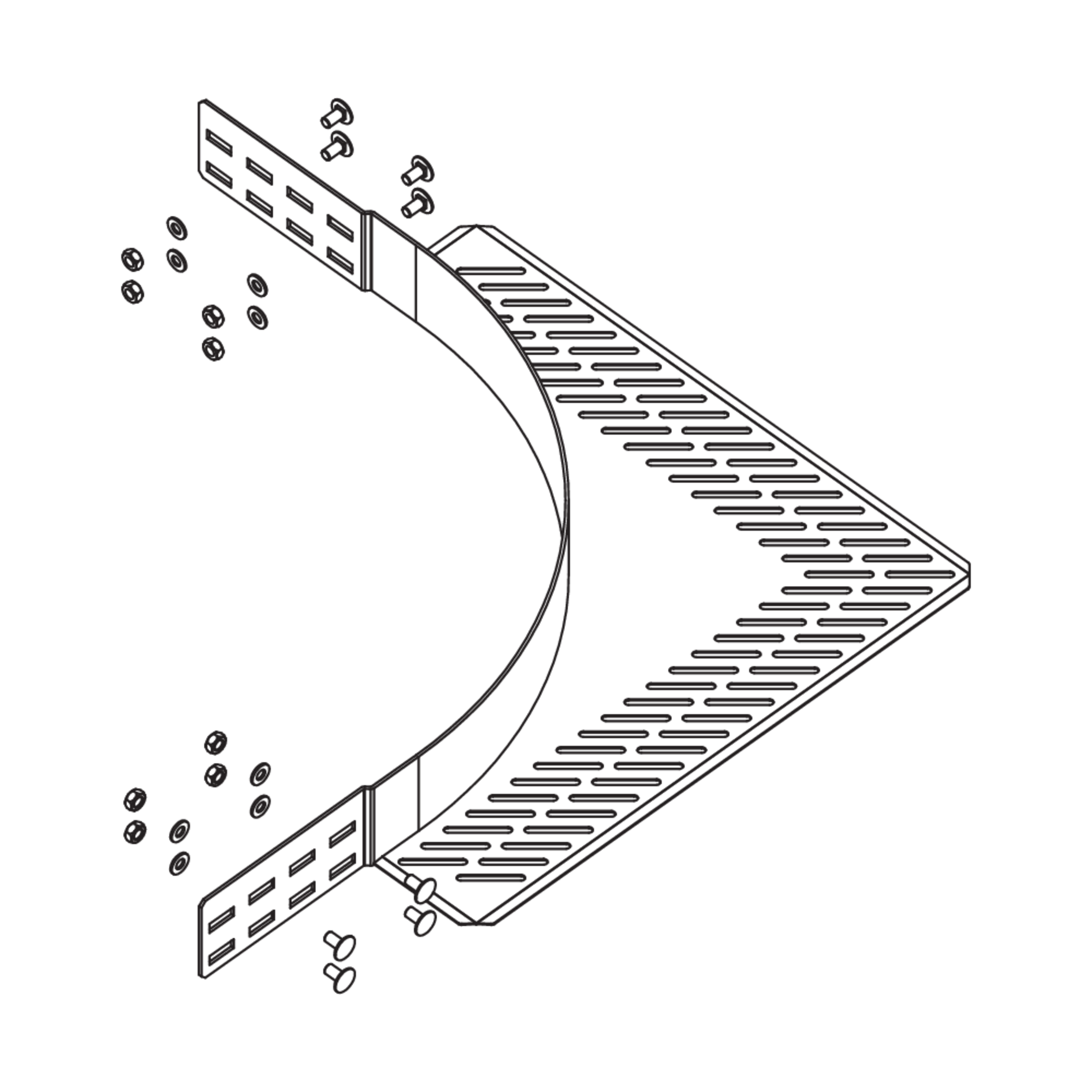

The wide-span attachment corner WPEA 120 allows the direction of cable routing to be changed horizontally by 90° and is suitable for wide-span cable trays with side rails 120 mm high. It is combined with the wide-span cable tray corner extension WPLEAB or wide-span cable tray attachment corner WPREAB. It can also be used to create T branches. We provide components in various materials and surface finishes to ensure that various corrosion protection requirements for different areas of application are met.

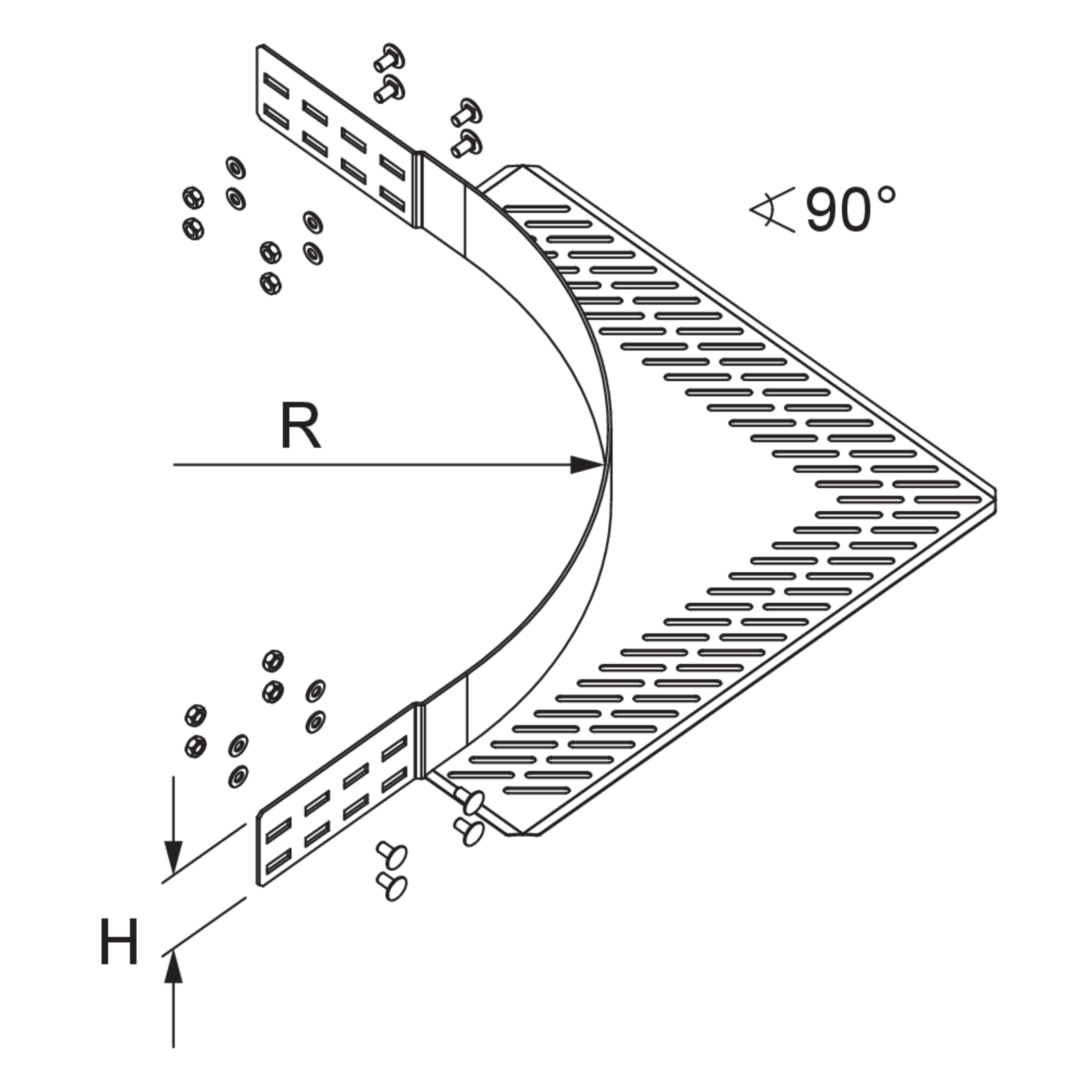

H
height
R
radius
W
Angle
G
Weight per storage unit
de
en
Valid from February 1st, 2025, updated version from 31/03/2025.
de
en
Technical Information
BIM Data
ZIP, 12.34 MB
DownloadDownloadAnzahl:
