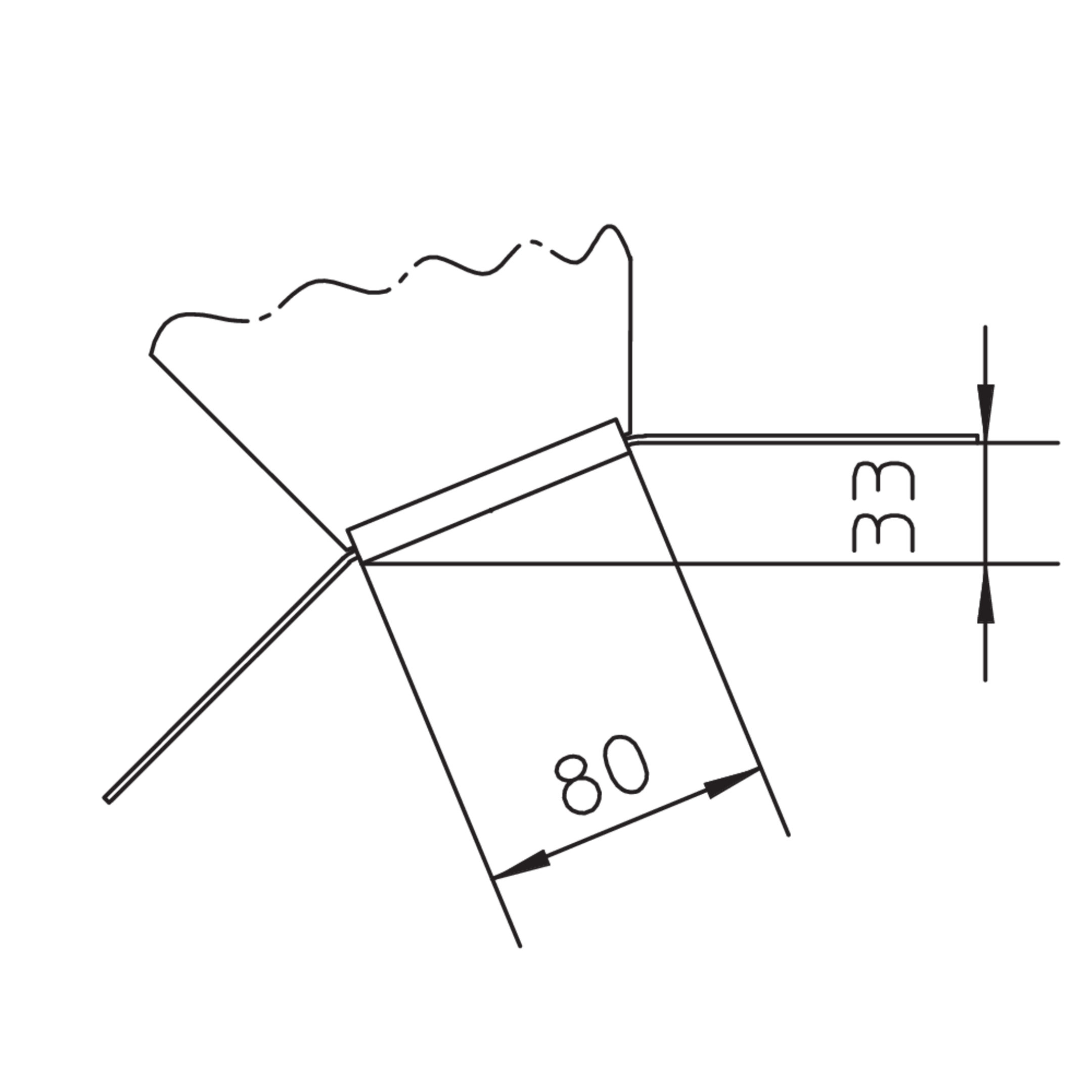

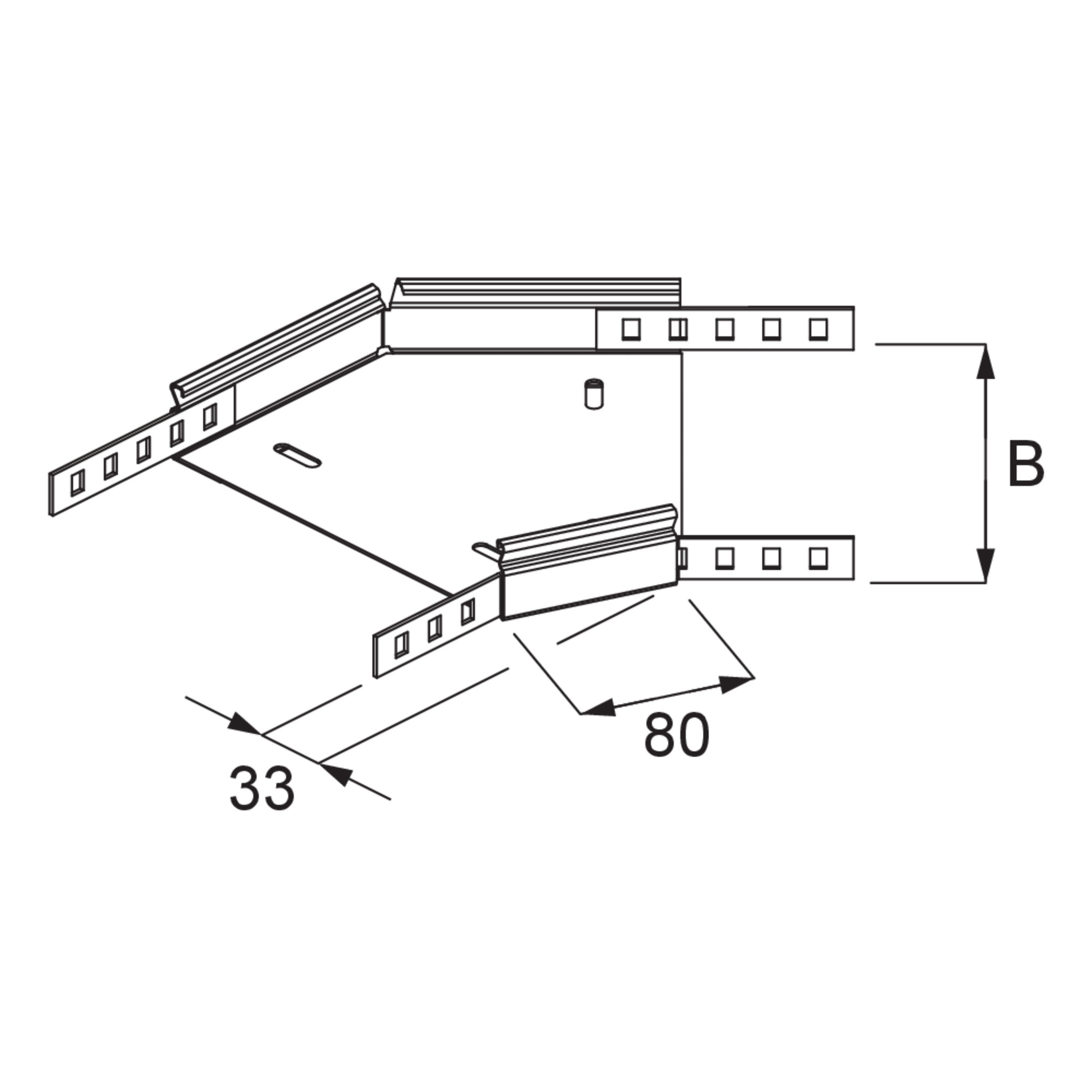

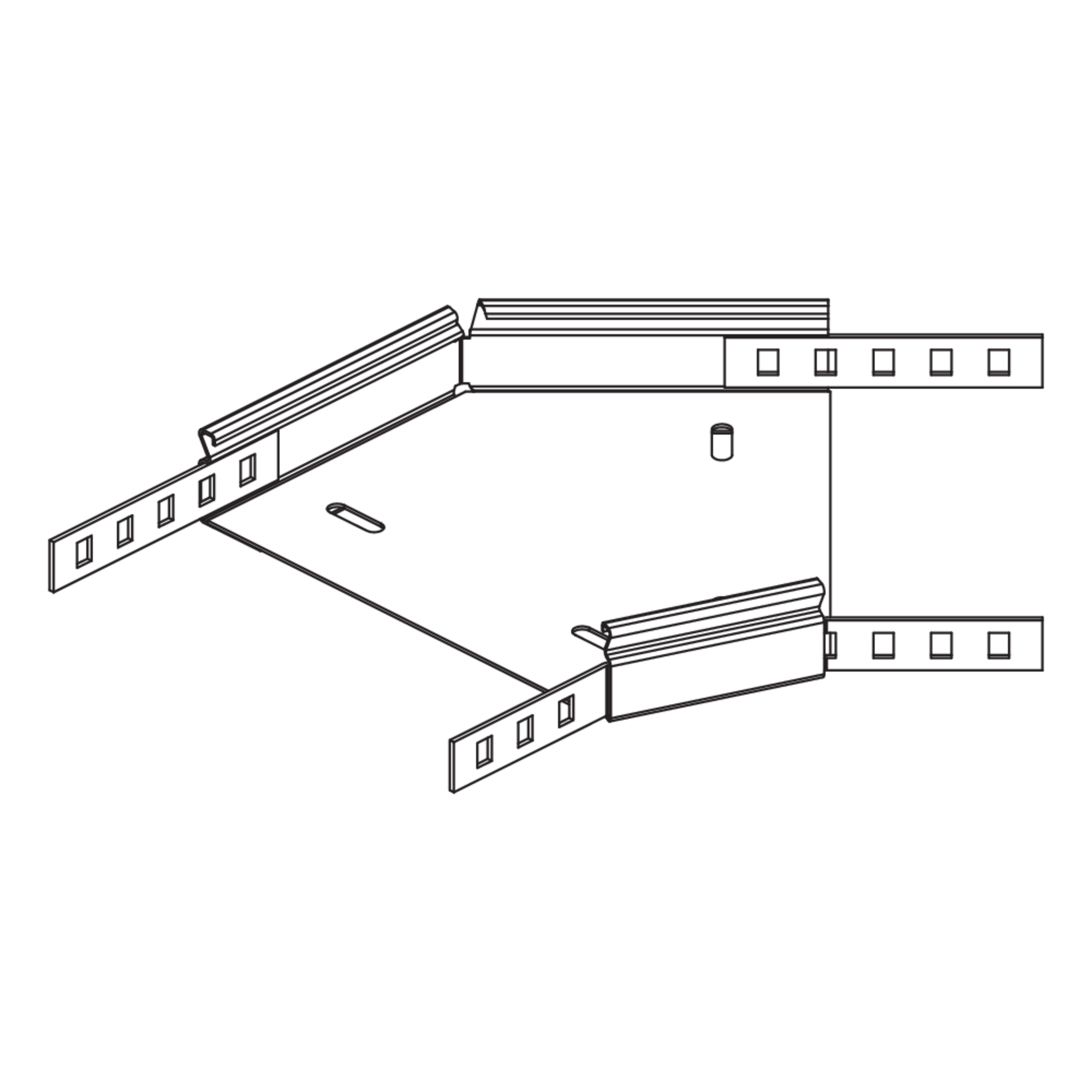

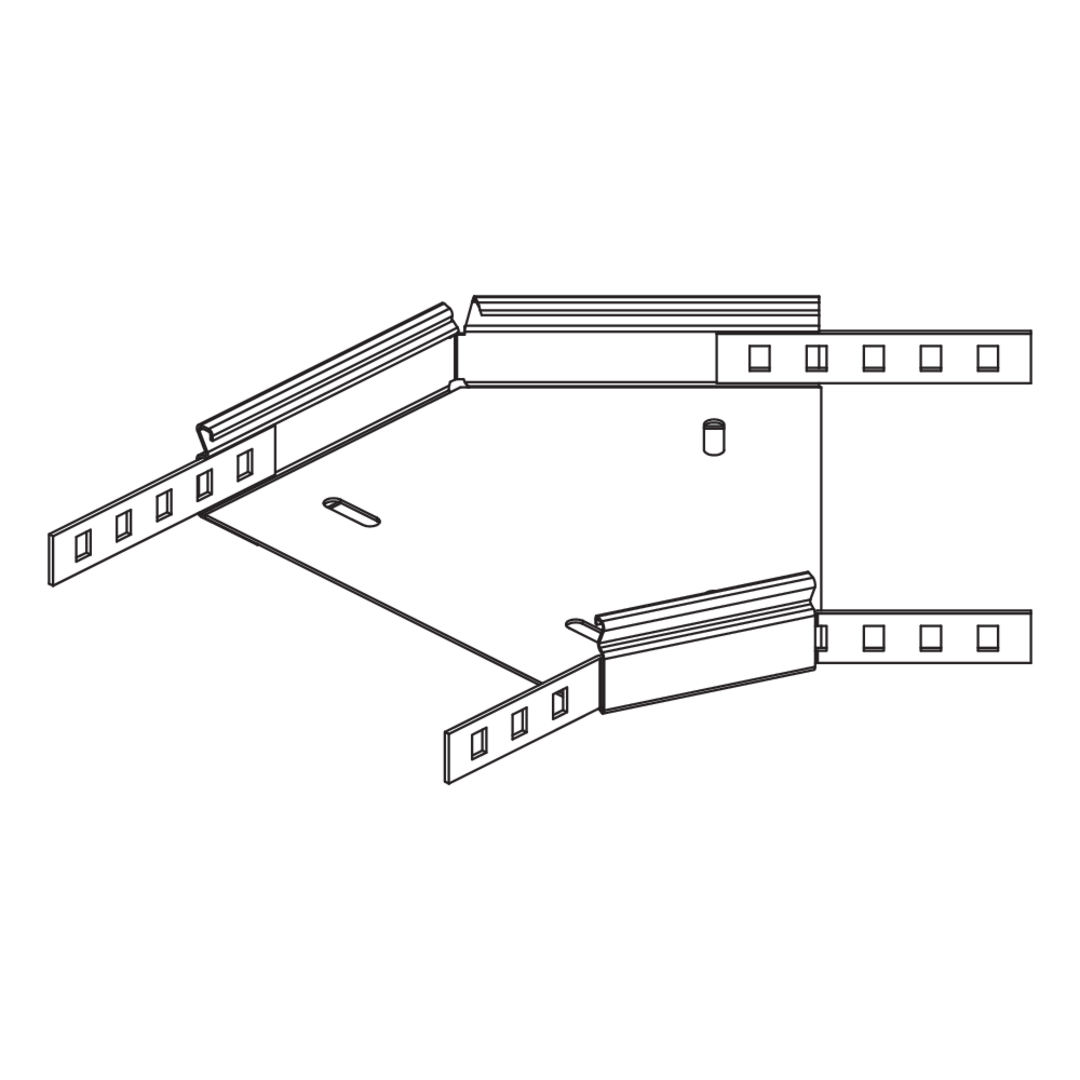

Cable tray bend, height = 35 mm

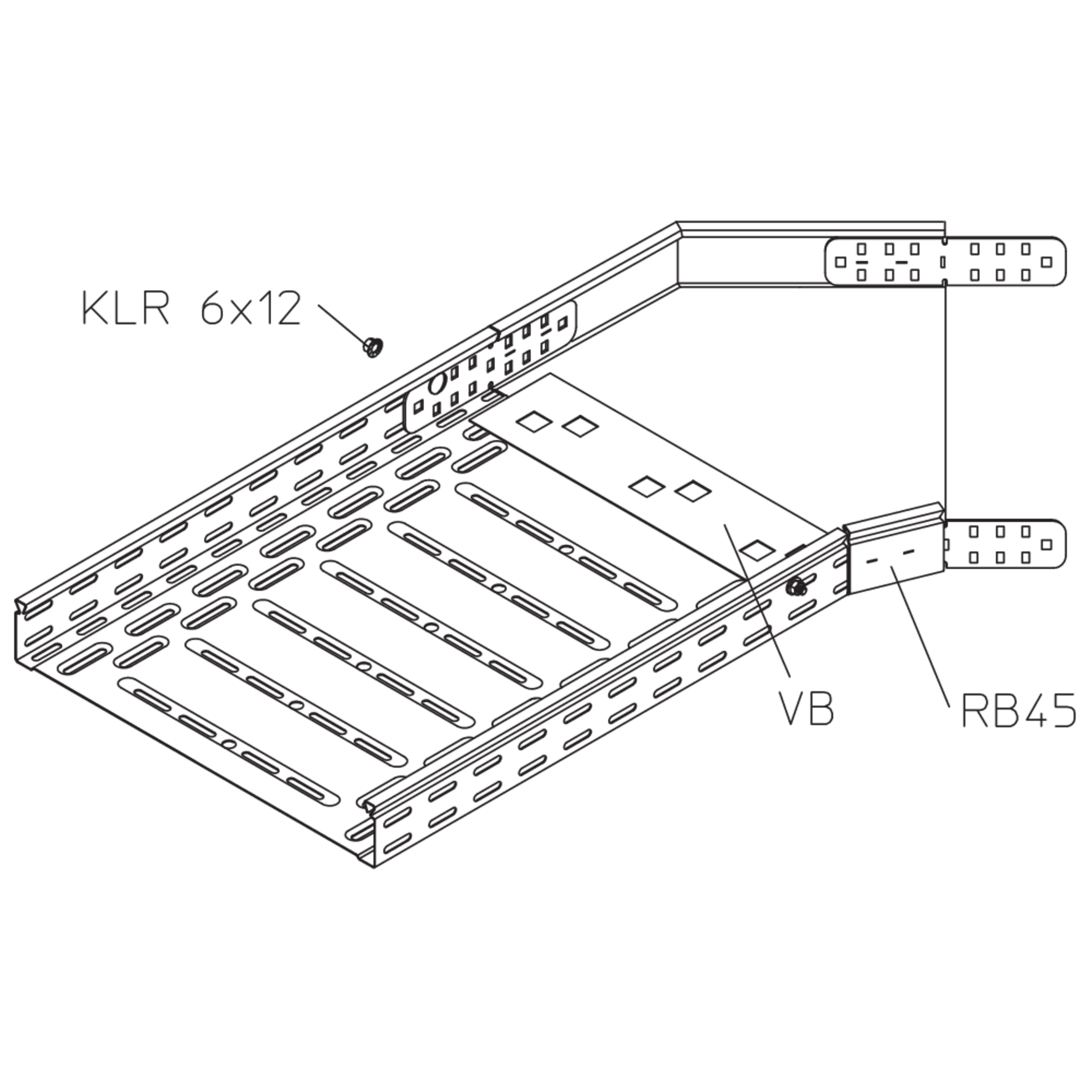

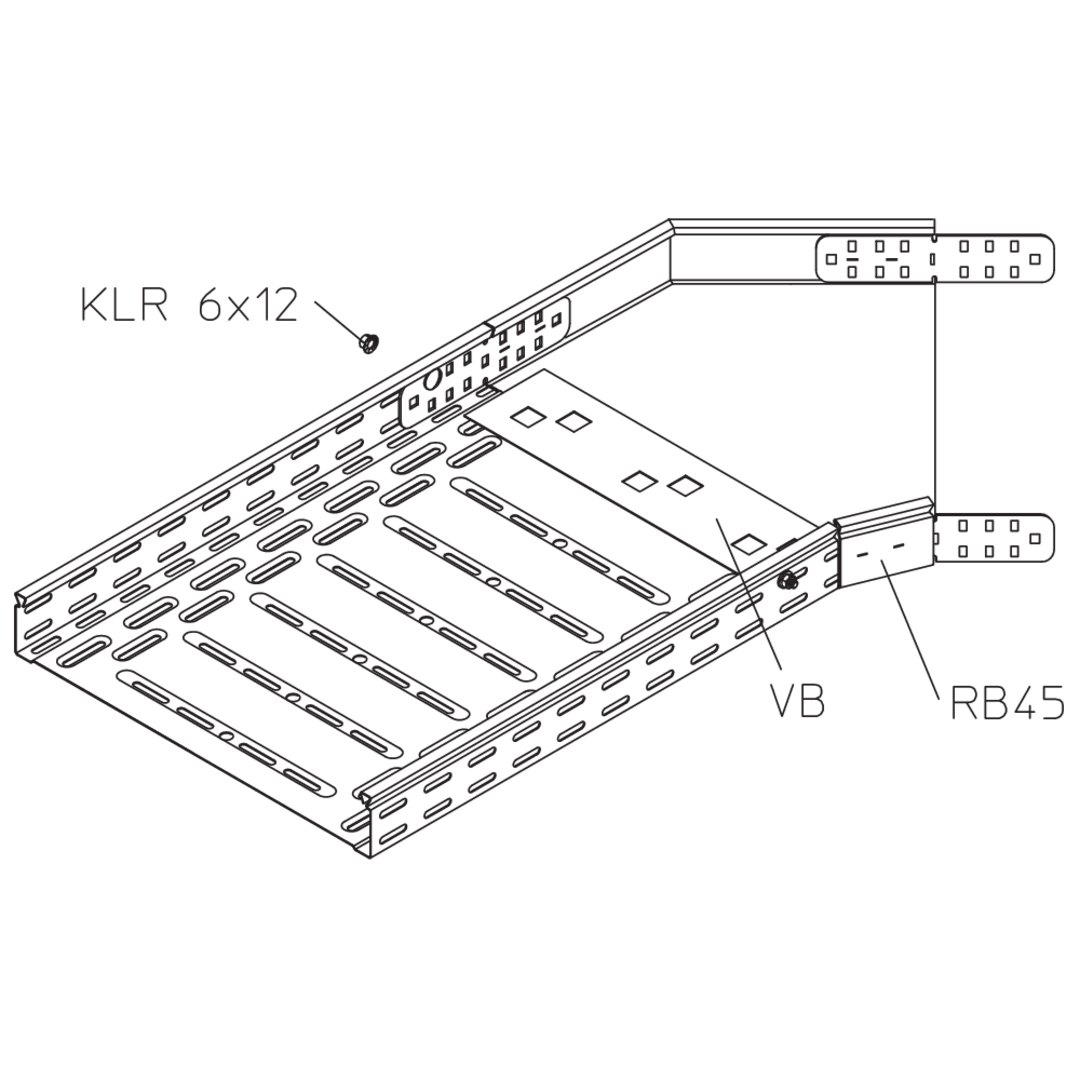

The cable tray bend RB45 35 allows the direction of cable routing to be changed horizontally by 45°. They are suitable for cable trays with sides 35 mm high and have integrated side connectors. The bend is inserted into the cable tray and bolted in place using a VB floor connector. We provide components in various materials and surface finishes to ensure that the corrosion requirements are met for all sorts of applications.
The magnetic shielding attenuation is 22 dB without the cover and 27 dB with the cover.
