RS 110

Cable tray, unperforated, heavy, height = 110 mm

RS 110 unperforated cable trays have sides 110 mm high and are available in widths from 100 to 600 mm. The standard length is 3000 mm. We provide components in various materials and surface finishes to ensure that the corrosion requirements are met for all sorts of applications.

No stepping
Get in touchDownload datasheet

Variants

Steel, pre-galvanised/Sendzimir process

Article

H

height

B

width

L

length

t

material thickness

QSK

distributed load control cable

A

cross section area

G

Weight per storage unit

  • RS 110-10S
    Cable tray, heavy, unperforated
    height
    110 mm
    width
    100 mm
    length
    3000 mm
    material thickness
    1.50 mm
    distributed load control cable
    0.16 kN/m
    cross section area
    107 cm2
    Weight per storage unit
    12.600 kg
    More information
  • RS 110-20S
    Cable tray, heavy, unperforated
    height
    110 mm
    width
    200 mm
    length
    3000 mm
    material thickness
    1.50 mm
    distributed load control cable
    0.33 kN/m
    cross section area
    217 cm2
    Weight per storage unit
    15.895 kg
    More information
  • RS 110-30S
    Cable tray, heavy, unperforated
    height
    110 mm
    width
    300 mm
    length
    3000 mm
    material thickness
    1.50 mm
    distributed load control cable
    0.49 kN/m
    cross section area
    327 cm2
    Weight per storage unit
    19.125 kg
    More information
  • RS 110-40S
    Cable tray, heavy, unperforated
    height
    110 mm
    width
    400 mm
    length
    3000 mm
    material thickness
    1.50 mm
    distributed load control cable
    0.66 kN/m
    cross section area
    437 cm2
    Weight per storage unit
    23.200 kg
    More information
  • RS 110-50S
    Cable tray, heavy, unperforated
    height
    110 mm
    width
    500 mm
    length
    3000 mm
    material thickness
    1.50 mm
    distributed load control cable
    0.82 kN/m
    cross section area
    547 cm2
    Weight per storage unit
    26.000 kg
    More information
  • RS 110-60S
    Cable tray, heavy, unperforated
    height
    110 mm
    width
    600 mm
    length
    3000 mm
    material thickness
    1.50 mm
    distributed load control cable
    0.99 kN/m
    cross section area
    657 cm2
    Weight per storage unit
    29.900 kg
    More information

Steel, hot-dip galvanised

Article

H

height

B

width

L

length

t

material thickness

QSK

distributed load control cable

A

cross section area

G

Weight per storage unit

  • RS 110-10F
    Cable tray, heavy, unperforated
    height
    110 mm
    width
    100 mm
    length
    3000 mm
    material thickness
    1.50 mm
    distributed load control cable
    0.16 kN/m
    cross section area
    107 cm2
    Weight per storage unit
    13.264 kg
    More information
  • RS 110-20F
    Cable tray, heavy, unperforated
    height
    110 mm
    width
    200 mm
    length
    3000 mm
    material thickness
    1.50 mm
    distributed load control cable
    0.33 kN/m
    cross section area
    217 cm2
    Weight per storage unit
    17.010 kg
    More information
  • RS 110-30F
    Cable tray, heavy, unperforated
    height
    110 mm
    width
    300 mm
    length
    3000 mm
    material thickness
    1.50 mm
    distributed load control cable
    0.49 kN/m
    cross section area
    327 cm2
    Weight per storage unit
    19.800 kg
    More information
  • RS 110-40F
    Cable tray, heavy, unperforated
    height
    110 mm
    width
    400 mm
    length
    3000 mm
    material thickness
    1.50 mm
    distributed load control cable
    0.66 kN/m
    cross section area
    437 cm2
    Weight per storage unit
    24.503 kg
    More information
  • RS 110-50F
    Cable tray, heavy, unperforated
    height
    110 mm
    width
    500 mm
    length
    3000 mm
    material thickness
    1.50 mm
    distributed load control cable
    0.82 kN/m
    cross section area
    547 cm2
    Weight per storage unit
    28.149 kg
    More information
  • RS 110-60F
    Cable tray, heavy, unperforated
    height
    110 mm
    width
    600 mm
    length
    3000 mm
    material thickness
    1.50 mm
    distributed load control cable
    0.99 kN/m
    cross section area
    657 cm2
    Weight per storage unit
    31.996 kg
    More information

Details

  • No stepping
  • Electr. conductivity checked according to DIN EN 61537

Tender texts

Ausschreiben.de

Tender texts for this product

Open Link
Heinze.de

Tender texts for this product

Open Link

Accessories

Downloads

    • de

    • en

    Price list 2025 Building extension

    Valid from February 1st, 2025, updated version from 31/03/2025.

    PDF

    Choose languageChoose language

    Price list 2025 Building extension

    Choose language to download

    • de

    • en

    Cable trays - Technical information

    Technical Information

    PDF

    Choose languageChoose language

    Cable trays - Technical information

    Choose language to download

    • de

    • en

    • es

    Cable support systems - Complete catalogue

    Catalogue for cable trays, mesh cable trays, cable ladders, wide-span systems, vertical ladders, floor ducts, cable clamps, cable support troughs, rigid conduits, marine cable ladders, support systems, fastening accessories and more.

    PDF

    Choose languageChoose language

    Cable support systems - Complete catalogue

    Choose language to download

    • de

    • en

    Cable trays - Assembly instructions

    Assembly Instructions

    PDF

    Choose languageChoose language

    Cable trays - Assembly instructions

    Choose language to download

    • de

    Cable Tray R 60, RG 60 - Compact overview

    Compact overview of cable trays and accessories: R, RG, RGV, VB, RTR, DB, DKSL, KDU, KHUSS, GBAR, KWF, MA, KWMS, RD, RKAB, RTRV, RBV, RVB, REB

    PDF (1.12 MB)

    DownloadDownload

BIM- und CAD-Data

    BIM for cable trays

    Bim data

    ZIP (9.58 MB)

    DownloadDownload

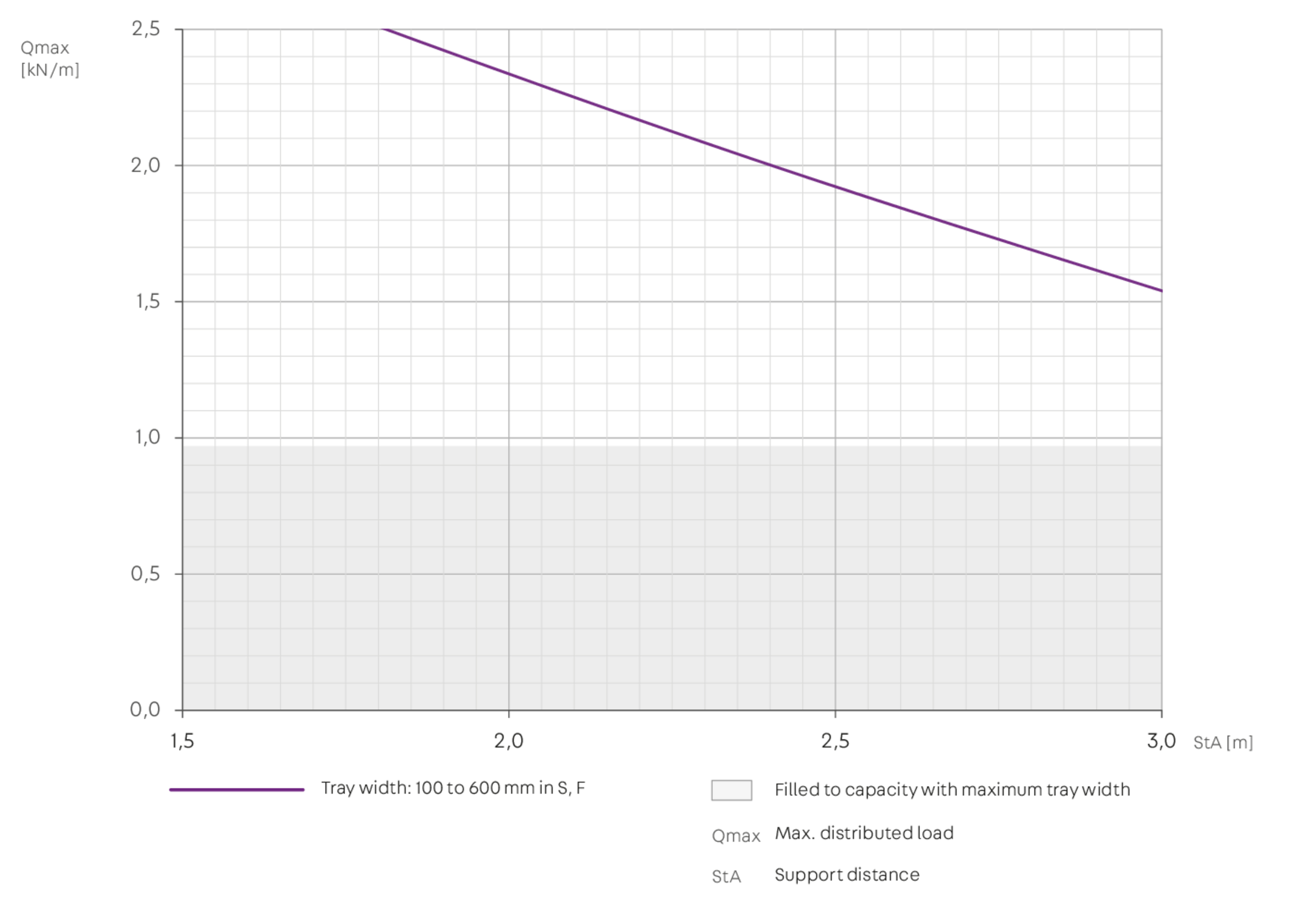

Load diagram
