GTD 30

Mesh cable tray, W-shaped, height = 50 mm

The GTD 30 W-shaped mesh cable tray has sides 50 mm high and is 300 mm wide. The standard length is 3000 mm. We provide components in various materials and surface finishes to ensure that the corrosion requirements are met for all sorts of applications.

No stepping
Get in touchDownload datasheet

Variants

Steel, pre-galvanised/Sendzimir process

Article

H

height

B

width

L

length

QSK

distributed load control cable

Ø

wire diameter

A

cross section area

G

Weight per storage unit

  • GTD 30S
    Wire-mesh cable support GTD 30S
    height
    50 mm
    width
    300 mm
    length
    3000 mm
    distributed load control cable
    0.13 kN/m
    wire diameter
    4.50 mm
    cross section area
    85 cm2
    Weight per storage unit
    2.950 kg
    More information

Steel, hot-dip galvanised

Article

H

height

B

width

L

length

QSK

distributed load control cable

Ø

wire diameter

A

cross section area

G

Weight per storage unit

  • GTD 30F
    Wire-mesh cable support GTD 30F
    height
    50 mm
    width
    300 mm
    length
    3000 mm
    distributed load control cable
    0.13 kN/m
    wire diameter
    4.50 mm
    cross section area
    85 cm2
    Weight per storage unit
    3.150 kg
    More information

steel, galvanic zinc plated

Article

H

height

B

width

L

length

QSK

distributed load control cable

Ø

wire diameter

A

cross section area

G

Weight per storage unit

  • GTD 30GV
    Wire-mesh cable support GTD 30S
    height
    50 mm
    width
    300 mm
    length
    3000 mm
    distributed load control cable
    0.13 kN/m
    wire diameter
    4.50 mm
    cross section area
    85 cm2
    Weight per storage unit
    2.950 kg
    More information

Stainless steel, acc. to AISI 304 (BS 304S31)

Article

H

height

B

width

L

length

QSK

distributed load control cable

Ø

wire diameter

A

cross section area

G

Weight per storage unit

  • GTD 30E
    Wire-mesh cable support GTD 30S
    height
    50 mm
    width
    300 mm
    length
    3000 mm
    distributed load control cable
    0.13 kN/m
    wire diameter
    4.50 mm
    cross section area
    85 cm2
    Weight per storage unit
    2.970 kg
    More information

Details

  • No stepping

Tender texts

Ausschreiben.de

Tender texts for this product

Open Link
Heinze.de

Tender texts for this product

Open Link

Downloads

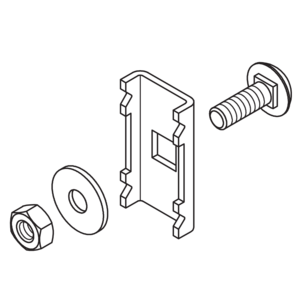

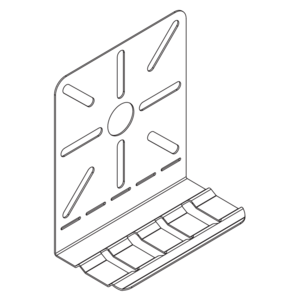

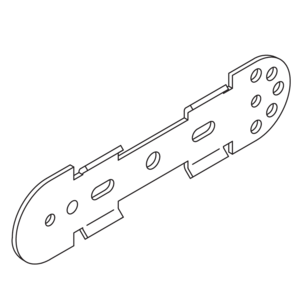

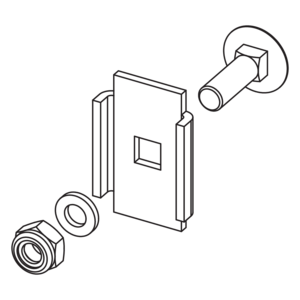

Included accessories
