G 35

Mesh cable tray, U-shaped, height = 38 mm

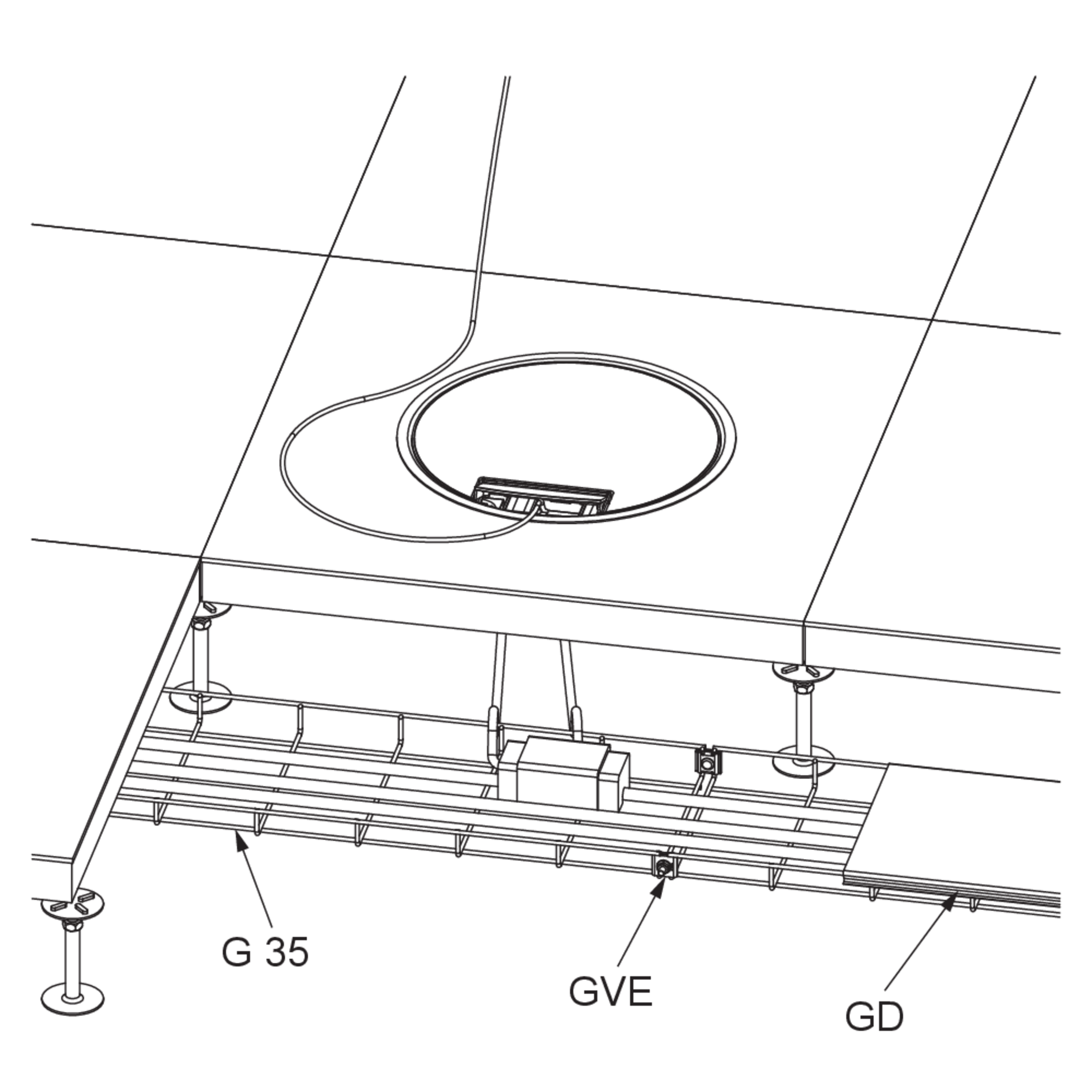

The U-shaped G 35 mesh cable tray has a side height of 38 mm and is available in tray widths from 116 to 618 mm. The standard length is 3004 mm. For the routing of light cables and conduits, especially for direct and raised floor installation and intermediate floors. A variety of materials and finishes are available to meet the corrosion requirements of a wide range of applications.

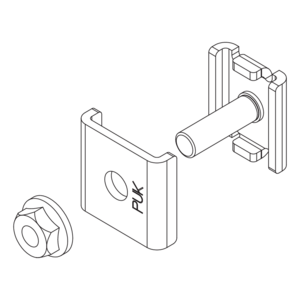

The GVE mesh cable tray connector must be used for the G 35 mesh cable tray.

No stepping
Get in touchDownload datasheet

Variants

Steel, pre-galvanised/Sendzimir process

Article

H

height

B

width

L

length

QSK

distributed load control cable

Ø

wire diameter

A

cross section area

G

Weight per storage unit

Produktstatus

  • G 35-10S
    wire
    height
    38 mm
    width
    116 mm
    length
    3004 mm
    distributed load control cable
    0.04 kN/m
    wire diameter
    4.00 mm
    cross section area
    29 cm2
    Weight per storage unit
    1.690 kg
    Produktstatus
    Neu
    More information
  • G 35-15S
    wire
    height
    38 mm
    width
    166 mm
    length
    3004 mm
    distributed load control cable
    0.07 kN/m
    wire diameter
    4.00 mm
    cross section area
    43 cm2
    Weight per storage unit
    1.850 kg
    Produktstatus
    Neu
    More information
  • G 35-20S
    wire
    height
    38 mm
    width
    216 mm
    length
    3004 mm
    distributed load control cable
    0.09 kN/m
    wire diameter
    4.00 mm
    cross section area
    58 cm2
    Weight per storage unit
    2.590 kg
    Produktstatus
    Neu
    More information
  • G 35-30S
    wire
    height
    38 mm
    width
    316 mm
    length
    3004 mm
    distributed load control cable
    0.13 kN/m
    wire diameter
    4.00 mm
    cross section area
    87 cm2
    Weight per storage unit
    3.500 kg
    Produktstatus
    Neu
    More information

Steel, hot-dip galvanised

Article

H

height

B

width

L

length

QSK

distributed load control cable

Ø

wire diameter

A

cross section area

G

Weight per storage unit

Produktstatus

  • G 35-10F
    wire mesh tray
    height
    38 mm
    width
    116 mm
    length
    3004 mm
    distributed load control cable
    0.04 kN/m
    wire diameter
    4.00 mm
    cross section area
    29 cm2
    Weight per storage unit
    1.810 kg
    Produktstatus
    Neu
    More information
  • G 35-15F
    wire mesh tray
    height
    38 mm
    width
    166 mm
    length
    3004 mm
    distributed load control cable
    0.07 kN/m
    wire diameter
    4.00 mm
    cross section area
    43 cm2
    Weight per storage unit
    1.980 kg
    Produktstatus
    Neu
    More information
  • G 35-20F
    wire mesh tray
    height
    38 mm
    width
    216 mm
    length
    3004 mm
    distributed load control cable
    0.09 kN/m
    wire diameter
    4.00 mm
    cross section area
    58 cm2
    Weight per storage unit
    2.780 kg
    Produktstatus
    Neu
    More information
  • G 35-30F
    wire mesh tray
    height
    38 mm
    width
    316 mm
    length
    3004 mm
    distributed load control cable
    0.13 kN/m
    wire diameter
    4.00 mm
    cross section area
    87 cm2
    Weight per storage unit
    3.740 kg
    Produktstatus
    Neu
    More information
  • G 35-40F
    wire mesh tray
    height
    39 mm
    width
    418 mm
    length
    3004 mm
    distributed load control cable
    0.18 kN/m
    wire diameter
    4.50 mm
    cross section area
    116 cm2
    Weight per storage unit
    5.940 kg
    Produktstatus
    Neu
    More information
  • G 35-50F
    wire mesh tray
    height
    39 mm
    width
    518 mm
    length
    3004 mm
    distributed load control cable
    0.22 kN/m
    wire diameter
    4.50 mm
    cross section area
    145 cm2
    Weight per storage unit
    7.160 kg
    Produktstatus
    Neu
    More information
  • G 35-60F
    wire mesh tray
    height
    39 mm
    width
    618 mm
    length
    3004 mm
    distributed load control cable
    0.26 kN/m
    wire diameter
    4.50 mm
    cross section area
    174 cm2
    Weight per storage unit
    8.380 kg
    Produktstatus
    Neu
    More information

steel, galvanic zinc plated

Article

H

height

B

width

L

length

QSK

distributed load control cable

Ø

wire diameter

A

cross section area

G

Weight per storage unit

Produktstatus

  • G 35-10GV
    wire mesh tray
    height
    38 mm
    width
    116 mm
    length
    3004 mm
    distributed load control cable
    0.04 kN/m
    wire diameter
    4.00 mm
    cross section area
    29 cm2
    Weight per storage unit
    1.690 kg
    Produktstatus
    Neu
    More information
  • G 35-15GV
    wire mesh tray
    height
    38 mm
    width
    166 mm
    length
    3004 mm
    distributed load control cable
    0.07 kN/m
    wire diameter
    4.00 mm
    cross section area
    43 cm2
    Weight per storage unit
    1.850 kg
    Produktstatus
    Neu
    More information
  • G 35-20GV
    wire mesh tray
    height
    38 mm
    width
    216 mm
    length
    3004 mm
    distributed load control cable
    0.09 kN/m
    wire diameter
    4.00 mm
    cross section area
    58 cm2
    Weight per storage unit
    2.590 kg
    Produktstatus
    Neu
    More information
  • G 35-30GV
    wire mesh tray
    height
    38 mm
    width
    316 mm
    length
    3004 mm
    distributed load control cable
    0.13 kN/m
    wire diameter
    4.00 mm
    cross section area
    87 cm2
    Weight per storage unit
    3.500 kg
    Produktstatus
    Neu
    More information
  • G 35-40GV
    wire mesh tray
    height
    39 mm
    width
    418 mm
    length
    3004 mm
    distributed load control cable
    0.18 kN/m
    wire diameter
    4.50 mm
    cross section area
    116 cm2
    Weight per storage unit
    5.550 kg
    Produktstatus
    Neu
    More information
  • G 35-50GV
    wire mesh tray
    height
    39 mm
    width
    518 mm
    length
    3004 mm
    distributed load control cable
    0.22 kN/m
    wire diameter
    4.50 mm
    cross section area
    145 cm2
    Weight per storage unit
    6.690 kg
    Produktstatus
    Neu
    More information
  • G 35-60GV
    wire mesh tray
    height
    39 mm
    width
    618 mm
    length
    3004 mm
    distributed load control cable
    0.26 kN/m
    wire diameter
    4.50 mm
    cross section area
    174 cm2
    Weight per storage unit
    7.830 kg
    Produktstatus
    Neu
    More information

Stainless steel, acc. to AISI 304 (BS 304S31)

Article

H

height

B

width

L

length

QSK

distributed load control cable

Ø

wire diameter

A

cross section area

G

Weight per storage unit

Produktstatus

  • G 35-10E
    wire mesh tray
    height
    38 mm
    width
    116 mm
    length
    3004 mm
    distributed load control cable
    0.04 kN/m
    wire diameter
    4.00 mm
    cross section area
    29 cm2
    Weight per storage unit
    1.690 kg
    Produktstatus
    Neu
    More information
  • G 35-15E
    wire mesh tray
    height
    38 mm
    width
    166 mm
    length
    3004 mm
    distributed load control cable
    0.07 kN/m
    wire diameter
    4.00 mm
    cross section area
    43 cm2
    Weight per storage unit
    1.850 kg
    Produktstatus
    Neu
    More information
  • G 35-20E
    wire mesh tray
    height
    38 mm
    width
    216 mm
    length
    3004 mm
    distributed load control cable
    0.09 kN/m
    wire diameter
    4.00 mm
    cross section area
    58 cm2
    Weight per storage unit
    2.590 kg
    Produktstatus
    Neu
    More information
  • G 35-30E
    wire mesh tray
    height
    38 mm
    width
    316 mm
    length
    3004 mm
    distributed load control cable
    0.13 kN/m
    wire diameter
    4.00 mm
    cross section area
    87 cm2
    Weight per storage unit
    3.500 kg
    Produktstatus
    Neu
    More information
  • G 35-40E
    wire mesh tray
    height
    39 mm
    width
    418 mm
    length
    3004 mm
    distributed load control cable
    0.18 kN/m
    wire diameter
    4.50 mm
    cross section area
    116 cm2
    Weight per storage unit
    5.600 kg
    Produktstatus
    Neu
    More information
  • G 35-50E
    wire mesh tray
    height
    39 mm
    width
    518 mm
    length
    3004 mm
    distributed load control cable
    0.22 kN/m
    wire diameter
    4.50 mm
    cross section area
    145 cm2
    Weight per storage unit
    6.750 kg
    Produktstatus
    Neu
    More information
  • G 35-60E
    wire mesh tray
    height
    39 mm
    width
    618 mm
    length
    3004 mm
    distributed load control cable
    0.26 kN/m
    wire diameter
    4.50 mm
    cross section area
    174 cm2
    Weight per storage unit
    7.890 kg
    Produktstatus
    Neu
    More information

Details

    Tender texts

    Ausschreiben.de

    Tender texts for this product

    Open Link
    Heinze.de

    Tender texts for this product

    Open Link

    Downloads

    Load diagram

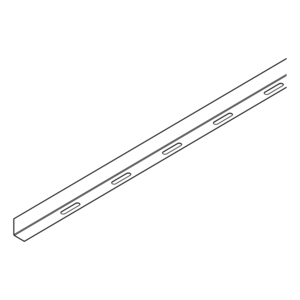

    Included accessories
