UBKPR

Side profiles

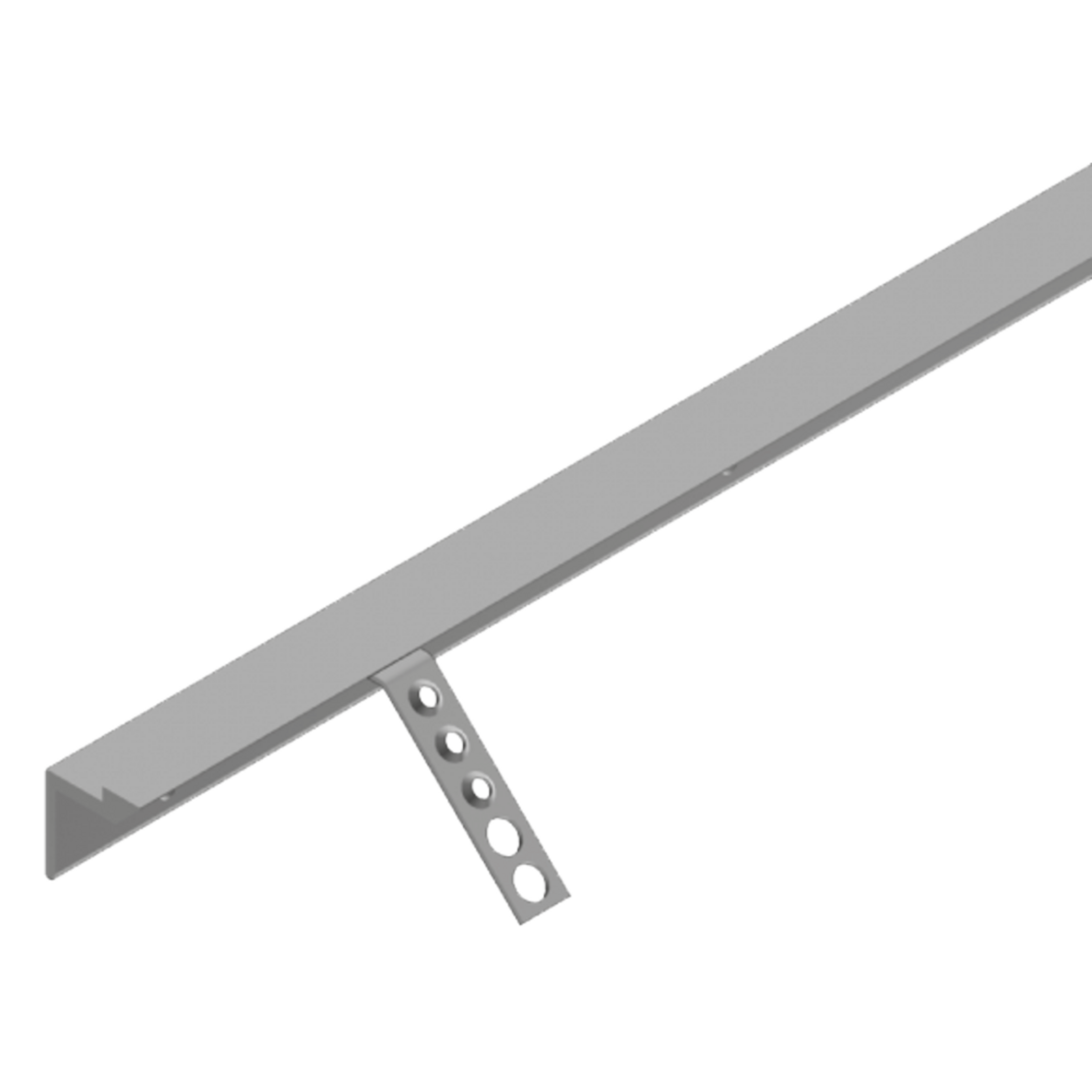

UBKPR products are side profiles for screed-flush duct systems. These components are used for mounting on heavy-duty duct bases and for supporting dummy covers. A strip of rubber creates a reliable seal between the assembly parts. The height-adjustable side profiles are made of hot-dip galvanised steel in accordance with DIN EN ISO 1461. They are supplied with screed anchors, five round-head bolts with square FRS 8X25, five nuts with flange SEMS 8 and a UBKPRV connector.

Get in touchDownload datasheet

Variants

Article

H

height

B

width

B2

width 2

L

length

T

Depth of flooring recess

G

Weight per storage unit

Included accessories
  • UBKPR5F
    side profile D=5mm, L=3000mm,
    height
    45 mm
    width
    40 mm
    width 2
    24 mm
    length
    3000 mm
    Depth of flooring recess
    5 mm
    Weight per storage unit
    11.650 kg
    Included accessories
    More information
  • UBKPR8F
    side profile D=7mm, L=3000mm,
    height
    57 mm
    width
    50 mm
    width 2
    30 mm
    length
    3000 mm
    Depth of flooring recess
    7 mm
    Weight per storage unit
    14.720 kg
    Included accessories
    More information
  • UBKPR10F
    side profile D=10mm, L=3000mm,
    height
    60 mm
    width
    50 mm
    width 2
    30 mm
    length
    3000 mm
    Depth of flooring recess
    10 mm
    Weight per storage unit
    18.040 kg
    Included accessories
    More information
