UBKDB

Spacer

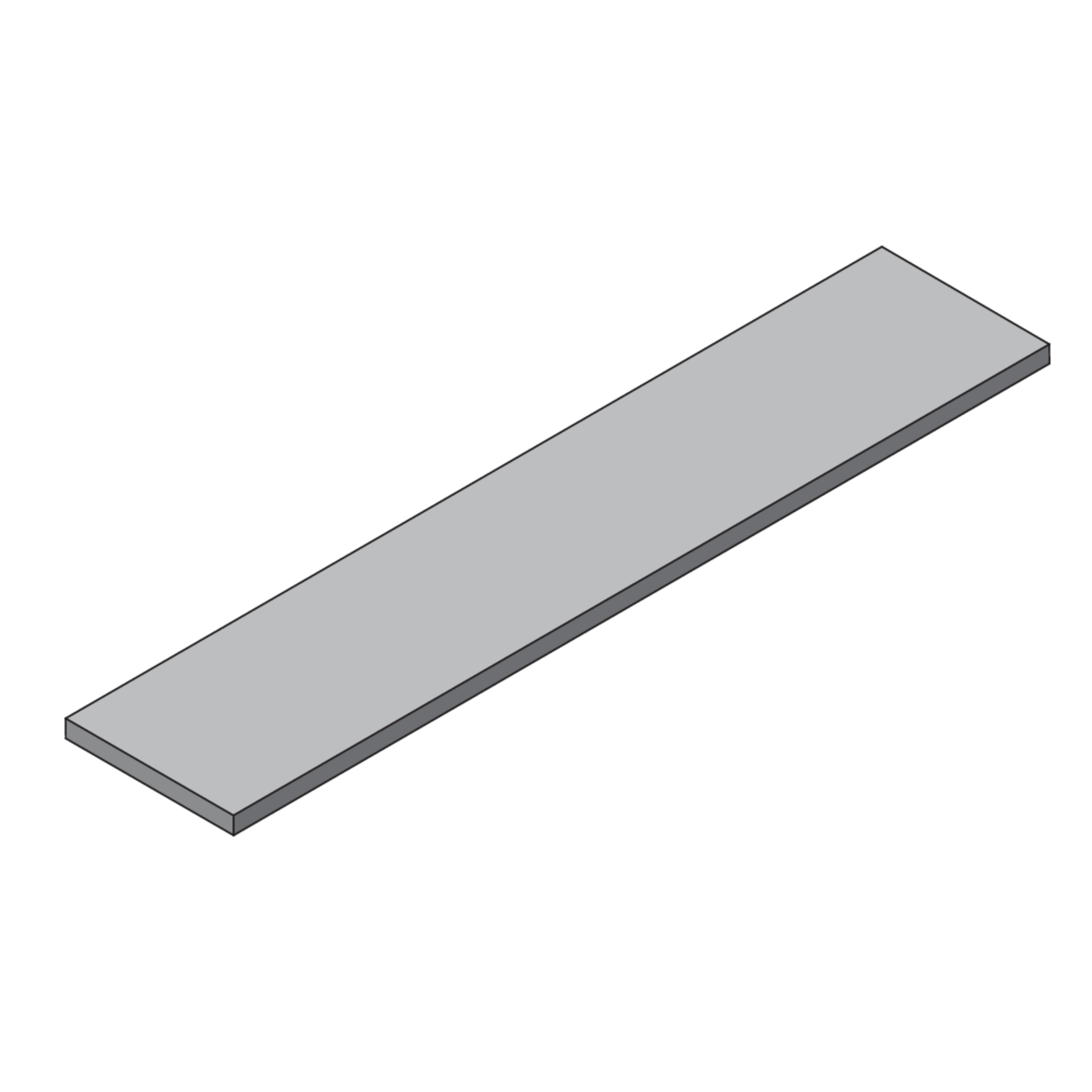

UBKDB components are spacer plates that are an element of screed-flush heavy-duty ducts. During installation, the sheets are inserted into the pre-assembled side profiles of the duct undersides before the screed is applied. They are removed again after the screed has hardened. They are made of sendzimir hot-dip galvanised sheet steel in accordance with DIN EN 10346. They are 60 mm long, made from material 4 mm thick and come in various widths.

Get in touchDownload datasheet

Variants

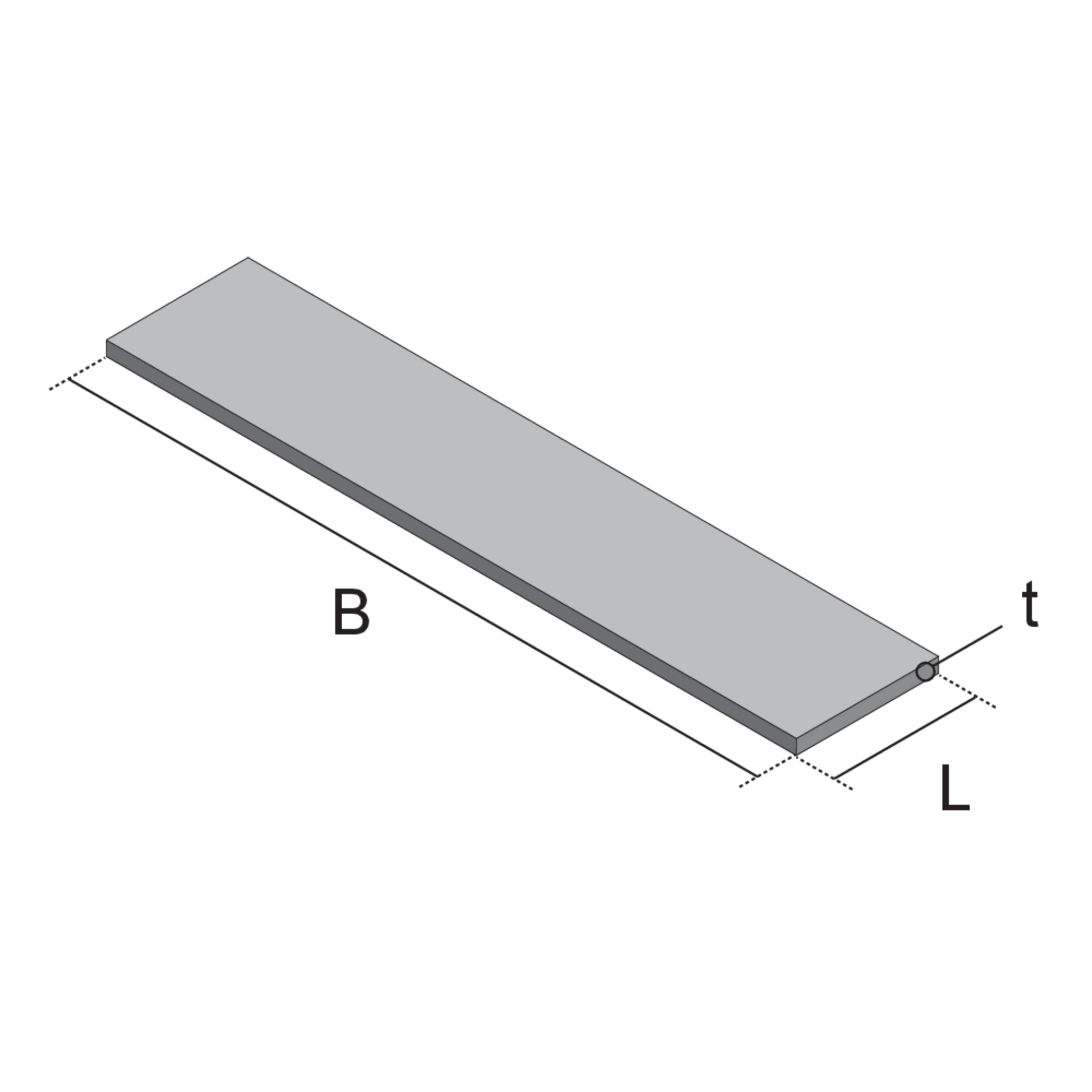

Article

B

width

L

length

t

material thickness

G

Weight per storage unit

  • UBKDB5 25
    spacer UBKDB5 25F
    width
    242 mm
    length
    60 mm
    material thickness
    4.00 mm
    Weight per storage unit
    0.456 kg
    More information
  • UBKDB5 35
    spacer UBKDB5 35F
    width
    342 mm
    length
    60 mm
    material thickness
    4.00 mm
    Weight per storage unit
    0.644 kg
    More information
  • UBKDB5 45
    spacer UBKDB5 45F
    width
    442 mm
    length
    60 mm
    material thickness
    4.00 mm
    Weight per storage unit
    0.833 kg
    More information
  • UBKDB8 25
    spacer UBKDB8 25F
    width
    254 mm
    length
    60 mm
    material thickness
    4.00 mm
    Weight per storage unit
    0.479 kg
    More information
  • UBKDB8 35
    spacer UBKDB8 35F
    width
    354 mm
    length
    60 mm
    material thickness
    4.00 mm
    Weight per storage unit
    0.667 kg
    More information
  • UBKDB8 45
    spacer UBKDB8 45F
    width
    454 mm
    length
    60 mm
    material thickness
    4.00 mm
    Weight per storage unit
    0.855 kg
    More information
