UBKIB

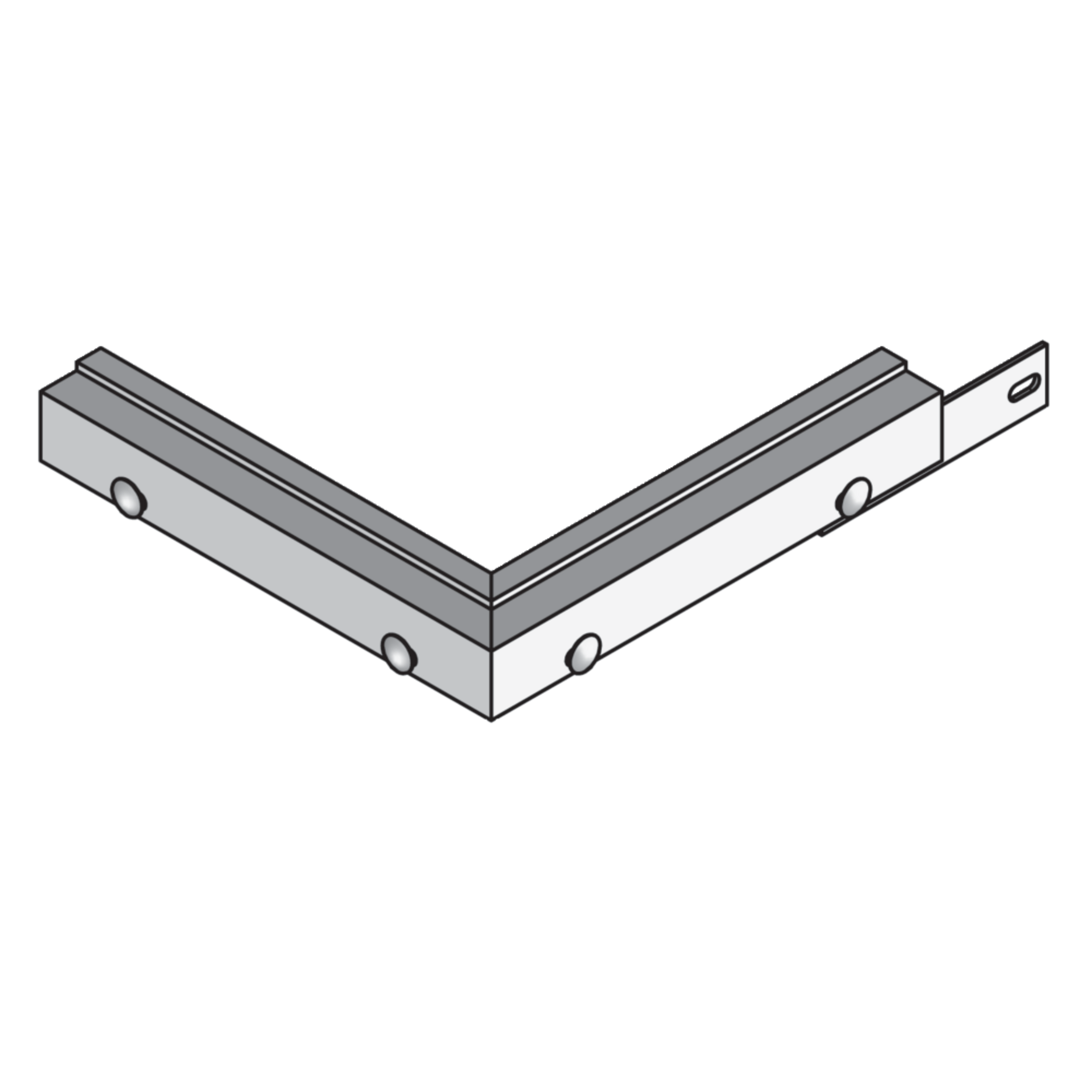

Profile inside bend

UBKIB components are profile internal bends for screed-flush heavy-duty ducts. These bends are used to create formed parts, e.g. branches, by hooking them into the duct bases and side profiles. They are made of hot-dip galvanised steel in accordance with DIN EN ISO 1461 and are supplied with the UBKPRV connector, four round-head bolts with square FRS 8X25 in accordance with DIN 603 and four nuts with flange SEMS 8 in accordance with DIN EN 1661. The profile bends are 300 mm long and come with UBKV connectors as suitable mounting parts.

Get in touchDownload datasheet

Variants

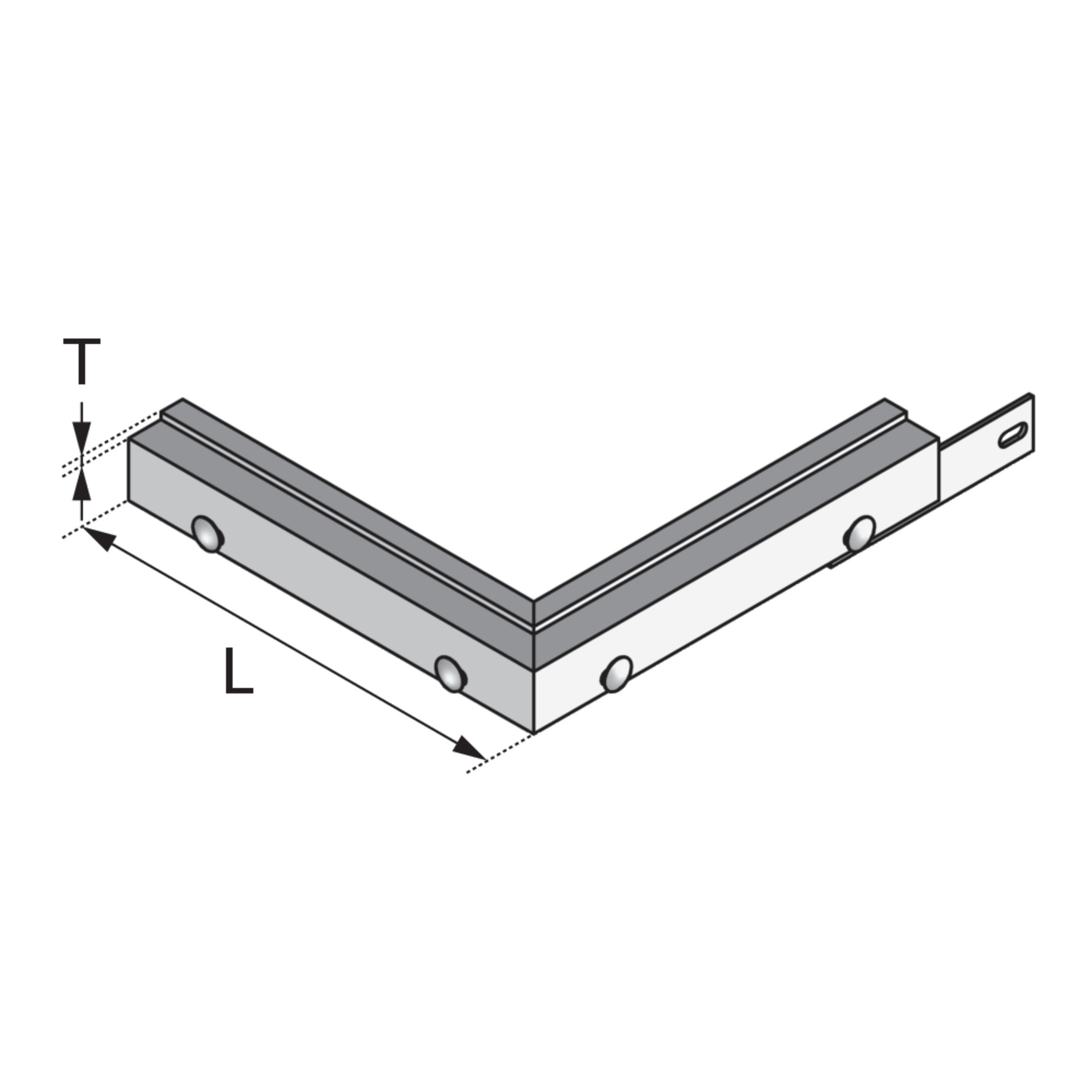

Article

L

length

T

Depth of flooring recess

G

Weight per storage unit

Included accessories
  • UBKIB5F
    inward profile bend D=5mm,
    length
    300 mm
    Depth of flooring recess
    5 mm
    Weight per storage unit
    2.460 kg
    Included accessories
    More information
  • UBKIB8F
    inward profile bend D=7mm,
    length
    300 mm
    Depth of flooring recess
    7 mm
    Weight per storage unit
    3.000 kg
    Included accessories
    More information
  • UBKIB10F
    inward profile bend D=10mm,
    length
    300 mm
    Depth of flooring recess
    10 mm
    Weight per storage unit
    3.620 kg
    Included accessories
    More information
